Hole Designation Template

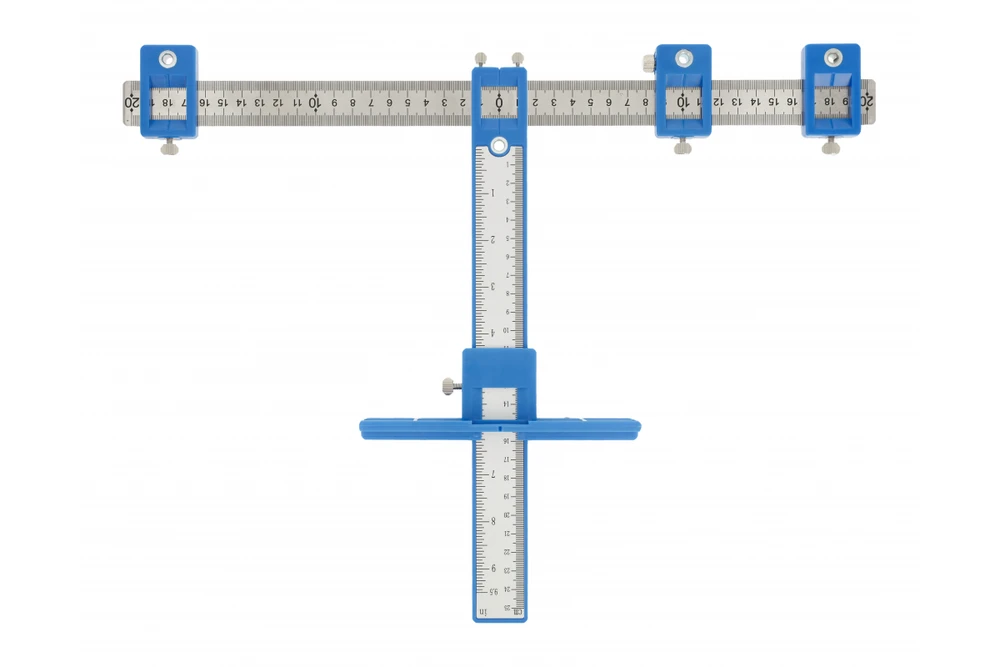

A template with slide is designed for precise marking of drilling points. It is mainly used in joinery.

The main rail with the measure applied allows points to be marked, up to 250 mm deep into the front of the furniture.

On the upper part of the tool, there is a movable steel rail on which three sliding markers are placed for precise marking of drilling points.

At the same time, it is possible to determine four holes at different distances from each other and, by blocking the settings, make markings for the holes in the next front.

The template makes it easy to mark drilling points in various materials, e.g. wood, metal, plastic.

The limiter located on the left clamp when set in a perpendicular position will stabilise the tool in a horizontal or vertical position. All 3 clamps have a clamping screw, so the set dimension can be reused on the next item to be marked.

The rail is made of stainless steel and aluminium, and the setting elements are made of high-quality ABS plastic.

• max. spacing of markings 400 mm;
• max. depth of marking in the front - 250 mm;
• hole diameter - 5 mm;
• units of measurement - cm/inch;
• material - aluminium, ADS.
