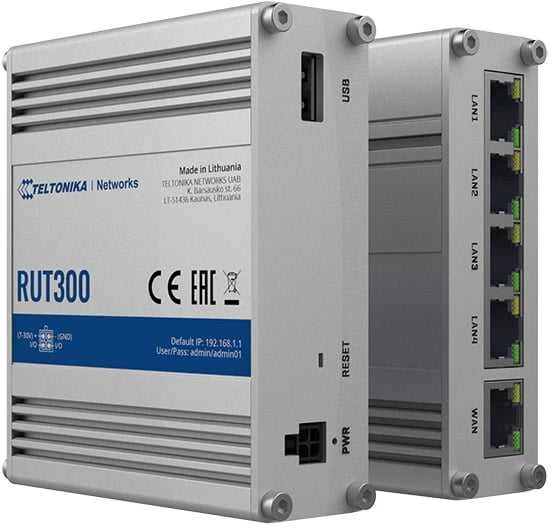

Name: TELTONIKA pramoninis maršrutizatorius LTE RUT300
Brand: Teltonika
SKU: 42481547
Price: 89.07 EUR
Availability: InStock

5 x Fast Ethernet prievadai (10/100 Mbps). 2 x konfigūruojami skaitmeniniai įėjimai / išėjimai ir USB 2.0
Daugybė VPN paslaugų, įskaitant OpenVPN, IPsec, PPTP, L2TP ir DMVPN, L2TP, DMVPN, Stunnel ir kt.
Iki 4096 VLAN IDs skirtų VLAN žymėjimams ir VLANS prievadams
Suderinamas su Teltonika Networks nuotoline valdymo sistema

Tinklas
WAN	1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
LAN	4 x LAN ports (can be configured as secondary WAN ports), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover

Internetas
Maršrutas	Static routes, Dynamic routes
Interneto protokolai	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
VoIP praėjimo parama	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Ryšio stebėjimas	Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Ugniasienė	Port forwards, traffic rules, NAT rules, custom rules
DHCP	Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM)	Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS	Supported >25 service providers, others can be configured manually
Tinklo atsarginės kopijos	Wired WAN options, each of which can be used as an automatic Failover
Load balancing	Balance Internet traffic over multiple WAN connections
SSHFS	Possibility to mount remote file system via SSH protocol

Saugumas
Autentifikavimas	Pre-shared key, digital certificates, X.509 certificates
Ugniasienė	Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Įsilaužimo prevencija	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag based VLAN separation
WEB filter	Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Prieigos kontrolė	Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN
OpenVPN	Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption	DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPSec	IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE	GRE tunnel
PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3 support
Stunnel	Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN	Method of building scalable IPsec VPNs
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP trap
JSON-RPC	Management API over HTTP/HTTPS
MODBUS	MODBUS TCP status/control
RMS	Teltonika Remote Management System (RMS)

Nustatymai
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW/configuration from server
RMS	Update FW/configuration for multiple devices at once
Nustatymų įsiminimas	Update FW without losing current configuration

USB
Duomenų perdavimas	USB 2.0
Nadojimas	Samba share, USB-to-serial
Išoriniai įrenginiai	Possibility to connect external HDD, flash drive, printer
Vidinės atminties formatas	FAT, FAT32, NTFS

Išėjimai/įėjimai
Configurable I/O	2 x Configurable digital Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA
Įvykiai	Email, RMS
I/O juggler	Allows to set certain I/O conditions to initiate event

Sistemos parametrai
Jungtys	4 pin industrial DC power socket
Įeinančios įtampos diapazonas	7 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)	Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Energijos sunaudojimas	Idle: 1.3 W, Max: 3 W

Fizinės sąsajos
Tinklas	5 x RJ45 ports, 10/100 Mbps
I/Os	2 x Configurable digital Inputs/Outputs on 4 pin power connector
LED indikatoriai	5 x ETH status, 1 x Power
Sistemos parametrai	1 x 4 pin DC connector
USB	1 x USB A port for external devices
Perkrovimas	Reboot/User default reset/Factory reset button

Fizinės Specifikacijos
Korpusas	Aluminium housing with DIN rail mounting option
Dydis	100 x 30 x 85 mm
Svoris	229 g
Montavimas	DIN rail, flat surface placement
