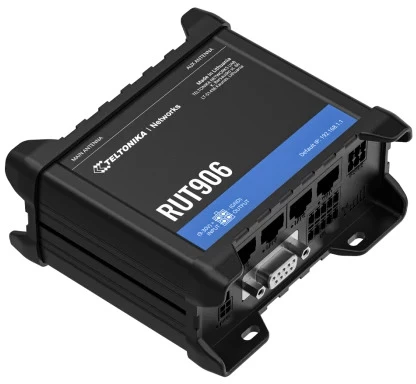

Maršrutizatorius Teltonika RUT906 LTE(4G), žema kaina

Pagrindinis

Mobilus modulis 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps

3GPP leidimas Release 10/11 depending on the hardware version

SIM 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

Statusas IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD Supports sending and reading Unstructured Supplementary Service Data messages

Juodasis/baltasis sąrašas Operator black/white list (by country or separate operators)

Grupės valdymas Band lock, Used band status display

SIM apsaugos nuo neveikimo paslauga When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then

APN Auto APN

Tiltas Direct connection (bridge) between mobile ISP and device on LAN

Perleidimas Router assigns its mobile WAN IP address to another device on LAN

Belaidžio ryšio režimas IEEE 802.11b/g/n, Access Point (AP), Station (STA)

Wi-Fi saugumas WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation

SSID/ESSID ESSID stealth mode

Wi-Fi vartotojai Up to 100 simultaneous connections

Belaidžio ryšio funkcijos Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Belaidis MAC filtras Whitelist, blacklist

Belaidis QR kodo generatorius Once scanned, a user will automatically enter your network without needing to input login information.

Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes

Maršrutas Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Interneto protokolai TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

VoIP praėjimo parama H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Ryšio stebėjimas Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Ugniasienė Port forward, traffic rules, custom rules

Ugniasienės būsenos puslapis View all your Firewall statistics, rules, and rule counters

Prievadų valdymas View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Tinklo topologija Visual representation of your network, showing which devices are connected to which other devices

Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes

DHCP Static and dynamic IP allocation, DHCP Relay

QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS Supported >25 service providers, others can be configured manually

Tinklo atsarginės kopijos Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Apkrovos balansavimas Balance Internet traffic over multiple WAN connections

SSHFS Possibility to mount remote file system via SSH protocol

Tinklas 4 x RJ45 ports, 10/100 Mbps

I/O’s 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector

LED indikatoriai 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)

Sistemos parametrai 1 x 4-pin power connector

Input/output 1 x 10-pin industrial socket for inputs/outputs

Antenos 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

USB 1 x USB A port for external devices

RS232 1 x DB9 socket

RS485 1 x 6-pin industrial socket

Perkrovimas Reboot/User default reset/Factory reset button
