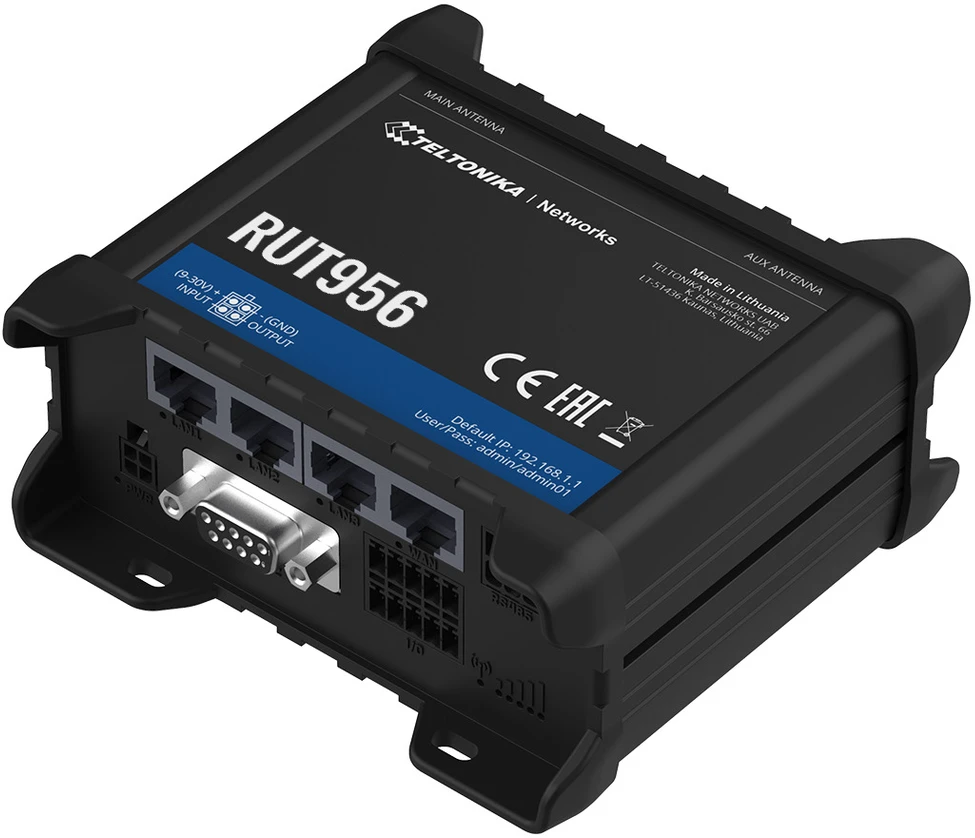

Maršrutizatorius Modemas Teltonika LTE RUT 956 LTE(4G), žema kaina

Pagrindinis

Statusas Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD Supports sending and reading Unstructured Supplementary Service Data messages

Juodasis/baltasis sąrašas Operator black/white list

Multiple PDN Possibility to use different PDNs for multiple network access and services

Grupės valdymas Band lock, Used band status display

APN Auto APN

Tiltas Direct connection (bridge) between mobile ISP and device on LAN

Perleidimas Router assigns its mobile WAN IP address to another device on LAN

Belaidžio ryšio režimas IEEE 802.11b/g/n, Access Point (AP), Station (STA)

Wifi apsauga WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation

SSID/ESSID SSID stealth mode and access control based on MAC address

WiFi naudojotai Up to 100 simultaneous connections

Belaidžio ryšio prieeiga Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Maršrutas Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)

Interneto protokolai TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

VoIP praėjimo parama H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Ryšio stebėjimas Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Ugniasienė Port forward, traffic rules, custom rules

DHCP Static and dynamic IP allocation, DHCP Relay, Relayd

QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS Supported >25 service providers, others can be configured manually

Tinklo atsarginės kopijos WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Apkrovos balansavimas Balance Internet traffic over multiple WAN connections

Hotspot Internal/external Radius server, captive portal, built in customizable landing page

SSHFS Possibility to mount remote file system via SSH protocol

Autentifikavimas Pre-shared key, digital certificates, X.509 certificates

Ugniasienė Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Įsilaužimo prevencija DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN Port and tag based VLAN separation

Mobiliųjų kvotų kontrolė Custom data limits for both SIM cards

WEB filtras Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Prieigos kontrolė Flexible access control of TCP, UDP, ICMP packets, MAC address filter

OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods

OpenVPN šifravimas DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)

GRE GRE tunnel

PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support

Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs code

DMVPN Method of building scalable IPsec VPNs

SSTP SSTP client instance support

ZeroTier ZeroTier VPN client support

WireGuard WireGuard VPN client and server support

ID range Respond to one ID in range [1;255] or any

Nuotolinės prieigos leidimas Allow access through WAN

Pasirinktiniai registrai MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

Palaikomos funcijos 01, 02, 03, 04, 05, 06, 15, 16

Palaikomi duomenų formatai 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

Supported baud rates From 300 to 115200

Palaikomos funcijos 01, 02, 03, 04, 05, 06, 15, 16

Palaikomi duomenų formatai 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Duomenų bitų skaičius From 5 to 8

Stop bitų skaičius 1 or 2

Parity None, Even, Odd

Flow None, RTS/CTS, Xon/Xoff

Duplex Full duplex

Palaikomos perdavimo spartos From 300 to 300000

Palaikomos funcijos 01, 02, 03, 04, 05, 06, 15, 16

Palaikomi duomenų formatai 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Duomenų bitų skaičius 8

Stop bitų skaičius 1

Parity None, Even, Odd

Flow None, Xon/Xoff

Duplex Half duplex

Protokolai HTTP(S), MQTT, Azure MQTT

MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker

Palaikomi režimai TCP Master, DNP3 Outstation, RTU Master

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

FOTA Firmware update from server, automatic notification

SSH SSH (v1, v2)

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET

Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off

TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT MQTT Broker, MQTT publisher

SNMP SNMP (v1, v2, v3), SNMP Trap

JSON-RPC Management API over HTTP/HTTPS

MODBUS MODBUS TCP status/control

RMS Teltonika Remote Management System (RMS)

Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability

ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to AzureIoTHub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

CPU Mediatek MIPS 24Kc 580 MHz

RAM 128 MB, DDR2

FLASH saugykla 16 MB, SPI Flash

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point

FOTA Update FW

RMS Update FW/configuration for multiple devices at once

Nustatymų įsiminimas Update FW without losing current configuration

Operacinė sistema RutOS (OpenWrt based Linux OS)

Kalbos Busybox shell, Lua, C, C++

Kūrėjo įrankiai SDK package with build environment provided

GNSS GPS, GLONASS, BeiDou, Galileo and QZSS

Koordinatės GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA NMEA 0183

NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Serverio programinė įranga Supported server software TAVL, RMS

Geotvoros Configurable multiple geofence zones

RS232 DB9 connector, full RS232 (with RTS, CTS)

RS485 RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate

Serial functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

Duomenų perdavimas USB 2.0

Nadojimas Samba share, USB-to-serial

Išoriniai įrenginiai Possibility to connect external HDD, flash drive, additional modem, printer

Vidinės atminties formatas FAT, FAT32, NTFS

Įvestis 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)

Išvestis 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

Įvykiai Email, RMS, SMS

I/O juggler Allows to set certain I/O conditions to initiate event

Jungtys 4-pin industrial DC power socket

Įeinančios įtampos diapazonas 9 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC

Energijos sunaudojimas < 2 W idle, < 7 W Max

Tinklas 4 x RJ45 ports, 10/100 Mbps

I/O's 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)

LED indikatoriai 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED

SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)

Sistemos parametrai 1 x 4-pin power connector

Input/output 1x 10 pin industrial socket for inputs/outputs

Antenos 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS

USB 1 x USB A port for external devices

RS232 1 x DB9 socket

RS485 1 x 6-pin industrial socket

Perkrovimas Reboot/User default reset/Factory reset button

Korpusas Aluminium housing, plastic panels

Dydis 110 x 50 x 100 mm

Svoris 287 g

Montavimas DIN rail (can be mounted on two sides), flat surface placement

Darbinė temperatūra -40 C to 75 C

Drėgmė 10% to 90% non-condensing

IP reitingas IP30

Reguliavimas CE/RED, UKCA, CB

Standartai EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Draft EN 301 489-19 V2.2.0, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019

ESD EN 61000-4-2:2009

RS EN 61000-4-3:2020

EFT EN 61000-4-4:2012

Atsparumas viršįtampiams (kintamosios srovės maitinimo linija) EN 61000-4-5:2014+A1:2017

CS EN 61000-4-6:2009

DIP EN IEC 61000-4-11:2020

Standartai EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.1.1
