Ši prekė
UGREEN „Nexode Pro“ 65W 3 prievadų GaN mini greitasis įkroviklis
| Pagrindinis | |
| Product Dimensions (W × H × D) | 92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'') |
| Pakuotės Matmenys (P × A × G) | 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58") |
| Svoris be įpakavimo | 0.307 kg (0.677 lb) |
| Svoris su įpakavimo | 0.807 kg (1.779 lb) |

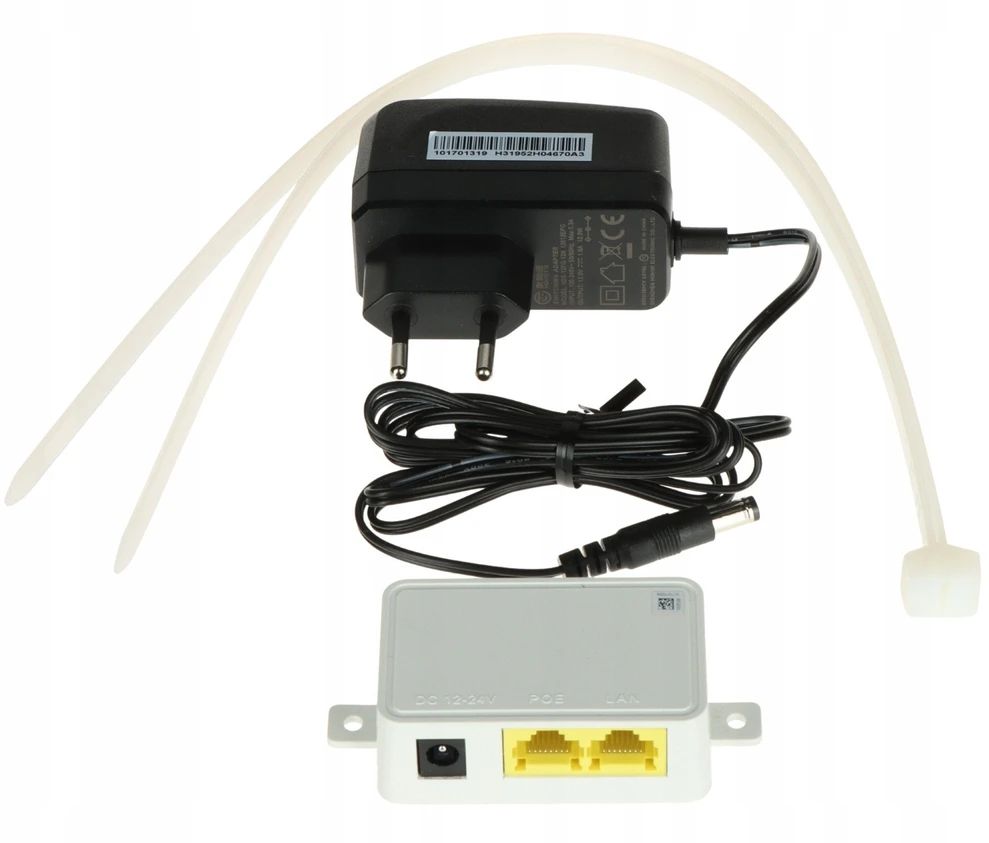

| Pakuotėje | Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,Quick Start Guide ×1 |
| Packing Method | Single unit packing |
| Darbinė temperatūra | -30 °C to 70 °C (-22 °F to 158 °F) |
| Atsparumas drėgmei | 5% to 95% (no condensation) |
| Sandėliavimo sąlygos temperatūra | -40 °C to 85 °C (-40 °F to 185 °F) |
| Sandėliavimo sąlygos drėgmė | 5% to 95% (no condensation) |

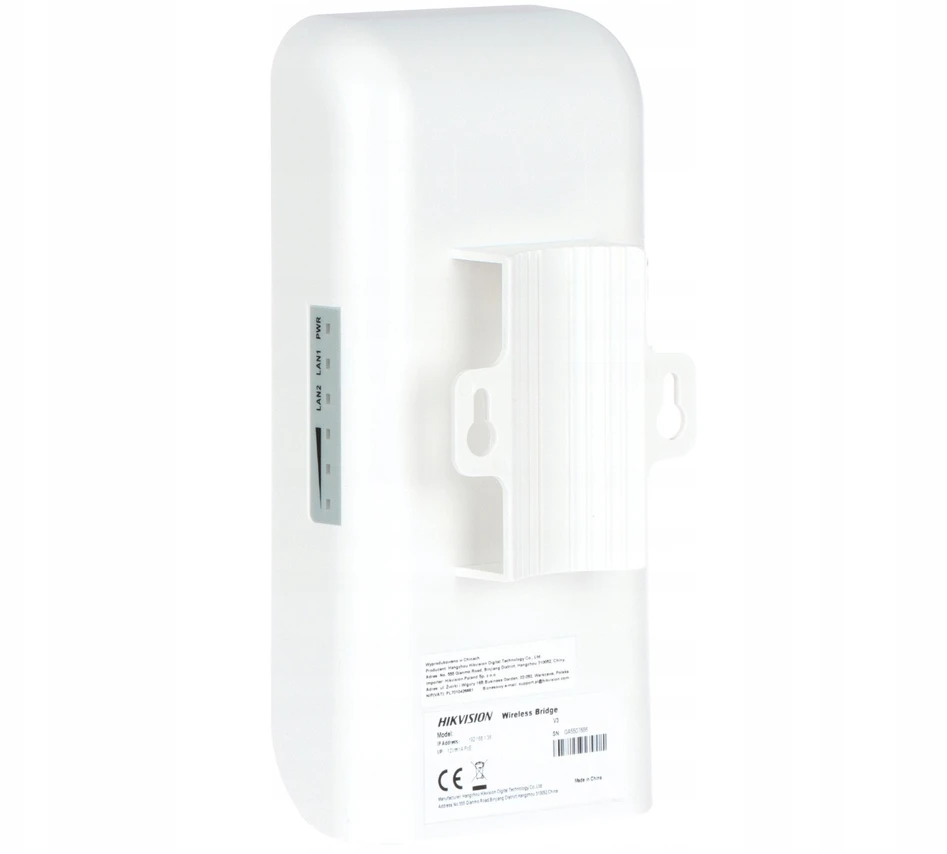

| Installation Mode | Pole Mounting |
| Ingress Protection | IP55 |
| Energijos sunaudojimas | 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W |
| Belaidžio ryšio parametrai | |
| Throughput Rate | Point to point: Support up to 4-ch IPC (2MP) in Max. 5 KM distance and Max. 20 Mbps bandwidth,Point to point: Support up to 40-ch IPC (2MP) in Max. 1 KM distance and Max. 200 Mbps bandwidth,Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 1 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection |
| Max. Transmission Rate of Air Interface | ≤ 867 Mbps |
| Belaidis standartas | IEEE 802.11/a/n/ac |
| Working Frequency Band | 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz |
| Antenos stiprinimas | 12 dBi |
| Antenna Angle | (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35° |
| Transmitting Power | 22 dBm (Note: Transmitting power may vary with local regulations.) |
| Receiving Sensitivity | -58±2 dBm@AC80-MCS9,-84±2dBm@AC80-MCS0 |
| Hardware Parameter | |
| Maitinimas | 12 VDC/1 A Passive PoE |
| Tinklo sąsaja | 2 × 1000 Mbps RJ45 ports |
| LED indikatorius | Power indicator,LAN indicator,Signal intensity indicator |
| Perkrovimas | Hardware resetting button |
| Programinės įrangos funkcijos | |
| Application Function | TDMA,DFS,TPC,IFM,IPM |
| Kanalo plotis | 20/40/80 MHz |
| Channel Selection | Auto/manual selection |
| Protokolai | NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging) |
| Security Mode | WPA2-PSK |
| Security Mechanism | Wireless network name hidden |
| Management Method | Web,iVMS-4200,HCP |
| Upgrade | Web,iVMS-4200,HCP |
| System Log | Syslog,Control center information |
| Patvirtinimai | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Saugumas | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Cheminis tyrimas | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
| Radio | EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247 |
