Maršrutizatorius Belaidis BRIDGE perdavimas Hikvision DS-3WF5000-SI-5ACG / 2P (5GHz, 867Mbps, 5km, 2 vnt.), žema kaina

Patvirtinimai
Cheminių komponentų sertifikavimas CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
Saugumas CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)

Bendra informacija
Bendras svoris 2.76 kg (6.08 lb)
Apsauga nuo dulkių ir drėgmės IP55
Installation Mode Wall Mounting,Pole Mounting
Grynasis svoris 0.54 kg (1.19 lb) per device
Pakuotės Matmenys (P × A × G) 341 mm × 360 mm × 100 mm (13.43" × 14.17" × 3.94")
Pakuotėje Wireless Bridge x 2, PoE Adapter (48.0V, 1.0A) x 2, Power Cord x 2, Universal Joint Nut x 2, Universal Joint x 2, Mounting Bracket x 2, Screw Pack x 2, Hose Clamp x 2, Quick Start Guide x 1, Regulatory Compliance and Safety Information x 1
Packing Method Packing in pairs
Energijos suvartojimas 3.5 W for typical (1-ch 2MP IPC), Max. 7.7 W

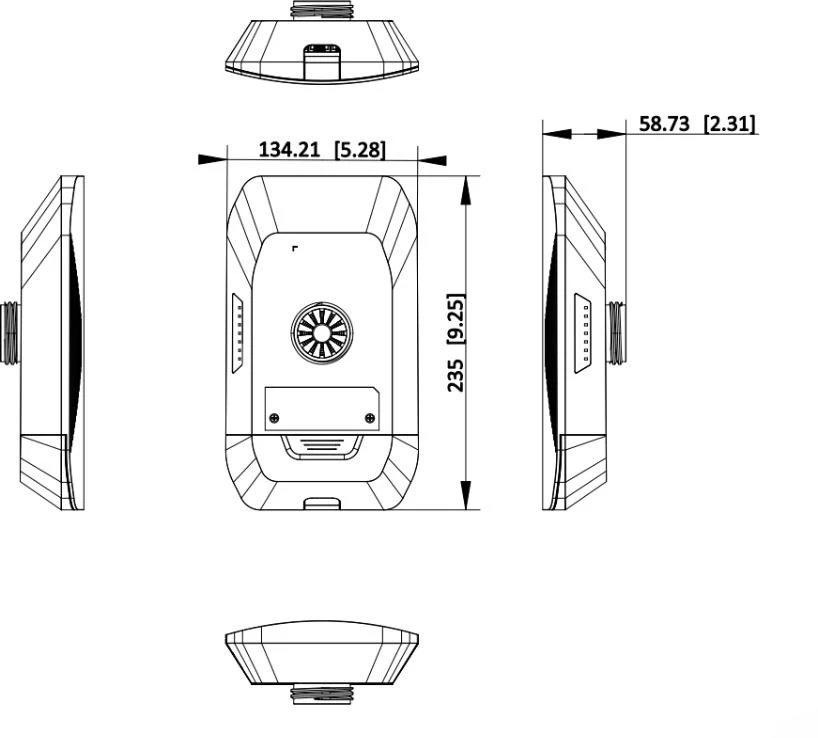

Produkto matmenys (P × A × G) 134.21 mm × 235.00 mm × 58.73 mm (5.28'' × 9.25'' × 2.31'')
Laikymo drėgmė 5% to 95% (no condensation)
Sandėliavimo temperatūra -40 °C to 80 °C (-40 °F to 176 °F)
Darbinė drėgmė 5% to 95% (no condensation)
Darbinė temperatūra -30 °C to 65 °C (-22 °F to 149 °F)

Hardware Parameter
LED indikatorius Power indicator,LAN indicator,Signal intensity indicator
Tinklo sąsaja 3 × 100/1000 Mbps RJ45 ports
Maitinimo šaltinis 48V PoE/12~24V DC;Check the physical interface image below for more details.
Perkrovimas Hardware resetting button

PoE
Maks. PoE prievadų galia 28 W
PoE Distance 100 m
PoE prievadas AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT, LAN3 802.3 af PoE OUT
PoE maitinimo biudžetas 40 W

Programinės įrangos funkcijos
Application Function IFM,IPM,DFS,TPC
Channel Selection Auto/manual selection
Kanalo plotis 20/40/80 MHz
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Reboot device2. Restore device3. Display the topology information4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending & receiving rate.5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power6. Bridge alignment7. Spectrum scanning8. PoE output management
Management Method HCP,Web,iVMS-4200,HPP
Protokolai NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
Security Mechanism Wireless network name hidden
Security Mode WPA2-PSK
Sistemos žurnalas Syslog,Control center information
Upgrade Web,iVMS-4200,HCP,HPP

Belaidžio ryšio parametrai
Antenna Angle (H) Beamwidth [3 dB] 32° (V) Beamwidth [3 dB] 17°
Antenos stiprinimas 16 dBi
Max. Transmission Rate of Air Interface ≤ 867 Mbps
Receiving Sensitivity -88 ±2dBm@AC80-MCS0
Throughput Rate PTP:290 Mbps/1 KM(AC80), 270 Mbps/3 KM(AC80), 250 Mbps/5 KM(AC80); PTMP(1 to 8): 150 Mbps/5KM(AC80)
Perdavimo galia 29 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.)
Belaidžio ryšio standartas IEEE 802.11/a/n/ac
Working Frequency Band 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
