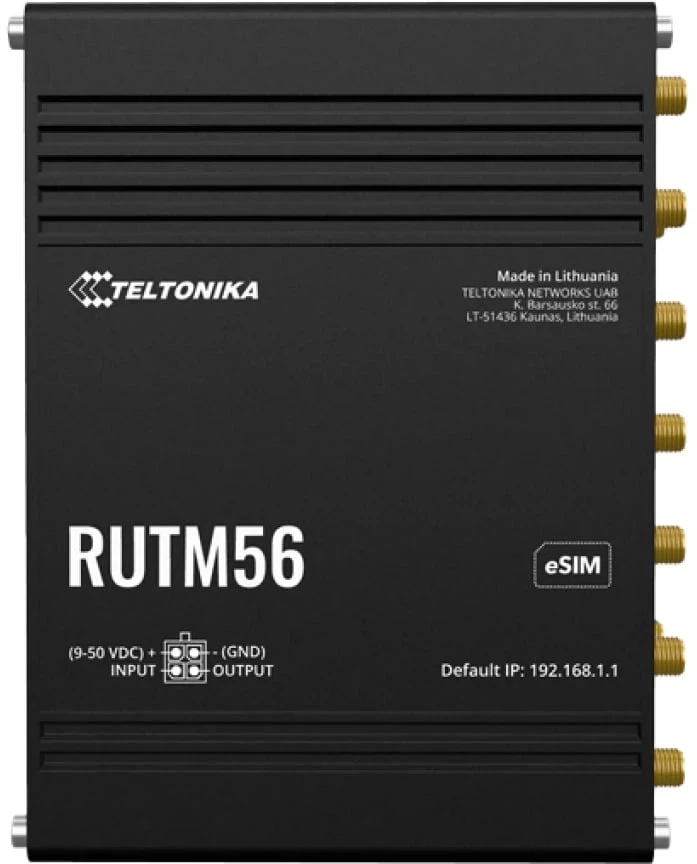

Maršrutizatorius 10 prievadų Teltonika RUTM56 DUAL 5 / 4G, žema kaina

Mobilus ryšys
Mobilus modulis Modem 1 : 5G Sub-6 GHz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO) 900/550Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 19 1.6Gbps (4x4 MIMO)/UL Cat 18 200Mbps; 3G DL 42Mbps UL 5.76Mbps
3GPP išleidimas Modem 1 : Release 16
eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch Allows dual-modem functionality with independent SIM switching for each modem. The SIM switch automatically transitions between the physical SIM and eSIM based on conditions such as weak signal, data limits, roaming, and network issues. Both physical SIMs can operate simultaneously, with switching restricted to each modem's SIM and eSIM ( For full failover functionality from 5G to 2G, two SIM cards are required. )
Statusas IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list Operator block/allow list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Grupės valdymas Band lock, Used band status display
SIM neaktyvumo apsaugos paslauga Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
SIM PIN kodo valdymas SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Tiltas Direct connection (bridge) between mobile ISP and device on LAN
Perleidimas Router assigns its mobile WAN IP address to another device on LAN
Framed routing Framed routing: support an IP network behind 5G UE

Bevielis ryšys
Belaidžio ryšio režimas 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wifi apsauga WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID ESSID stealth mode
Wi-Fi naudotojai Up to 150 simultaneous connections
Belaidžio ryšio funkcijos Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Belaidžio ryšio MAC filtras Allowlist, blocklist
Belaidžio ryšio QR kodų generatorius Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Tinklas
Maršrutas Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Protokolai TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP praėjimo parama H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Ryšio stebėjimas Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Ugniasienė Port forward, traffic rules, custom rules, TTL target customisation
Ugniasienės būsenos puslapis View all your Firewall statistics, rules, and rule counters
Prievadų valdymas View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Tinklo topologija Visual representation of your network, showing which devices are connected to which other devices
Viešosios interneto prieigos taškas Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / išmanusis eilių valdymas (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
DNS per HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Tinklo atsarginės kopijos Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Apkrovos balansavimas Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
VRF support Initial virtual routing and forwarding (VRF) support
Eismo valdymas Real-time monitoring, wireless signal charts, traffic usage history
Prievado atspindėjimas Mirroring network traffic on Ethernet ports for monitoring and analysis

Saugumas
802.1x Port-based network access control client
Autentifikavimas Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Ugniasienė Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Įsilaužimo prevencija DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobiliųjų kvotų kontrolė Custom data limits for SIM card
WEB filtras Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Prieigos kontrolė Flexible access control of SSH, Web interface, CLI and Telnet
TPM Identification and authentication module, TPM 2.0 standard
SSL sertifikatų generavimas Let's Encrypt and SCEP certificate generation methods

VPN
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN šifravimas DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA
Palaikomi režimai Client, Server
Supported connection types TCP

MODBUS
Palaikomi režimai Server, Client
Supported connection types TCP
Pasirinktiniai registrai MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Palaikomi duomenų formatai 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER
Protokolas HTTP(S), MQTT, Azure MQTT
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3
Palaikomi režimai DNP3 Station, DNP3 Outstation
Supported connection TCP

DLMS
DLMS Support DLMS - standard protocol for utility meter data exchange
Palaikomi režimai Client
Supported connection types TCP
COSEM Allows to scan meter COSEM objects for automatic detection and configuration

API
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
El. paštas Receive email message status alerts of various services
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)

IoT platformos
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

Sistemos Characteristikos
Procesorius MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH saugykla 16 MB serial NOR flash, 256 MB serial NAND flash

Nustatymai
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Nustatymų įsiminimas Update FW without losing current configuration
Gamykloje nustatytų parametrų atstatymas A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION
Operacinė sistema RutOS (OpenWrt based Linux OS)
Kalbos Busybox shell, Lua, C, C++
Kūrėjo įrankiai SDK package with build environment provided
GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager The Package Manager is a service used to install additional software on the device

Vietos nustatymas
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Koordinatės GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Serverio programinė įranga Supported server software TAVL, RMS
Geotvoros Configurable multiple geofence zones

Input / Output
įvestis 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
išvestis 1 x Digital Output, Open collector output, max output 50 V, 300 mA
Įvykiai Email, RMS, SMS
I/O jungiklis Allows to set certain I/O conditions to initiate event

Energija
Jungtys 4-pin industrial DC power socket
Įeinančios įtampos diapazonas 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (pasyvus) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Energijos naudojimas Idle: < 4.5 W, Max: < 12.5 W

Fizinės sąsajos
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Būsenos LED indikatoriai 4 x WAN type, 6 x Mobile connection type, 6 x Mobile connection strength, 10 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Energija 1 x 4-pin power connector
Antenos 6 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
Perkrovimas Reboot/User default reset/Factory reset button
Kita 1 x Grounding screw

Fizinės specifikacijos
Korpusas Anodized aluminum housing and panels
Matmenys (P x A x G) 132 x 44.2 x 95 mm
Svoris 515 g
Montavimas DIN rail, wall mount, flat surface (all require additional kit)

Darbo aplinka
Darbo temperatūra -40 °C to 75 °C
Drėgmė 10% to 90% non-condensing
IP reitingas IP30

Regulatory & Type Approvals
Reguliavimas CE, UKCA, EAC, EUCRF, WEEE
