Belaidis LAN maršrutizatorius Teltonika OTD144, žema kaina

Bendra

Mobile Module 4G LTE up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Mbps

3GPP versija Release 9

SIM Switch 2 SIM cards, auto-switch on weak signal, data/SMS limit, roaming, no network, network denied, connection fail, SIM idle protection

Status Parameters IMSI, ICCID, operator details, signal strength (RSSI, SINR, RSRP, RSRQ), connection state, data stats, LAC, TAC, Cell ID, bands, etc.

SMS Support for status, config, Email ↔ SMS, scheduled SMS, autoreply, HTTP gateway, SMPP

USSD Support Supports sending and reading USSD messages

Block/Allow List Operator block/allow list (country/operator-based)

Band Management Band lock and used band status display

SIM PIN Management Set, change, or disable SIM PIN

APN Auto APN

Bridge Mode Direct connection between mobile ISP and LAN device

Perleidimas Mobile WAN IP assignment to LAN device

Belaidžio ryšio režimas 802.11b/g/n (Wi-Fi 4), AP, STA

„Wi-Fi“ saugumas WPA2-Enterprise, WPA2-PSK, WPA3, OWE, TKIP, AES, EAP-TLS, 802.11w, MAC-based control

SSID/ESSID Options SSID stealth, MAC access control

Wi-Fi User Limit Up to 100 simultaneous users

Belaidžio ryšio privalumai Mesh (802.11s), Fast roaming (802.11r), Radio Resource Measurement (802.11k), BSS management (802.11v), client isolation, WMM

Wireless MAC Filter Allowlist, Blocklist

Wireless QR Code Auto-join by scanning QR

TravelMate Forwards hotspot landing page to next connected device

LAN 2 x 10/100 Mbps ETH ports (configurable as WAN), IEEE 802.3/3u/3az, auto MDI/MDIX

Maršruto parinkimas Static, BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy-based routing

Tinklo protokolai TCP, UDP, IPv4/IPv6, ICMP, NTP, DNS, HTTP(S), FTP, SMTP, ARP, VRRP, PPP(oE), UPNP, SSH, Telnet, SNMP, MQTT, WOL, VXLAN

VoIP Passthrough H.323 and SIP-ALG NAT helpers

Connection Monitoring Ping/Wget/LCP/ICMP-based reboot & link check

Firewall Features Port forwarding, traffic rules, TTL customization, custom rules

Firewall Status Page View rules, stats, counters

Prievadų valdymas View, enable/disable, auto-config, speed control

Network Topology Visual network map

DHCP Support Static/dynamic IP, relay, leases with MAC wildcards

QoS / SQM Traffic priority by source, protocol, service, WMM, 802.11e

DDNS >77 providers supported, manual config possible

DNS per HTTPS Secure DNS resolution via DoH proxy

Network Backup VRRP, Wired failover options

Viešosios interneto prieigos taškas Captive portal, Radius, SMS/SSO auth, themes, walled garden, URL params, group/user mgmt

SSHFS Remote file system mount over SSH

Eismo valdymas Real-time monitoring, usage history, signal charts

Autentifikavimas Pre-shared key, X.509 certs, TACACS+, RADIUS (internal/external), IP/login blocking, time-based login block

Firewall Config Preconfigured via WebUI, CLI custom firewall, DMZ, NAT, NAT64

Attack Prevention DDOS (SYN flood, SSH, HTTP attacks), port scan detection (SYN-FIN, X-mas, NULL, etc.)

VLAN Port/tag-based VLAN

Mobile Quota Control Data limit, period/start time, warning, phone number tracking

WEB Filter Block list & allow list for content control

Access Control Flexible access to SSH, Web, CLI, Telnet

Certificate Manager Create CA/server/client certs, Let’s Encrypt, SCEP support

802.1x Support Port-based network access control

OpenVPN Multiple clients & server support, 27 encryption methods

OpenVPN šifravimas All standard AES, DES, RC2, BF, CAST5, GCM, CFB, OFB, etc.

IPsec XFRM, IKEv1/v2, 14 encryption modes incl. AES-GCM, DES, 3DES

GRE GRE tunnel & GRE over IPsec support

PPTP/L2TP Client/server, L2TPv3, L2TP over IPsec

Stunnel Add TLS to any app without code change

DMVPN Supports Phases 2/3, dual hub

SSTP Client instance support

ZeroTier Client support

WireGuard Client and server support

Tinc Tunneling with encryption, auth, compression

OPC UA Client and Server, TCP support

Modbus MQTT Gateway MQTT <-> Modbus (read/write data via broker)

MODBUS Modes Client, Server

MODBUS TCP Custom register read/write to local files, extend functionality

MODBUS Formats INT, UINT (8/16/32-bit), HEX, ASCII, float, byte order variants

Data to Server Protocols HTTP(S), MQTT, Azure MQTT

Data to Server Capabilities Extract from multiple sources/protocols, send to one server, support LUA scripting

DNP3 Modes Station, Outstation

DNP3 Connection TCP

DLMS/COSEM Mode Client

DLMS Connection TCP

API Support Teltonika Web API (beta), configurable endpoints

Web UI HTTP(S), FW updates, status, event logs, CLI, troubleshooting

FOTA Firmware update from server, auto notifications

SSH Support SSH v1/v2

El. pašto įspėjimai Status alerts for services

SMS Control Status, config

Call Functions Reboot, data toggle, output control, call timer

TR-069 Compatibility OpenACS, GenieACS, AVSystem, etc.

MQTT MQTT broker & publisher

SNMP Support v1/v2/v3, trap, brute force protection

JSON-RPC API over HTTP(S)

RMS Teltonika Remote Management System

ThingWorx Monitoring WAN, IP, operator name/type/signal

Cumulocity Monitoring Model, firmware, SIM info, cell ID, reboot/firmware action

Azure IoT Hub Parameter sync, direct method API, zero-touch provisioning

AWS IoT Core Jobs-based API control, cloud interaction

Procesorius Mediatek 580 MHz, MIPS 24KEc

RAM 128 MB

FLASH Storage 16 MB

Firmware Update Methods Web UI, FOTA, RMS

Keep Settings FW update without losing configuration

Gamyklinis atstatymas Restore to manufacturer defaults

Firmware Customization RutOS (OpenWRT), branding, UI/logo customization

Palaikomos kalbos Bash, Lua, C/C++, Python, Java (via package)

SDK SDK build environment provided

Package Manager Install additional software

PoE In 1 x PoE In, 802.3af/at

PoE išvestis 1 x PoE Out, 802.3af Alternative B, Max 15 W

Maitinimo jungtis RJ45 Socket

Įvesties įtampos diapazonas 42.5–57.0 VDC, surge and polarity protection

Energijos suvartojimas Idle < 2.5 W; Max < 6 W; PoE Max < 21 W

Ethernet Interfaces 2 x RJ45, 10/100 Mbps

Būsenos LED indikatoriai 3 x Mobile type, 3 x signal strength, 4 x ETH status

SIM Slots 2 x Mini SIM (2FF), 1.8/3 V

Antenos 2 x Internal

Antenna Specs 2 x 698-960/1710-2690 MHz, 50 Ω, VSWR < 3, gain < 4.5 dBi

Reset Options Reboot, user default, full factory reset

Korpuso medžiaga Plastic (PC+ASA)

Matmenys 110 x 49.30 x 235 mm

Svoris 315 g

Tvirtinimo parinktys Bracket for wall or pole

Darbinė temperatūra -40 °C to 75 °C

Darbo drėgmė 10% to 90% non-condensing

IP klasė IP55

Reguliavimas CE, UKCA, CB, RCM, WEEE, EAC, UCRF

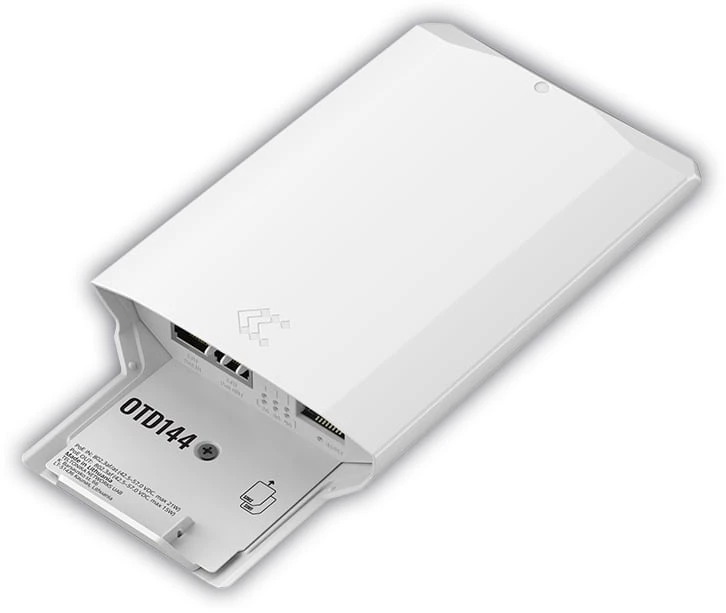

Belaidis LAN maršrutizatorius Teltonika OTD144
