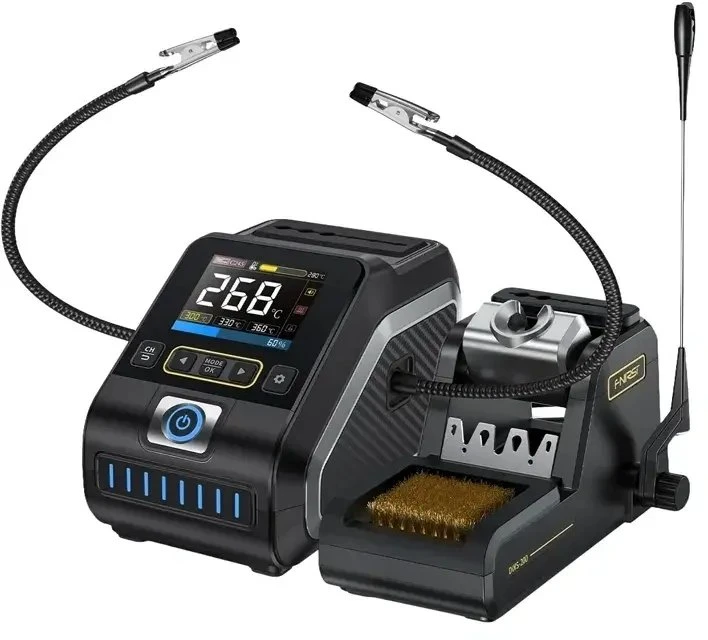

FNIRSI DWS-200F 200W soldering station
Precise, fast, and built for heavy-duty use—the FNIRSI DWS-200F soldering station is designed for both demanding hobbyists and electronics professionals. With a maximum power of 200 W, instant heating, intelligent temperature stabilization, and a clear color display, this unit ensures comfort at every stage of the work. Compatibility with two types of soldering tips, extensive parameter monitoring features, and automatic sleep mode translate into ease of use and longer tip life. The package is rounded out by a well-equipped workstation that allows you to start soldering right away.
Instant heating and stable temperature
The FNIRSI DWS-200F offers up to 200 W of power, allowing it to reach operating temperature instantly. It takes only about one second to heat the tip, and the solder melts in about three seconds, which significantly streamlines even the most demanding tasks. A precise PID algorithm is responsible for maintaining the set temperature; it constantly analyzes operating parameters and automatically adjusts them. The adjustment range from 100°C to 450°C allows you to easily adapt the settings to various types of electronic components and solder alloys, and the ability to quickly switch between Celsius and Fahrenheit temperature units enhances user convenience.
Easy-to-read display and smart features
The station is equipped with a 2.8-inch HD TFT color display that provides a clear overview of all key operating parameters. You can choose from three display modes: the temperature value alone, a dynamic graph showing temperature changes, or a combination of both views. The device continuously monitors temperature and power, allowing you to keep a constant eye on the operation. There are also three factory-preset temperature settings (150°C, 330°C, and 450°C) that allow you to instantly switch between the most commonly used values.
Ease of use and greater durability
The DWS-200F model is equipped with a feature that automatically puts the device into sleep mode when the soldering iron is placed on its stand. This feature reduces unnecessary heating of the tip, minimizes wear, and helps extend its service life. The device also incorporates a range of safety features, such as electrostatic discharge protection and short-circuit protection, enhancing the safety of both the station itself and the components being soldered. The wide voltage range of 100 to 240 V allows you to use the device in various conditions without the need for additional adapters.
Wide compatibility and practical features
The station is compatible with the F210 and F245 soldering irons, allowing you to easily adapt the configuration to the type of work you’re performing. The station features a new 7-pin interface instead of the previous 5-pin one, which improves connection stability, signal transmission quality, and compatibility with a wider range of applications. However, please note that the new interface is not compatible with older models. The set also includes a functional metal stand with an adjustable tray, a slot for quick tip removal, storage slots for tips, a connection cable, and a holder for the soldering iron cord, creating a convenient and well-organized workstation.
Included in the set
-
FNIRSI DWS-200F soldering station
-
2 × flexible arm with alligator clip
-
F210 soldering iron
-
Connection cable
-
Power cord
-
3 × T210 soldering tip
-
User manual
|
Manufacturer
|
FNIRSI
|
|
Model
|
DWS-200F
|
|
Display
|
2.8" TFT
|
|
Temperature range
|
100°C to 450°C
|
|
Peak power
|
200 W
|
|
Input voltage
|
100–240 V AC
|
|
Input fuse
|
3 A
|
|
Compatible soldering irons
|
F210, F245
|
|
Dimensions
|
156 × 96 × 103 mm
|
|
Weight
|
475 g
|
