Phanteks XT View Matrix PC Case,...

Mid-tower with panoramic view, GPUs up to 415 mm, CPU coolers up to 184 mm, motherboards up to E-ATX compatible, with back-connect design

With the Phanteks XT View Matrix , you can build a tidy and well-thought-out gaming PC. The case features two large tempered glass panels without a centre bar, giving you an unobstructed view of your hardware. It supports current components such as E-ATX motherboards, large graphics cards, and many fan and radiator options. Ideal for anyone wanting a clean setup: boards with rear connectors like ASUS BTF, MSI Project Zero, or GIGABYTE Project STEALTH fit perfectly. The highlight is the integrated matrix display with 600 LEDs, which can be customised in many ways.

Plenty of space for high-end hardware: Supports Mini-ITX to E-ATX
Generous GPU compatibility: Graphics cards up to 415 mm in length
Strong airflow: Up to nine fans and three radiators
Panoramic view: large glass surfaces without obstructive bars
600-LED matrix: Displays, effects, and animations possible

Phanteks XT View Matrix: Made for current gaming hardware

The XT View Matrix PC case offers plenty of room for your dream setup: Mini-ITX to E-ATX boards fit easily, including motherboards with rear connectors. The CPU cooler height of 184 mm allows the use of large air coolers. Thanks to seven PCIe slots and 415 mm of space for graphics cards, you can install even large GPUs without any problems.

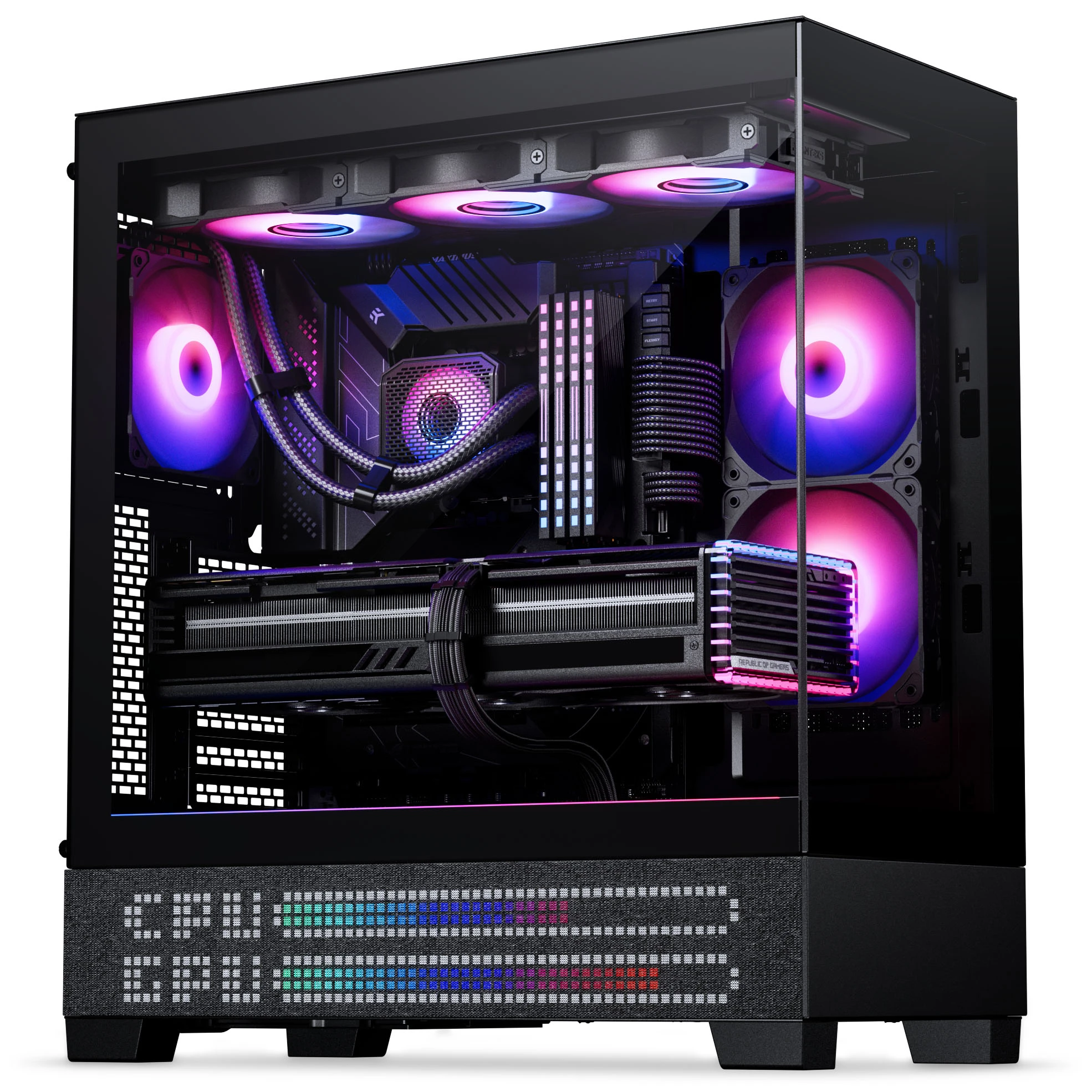

A clear look through glass and clean cable management

The glass front and glass side are made completely without bars. This gives you a 270-degree view of your hardware. With clever cable management, you can easily hide all the necessary cables, ensuring unobstructed airflow and an extremely clean look.

A special highlight is the integrated LED panel with 600 LEDs. Hidden behind a fabric surface, it displays system information, time, text, or animations. This gives your PC a personalised touch.

Great flexibility for fans and radiators

Up to nine 120 mm fans and three radiators can be installed. Whether air or water cooling – you design your system exactly as you need it.

Strong cooling, perfect for high-performance hardware

Top: three 120 mm fans or two 140 mm fans / radiator up to 360 mm
Side: two 120 mm fans or 240 mm radiator (requires vertical GPU)
PSU chamber: three 120 mm fans for direct GPU ventilation
Rear: 120 mm radiator or 120/140 mm fan

This keeps your PC stable even under heavy load – whether air or water cooled.

NEXLINQ: Easy control for cooling & lighting

The XT View Matrix is part of the Phanteks NEXLINQ system. Through this, you connect fans, coolers, and RGB lighting to a hub and control everything conveniently via software. You can set automatic or custom fan curves and adjust your lighting colours – for quiet operation and a coherent appearance.

Mid-tower supporting back-connect motherboards

Additionally, motherboards from Mini-ITX to E-ATX – including models with back connect such as ASUS BTF, MSI Project Zero, and GIGABYTE Project STEALTH are supported . This keeps the interior especially tidy.

Modular I/O panel

The I/O panel is located on the top of the case. This allows the case to fit perfectly on your desk and gives you easy access to the ports.

Specification

Colour
Primary Colour	Black
Dimensions
Length / Depth	440 mm
Width	230 mm
Height	500 mm
Weight	7.91 kg
Case
Case Type	Mid Tower
Motherboard Support
Compatible Motherboard Formats	ATX, E-ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format	E-ATX
Internal Dimensions
Max. CPU Cooler Height	184 mm
Max. GPU Length	415 mm
Max. GPU Width	184 mm
Max. PSU Length / Depth	270 mm
Display
Display Included	Yes
Display Resolution	600 Pixel
Display Panel Type	LED Panel
Power Supply
PSU included	No
PSU Format	ATX
Power Supply Position	rear bottom
Cable Specifications
Riser Cable Included	No
Fan Support
Case Fan Support (Bottom)	120mm Fan (3x)
Case Fan Support (Rear)	120mm Fan (1x), 140mm Fan (1x)
Case Fan Support (Side)	120mm Fan (2x)
Case Fan Support (Top)	120mm Fan (3x), 140mm Fan (2x)
Max. Number of Fans	9
120 mm fans	9
140 mm fans	4
Radiator Support
Max. Radiator Compatibility	1x Triple (360 mm), 1x Dual (240 mm), 1x Single (120 mm)
Radiator/AIO Support (Rear)	120mm Radiator
Radiator/AIO Support (Side)	240mm Radiator
Radiator/AIO Support (Top)	360mm Radiator
Drive Bays
Max. 2.5 Inch Drives	5
Max. 3.5 Inch Drives	2
Max. 5.25 Inch Drives	0
2.5 inch internal drive bay	5
3.5 inch internal drive bay	2
Hot swap drive bays	No
External Ports
Front I/O – USB Type C Ports Total	1
Front I/O – USB Type A Ports Total	1
USB 3.2 (external) Type C	1
USB 3.0 (external) Type A	1
Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Case Features
I/O position	Top
Side panel	with window
Vertical GPU Mount	No
Adjustable Vertical GPU Bracket	No
Front door	No
Cable Management	Yes
Filters Included	Yes
Filter Position	Top
Noise dampening	No
Mainboard slide / tray	No
Transport System	No
Back Connect
Back Connect	Yes
Back-Connect Compatibility	ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
Expansion Slots
Expansion slots / PCI slots	7
Features
Housing Feedthrough	No
Connectivity
Card reader	No
Fan Header
Fan Controller / Fan Hub	No
Mounting
Case VESA Mountable	No
Internal Monitor Mount	No
Materials
Materials	Steel, Tempered Glass
Lighting
Lighting / RGB	Yes
RGB Controller	Yes
RGB Type	ARGB / DRGB
Lighting Colour	RGB
Product Series
Product Series/Family	XT View
Additional Contents
Fans Included	Yes
Included fans	3x 120 mm
