Phanteks Evolv X2 Matrix PC Case,...

Midi tower with three glass panels, GPUs up to 380 mm, CPU coolers up to 170 mm, motherboards up to E-ATX compatible, with back-connect designs

With the Phanteks Evolv X2 Matrix , you can build a showpiece gaming system with plenty of room for current high-end hardware. The case supports E-ATX motherboards, large graphics cards, and powerful cooling. Motherboards with back connect such as ASUS BTF and MSI Project Zero ensure a tidy interior. Three glass panels provide a clear view of your setup. Additionally, there is a pixel matrix with 900 LEDs on the case floor.

Spacious mid-tower: Perfect for current hardware
Compatible with back-connect boards: ASUS BTF & MSI Project Zero
Vertical cooling: Space for up to seven 120mm fans
GPU compatibility: Graphics cards up to 380 mm in length
Clean look: Three large glass panels to showcase your hardware
Matrix with 900 LEDs: Displays & effects fully customisable

Phanteks Evolv Series X2: Showcase case for powerful hardware

The interior offers space for Mini-ITX up to E-ATX motherboards and also supports boards with rear connections. This keeps the interior neat and organised. Eight PCIe slots and 380 mm of space for your GPU make installing large graphics cards easy.

A PC case that wants to be seen

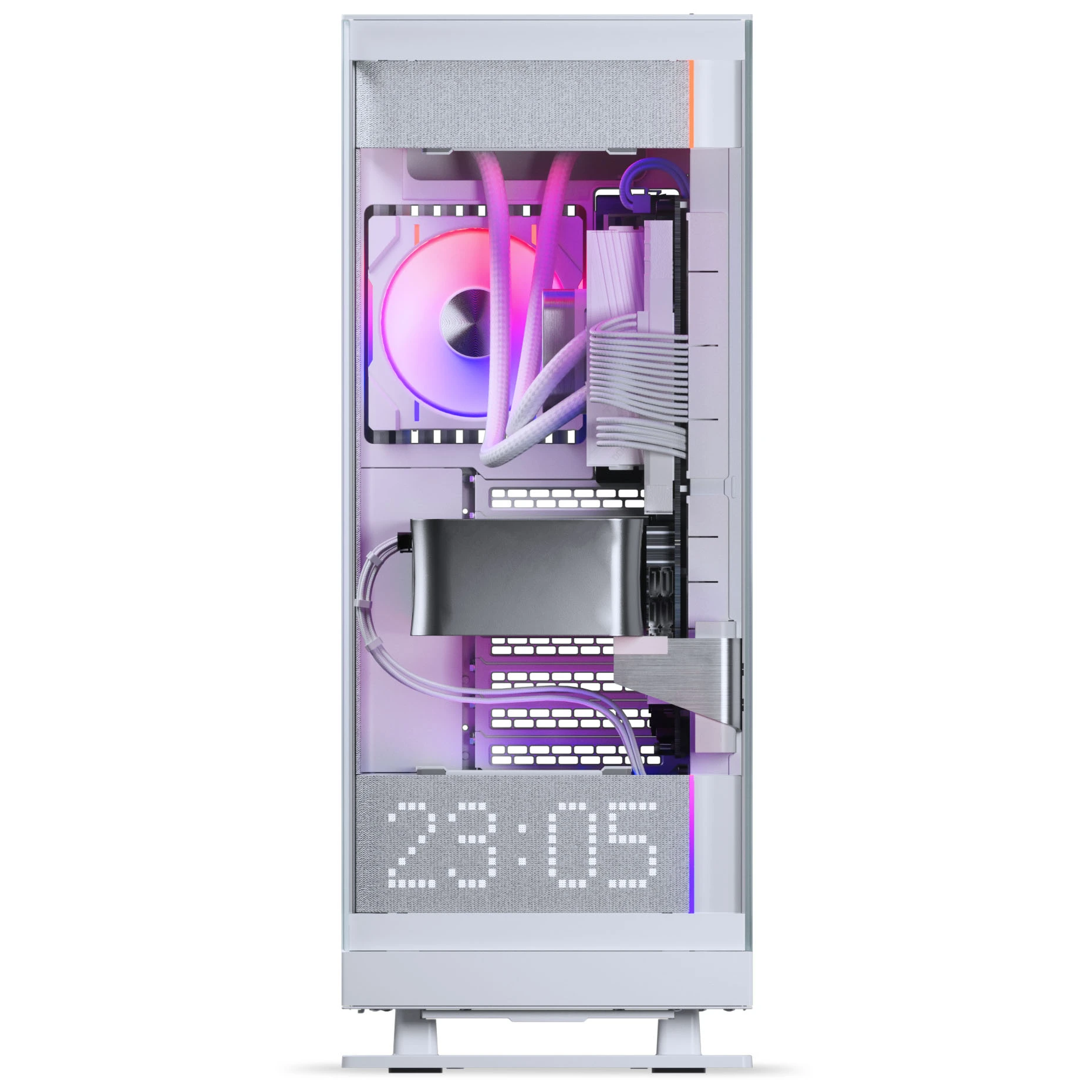

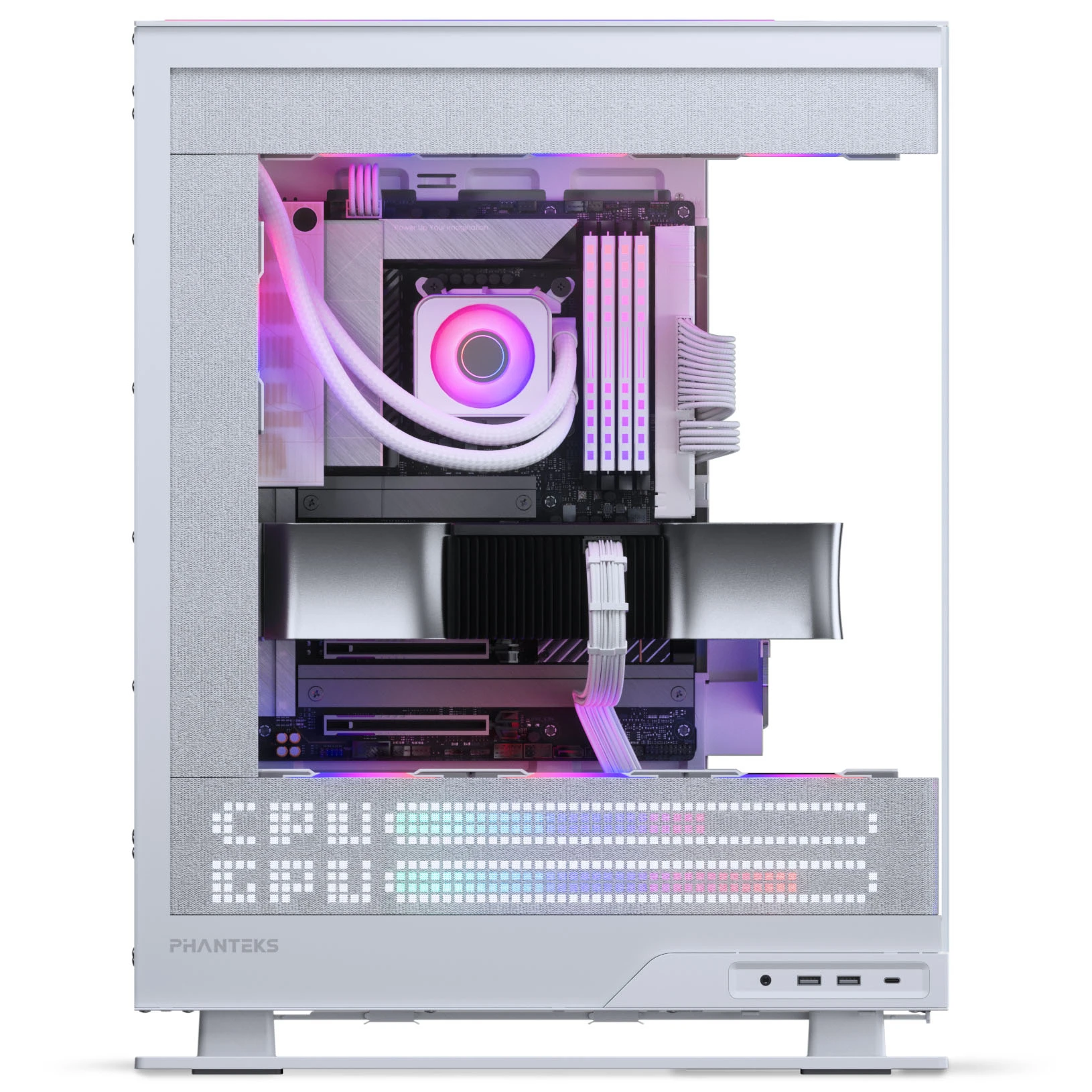

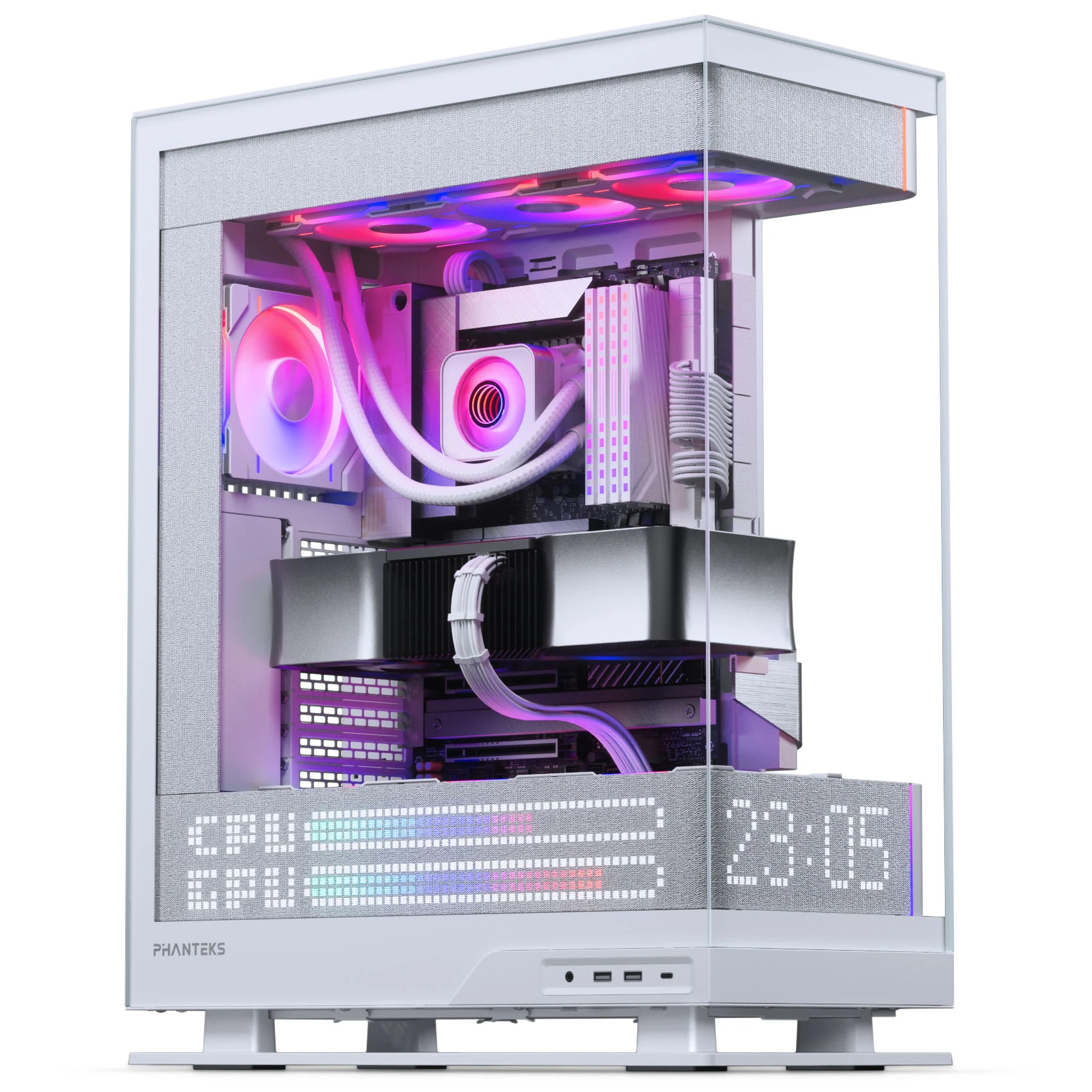

Three large glass exterior panels give you an unobstructed view of your components. Metal covers hide fans and accessories, making your hardware appear almost floating. The LED matrix display runs along the front and right side at the case floor, showing system information or animations.

Whether temperature displays, time, or custom texts – you can easily customise the screen to your style, making it a real eye-catcher in your gaming setup.

Powerful cooling through vertical airflow

The case uses a vertical cooling design: cool fresh air enters from below and exits at the top as warm exhaust air. Up to seven 120mm fans can be installed, all hidden within the panels for a clean look.

Powerful & quiet cooling options

Bottom: three 120mm fans
Top: three 120mm fans / radiator up to 360 mm
Rear: one 120mm fan

With a CPU cooler height of 170 mm, a large tower cooler is also possible. For AiO users, a 360 mm radiator fits perfectly into the top panel.

NEXLINQ: Easy control for fans & lighting

The Evolv X2 Matrix is part of the NEXLINQ ecosystem. Fans, coolers, and RGB elements are connected via a hub and conveniently controlled through software. You can use automatic or custom fan curves and adjust the lighting colours.

Mid-tower with support for back-connect motherboards

It also supports motherboards from Mini-ITX to E-ATX – including models with back connect such as ASUS BTF, MSI Project Zero, and GIGABYTE Project STEALTH . This keeps the interior especially tidy.

Modular I/O panel

The I/O panel is located at the bottom on the side. This allows the case to fit optimally to your desk, and you can easily reach the ports.

Specification

Colour
Primary Colour	White
Dimensions
Length / Depth	454 mm
Width	228 mm
Height	588 mm
Weight	14.6 kg
Case
Case Type	Mid Tower
Motherboard Support
Compatible Motherboard Formats	ATX, E-ATX, ITX, Micro-ATX
Max. Motherboard Format	E-ATX
Internal Dimensions
Max. CPU Cooler Height	170 mm
Max. GPU Length	380 mm
Max. GPU Width	170 mm
Max. PSU Length / Depth	250 mm
Display
Display Included	Yes
Display Resolution	900 Pixel
Display Panel Type	LED Panel
Power Supply
PSU included	No
PSU Format	ATX
Power Supply Position	rear bottom
Cable Specifications
Riser Cable Included	No
Fan Support
Case Fan Support (Bottom)	120mm Fan (3x)
Case Fan Support (Rear)	120mm Fan (1x)
Case Fan Support (Top)	120mm Fan (3x)
Max. Number of Fans	7
120 mm fans	7
Radiator Support
Max. Radiator Compatibility	1x Triple (360 mm)
Radiator/AIO Support (Top)	360mm Radiator
Drive Bays
Max. 2.5 Inch Drives	5
Max. 3.5 Inch Drives	2
Max. 5.25 Inch Drives	0
Hot swap drive bays	No
External Ports
Front I/O – USB Type C Ports Total	1
Front I/O – USB Type A Ports Total	2
USB 3.2 (external) Type C	1
USB 3.0 (external) Type A	2
Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Case Features
I/O position	Side
Side panel	with window
Vertical GPU Mount	No
Adjustable Vertical GPU Bracket	No
Front door	No
Cable Management	Yes
Filters Included	Yes
Filter Position	Bottom, Top
Noise dampening	No
Mainboard slide / tray	No
Transport System	No
Back Connect
Back Connect	Yes
Back-Connect Compatibility	ASUS BTF, MSI Project Zero
Expansion Slots
Expansion slots / PCI slots	8
Features
Housing Feedthrough	No
Connectivity
Card reader	No
Fan Header
Fan Controller / Fan Hub	No
Mounting
Case VESA Mountable	No
Internal Monitor Mount	No
Materials
Materials	Steel, Tempered Glass
Lighting
Lighting / RGB	No
Product Series
Product Series/Family	Evolv X2
Additional Contents
Fans Included	No
Included fans	None
