1. Kokios pagrindinės plokštės tinka Montech KING 15 PRO korpusui?

Šis kompiuterio korpusas palaiko tik Micro-ATX ir Mini-ITX formato pagrindines plokštes. Dėl savo kompaktiškos konstrukcijos jis netinka didesnėms ATX plokštėms, bet puikiai tinka norintiems pastatyti tvarkingą ir galingą sistemą mažesniame dėkle.

2. Kokią maksimalią procesoriaus aušintuvo aukštį palaiko šis dėklas?

Montech KING 15 PRO viduje telpa aukšti procesoriaus aušintuvai iki 187 milimetrų. Šis aukštis yra pakankamas daugeliui didelių bokštinių aušintuvų, tad galėsite pasirinkti našų oro aušinimą nepergyvendami dėl vietos stygiaus korpuse.

3. Kiek ir kokių ventiliatorių yra sumontuota iš gamyklos?

Gamykloje jau sumontuoti keturi 120 mm ventiliatoriai. Trys jų yra apačioje, o vienas – gale. Tai suteikia labai gerą oro srautą iškart išpakavus korpusą. Taip pat yra ventiliatorių valdiklis ir RGB valdiklis, tad apšvietimo ir greičio valdymas yra paprastas.

4. Ar į šį korpusą tilps ilga vaizdo plokštė ir didelis maitinimo blokas?

Taip, nepaisant kompaktiškumo, palaikomos vaizdo plokštės iki 435 mm ilgio. Taip pat telpa standartiniai ATX maitinimo blokai iki 180 mm. Ši parama leidžia įdėti pačias didžiausias šiuolaikines vaizdo plokštes ir galingus maitinimo šaltinius kompaktiškam Micro-ATX korpusui.

5. Kokio dydžio radiatorių galima sumontuoti viršutinėje dalyje?

Viršuje yra galimybė sumontuoti vandens aušinimo radiatorių iki 360 mm formato. Taip pat tinka 120 mm, 140 mm, 240 mm ir 280 mm radiatorial. Korpusas palaiko ir vieną 120 mm radiatorių gale, tad skysčio aušinimo konfigūracijos lankstumas tikrai didelis.

Montech KING 15 PRO PC Case, Mini...

Micro-ATX PC case, curved tempered glass, supports Micro-ATX and Mini-ITX, graphics cards up to 435mm, CPU coolers up to 187mm, four pre-installed 120mm fans, radiator support up to 360mm, ATX power supplies up to 180mm

The Montech KING 15 PRO is a compact Micro-ATX case with a distinctive curved glass design. Despite its compact size, it offers extensive hardware compatibility and comes pre-equipped with four 120mm fans straight from the factory. It is aimed at builds that combine high performance, modern aesthetics, and thoughtful cooling.

Micro-ATX and Mini-ITX compatibility in a compact format
Curved tempered glass side panel for an unobstructed view of the hardware
Support for long graphics cards up to 435mm
High CPU cooler clearance up to 187mm
Four pre-installed 120mm fans straight from the factory

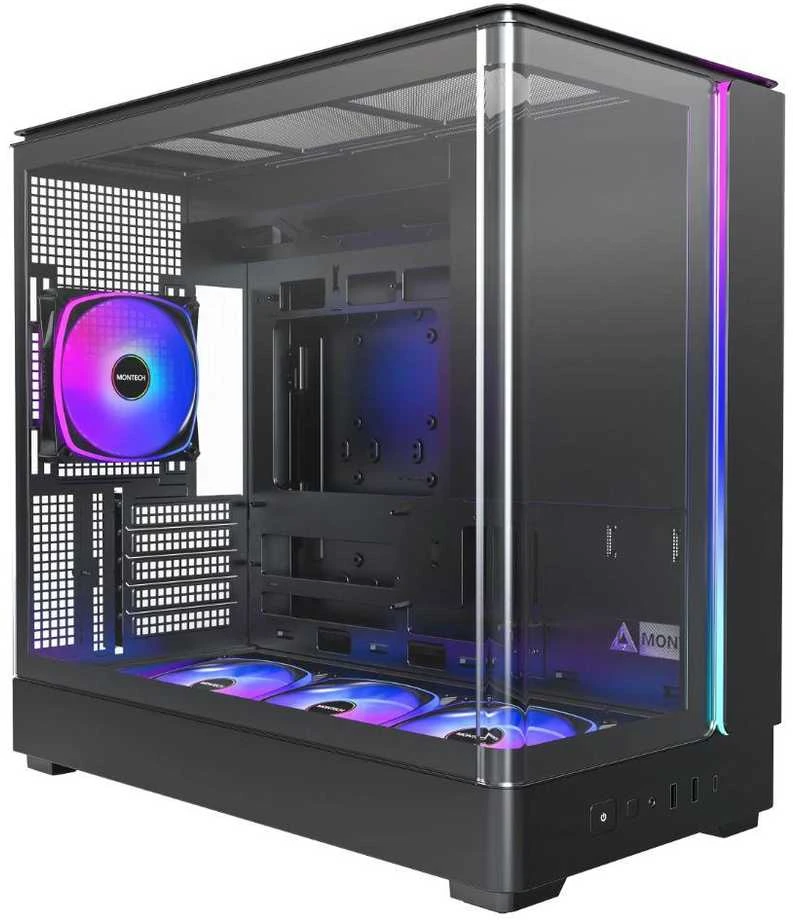

Montech KING 15 PRO – Compact Micro-ATX Case with Curved Glass

The KING 15 PRO supports Micro-ATX and Mini-ITX motherboards and provides a compact yet powerful foundation for modern PC systems. The curved tempered glass side panel defines the design and allows a clear view of the installed components.

High Hardware Compatibility

Despite its compact design, the case is built for high-performance hardware. It supports graphics cards up to 435mm in length, CPU coolers up to 187mm in height, and ATX power supplies up to 180mm in length. For storage devices, there are two 3.5-inch HDD and two 2.5-inch SSD mounting slots available.

Fan and Radiator Support

Factory-installed are three 120mm fans at the bottom and one 120mm fan at the rear. Additionally, the KING 15 PRO supports extensive fan and radiator configurations: up to three 120mm or two 140mm fans at the top and bottom, as well as radiators up to 360mm at the top. An integrated dust filter at the bottom complements the cooling concept.

Specification

Colour
Primary Colour	Black
Dimensions
Length / Depth	450 mm
Width	245 mm
Height	423 mm
Case
Case Type	Mid Tower
Motherboard Support
Compatible Motherboard Formats	Micro-ATX, Mini-ITX
Max. Motherboard Format	Micro-ATX
Internal Dimensions
Max. CPU Cooler Height	187 mm
Max. GPU Length	435 mm
Max. PSU Length / Depth	180 mm
Display
Display Included	No
Power Supply
PSU included	No
PSU Format	ATX
Power Supply Position	rear side / top
Cable Specifications
Riser Cable Included	No
Fan Support
Case Fan Support (Bottom)	120mm Fan (3x), 140mm Fan (2x)
Case Fan Support (Rear)	120mm Fan (1x), 140mm Fan (1x)
Case Fan Support (Top)	120mm Fan (3x), 140mm Fan (2x)
Max. Number of Fans	7
120 mm fans	7
140 mm fans	5
Radiator Support
Max. Radiator Compatibility	1x Single (120 mm), 1x Triple (360 mm)
Radiator/AIO Support (Rear)	120mm Radiator
Radiator/AIO Support (Top)	120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
Drive Bays
Max. 2.5 Inch Drives	2
Max. 3.5 Inch Drives	2
Max. 5.25 Inch Drives	0
Hot swap drive bays	No
External Ports
Front I/O – USB Type C Ports Total	1
Front I/O – USB Type A Ports Total	2
USB 3.2 (external) Type C	1
USB 3.0 (external) Type A	2
Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Case Features
I/O position	Front
Side panel	with window
Vertical GPU Mount	No
Adjustable Vertical GPU Bracket	No
Front door	No
Cable Management	Yes
Filters Included	Yes
Filter Position	Bottom
Noise dampening	No
Mainboard slide / tray	No
Transport System	No
Back Connect
Back Connect	No
Expansion Slots
Expansion slots / PCI slots	5
Features
Housing Feedthrough	No
Compatibility
Compatibility Note	Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Connectivity
Card reader	No
Fan Header
Fan Controller / Fan Hub	Yes
Mounting
Case VESA Mountable	No
Internal Monitor Mount	No
Materials
Materials	Plastic, Steel, Tempered Glass
Lighting
Lighting / RGB	Yes
RGB Controller	Yes
Lighting Colour	RGB
Additional Contents
Fans Included	Yes
Included fans	4x 120 mm
