Jonsbo D401 PC-case, Midi Tower,...

ATX case with futuristic design, showcase design with glass side and front, supports up to two 360 mm radiators and ten fans, CPU cooler up to 169 mm, graphics cards up to 439 mm

The Jonsbo D401 combines a modern, almost futuristic design with sharp lines and a showcase design that visually puts your hardware centre stage. Beyond its design, the case also offers plenty of functionality: up to ten fans, two 360mm radiators, and enormous space for powerful graphics cards.

Modern mid-tower with showcase design highlights your hardware
Versatile radiator options provide strong cooling performance
Ample space for large high-end components
Subtle and futuristic look with glass and metal accents
Flexible fan configuration for optimal airflow

Modern design with panorama effect

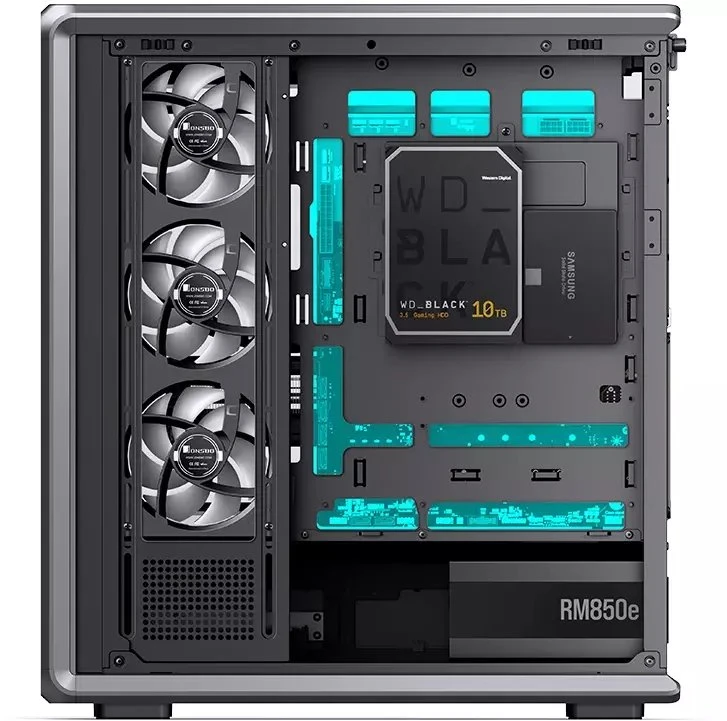

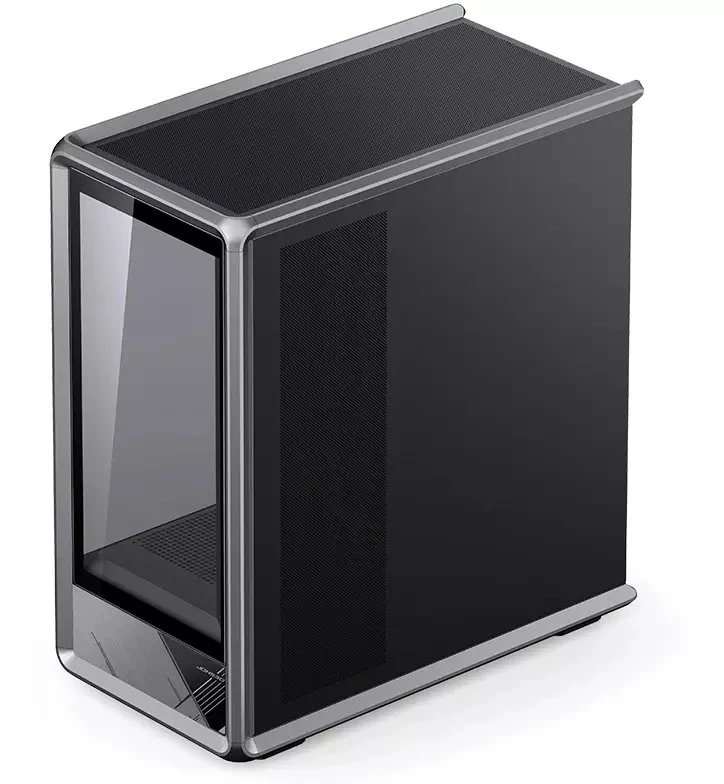

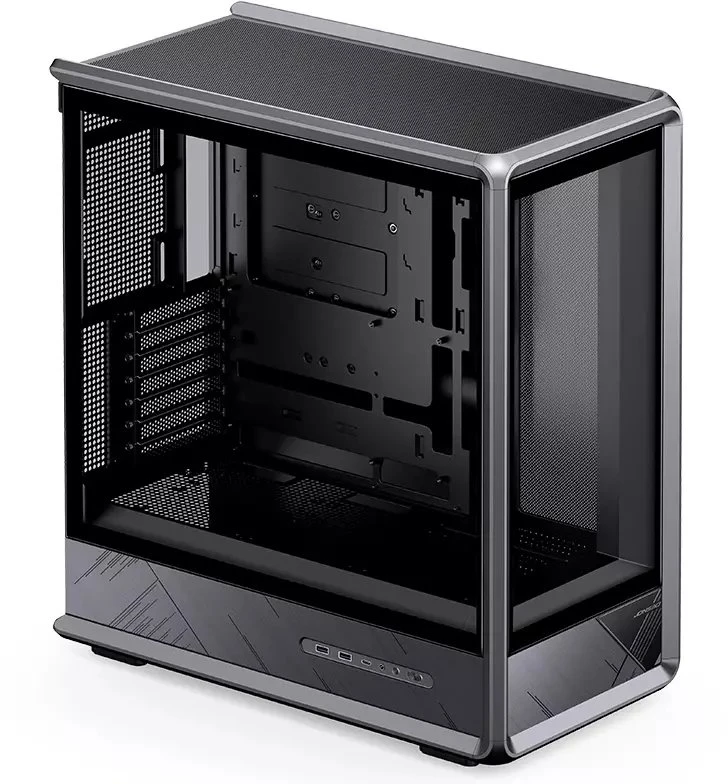

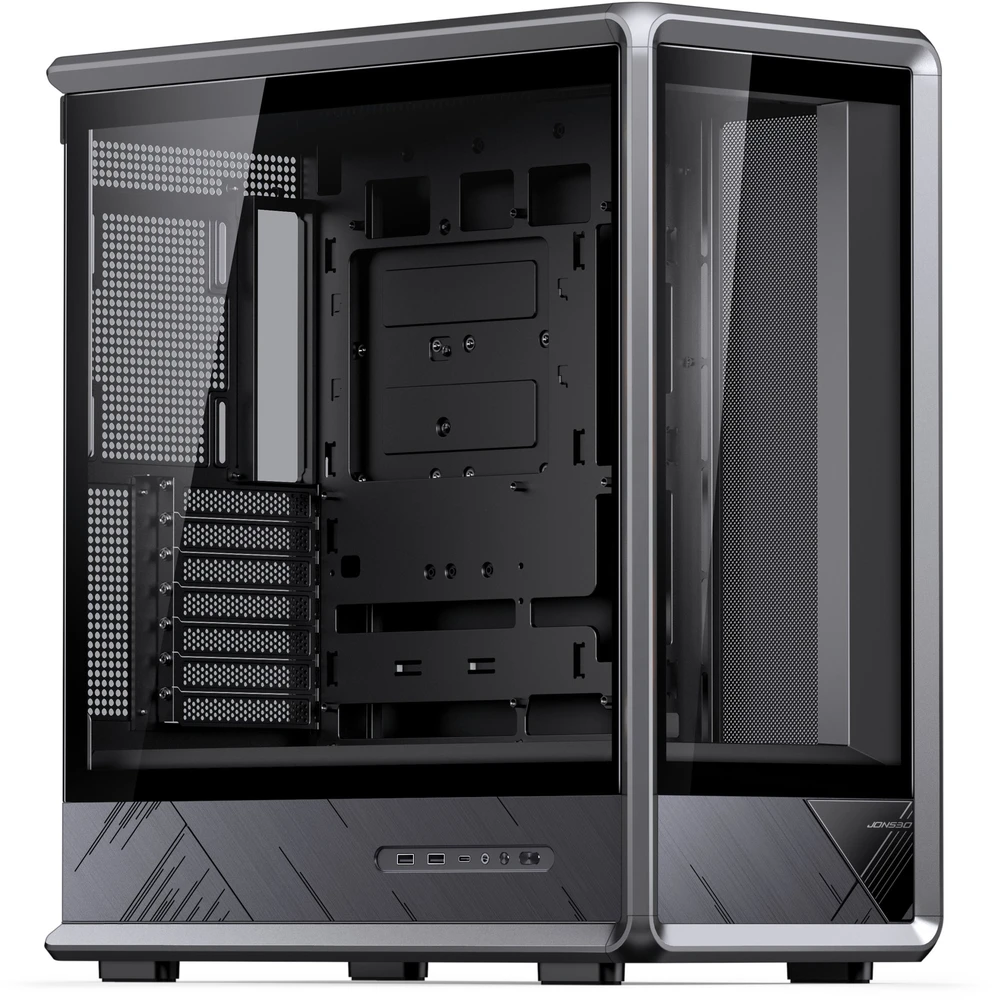

The case combines an exoskeleton design with two large glass panels for a clear view of the installed components. The 270-degree viewing angle ensures an open and premium presentation. At the same time, textured metal surfaces emphasise the elegant appearance.

Optimised cooling for high-end systems

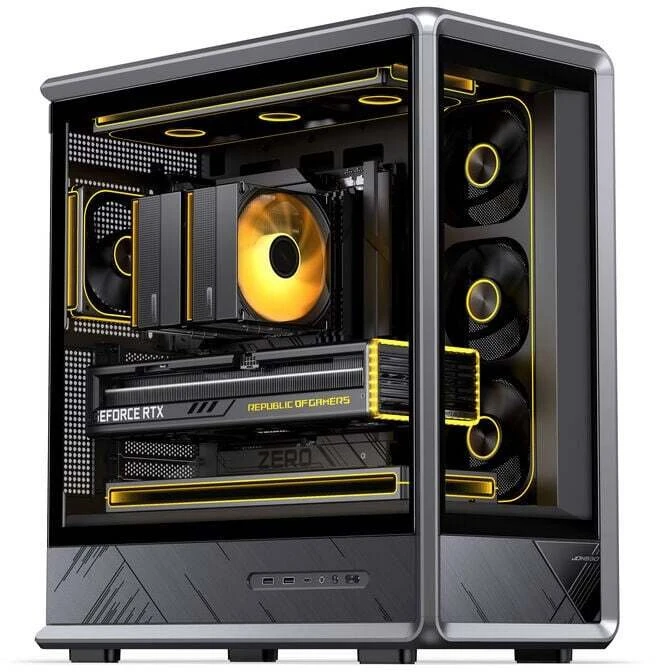

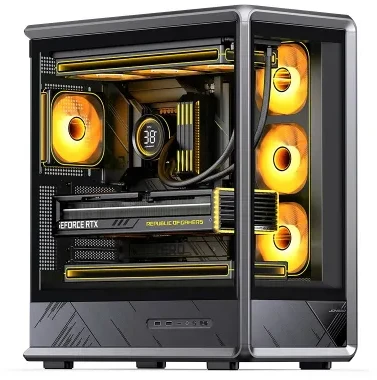

With support for multiple fans and up to two 360mm radiators, the D401 offers strong cooling capabilities. This makes it ideal for powerful gaming or workstation systems. The flexible layout enables efficient air and water cooling.

High compatibility and flexibility

The case supports ATX, Micro-ATX, and Mini-ITX motherboards as well as large graphics cards up to 439mm in length. Powerful power supplies and CPU coolers also fit easily. This allows for the creation of a customised and future-proof system.

Specification

Colour
Primary Colour	Black
Dimensions
Length / Depth	480 mm
Width	250 mm
Height	531 mm
Weight	8.1 kg
Case
Case Type	Mid Tower
Motherboard Support
Compatible Motherboard Formats	ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format	ATX
Internal Dimensions
Max. CPU Cooler Height	169 mm
Max. GPU Length	439 mm
Max. PSU Length / Depth	200 mm
Display
Display Included	No
Power Supply
PSU included	No
PSU Format	ATX
Power Supply Position	rear bottom
Cable Specifications
Riser Cable Included	No
Fan Support
Case Fan Support (Bottom)	120mm Fan (3x)
Case Fan Support (Rear)	120mm Fan (1x)
Case Fan Support (Side)	120mm Fan (3x)
Case Fan Support (Top)	120mm Fan (3x), 140mm Fan (2x)
Max. Number of Fans	10
120 mm fans	10
140 mm fans	2
Radiator Support
Max. Radiator Compatibility	2x Triple (360 mm)
Radiator/AIO Support (Side)	360mm Radiator
Radiator/AIO Support (Top)	120mm Radiator, 240mm Radiator, 360mm Radiator
Drive Bays
Max. 2.5 Inch Drives	2
Max. 3.5 Inch Drives	1
Max. 5.25 Inch Drives	0
Hot swap drive bays	No
External Ports
Front I/O – USB Type C Ports Total	1
Front I/O – USB Type A Ports Total	2
Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Case Features
I/O position	Side
Side panel	with window
Vertical GPU Mount	No
Adjustable Vertical GPU Bracket	No
Front door	No
Cable Management	Yes
Filters Included	Yes
Filter Position	Bottom
Noise dampening	No
Mainboard slide / tray	No
Transport System	No
Back Connect
Back Connect	Yes
Back-Connect Compatibility	ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
Expansion Slots
Expansion slots / PCI slots	7
Features
Housing Feedthrough	No
Compatibility
Compatibility Note	Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Connectivity
Card reader	No
Fan Header
Fan Controller / Fan Hub	No
Mounting
Case VESA Mountable	No
Internal Monitor Mount	No
Materials
Materials	ABS, Steel, Tempered Glass
Lighting
Lighting / RGB	No
Additional Contents
Fans Included	No
Included fans	None
