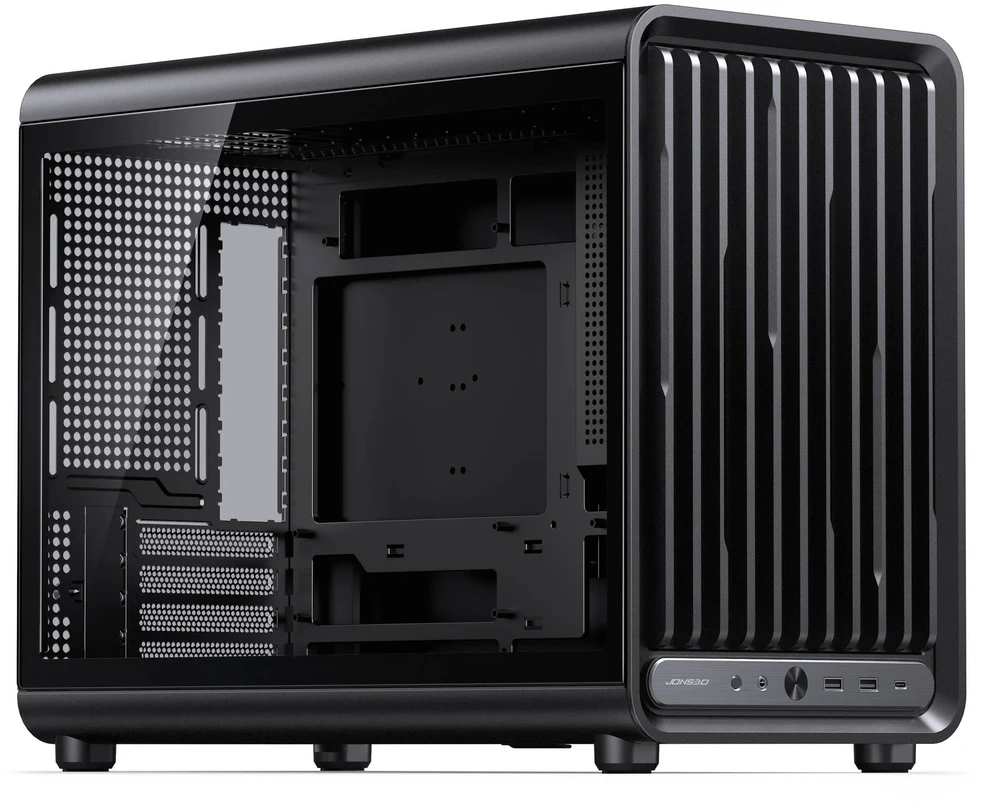

Jonsbo D33 STD PC Case, Mini Case,...

Mini case, up to nine fans, space for a radiator up to 360mm, motherboards up to mATX with back-connect design, GPU up to 435mm, and CPU cooler up to 172mm in height

With the Jonsbo D33 STD , you get a mini case that can be integrated into any setup.

Black mATX tower
Numerous fan and radiator mounts for effective cooling performance
Supports motherboards up to mATX and with back-connect design
Space for graphics cards up to 435mm and CPU coolers up to 172mm in height

Jonsbo D33 STD: Space-saving PC Case

The Jonsbo D33 STD offers plenty of room for powerful gaming hardware despite its compact size. Ideal for living room setups.

Extensive Cooling Options with Fans and Radiators

To keep your hardware cool under any load, the Jonsbo D33 STD can accommodate up to nine fans simultaneously. The case allows for three 120mm fans at the top and bottom, two 120 or 140mm fans at the front, and one 120mm fan at the rear. Note that only two 140mm fans are possible at the front if you install an SFX power supply. An AiO water cooling system can also be easily installed if you prefer to cool your powerful hardware with water cooling. There is space for a 360mm water cooling radiator at the top.

Installing Your Hardware

The case provides enough room for powerful gaming hardware. It supports the installation of long graphics cards up to 435mm . The CPU cooler should not exceed a height of 172mm .

Specification

Colour
Primary Colour	Black
Dimensions
Length / Depth	455 mm
Width	238.2 mm
Height	368.4 mm
Weight	6.7 kg
Case
Case Type	Mini Case
Motherboard Support
Compatible Motherboard Formats	Micro-ATX, Mini-ITX
Max. Motherboard Format	Micro-ATX
Internal Dimensions
Max. CPU Cooler Height	172 mm
Max. GPU Length	435 mm
Max. PSU Length / Depth	160 mm
Display
Display Included	No
Power Supply
PSU included	No
PSU Format	ATX
Power Supply Position	front
Cable Specifications
Riser Cable Included	No
Fan Support
Case Fan Support (Bottom)	120mm Fan (3x)
Case Fan Support (Front)	120mm Fan (2x), 140mm Fan (2x)
Case Fan Support (Rear)	120mm Fan (1x)
Case Fan Support (Top)	120mm Fan (3x)
Max. Number of Fans	9
120 mm fans	9
140 mm fans	2
Radiator Support
Max. Radiator Compatibility	1x Triple (360 mm)
Radiator/AIO Support (Top)	240mm Radiator, 360mm Radiator
Drive Bays
Max. 2.5 Inch Drives	2
Max. 3.5 Inch Drives	2
Max. 5.25 Inch Drives	0
Hot swap drive bays	No
External Ports
Front I/O – USB Type C Ports Total	1
Front I/O – USB Type A Ports Total	2
USB 3.2 (external) Type C	1
USB 3.0 (external) Type A	2
Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Case Features
I/O position	Front
Side panel	with window
Vertical GPU Mount	No
Adjustable Vertical GPU Bracket	No
Front door	No
Cable Management	Yes
Filters Included	Yes
Filter Position	Bottom
Noise dampening	No
Mainboard slide / tray	No
Transport System	No
Back Connect
Back Connect	Yes
Expansion Slots
Expansion slots / PCI slots	4
Features
Housing Feedthrough	No
Compatibility
Compatibility Note	Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Connectivity
Card reader	No
Fan Header
Fan Controller / Fan Hub	No
Mounting
Case VESA Mountable	No
Internal Monitor Mount	No
Materials
Materials	Tempered Glass
Lighting
Lighting / RGB	No
Additional Contents
Fans Included	No
Included fans	None
