1. Ar šis korpusas palaiko didžiausias vaizdo plokštes?

Taip, Hyte Y70 korpusas yra suprojektuotas didelėms vaizdo plokštėms. Jis talpina iki 422 mm ilgio ir 105 mm storio grafikos adapterius. Vertikalus montavimas su 4 lizdais suteikia papildomos vietos oro srautui tarp plokštės ir stiklo.

2. Kokius aušinimo radiatorius galima sumontuoti?

Korpusas leidžia įdiegti itin didelius radiatorius. Šone telpa iki 360 mm ilgio ir 125 mm storio radiatorių, o viršuje – iki 360 mm ilgio ir 68 mm storio. Bendras aušinimo galimybes papildo ventiliatorių vietos apačioje ir gale.

3. Kokios jungtys yra priekiniame pultelyje?

Priekinis I/O pultelis turi šiuolaikinių jungčių rinkinį. Jame yra vienas greitas USB-C 3.2 Gen 2 lizdas, du USB-A 3.2 Gen 1 lizdai ir kombinuotas 3,5 mm audio įėjimas/mikrofono lizdas, patogiam prietaisų prijungimui.

4. Ar vertikaliems GPU montuoti reikalingas papildomas kabelis?

Ne, PCIE 4.0 x16 pakėlimo kabelis yra įtrauktas į komplektą. Šis aukštos kokybės adapterius palengvina grafikos plokštės įrengimą vertikaliai ir leidžia naudoti papildomus pusės aukščio PCIe įrenginius už pagrindinės plokštės.

5. Kokios yra pagrindinės šio korpuso ypatybės?

Pagrindinės savybės yra dviejų kamerų vidus, panoraminis 3 dalies stiklas ir puiki oro cirkuliacija. Korpusas palaiko ATX, EATX, mATX ir ITX pagrindines plokštes, turi patogius kabelių valdymo kanalus ir be įrankių nuimamus šoninius dangčius.

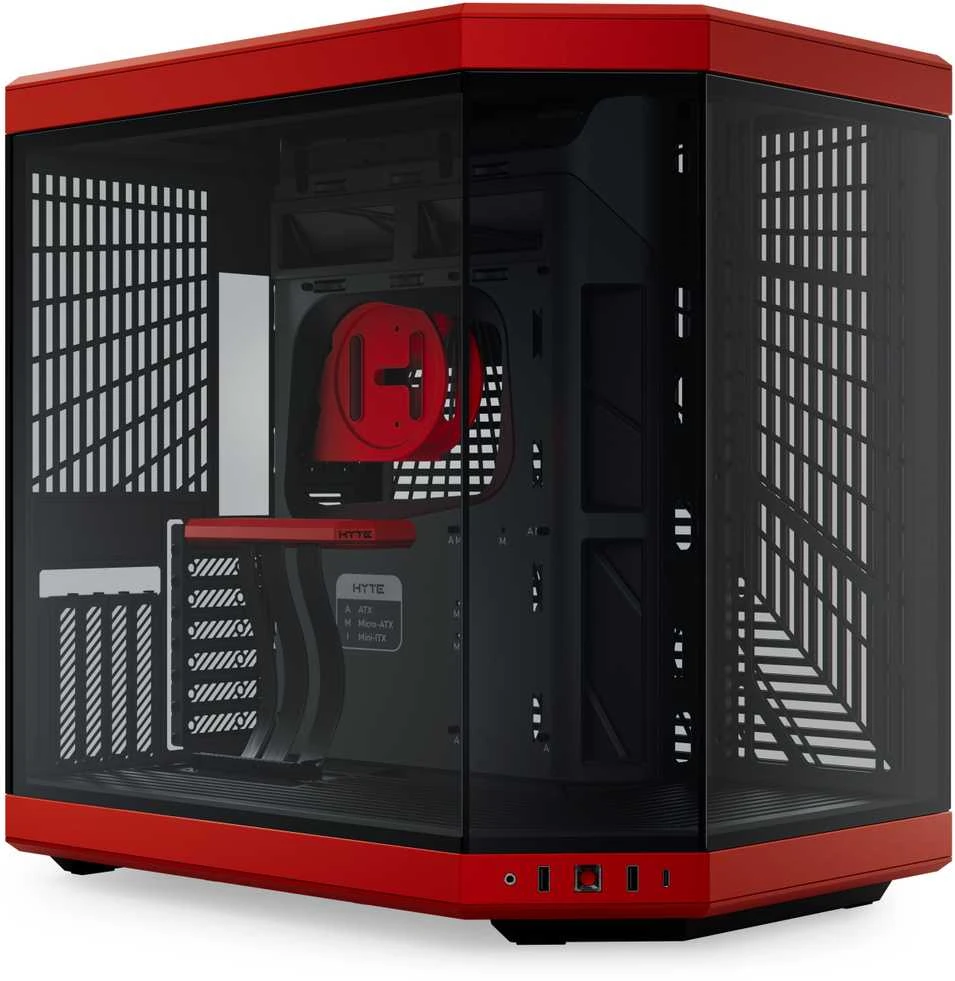

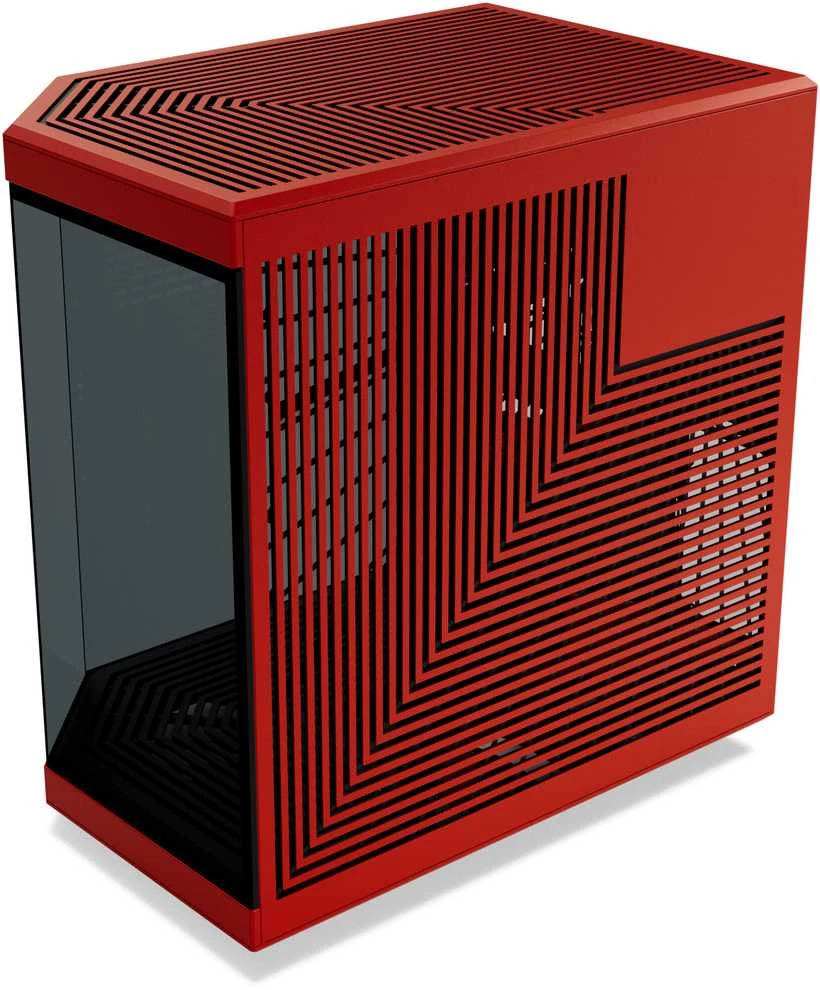

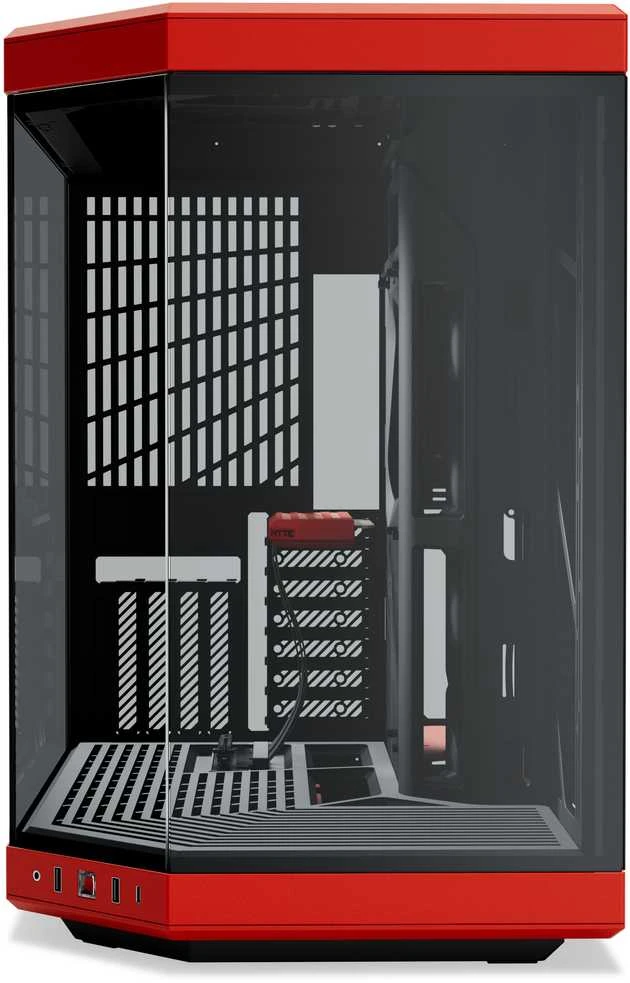

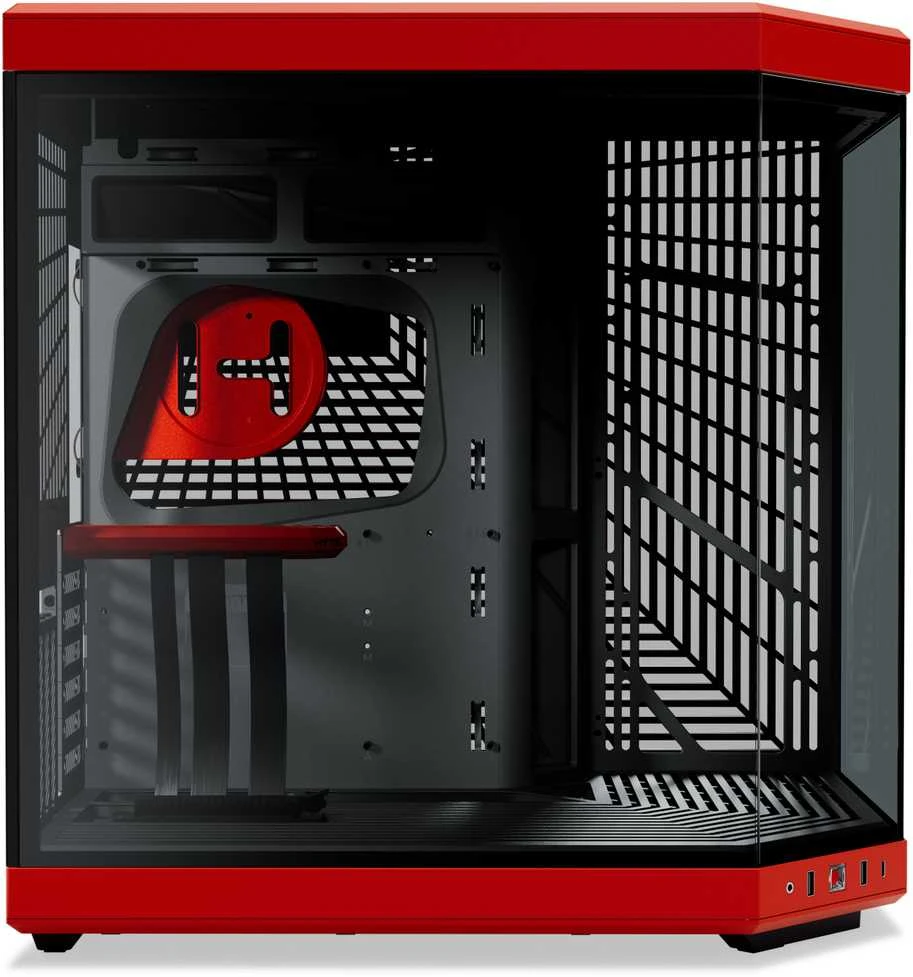

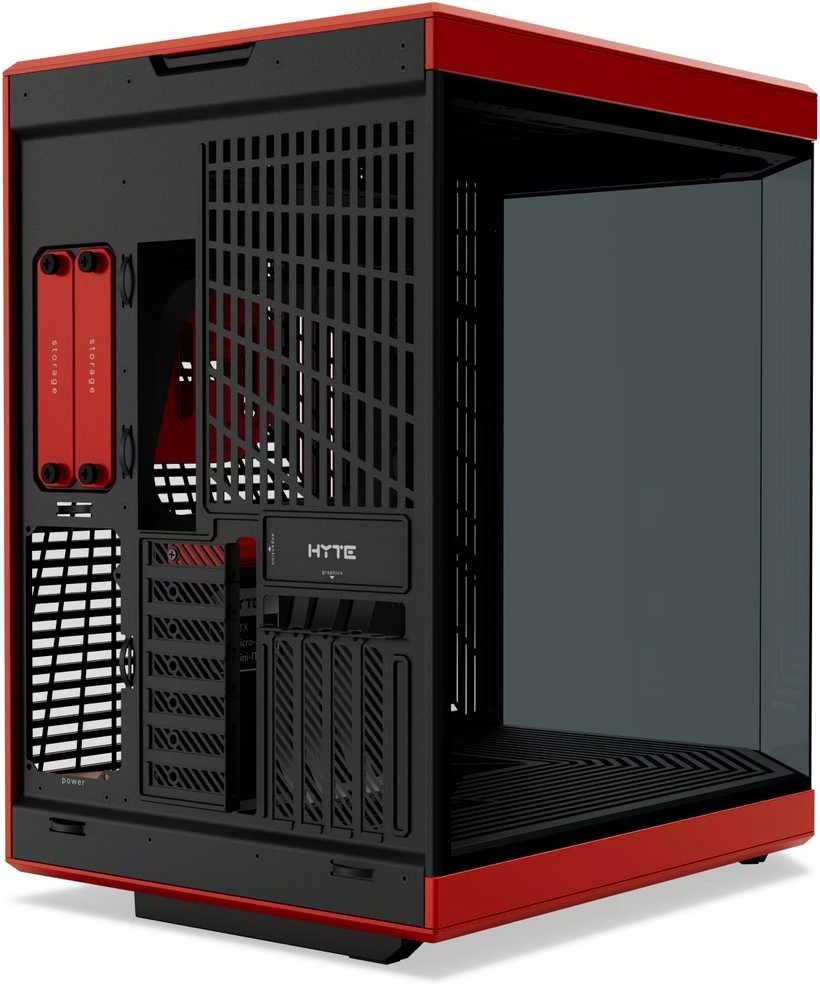

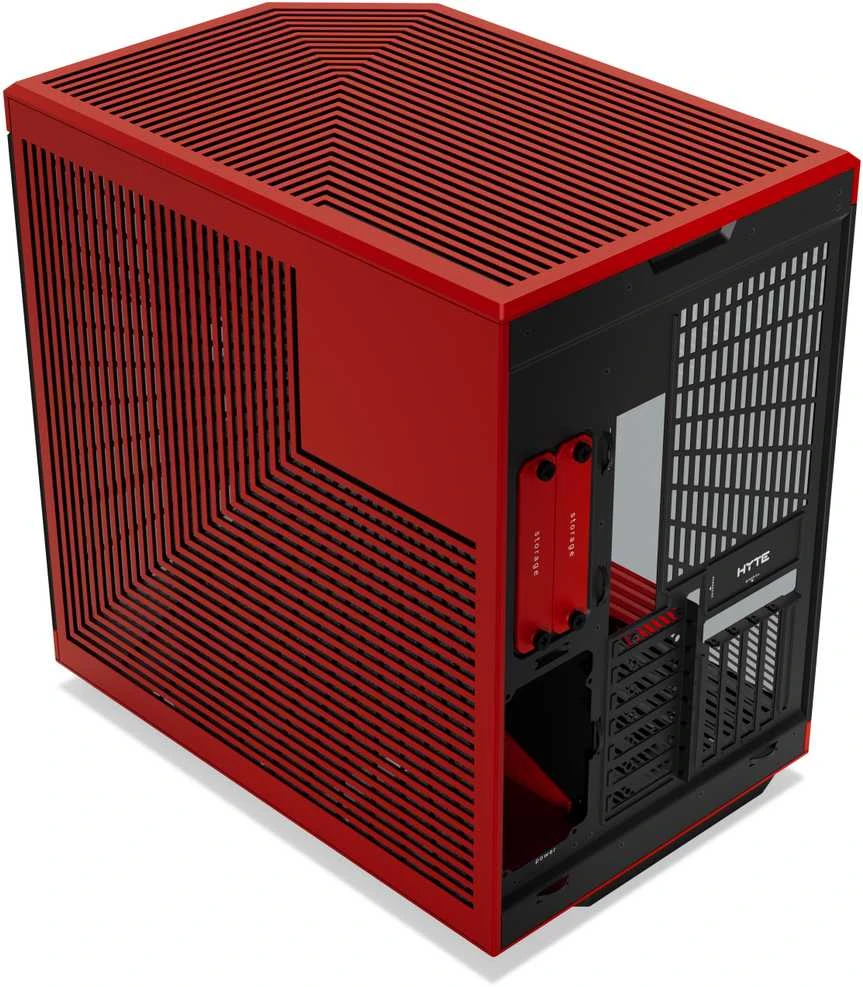

Hyte Y70 kompiuterio korpusas, Mid...

Product Features

Massive 4 Slot Vertical Graphics

Y70 grows GPU support to 4 slots with additional airflow space between the edge of the card and the glass. This means you can fit even the largest and most powerful of graphics cards into your build with ease. Additionally, the cold floor cooling down below can house up to a trio of 120mm or duo of 140mm fans up to 32mm thick to direct fresh airflow straight into the GPU.

Included Luxury PCIE 4.0 Riser Cable

Included with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that'll make for a painless GPU installation and build process. It also allows for a plethora of half-height PCIE cards to sit behind the throne of the vertical graphics.

Ginormous Cooling Capacity

A spacious interior makes room for up to a 360mm long & 125mm thick radiator on the side and adjustable top bracket that can house another 360mm radiator up to 68mm thick up above. Working together with the cold floor cooling at the bottom and spot for an additional fan at the rear of the case, Y70 has a total capacity of 10 fans in a fully populated chassis. With over 180mm of clearance to the side glass, air and water cooling enthusiasts alike will appreciate the flexibility afforded to them by the chassis to create the most robust cooling configurations possible.

Unified Modern Aesthetic

With 4 unique colorways, Y70 puts your build front and center with a beautifully crafted 3-piece panoramic glass which serves as a window into the heart of your PC. The dual chamber interior layout keeps the front looking great while giving you plenty of space to manage cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, meticulously placed cable routing channels & tie-down points, and reusable Velcro straps. All easily accessible with tool-less top and side panels alongside floating storage sleds that eject from the rear of the case for intuitive drive maintenance.

Spilt Milk Has Never Looked So Good (Milky Y70's Only)

Soft and creamy colors soak Y70 in a sweet & delicious fresh style. Strawberry Milk, Blueberry Milk, and Taro Milk flavors have arrived! Milky canopies are included for uninterrupted visual flow.

TECH SPECS

Type	Dual Chamber Mid-Tower ATX Case	Exterior Dimensions	470 x 320 x 470 mm
Volume (L)	70.7	Motherboard Sizes	ITX, mATX, ATX, EATX
Expansion Slots	7 half + 4 full height	Riser Cable Included	Yes, PCIE 4.0 x 16
I/O	1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack	Dust Filters	Top, Side, Bottom
Top Fans	3x 120 mm / 2x 140 mm	Top Radiator	120-360, 140-280 @ 68 mm thick
Rear Fans	1x 120/140 mm	Rear Radiator	1x 120/140 mm
Side Fans	3x 120 mm / 2x 140 mm	Side Radiator	120-360, 140-280 @ 125 mm thick
Bottom Fans	3x 120 mm / 2x 140 mm @ 32 mm thick	Max Video Card Length	422 mm
Max Video Card Thickness	105 mm	Max CPU Cooler Height	180 mm
Max PSU Length	235 mm	Storage	2x 3.5" HDD or 4x 2.5" SSD
Warranty	4 Years	SKU (Touch)	CS-HYTE-Y70TTI-WW / CS-HYTE-Y70TTI-WB / CS-HYTE-Y70TTI-BB / CS-HYTE-Y70TTI-RB

Enhanced In Every Dimension

Y70 Touch Infinite enables meaningful digital interaction with an integrated 2.5K 10-point multi-touch capacitive IPS panel, delivers next-generation gaming experiences with massive 4-slot vertical graphics, and unlocks maximum performance with ginormous cooling capacity. All while celebrating your favorite hardware by showing off your PC the way it was meant to be seen.

Exquisite Detailing

Helpful Labels
Reusable Velcro Straps
Floating Storage Sleds
Tactile Blue Power Switch

Integrated Touchscreen

Pioneering meaningful digital interaction with the best display ever in a case

Download Nexus

Tutorials

14.9” 682 x 2560 (2.5K) 60Hz capacitive IPS touchscreen delivers an insanely crisp and buttery smooth visual experience

10-point multi-touch capability unlocks a magnitude of possibilities with extensive screen customization powered by HYTE Nexus

Integrated into the case chassis structure as a core part of delivering a true modern PC DIY experience

Meticulously Crafted From Every Dimension

UNIFIED MODERN

AESTHETIC

3-piece panoramic glass serves as a window into the heart of your PC

ICONIC

Y-SERIES

VENTILATION

Optimized for low impedance and increased airflow

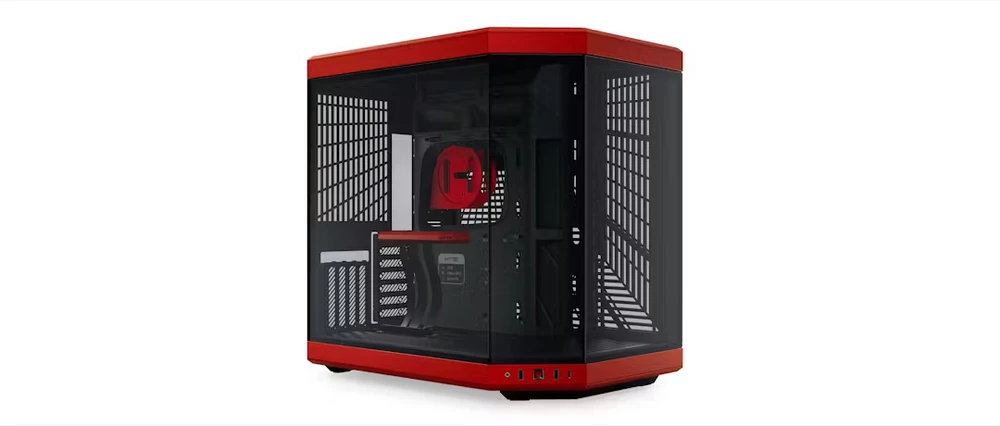

Hyte Y70 kompiuterio korpusas, Mid Tower, Standard – juodos spalvos / raudonos spalvos aprašymas - Prekės nuotrauka

4 + 7 = 11

4 slot vertical graphics & 7 half-height PCIe slots

L-SHAPED SEAMLESS

RUBBER GROMMET

Disappears into the case for a cohesive look

FLOATING

STORAGE SLEDS

Rear ejecting for easy drive maintenance

HELPFUL

LABELS

Complement the overall aesthetic and build process

DUAL CHAMBER

INTERIOR

Showcase the build up front. Manage the cables from behind.

TACTILE BLUE

POWER SWITCH

Creates an emotional response every time you power on the system

Included: PCIE 4.0 Cable

An included PCIE40 4.0 x 16 Luxury Riser Cable supports the latest and greatest graphics cards with a color-matched canopy for uninterrupted visual flow

Our Coolest Case Yet

Y70Ti inherits a similar airflow design to its younger sibling with an even wider range of ginormous cooling capacity.

Ceiling Mount - Radiator Support

360mm long 68mm thick

Y70Ti’s adjustable top mount can fit up to a 360mm long and 68mm super thick radiator for some of the beefiest dual radiator setups imaginable

Side Mount - Radiator Support

360mm long 125mm thick

Y70Ti’s side mount can fit up to a 360mm long and 125mm ultra thick radiator enabling massive cooling capacity and space for custom loop builds

Cold Floor Cooling

3x120mm or 2x140mm

Y70Ti's cold floor cooling directs airflow from a trio of 120mm or duo of 140mm fans up to 32mm thick straight into the GPU

Y70Ti also brings support for large air coolers up to 180mm in height - allowing for almost every CPU air cooler available on the market

Optimal Airflow Configuration

Maximize the Y70Ti’s airflow with a layout that takes full advantage of the 10 total fan capacity

A High-Quality Building Experience

Rewarding design for those who take a thoughtful approach to builds and appreciate the finer details

Tool-free Accessibility

Y70Ti’s top and side panels are easily removeable without any tools or thumbscrews for quick access and system maintenance

Removeable Glass Panels

Enthusiasts seeking to maximize the cooling potential of their chassis can take off the 3-piece panoramic glass for a hybrid open frame design

Extensive Cable Management Space

Meticulously placed routing channels and tie down points in the Y70Ti ensure that the rear of the case looks just as beautiful as the front
