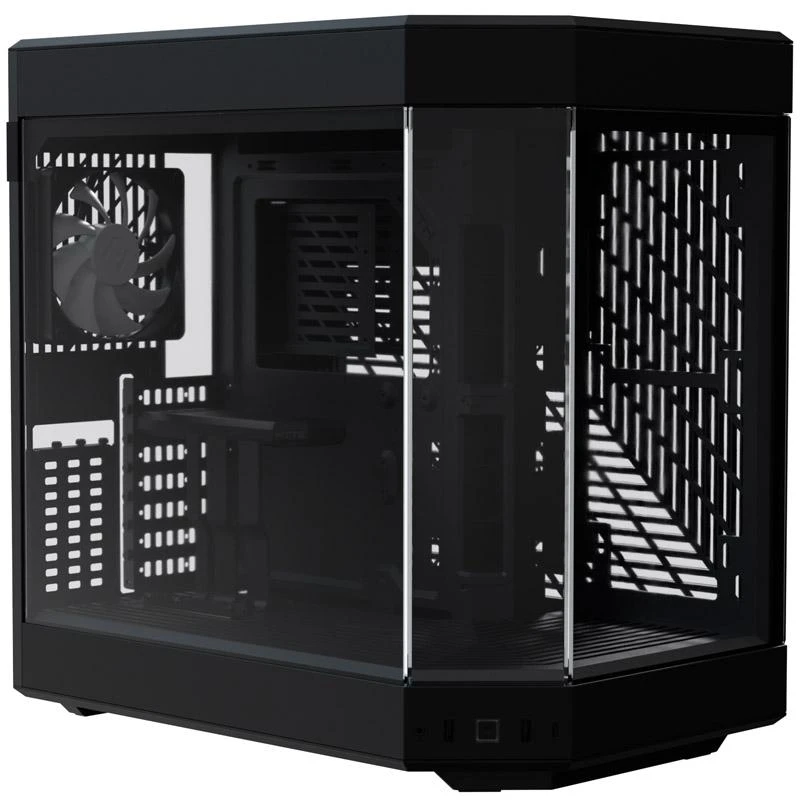

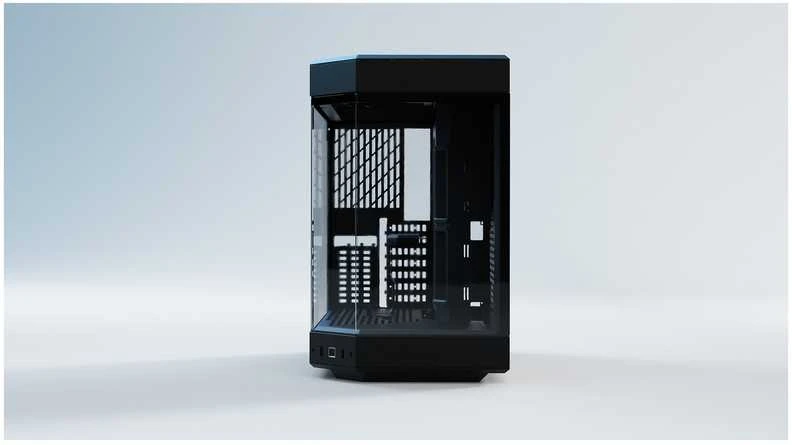

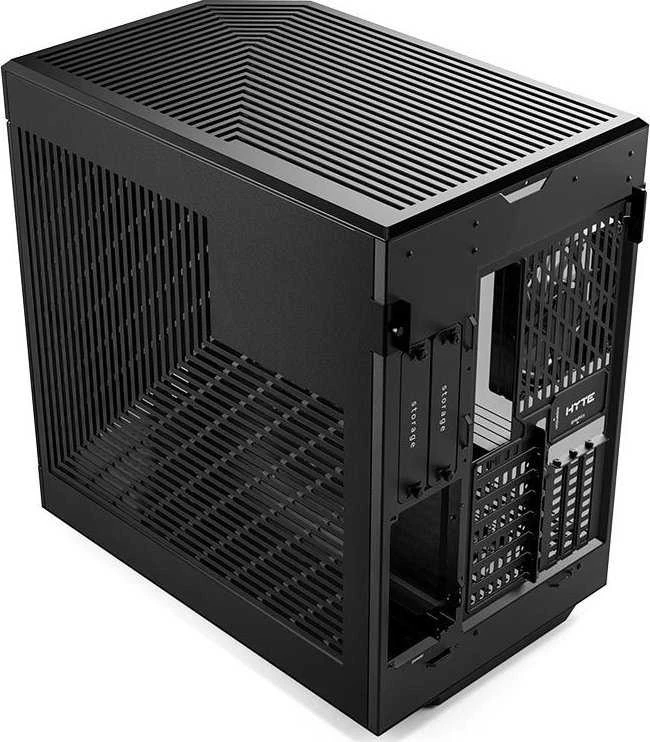

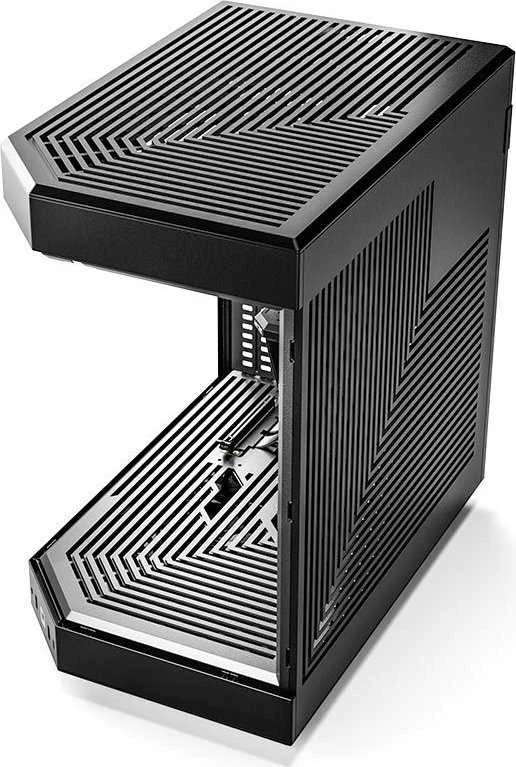

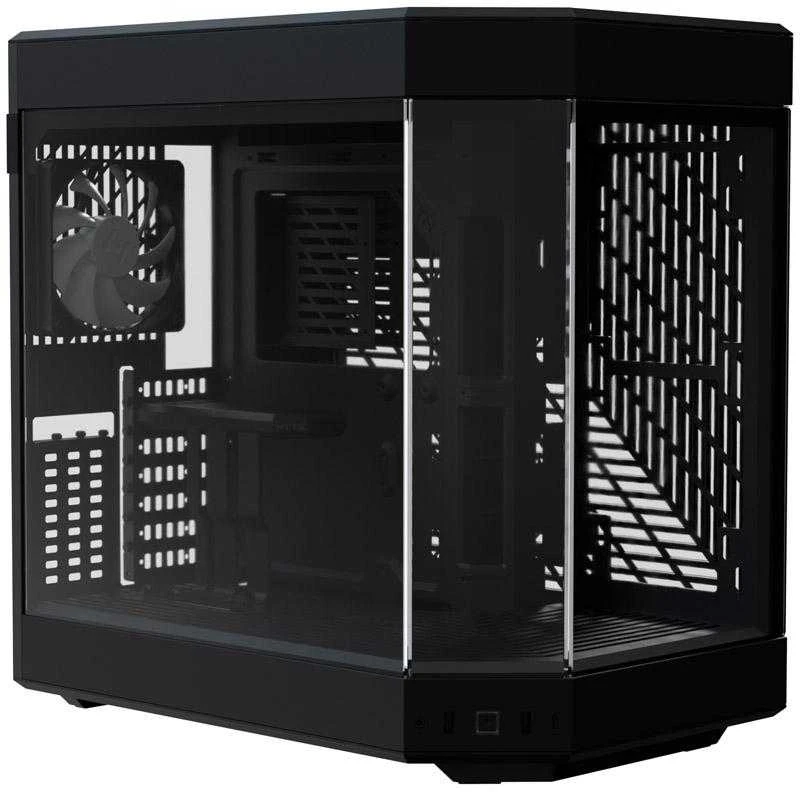

Hyte Y60 Midi Tower, grūdintas...

Midi tower case with tempered glass, very good airflow, three integrated fans and cold floor cooling

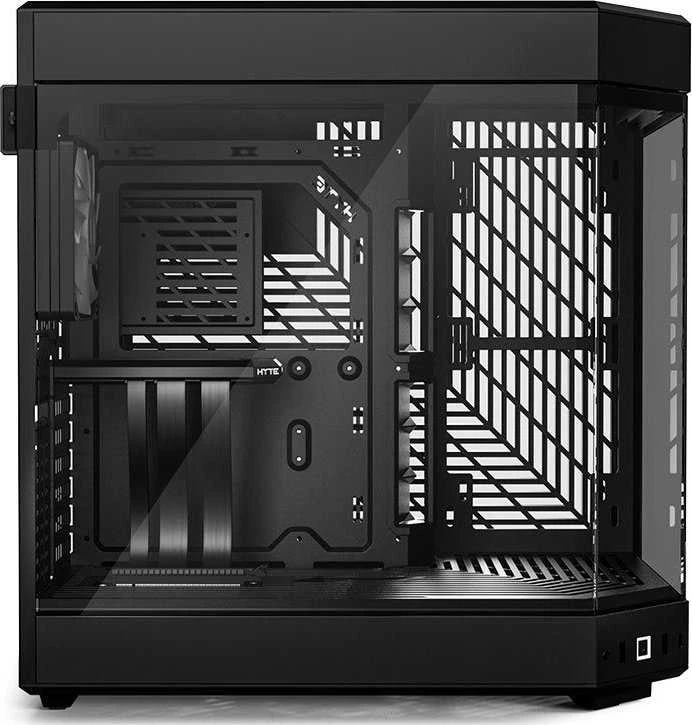

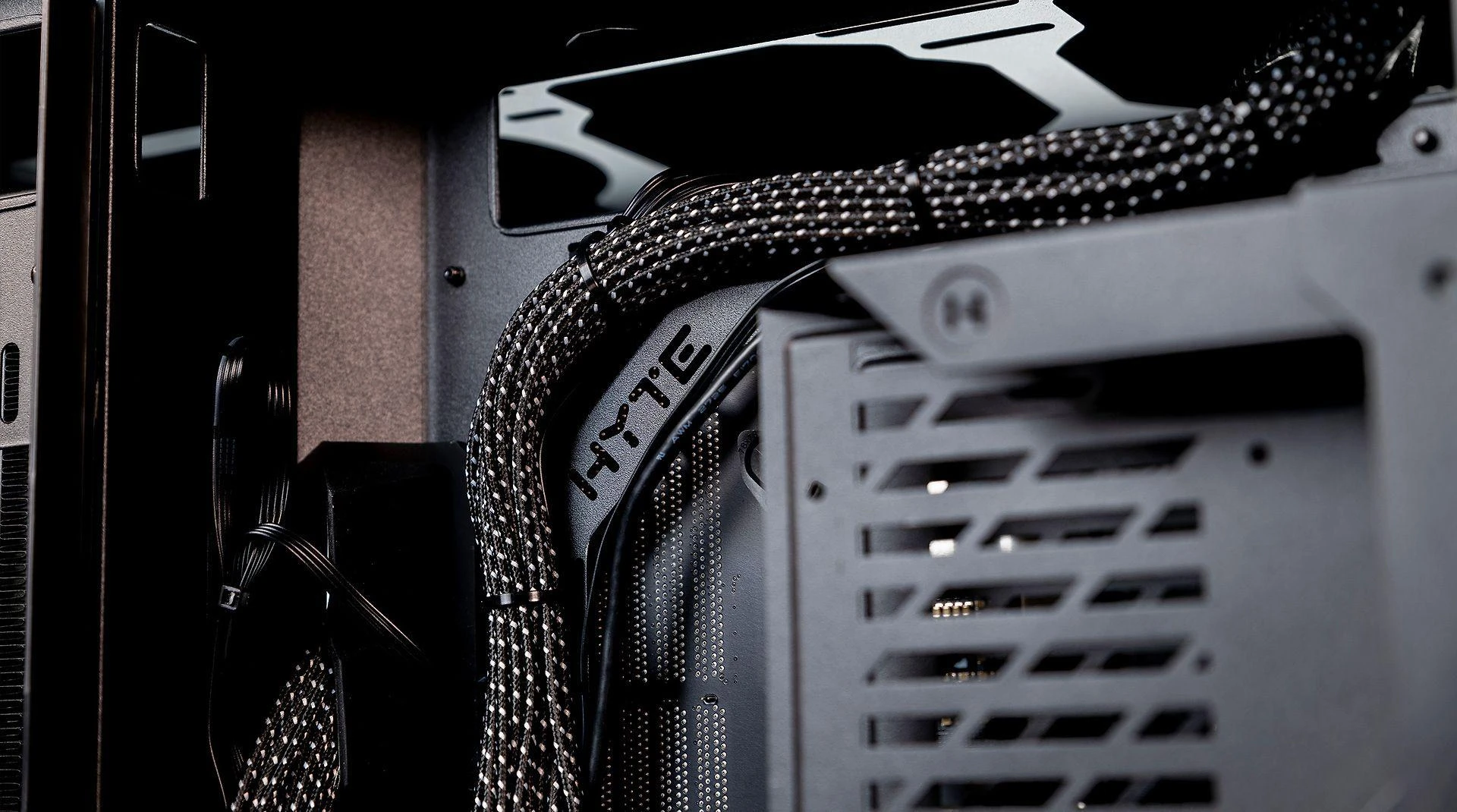

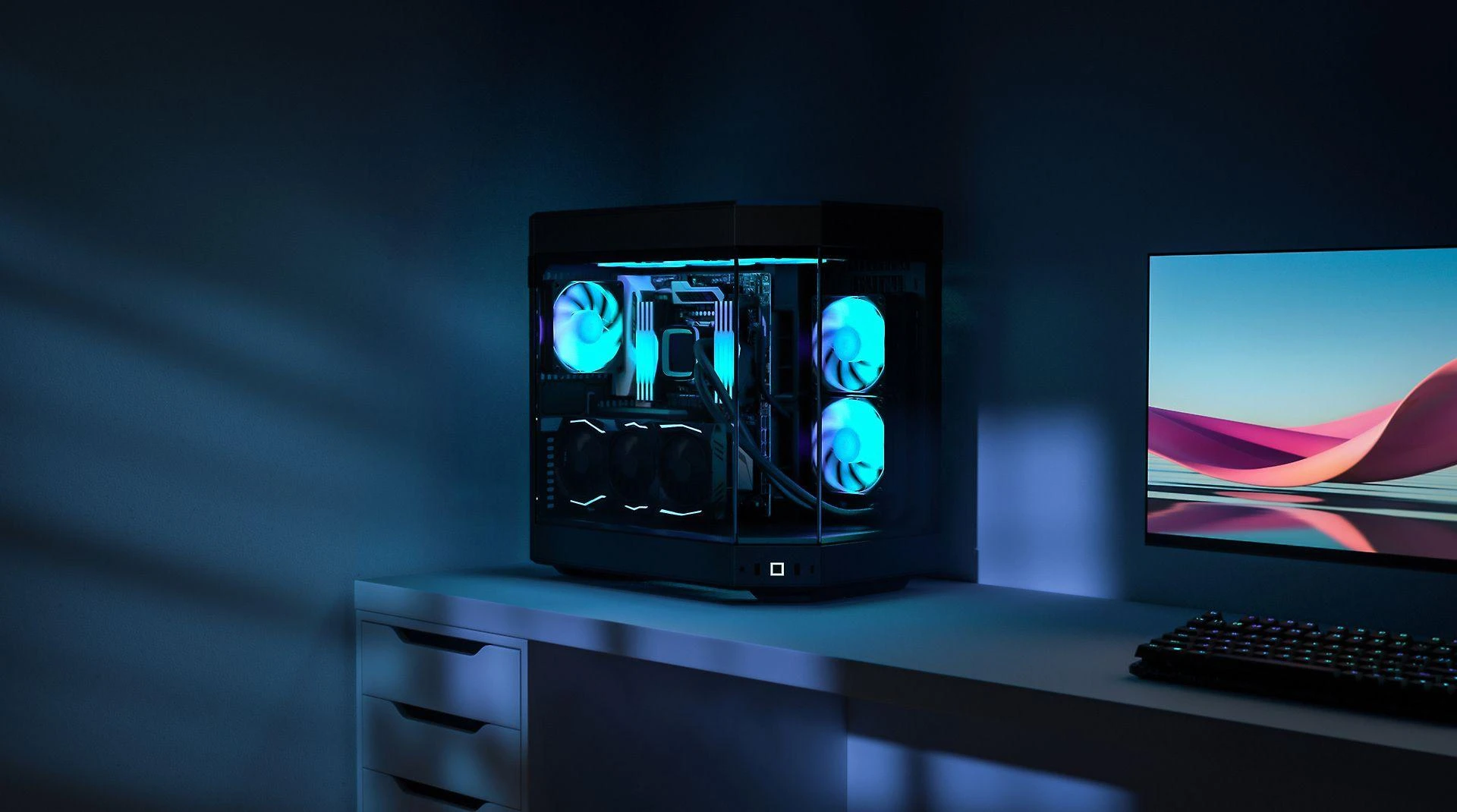

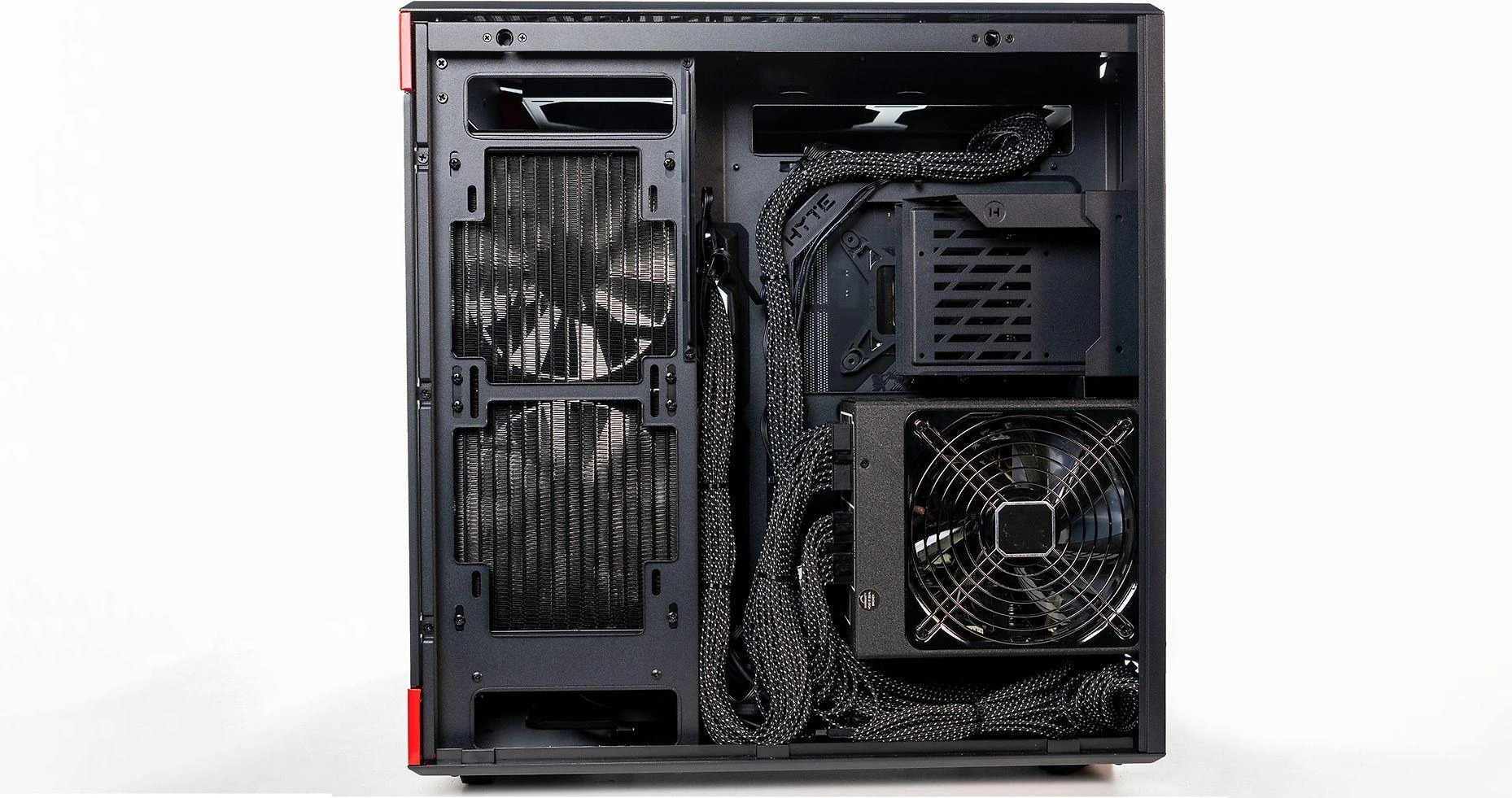

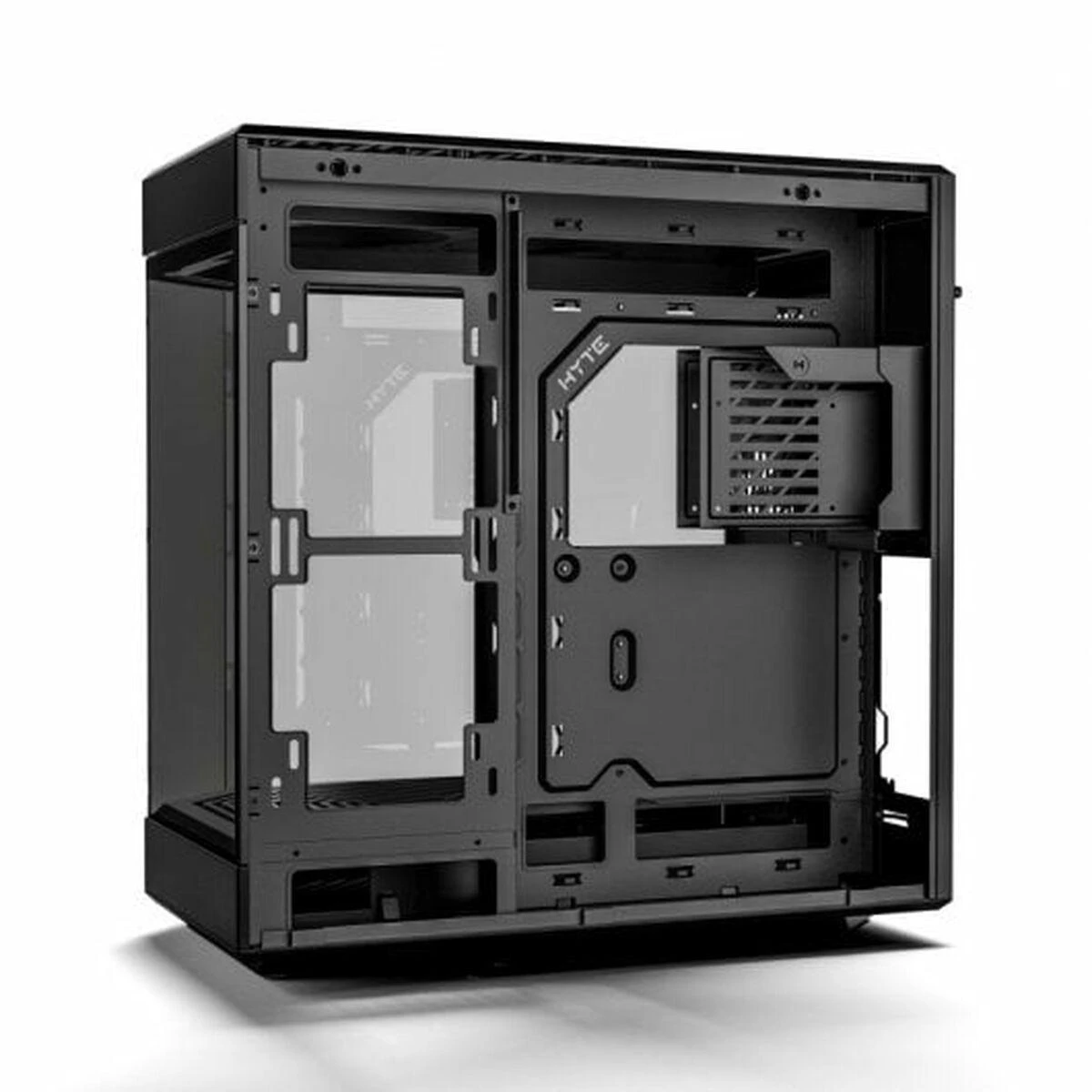

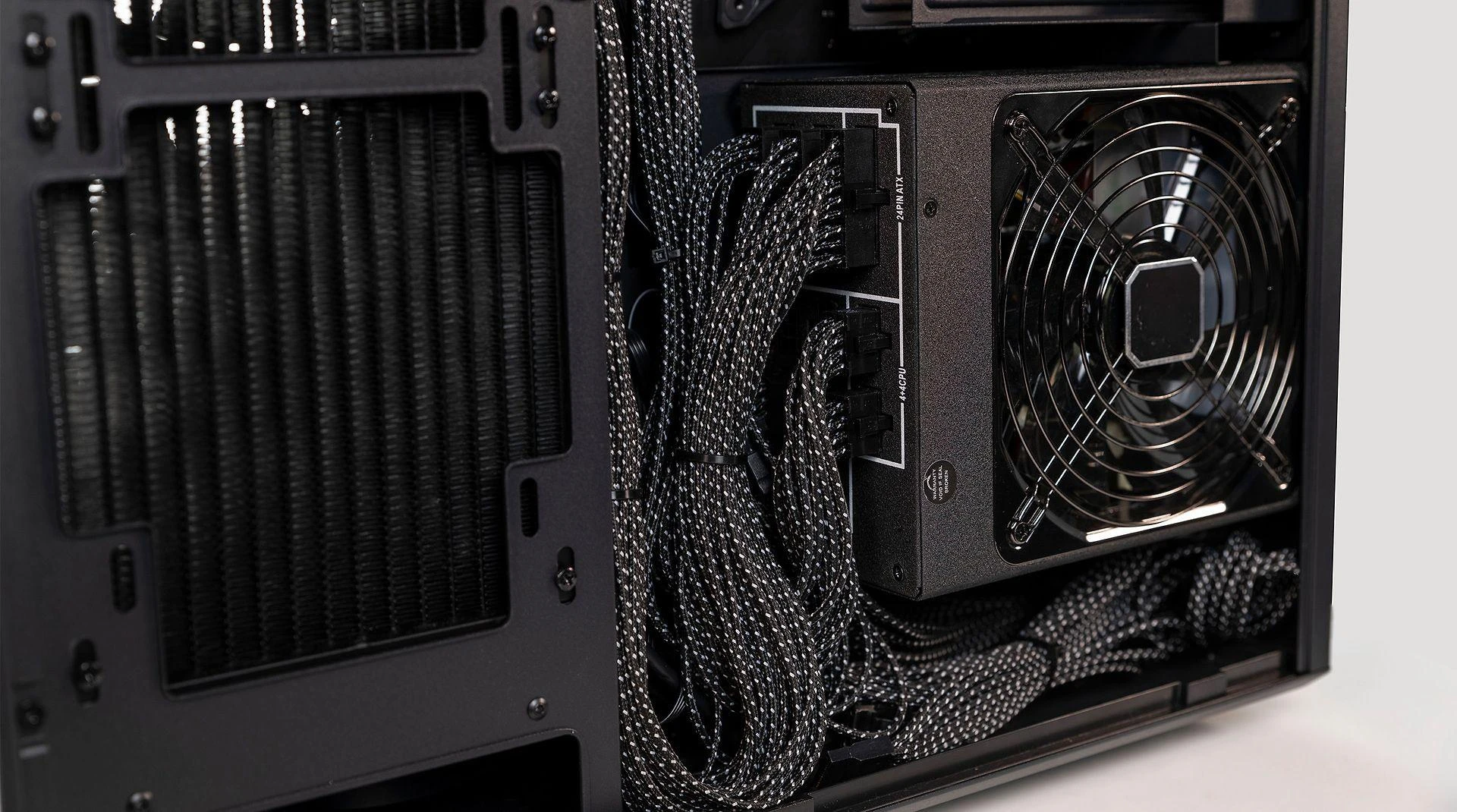

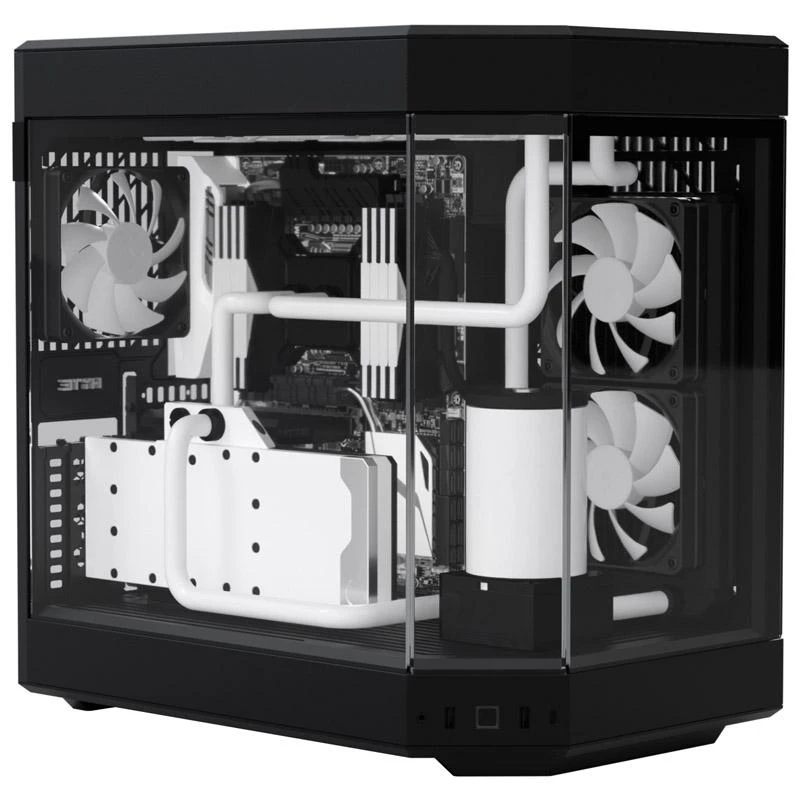

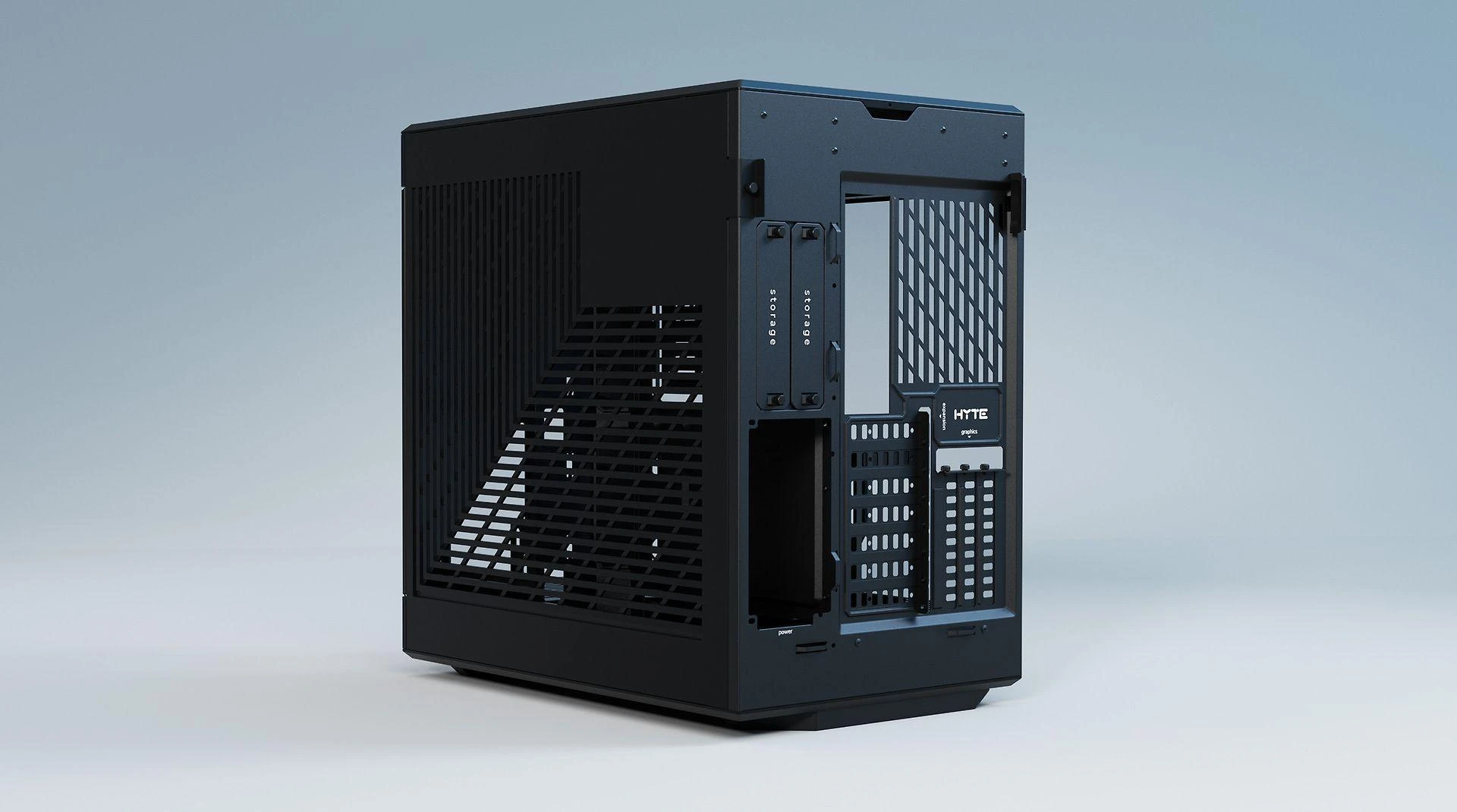

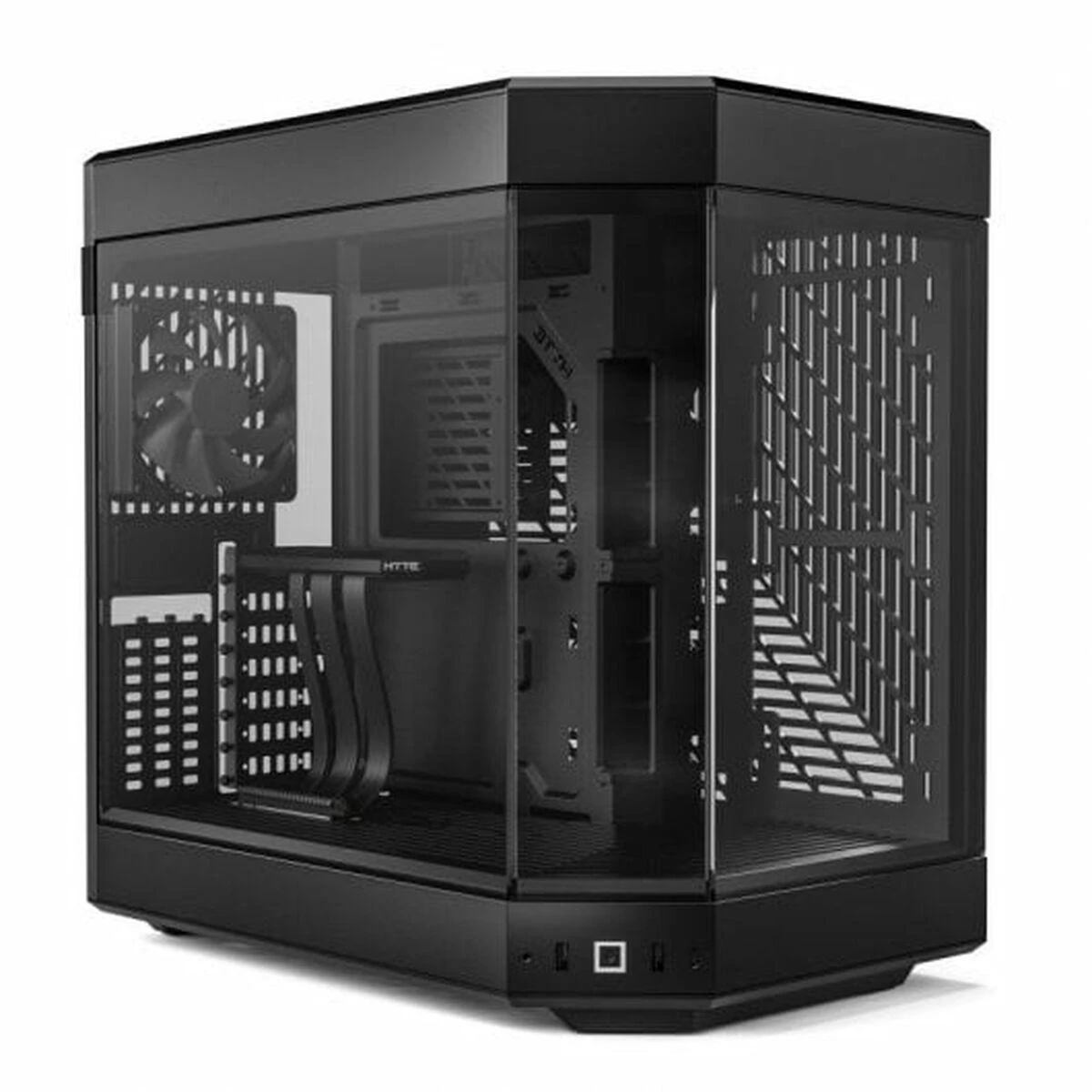

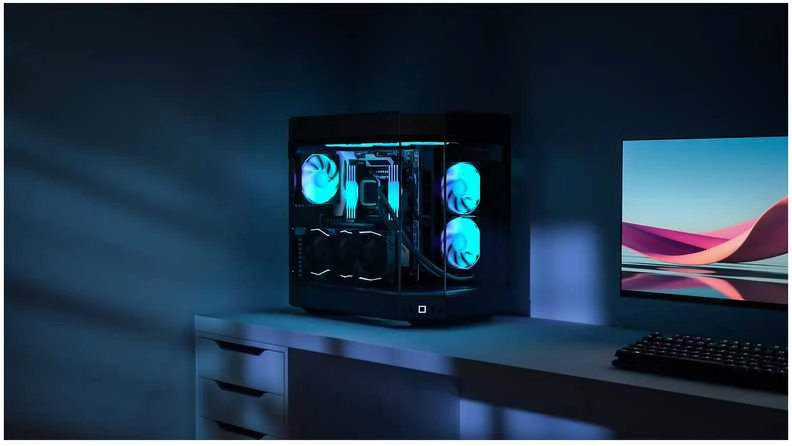

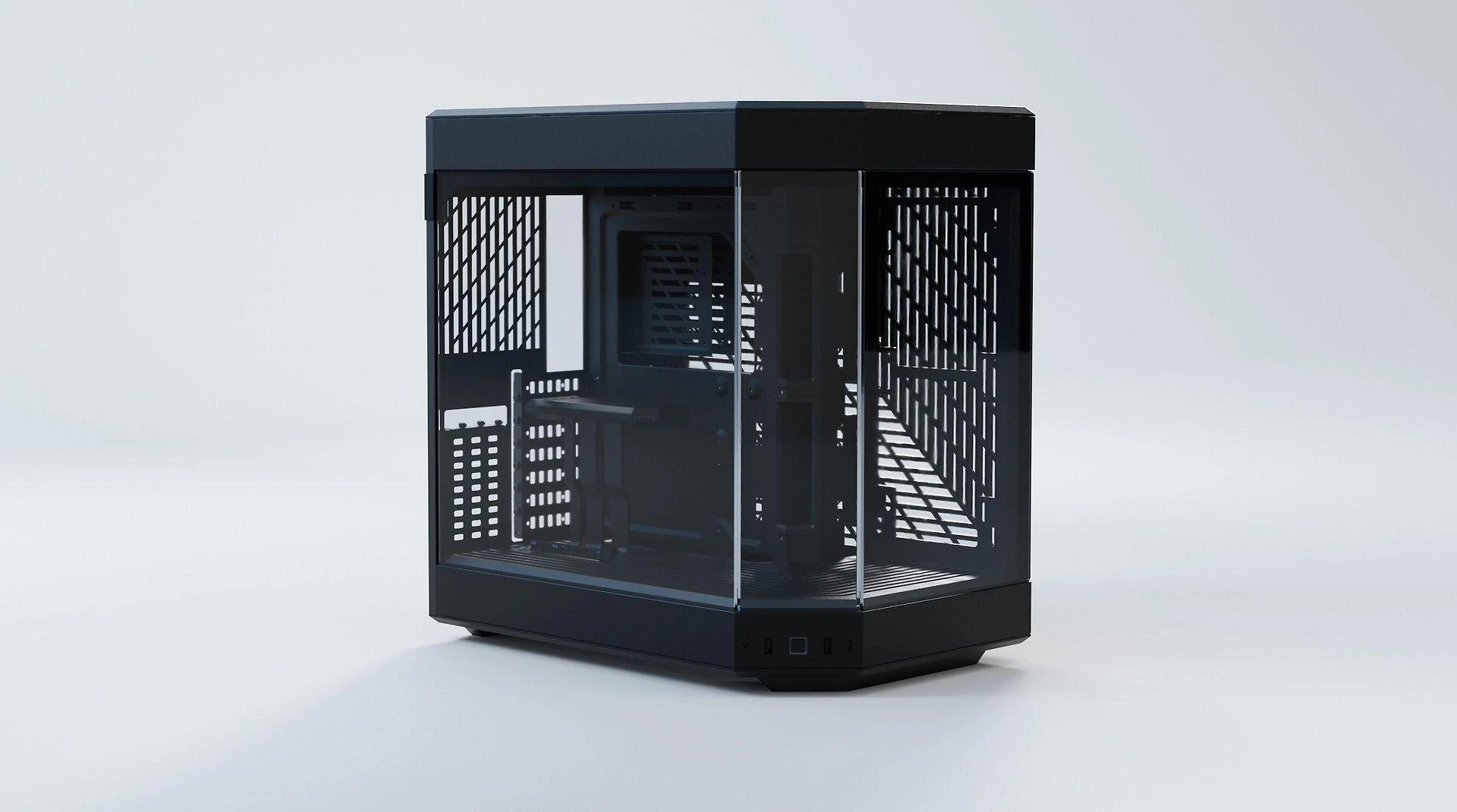

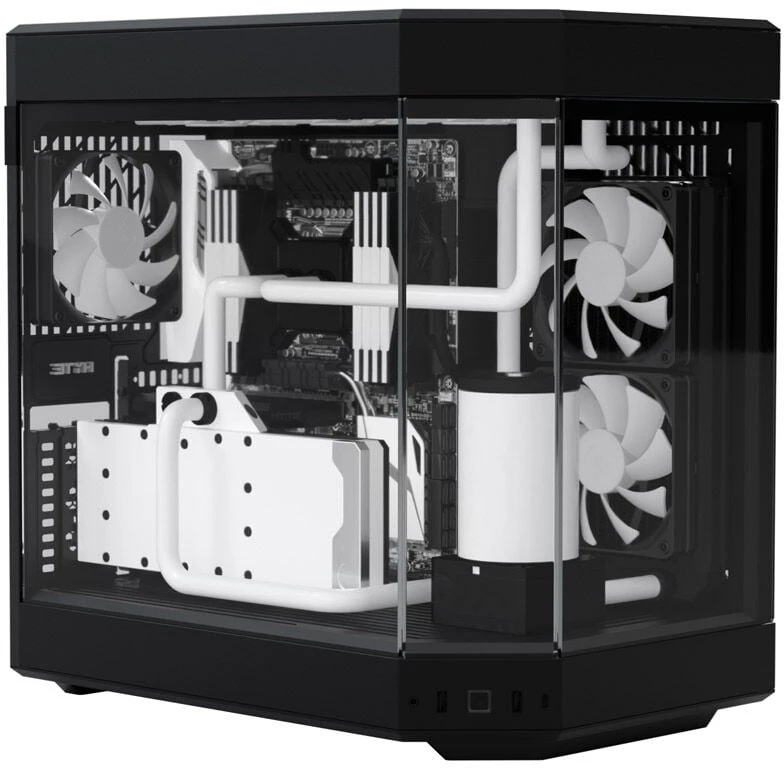

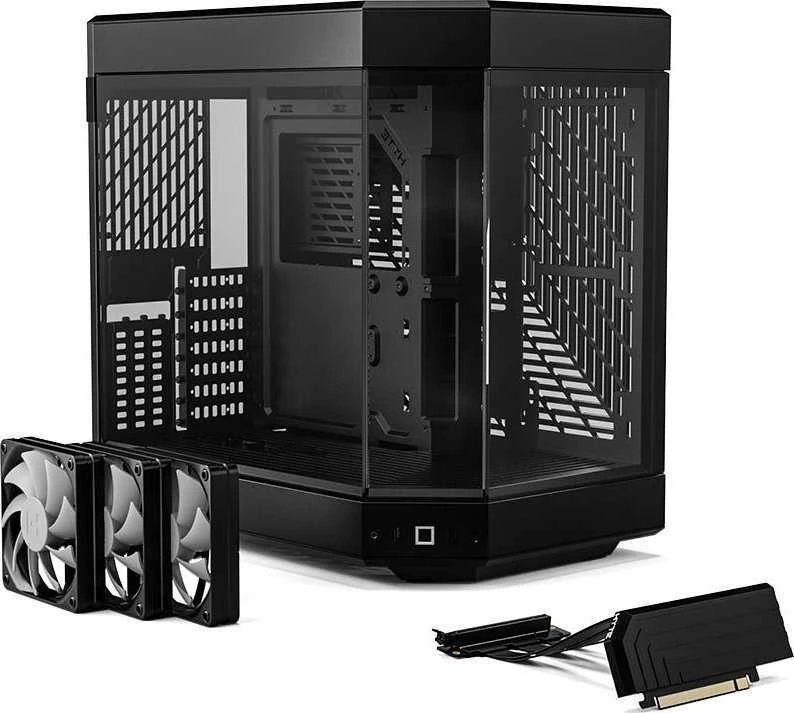

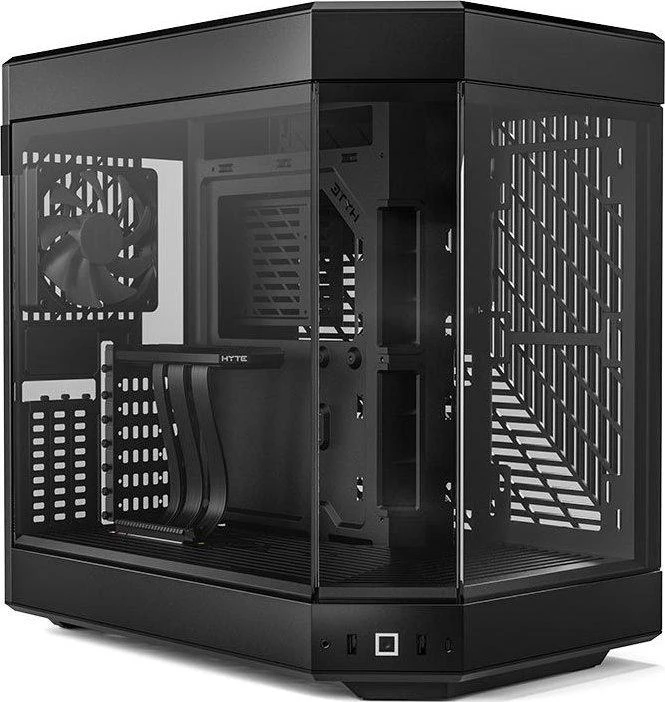

Panoramic Views No corner pillar. The Y60 features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn. Exclusively Vertical GPU Mounted Why would you want to see your graphics card any other way? Included PCIE 4.0 Riser Cable A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60. Antechamber Construction Segment cables from thermal components and turn your PC into a work of art. Cold Floor Cooling Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60. Included Fans The three pre-installed Flow FE12 fans with fluid-dynamic bearings provide whisper-quiet operation.

Specification

Colour
Primary Colour	Black
Fan Main Colour (Frame)	Black
Fan Main Colour (Rotor)	White
Dimensions
Length / Depth	456 mm
Width	285 mm
Height	462 mm
Weight	9.6 kg
Case
Case Type	Mid Tower
Motherboard Support
Compatible Motherboard Formats	ATX, E-ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format	E-ATX
Internal Dimensions
Max. CPU Cooler Height	160 mm
Max. GPU Length	375 mm
Max. GPU Width	75 mm
Max. PSU Length / Depth	235 mm
Inner Volume	60 l
Display
Display Included	No
Power Supply
PSU included	No
PSU Format	ATX
Power Supply Position	rear side
Cable Specifications
Riser Cable Included	Yes
Riser Cable Generation	PCIe 4.0
Fan Support
Case Fan Support (Bottom)	120mm Fan (2x), 140mm Fan (2x)
Case Fan Support (Rear)	120mm Fan (1x)
Case Fan Support (Side)	120mm Fan (2x), 140mm Fan (2x)
Case Fan Support (Top)	120mm Fan (3x)
Max. Number of Fans	8
120 mm fans	8
140 mm fans	4
Radiator Support
Max. Radiator Compatibility	1x Triple (360 mm)
Radiator/AIO Support (Rear)	120mm Radiator
Radiator/AIO Support (Side)	120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator
Radiator/AIO Support (Top)	120mm Radiator, 240mm Radiator, 360mm Radiator
Drive Bays
Max. 2.5 Inch Drives	4
Max. 3.5 Inch Drives	2
Max. 5.25 Inch Drives	0
2.5 inch internal drive bay	4
3.5 inch internal drive bay	2
Hot swap drive bays	No
External Ports
Front I/O – USB Type C Ports Total	1
Front I/O – USB Type A Ports Total	2
USB 3.2 (external) Type C	1
USB 3.0 (external) Type A	2
Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Case Features
I/O position	Front
Side panel	with window
Vertical GPU Mount	Yes
Adjustable Vertical GPU Bracket	No
Front door	No
Cable Management	Yes
Filters Included	Yes
Filter Position	Bottom, Side, Top
Noise dampening	No
Mainboard slide / tray	No
Remote included	No
Transport System	No
Back Connect
Back Connect	No
Expansion Slots
Expansion slots / PCI slots	10
PCI slot allocation	7 + 3
Features
Housing Feedthrough	No
Connectivity
Card reader	No
Fan Header
Fan Controller / Fan Hub	No
Mounting
Case VESA Mountable	No
Internal Monitor Mount	No
Materials
Materials	ABS, Plastic, Stainless steel, Tempered Glass
Lighting
Lighting / RGB	No
Product Series
Product Series/Family	Y60
Additional Contents
Fans Included	Yes
Included fans	3x 120 mm
