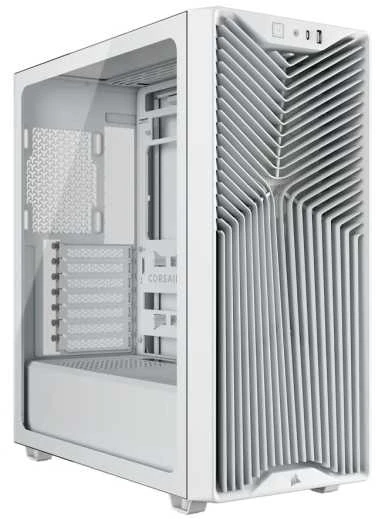

Corsair 3200D RS PC-case,...

High airflow through mesh front, back-connect compatible design, tempered glass side window, optimized cable management, 3x pre-installed fans

The Corsair 3200D RS is a modern mid-tower case for gaming PCs, focusing on airflow and clean builds. It is aimed at enthusiasts seeking a tidy system and support for back-connect motherboards.

Back-connect compatibility – allows hidden cables for an exceptionally neat gaming system
Mesh front panel for strong airflow – noticeably improves the cooling of your components
Spacious interior layout – supports current hardware and makes installation easier
Tempered glass side panel – showcases your components clearly and stylishly
Integrated fans – ready to use immediately without needing additional fans

Corsair 3200D RS: Clean build thanks to back-connect support

The 3200D RS supports back-connect motherboards, where ports are relocated to the rear. This means cables are almost completely hidden from view. The result is an exceptionally tidy system with improved airflow. At the same time, assembly becomes more structured and easier.

Efficient cooling through thoughtful airflow

The large mesh front ensures a constant airflow into the case. This effectively removes warm air and heat. Your components remain reliably cooled even under load. This improves the stability and lifespan of your system.

Flexible design for current hardware

The interior layout offers ample space for powerful components and versatile cooling options. Cables can be neatly routed, making assembly easier. The tempered glass side panel skilfully showcases your hardware. This way, you combine functionality with a clean look.

Specification

Colour
Primary Colour	White
Dimensions
Length / Depth	446 mm
Width	214 mm
Height	476 mm
Weight	7 kg
Case
Case Type	Mid Tower
Motherboard Support
Compatible Motherboard Formats	ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format	ATX
Internal Dimensions
Max. CPU Cooler Height	170 mm
Max. GPU Length	400 mm
Max. PSU Length / Depth	180 mm
Display
Display Included	No
Power Supply
PSU included	No
PSU Format	ATX
Power Supply Position	rear bottom
Cable Specifications
Riser Cable Included	No
Fan Support
Case Fan Support (Bottom)	120mm Fan (2x)
Case Fan Support (Front)	120mm Fan (3x), 140mm Fan (2x)
Case Fan Support (Rear)	120mm Fan (1x)
Case Fan Support (Top)	120mm Fan (3x), 140mm Fan (2x)
Max. Number of Fans	9
120 mm fans	9
140 mm fans	4
Radiator Support
Max. Radiator Compatibility	2x Triple (360 mm)
Radiator/AIO Support (Front)	240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator/AIO Support (Top)	240mm Radiator, 280mm Radiator, 360mm Radiator
Drive Bays
Max. 2.5 Inch Drives	2
Max. 3.5 Inch Drives	1
Max. 5.25 Inch Drives	0
Hot swap drive bays	No
External Ports
Front I/O – USB Type C Ports Total	1
Front I/O – USB Type A Ports Total	1
USB 3.2 (external) Type C	1
USB 2.0 (external) Type A	1
Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Case Features
I/O position	Top
Side panel	with window
Vertical GPU Mount	No
Adjustable Vertical GPU Bracket	No
Front door	No
Cable Management	Yes
Filters Included	Yes
Filter Position	Bottom, Front, Top
Noise dampening	No
Mainboard slide / tray	No
Transport System	No
Back Connect
Back Connect	Yes
Back-Connect Compatibility	ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
Expansion Slots
Expansion slots / PCI slots	7
Features
Housing Feedthrough	No
Compatibility
Compatibility Note	Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Connectivity
Card reader	No
Fan Header
Fan Controller / Fan Hub	No
Mounting
Case VESA Mountable	No
Internal Monitor Mount	No
Materials
Materials	Plastic, Steel, Tempered Glass
Lighting
Lighting / RGB	No
Additional Contents
Fans Included	Yes
Included fans	3x 120 mm
