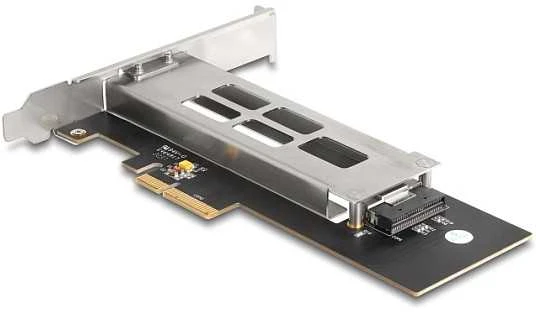

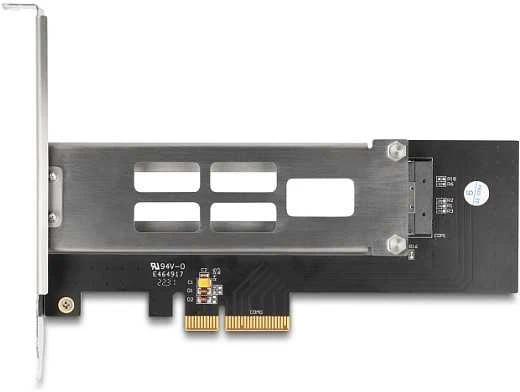

„Kieszeń Delock“ nuimamo rėmo PCI Express plokštė, skirta 1 x M.2 NMVe SSD, sąsajos plokštė

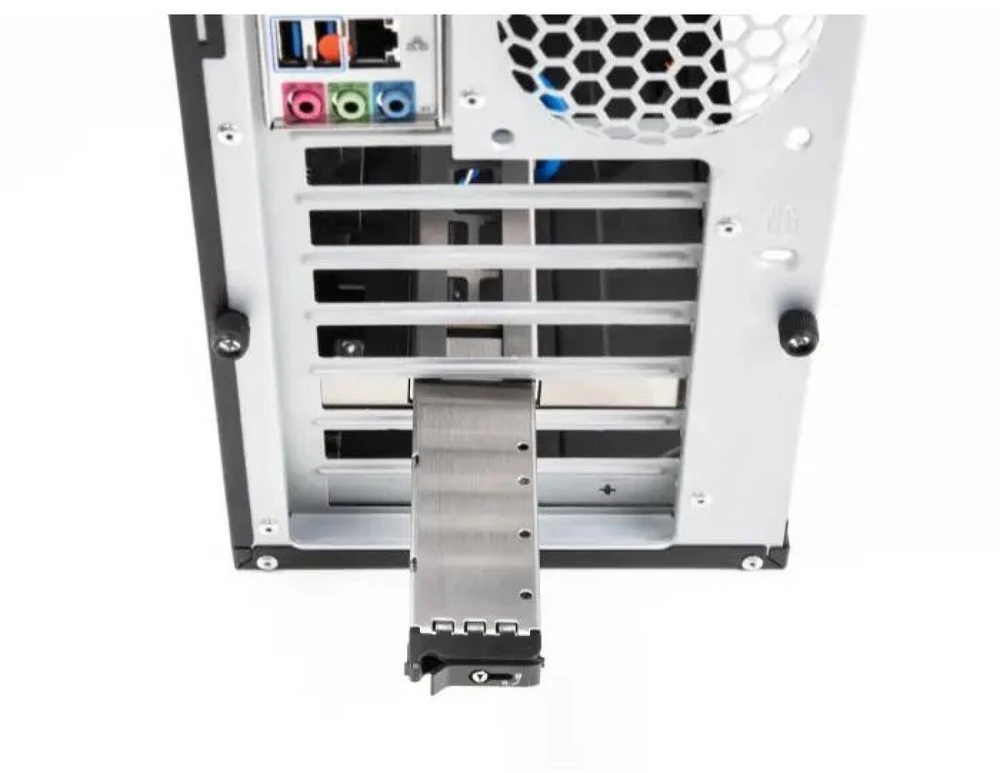

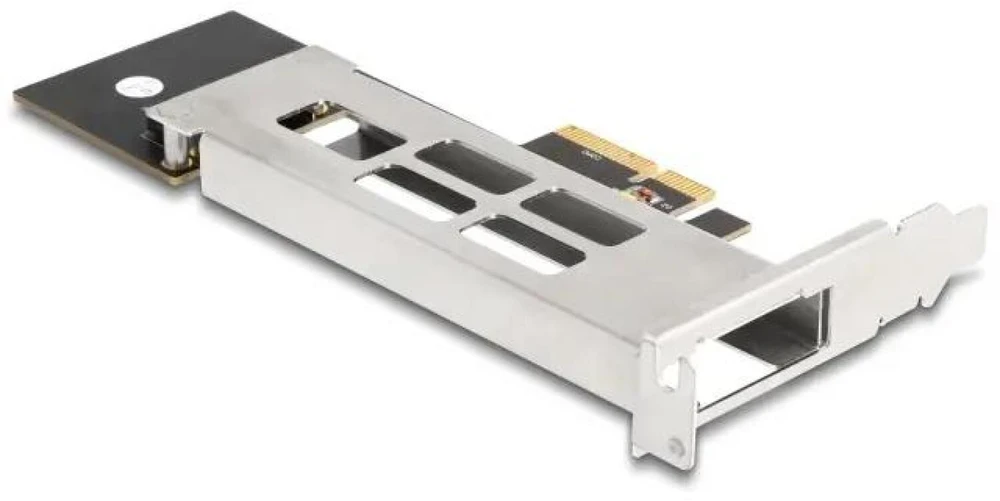

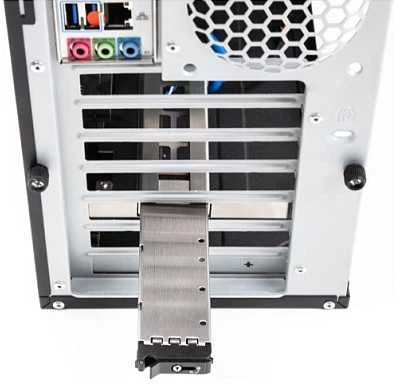

This Delock mobile tray can be installed in a free card slot in a computer and provides one M.2 slot in 2280, 2260, 2242 or 2230 format.

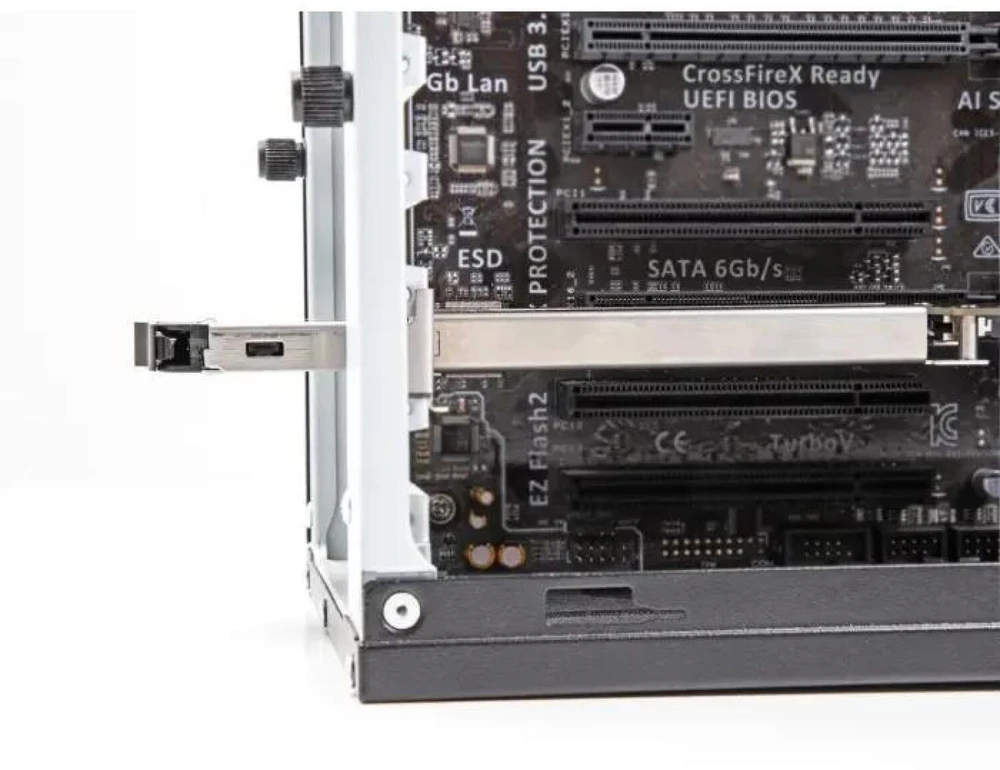

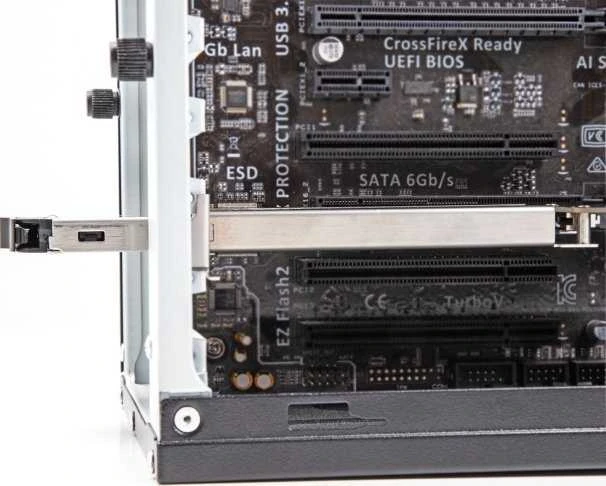

Fast SSD replacement
Thanks to a special mechanism, the SSD can be quickly and easily replaced. For example, data backups can be taken out and stored in a safe place.

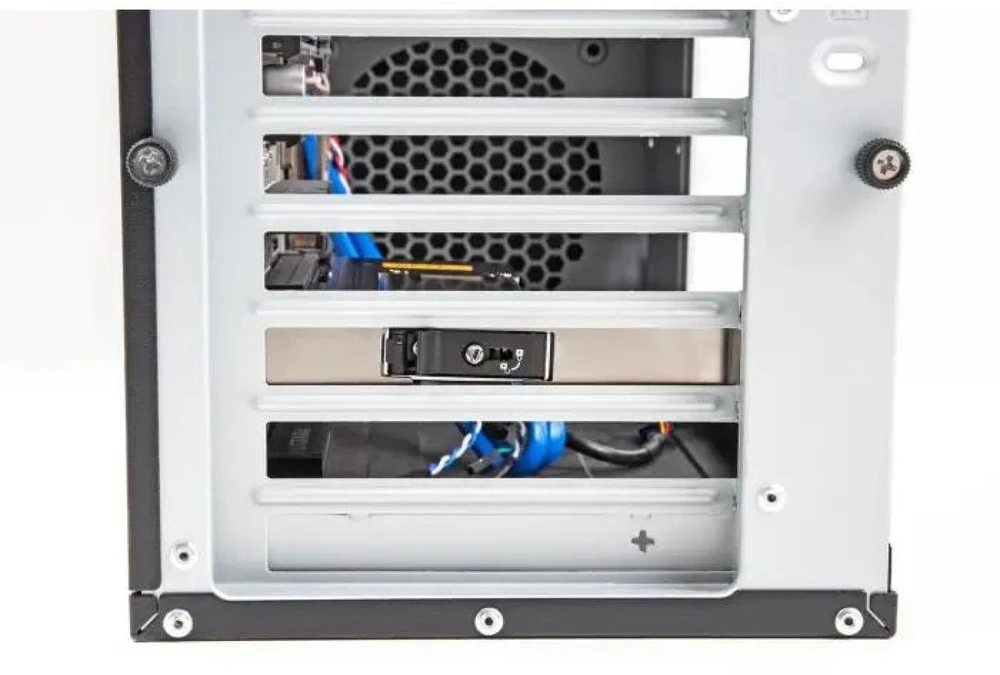

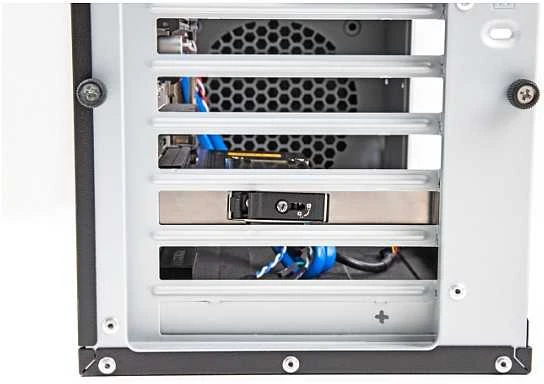

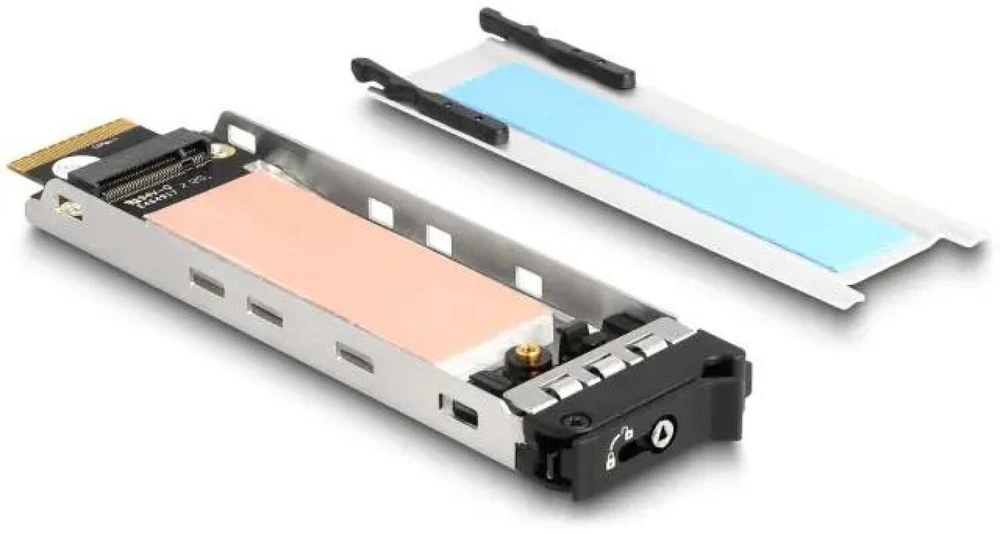

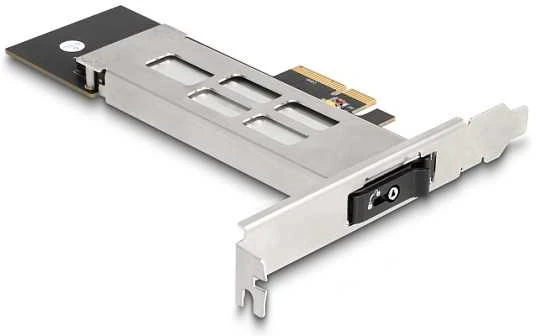

Tray with key locking and springs
The replacement tray is equipped with a lock to prevent unauthorized access. The metal stable carrier has springs at the top and bottom to reduce vibration.

Note
Extra care must be taken to ensure that the disk drive is inserted all the way in, otherwise the connection to the SSD cannot be established.

Specifications
Connector:
PCIe card:
1 x PCI Express x4, V4.0
1 x M.2 key M slot

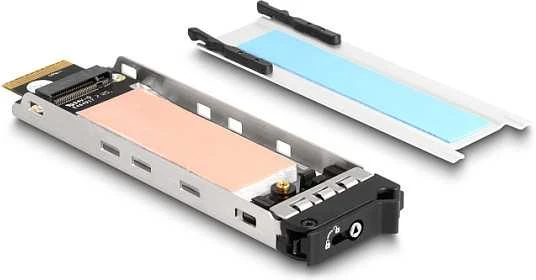

M.2 key tray:
1 x M.2 key M male
1 x M.2 key M slot
Interface: PCIe/NVMe
Supports M.2 modules in 2280, 2260, 2242 and 2230 formats with M key or B+M key based on PCIe
Maximum component height per module: 1.5mm, double-sided module applications are supported
1 x LED indicating
Bootable, as of UEFI version 2.3.1
M.2 metal tray
Supports NVM Express (NVMe)
Supports S.M.A.R.T.
Operating temperature: -40 °C ~ 85 °C

System requirements
Linux Kernel 5.15 or higher
Windows 10/10-64/11
Windows Server 2022
PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package contents
Mobile frame
M.2 tray
Slot plug
Cooler
Screws

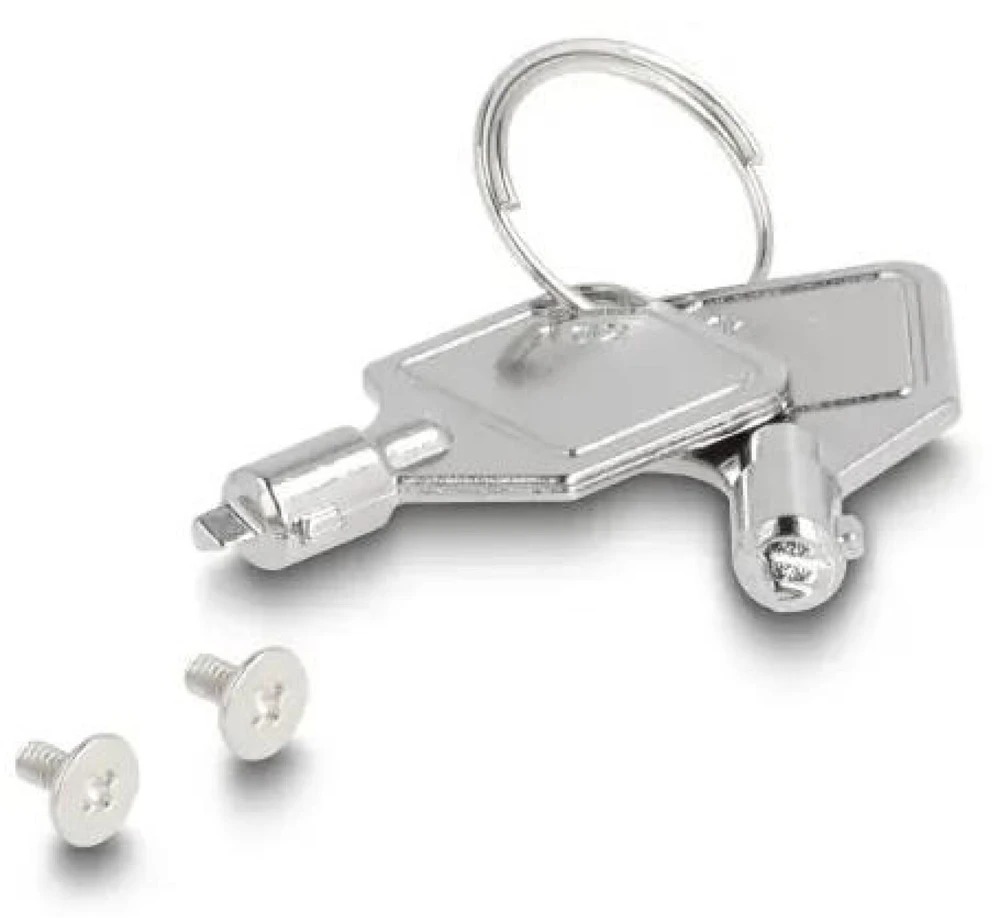

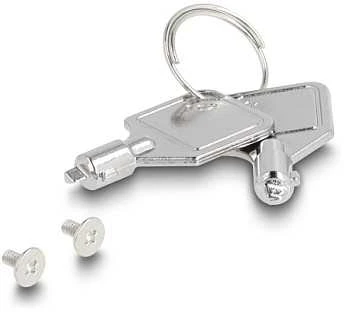

2 x wrench
User manual

Packaging
Box
