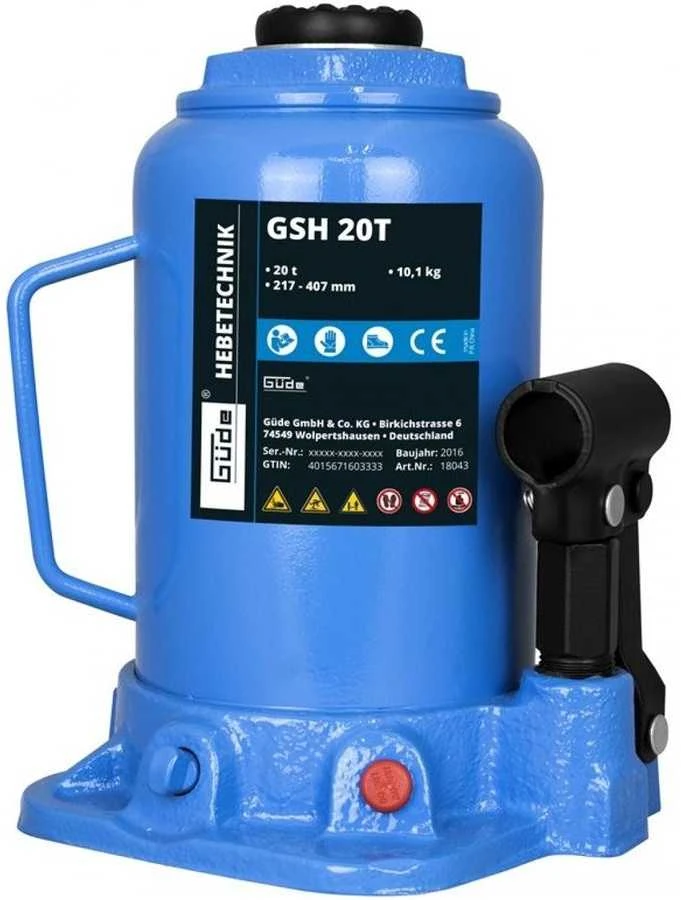

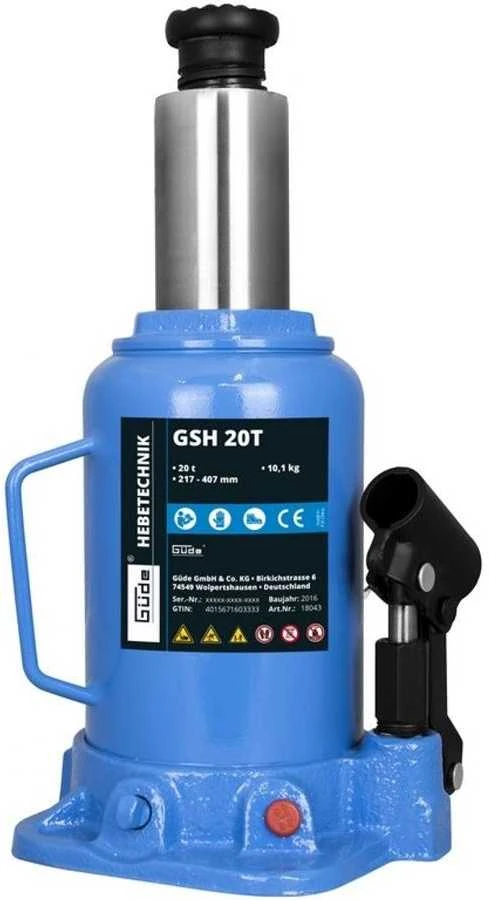

Güde GSH 20t (18043)

The portable column hoist, usually referred to as a "dolly", is designed for efficient lifting of heavy loads in garages, workshops and similar areas (-> maximum capacity: 20 tons). Its piston stroke ranges from 217 to 315 mm, with a grooved support plate with a diameter of 42 mm (-> height-adjustable in the range of 92 mm), and the continuous lowering of the load is controlled by turning the release valve. The design of this hoist includes a robust hydraulic cylinder, cast iron stand-off plate, and a two-piece lifting lever with moulding to operate the valve. The jack also features a transport handle for easy portability. Product Parameters: Maximum lifting capacity: 20,000 kg. Minimum height: 217 mm Maximum height: 407 mm Width of assembled device in mm: 145 Height of the assembled device in mm: 217 Assembled length in mm: 155
