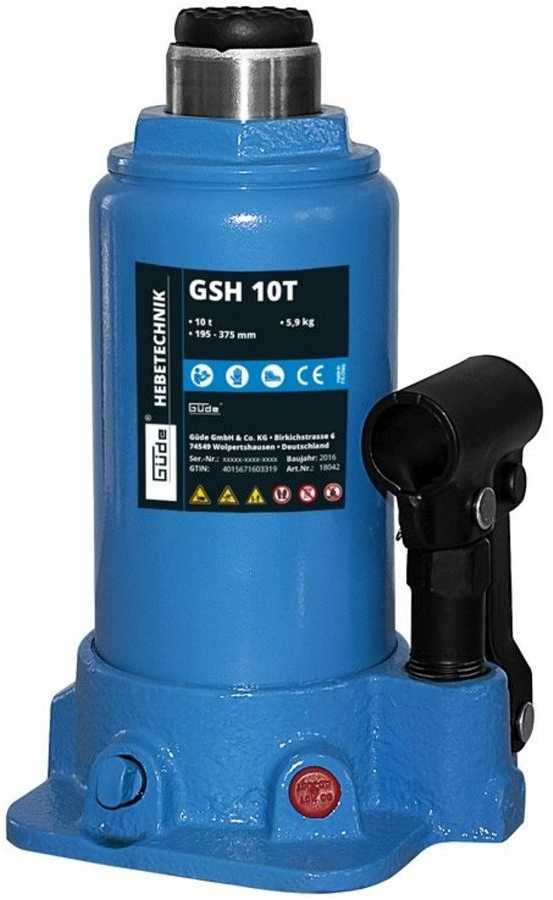

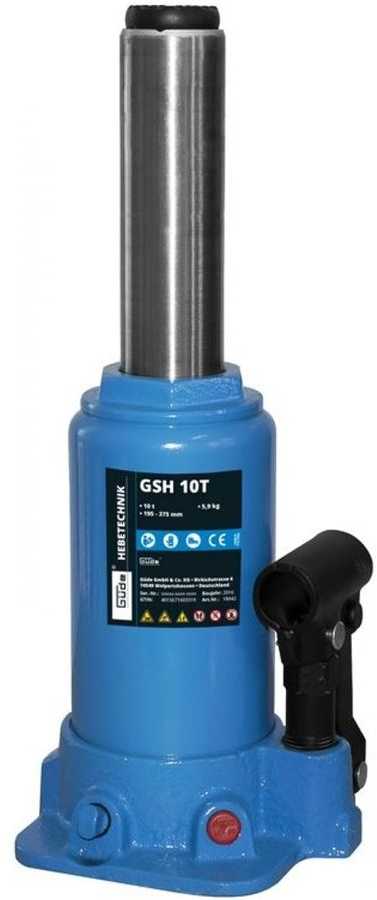

The portable column hoist, referred to as the "dolly", is designed for efficient lifting of heavy loads in garages, workshops and similar areas (-> maximum load capacity: 10 tons).
Its piston stroke ranges from 195 to 320 mm, with a grooved support plate with a diameter of 35 mm (-> height adjustable in the range: 55 mm).
Continuous load reduction is controlled by turning the discharge valve.
The design of this hoist includes a robust hydraulic cylinder, cast iron stand-off plate and a two-piece lifting lever with moulding to operate the valve, allowing easy and efficient handling.
Product Parameters:
Maximum load capacity: 10,000 kg.
Minimum height: 195 mm
Maximum height: 375 mm
Width of assembled device in mm: 110
Height of assembled device in mm: 195
Assembled length in mm: 120
