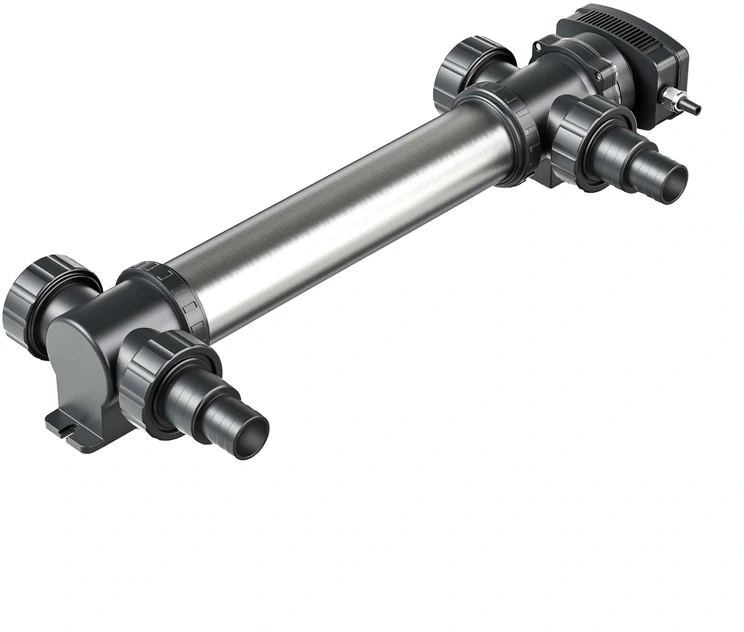

SUNSUN CUV-755 55W UV-C Lamp
The SUNSUN CUV-755 is a 55W UV-C lamp designed for ponds and water features with a capacity of up to 65,000 liters. The device is compatible with systems with a maximum flow rate of 8,000 l/h and a pressure of up to 1 bar, helping to reduce the growth of algae responsible for cloudiness and greening of the water. Thanks to its stainless steel housing and well-designed flow path, the lamp effectively utilizes UV-C radiation to improve water quality. Universal connectors allow for easy connection to various filtration systems used in ponds.
Algae control and microbial reduction

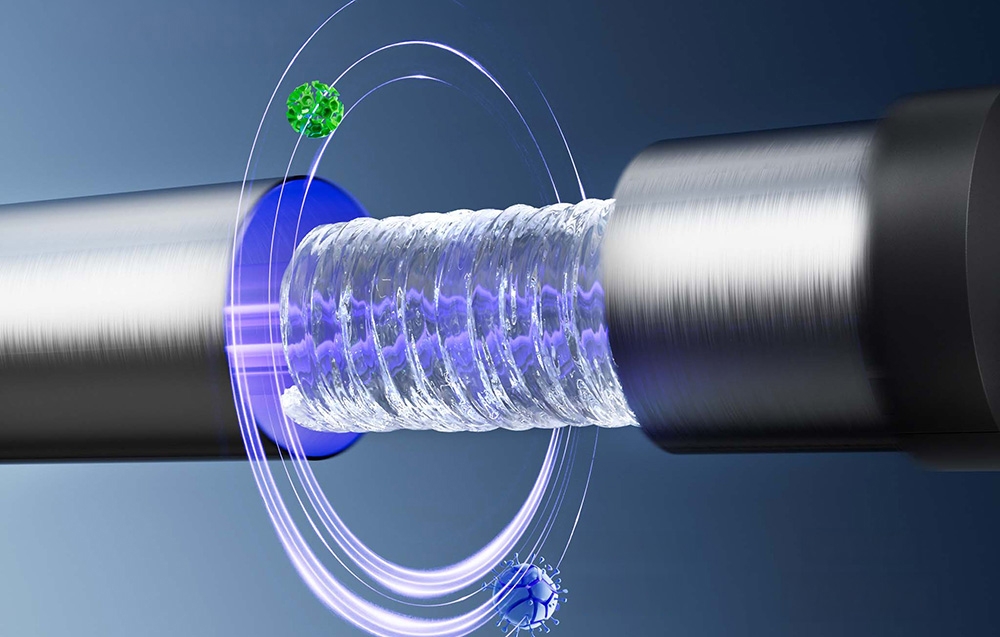

The UV-C lamp operates in a flow-through system, exposing the water to ultraviolet radiation. This process helps limit the growth of algae floating in the water column, which are responsible for the pond’s green coloration. Under the influence of the radiation, algae clump together into larger clusters, making them easier to trap with a mechanical filter. The unit also helps reduce bacteria and other microorganisms present in the water, which improves its clarity and overall quality.
Design for Enhanced Performance

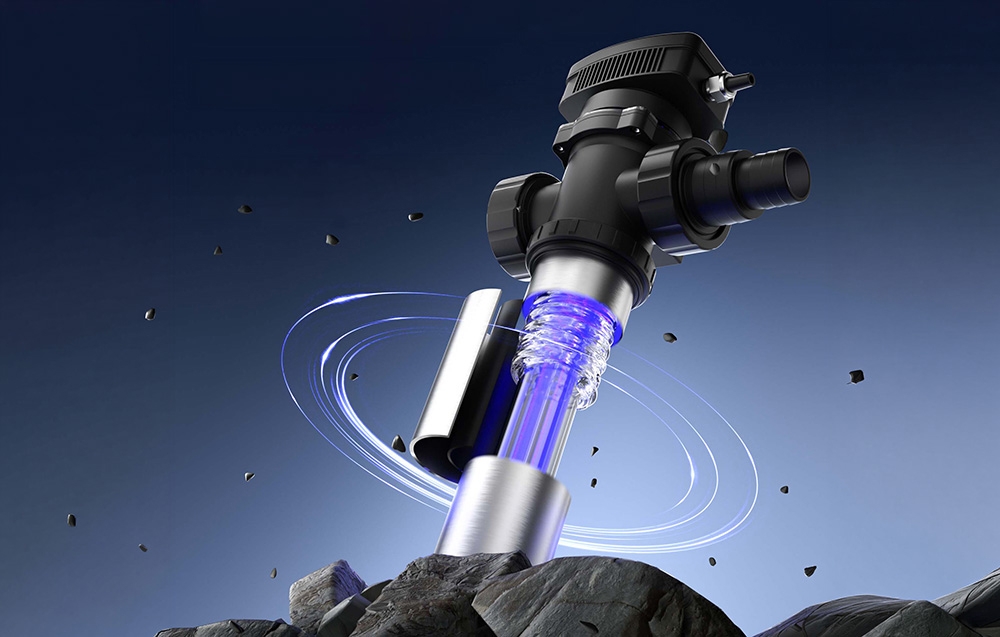

The CUV-755 model features a specially designed housing and flow system that sets the water in motion as it passes through the unit. The manufacturer does not use an internal helical coil, which makes it easier to keep the lamp clean and reduces the buildup of contaminants. An additional advantage is the stainless steel housing, which reflects UV-C radiation. As a result, light that is not absorbed upon initial contact with the water can interact again, increasing the efficiency of the treatment process.
Safe treatment without chemicals

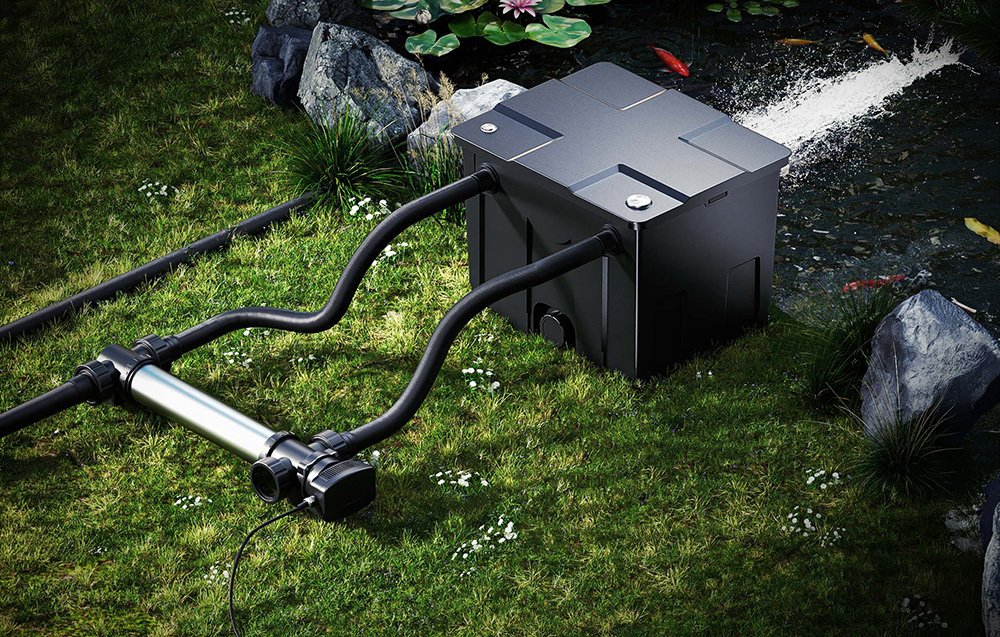

The SUNSUN UV-C lamp improves water clarity without the use of chemicals. The radiation acts exclusively inside the unit on the flowing water, making it safe for fish and plants in the pond. The best results are achieved when the lamp is used in conjunction with a properly selected biological and mechanical filter. Using this combination helps keep the water in good condition throughout the season and reduces problems associated with excessive algae growth.
|
Manufacturer
|
SUNSUN
|
|
Model
|
CUV-755
|
|
UV-C Power
|
55 W
|
|
Maximum Pond Capacity
|
65,000 L
|
|
Recommended / Maximum Flow Rate
|
8,000 L/h
|
|
Maximum Operating Pressure
|
1 bar
|
|
Housing Material
|
Stainless steel, ASA, ABS
|
|
Power Supply Voltage
|
220–240 V / 50 Hz
|
|
Protection rating
|
IP44
|
|
Protection class
|
I
|
|
Power cord length
|
5 m
|
|
Cable cross-section
|
3 × 0.75 mm²
|
|
Operating temperature
|
4°C to 35°C
|
|
Connections
|
Ø 38 mm, Ø 50 mm
|
|
Device length
|
684 mm
|
