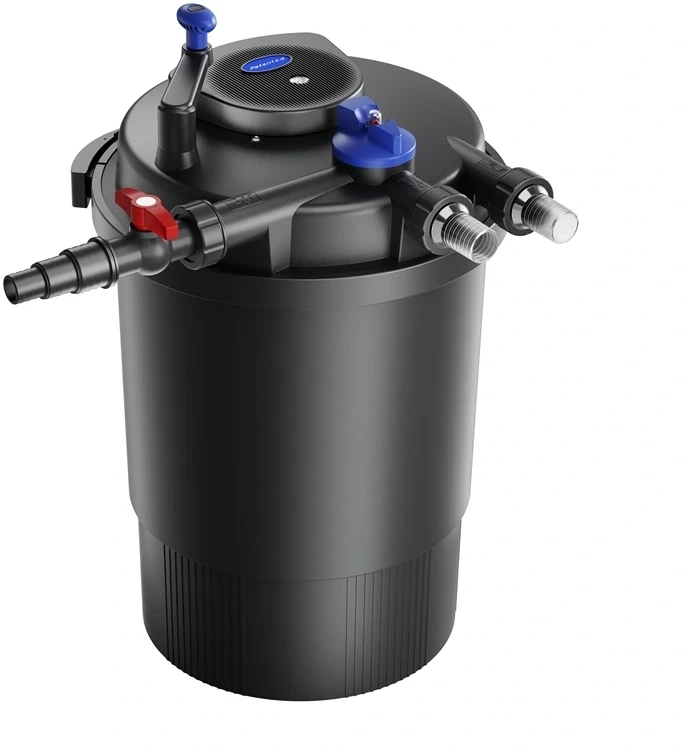

SUNSUN CPF-30000 55W UV Pressure Filter for Ponds
The SUNSUN CPF-30000 is a pressure filter designed for ponds, garden ponds, and fish tanks with a capacity of up to 30 m³. The unit is equipped with a 55 W UV-C lamp, which helps maintain clear water by limiting algae growth. The model offers a maximum flow rate of 12,000 l/h, a filter chamber capacity of 75 liters, and the ability to connect hoses with diameters of 1¼", 1½", and 2". The filter is suitable for both fish ponds up to 30 m³ and decorative ponds without fish with a capacity of up to 60 m³, ensuring effective purification and stable conditions for the entire aquatic ecosystem.

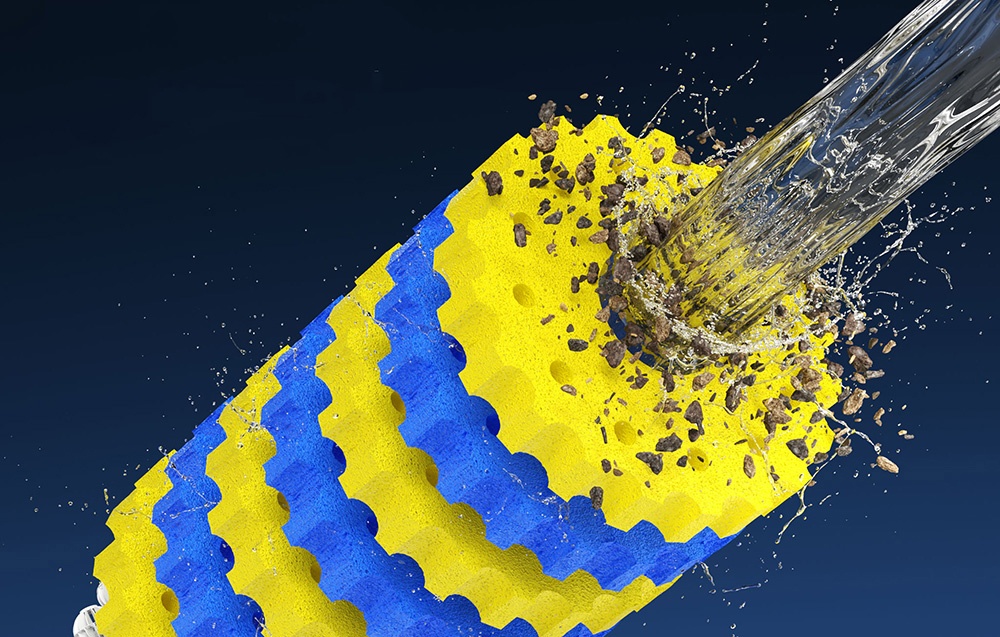

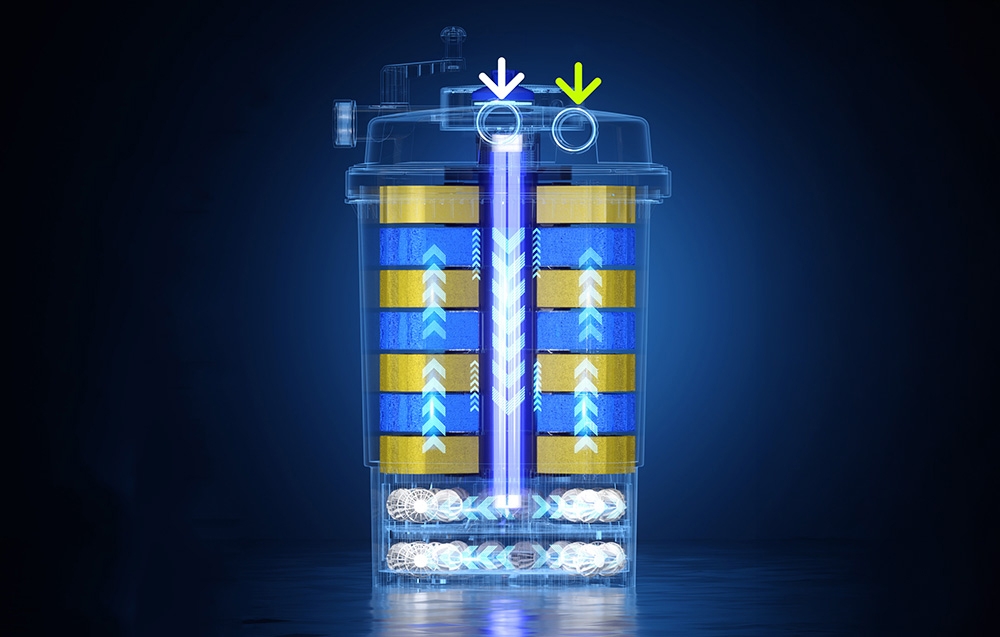

Combination of mechanical, biological, and UV-C filtration
The CPF-30000 model utilizes a combination of several water purification methods, allowing it to effectively handle various types of contaminants. Mechanical filtration traps suspended solids, organic debris, and fine contaminants floating in the water. The filter cartridges create a suitable environment for the growth of nitrifying bacteria, which support the natural biological purification processes of the pond. This improves water quality, and the pond can maintain a stable biological balance for a long time.

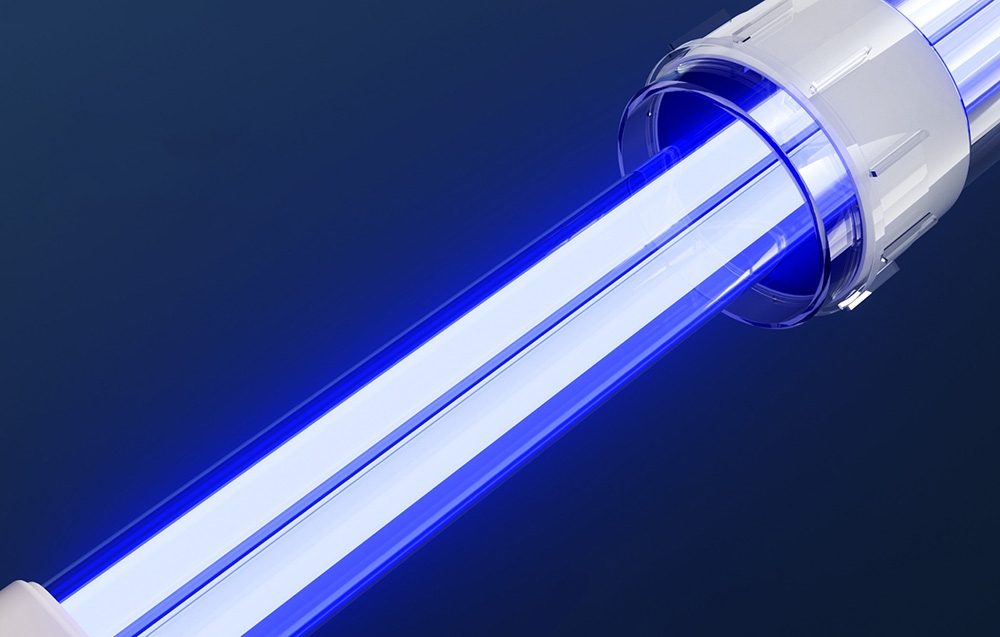

The 55W UV-C lamp helps maintain clear water
The built-in 55W UV-C sterilizer helps limit the growth of algae responsible for the "green water" effect. Ultraviolet radiation causes microorganisms and algae to clump together into larger clusters, which are then trapped by the filtration system. This solution allows for more effective removal of contaminants from the water circulation and improves the clarity of the entire pond. As a result, the pond looks more aesthetically pleasing, and the living conditions for fish and plants are improved.
Convenient operation and easy cleaning

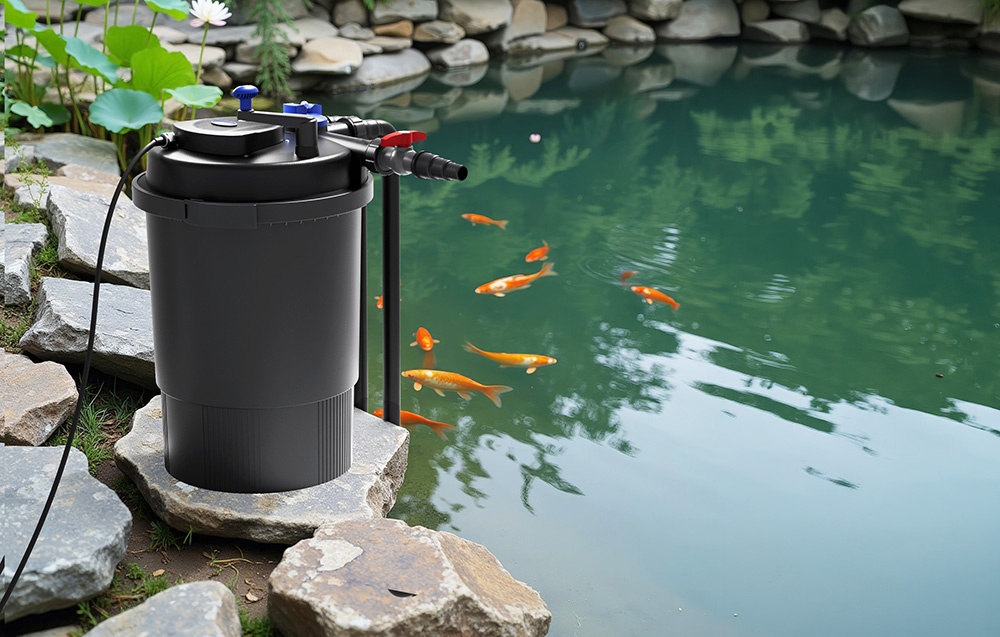

The filter is equipped with an integrated clogging indicator and a mechanical cleaning system for the filter cartridges. This allows the user to quickly check the filter’s condition and perform basic maintenance without having to disassemble the entire unit. The compact design allows the filter to be partially or completely concealed along the edge of the pond, helping to maintain the aesthetics of the surroundings. The unit’s pressurized design also allows filtered water to be pumped to higher-elevation cascades, streams, or waterfalls, expanding the design possibilities for the pond.
|
Manufacturer
|
SUNSUN
|
|
Model
|
CPF-30000
|
|
UV-C lamp power
|
55 W
|
|
Power supply
|
220–240 V / 50 Hz
|
|
Maximum flow rate
|
12,000 l/h
|
|
Recommended pump capacity
|
up to 12,000 l/h
|
|
Maximum operating pressure
|
0.3 bar
|
|
Filter capacity
|
75 l
|
|
Maximum size of fish pond
|
30 m³
|
|
Maximum ornamental pond size
|
60 m³
|
|
Hose connections
|
1¼", 1½", 2"
|
|
Protection rating
|
IP44
|
|
Material
|
ABS, PP, PC
|
|
Operating temperature
|
4–35°C
|
|
Dimensions
|
450 × 450 × 715 mm
|
