HiLook Powered by HIKVISION / NVR-208MH-C/8P(E) / 8 cameras / 8x PoE / 8 Mpix / HDMI / VGA / 2x USB / LAN / 2x SATA / Metal

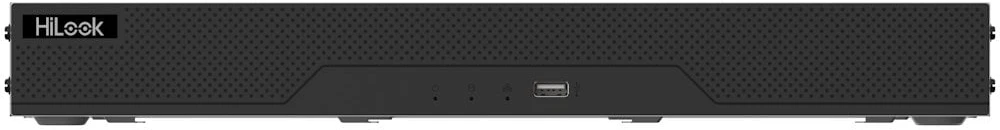

HiLook NVR-208MH-C/8P(E)



An 8-channel 1U network video recorder with integrated PoE ports and support for recording at resolutions up to 4K.
The NVR-208MH-C/8P(E) is a compact recorder designed for IP camera systems, supporting up to 8 IP cameras and 80 Mbps of incoming bandwidth. The device supports H.265+, H.265, H.264+, and H.264 video compression formats, enabling efficient use of storage space while maintaining high image quality. It features 8 PoE ports (IEEE 802.3 af/at) with a total power output of up to 80 W, which provide both power and data transmission to the cameras via a single cable.
The recorder features an HDMI output with a resolution of up to 4K (4096 × 2160 px) and a concurrent VGA output. Two SATA slots, each supporting drives with a capacity of up to 8 TB, are provided for storing recordings. The Motion Detection 2.0 feature, with motion analysis of people and vehicles across 4 channels, enables intelligent event filtering.





Supports up to 8 IP cameras with 80 Mbps of both incoming and outgoing bandwidth.
Video compression formats include H.265+, H.265, H.264+, and H.264 for efficient data storage.
Decoding capacity of up to 2× 8 Mpx, 4× 4 Mpx, or 8× 1080p (with AI/4K mode disabled).
Eight integrated PoE ports (IEEE 802.3 af/at) with a total power output of up to 80 W.
HDMI output supporting resolutions up to 4K (4096 × 2160 px) at 30 Hz and simultaneous VGA output.
Two SATA slots for drives with a capacity of up to 8 TB per drive (up to 16 TB total).
Human/Vehicle Analysis on 4 channels.
Synchronous playback of up to 8 channels simultaneously.
Compact 1U design with dimensions of 384 × 223 × 48 mm and power consumption ≤ 10 W (without PoE).





Network Features and Remote Access: The recorder supports up to 32 remote connections and the following protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, and HTTPS. The network interface consists of 1× 10/100 Mbps RJ-45 port for connecting to a local network.
Audio Interfaces: The device is equipped with a single-channel RCA audio output (line level, 1 kΩ) and a single-channel RCA audio input for bidirectional audio transmission (2.0 Vp-p, 1 kΩ).
Interfaces and Connectivity: Two USB 2.0 ports are provided for connecting external storage devices or input devices. Power is supplied by a 48 V DC power supply with a maximum power consumption of 120 W.




BASIC SPECIFICATIONS

Number of channels: 8× IP cameras
Inbound/outbound bandwidth: 80 Mbps / 80 Mbps
Supported compression formats: H.265+, H.265, H.264+, H.264, MPEG-4
Recording resolution: 8 Mpx / 6 Mpx / 5 Mpx / 4 Mpx / 3 Mpx / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Decoding capacity (AI/4K off): 8× 1080p at 30 fps
Decoding capacity (AI/4K on): 6× 1080p at 30 fps
HDMI output: 1× 4K (4096 × 2160 px) / 30 Hz, 4K (3840 × 2160 px) / 30 Hz, 2K (2560 × 1440 px) / 60 Hz, 1080p / 60 Hz
VGA output: 1× 1080p / 60 Hz, UXGA / 60 Hz, SXGA / 60 Hz, 720p / 60 Hz
PoE ports: 8× RJ-45 10/100 Mbps, IEEE 802.3 af/at, total power ? 80 W
Network interface: 1× RJ-45 10/100 Mbps
Storage: 2× SATA, up to 8 TB per drive
USB: 2× USB 2.0
Image analysis: Motion Detection 2.0, Human/Vehicle Analysis (4 channels)
Power supply: 48 V DC, ? 120 W
Power consumption (without PoE): ? 10 W
Operating temperature: -10 to +55 °C
Operating humidity: 10 to 90%
Dimensions: 384 × 223 × 48 mm
Weight: ≤ 2.6 kg
Form factor: 1U
