HiLook Powered by HIKVISION / NVR-116MH-C(E) / 16 cameras / 8 Mpix / HDMI / VGA / 2x USB / LAN / 1x SATA / Metal

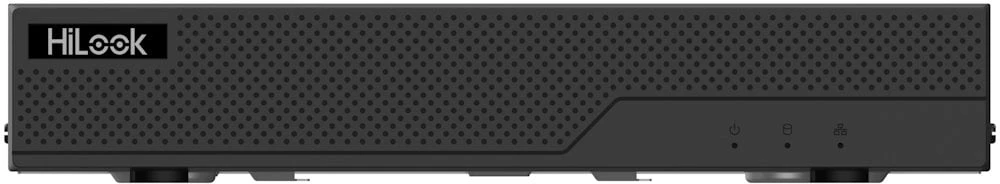

HiLook NVR-116MH-C(E)



A 1U 16-channel network video recorder with 4K resolution support and 160 Mbps incoming bandwidth.
The NVR-116MH-C(E) is designed for IP camera systems and supports up to 16 IP cameras. It supports the H.265+, H.265, H.264+, and H.264 video codecs, enabling efficient recording while maintaining high image quality. Recording is possible at resolutions up to 8 Mpx, with synchronous playback covering all 16 channels simultaneously.
The recorder features Motion Detection 2.0 with person and vehicle analysis on 4 channels. Video output is provided via HDMI (up to 4K at 30 Hz) and VGA (up to 1080p at 60 Hz) in simultaneous output mode. Data storage is handled by a single SATA slot supporting drives with a capacity of up to 8 TB.





Supports up to 16 IP cameras with 160 Mbps incoming bandwidth and 80 Mbps outgoing bandwidth.
H.265+, H.265, H.264+, H.264, and MPEG-4 video codecs for efficient recording compression.
Recording resolutions ranging from QCIF to 8 Mpx, including 1080p.
HDMI output supporting resolutions up to 4K (4096 × 2160) at 30 Hz.
Person and vehicle analysis (Motion Detection 2.0) on 4 channels.
Synchronous playback of all 16 channels simultaneously.
RJ-45 network interface with 10/100/1000 Mbps speed and automatic adaptation.
Two-channel audio: RCA output (1 kΩ) and bidirectional RCA audio (2.0 Vp-p, 1 kΩ).
Compact 1U design with dimensions of 263 × 223 × 48 mm and power consumption of ≤ 10 W.





Decoding Performance: With AI and 4K modes disabled, the recorder decodes up to 8 channels at 1080p resolution at 30 fps. When AI or 4K mode is enabled, the capacity is 6 channels at 1080p/30 fps. Neither the height nor the width of a single camera’s resolution may exceed 4096 pixels.
Network Features and Remote Access: The recorder supports up to 32 remote connections and the following protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, and HTTPS. Remote management and monitoring are thus available from various platforms.
Interfaces and Connectivity: The device offers 2× USB 2.0 ports for connecting peripherals or backing up data, 1× SATA slot for a hard drive with a capacity of up to 8 TB, and a 12 V DC power supply with a maximum power consumption of 18 W.




BASIC SPECIFICATIONS

Number of channels: 16 IP cameras
Inbound bandwidth: 160 Mbps
Outgoing bandwidth: 80 Mbps
Supported codecs: H.265+, H.265, H.264+, H.264, MPEG4
Recording resolution: 8 Mpx / 6 Mpx / 5 Mpx / 4 Mpx / 3 Mpx / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback: 16 channels
HDMI output: 1× HDMI, up to 4K (4096 × 2160) at 30 Hz
VGA output: 1× VGA, up to 1080p (1920 × 1080) at 60 Hz
Audio output: 1× RCA (line-level, 1 kΩ)
Two-way audio: 1× RCA (2.0 Vp-p, 1 kΩ)
Storage: 1× SATA, up to 8 TB per drive
USB: 2× USB 2.0
Network interface: 1× RJ-45, 10/100/1000 Mbps
Remote connections: 32
Power supply: 12 V DC, ≤ 18 W
Power consumption: ≤ 10 W
Operating temperature: -10 to +55 °C
Operating humidity: 10 to 90 %
Dimensions: 263 × 223 × 48 mm
Weight: ≤ 1.5 kg
