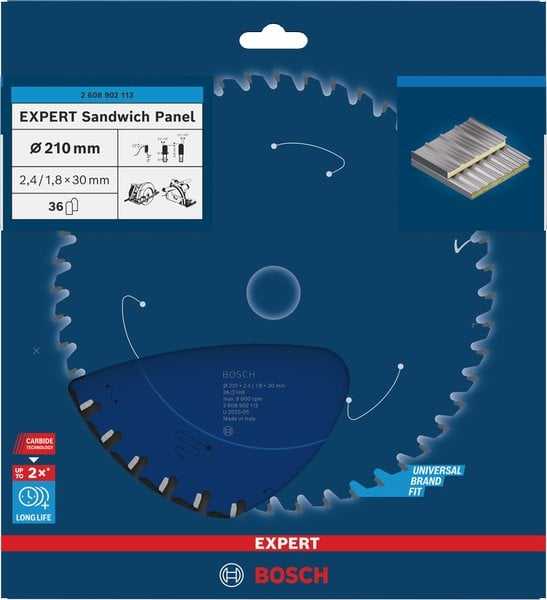

Specialized extra-coated blade designed for efficient cutting of sandwich panels with steel sheets. HLTCG geometry and zero face angle ensure a clean cut through the material without excessive heat.
Technical specifications
Outer diameter: 210 mm
Hole: 30 mm
Number of teeth: 36
Cutting width (b1) / Body thickness (b2): 2.4 mm / 1.8 mm
Tooth Shape: HLTCG (Odd-Headed Flat Tooth)
Max. speed: 9 000 rpm
Angles: 0° face angle, 12° back angle
NL/TKS holes: 2/7/42
Key features
Sandwich specialist: Ideal for cutting combination materials such as panels with an insulating core and steel cladding.
Extra coating: Special surface treatment minimizes friction and significantly increases wear resistance when cutting metal layers.
Clean and safe cut: Zero face angle (0°) ensures controlled penetration into the material and minimizes burrs on the sheet metal.
Long life: Robust teeth with HLTCG geometry are designed to withstand the rigors of alternating hard metal and soft core.
Package contents
1× Saw blade (in cardboard packaging with euro hole)
