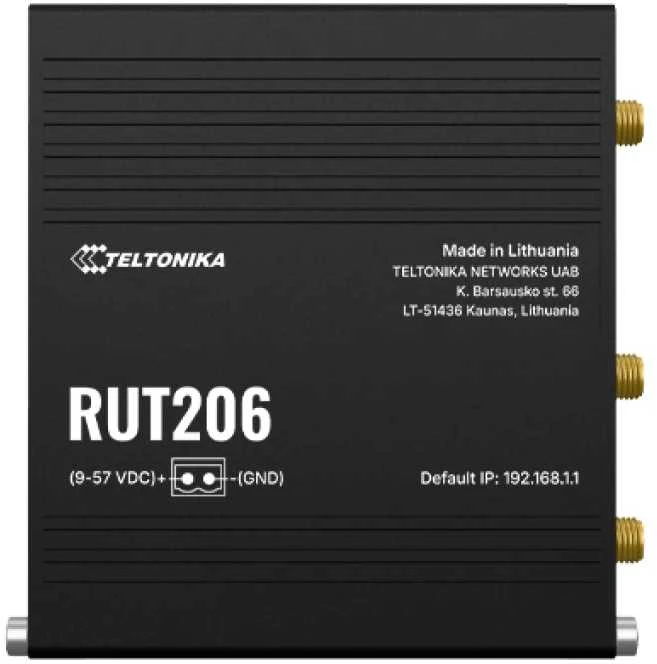

Modemas Teltonika RUT206 LTE(4G), žema kaina

Tipas: Modemas
Pramoninis
Modelis: RUT206
Prekės ženklas: Teltonika
Mobilusis ryšys: LTE (4G) Cat 4
Atsisiuntimo greitis: Iki 150 Mbps
Išsiuntimo greitis: Iki 50 Mbps
Tinklo palaikymas: UMTS, GSM, GPRS
LAN prievadai: 1x LAN 10/100 Mbps
WAN prievadai: 1x WAN
Wi-Fi standartas: Wi-Fi 4
Darbo režimai: AP, STA
SMS funkcija: Taip
I/O prievadai: 1 įvestis/išvestis
Procesorius: Mediatek MIPS 24Kc 580 MHz
Protokolai: Modbus, RS232/485
Maitinimas: Passive PoE In, 9-57V
Apsaugos klasė: IP30

Pagrindinis
Mobilus modulis	4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP išleidimas	Release 9
SIM switch	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Statusas	IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Juodasis/baltasis sąrašas	Operator black/white list (by country or separate operators)
Grupės valdymas	Band lock, Used band status display
SIM neaktyvumo apsaugos paslauga	Idle SIM remains inactive until device switches to it, preventing unnecessary data usage
SIM PIN kodo valdymas	Enables setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Tiltas	Direct connection (bridge) between mobile ISP and device on LAN
Perleidimas	Router assigns its mobile WAN IP address to another device on LAN
Belaidžio ryšio režimas	802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi saugumas	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID	SSID stealth mode and access control based on MAC address
Wi-Fi naudotojai	Up to 50 simultaneous connections
Belaidžio ryšio funkcijos	Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Belaidžio ryšio MAC filtras	Allowlist, blocklist
Belaidžio ryšio QR kodų generatorius	Auto-connect to network via QR code scanning
TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device
WAN	1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN	1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Maršrutas	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Interneto protokolai	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on LAN (WOL), VXLAN
VoIP praėjimo parama	H.323 and SIP-alg protocol NAT helpers for proper VoIP packet routing
Ryšio stebėjimas	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Ugniasienė	Port forward, traffic rules, custom rules, TTL target customization
Ugniasienės būsenos puslapis	View all Firewall statistics, rules, and rule counters
Prievadų valdymas	View, enable/disable, configure transmission speed of device ports
Tinklo topologija	Visual representation of connected devices
DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases with MAC wildcards
QoS / išmanusis eilių valdymas (SQM)	Traffic priority queuing by source/destination, service, protocol, or port, WMM, 802.11e
DDNS	Supported for >25 service providers; manual configuration available
DNS per HTTPS	Enables secure DNS resolution via HTTPS
Tinklo atsarginės kopijos	Wi-Fi WAN, Mobile, VRRP, Wired options for automatic Failover
Apkrovos balansavimas	Distributes Internet traffic over multiple WAN connections
Viešosios interneto prieigos taškas	Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, user management, 9 customizable themes
Hotspot 2.0	Seamless, secure, and automatic connection to trusted wireless networks
SSHFS	Supports remote file system mounting via SSH protocol
Eismo valdymas	Real-time monitoring, wireless signal charts, traffic usage history
Autentifikavimas	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS authentication, IP & login attempt blocking, built-in random password generator
Ugniasienė	Preconfigured rules via WebUI, unlimited rules via CLI, DMZ, NAT, NAT-T, NAT64
Įsilaužimo prevencija	DDOS protection (SYN flood, SSH, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag-based VLAN separation
Mobiliųjų kvotų kontrolė	Customizable mobile data limit, warning alerts, phone number configuration
WEB filtras	Blacklist for blocking unwanted websites, Whitelist for allowed sites
Prieigos kontrolė	Flexible access control for SSH, Web UI, CLI, and Telnet
SSL sertifikatų generavimas	Supports Let's Encrypt and SCEP certificate generation
802.1x	Port-based network access control server
OpenVPN	Multiple clients and server support, 27 encryption methods
IPsec	XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, AES128, AES256, AES128GCM8, AES256GCM16, etc.)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP	Client/Server support, L2TPv3, L2TP over IPsec support
Stunnel	Proxy for adding TLS encryption to clients and servers
DMVPN	Scalable IPsec VPN support, Phase 2 and Phase 3, Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Encrypted tunneling with client and server support
BACNET	Router mode with RS485, TCP support
OPC UA	Client and Server modes with TCP support
MODBUS	Server and Client modes, RTU and TCP support, custom register block requests
DNP3	TCP Master, DNP3 Outstation; RS232, RS485, TCP support
DLMS	Client mode for utility meter data exchange; TCP support
COSEM	Scans COSEM objects for auto-detection and configuration
API	Teltonika Networks Web API (beta) support
Monitoring & Management	HTTP/HTTPS WebUI, FOTA updates, SSH (v1, v2), SMS commands, remote call management, TR-069, MQTT, SNMP, JSON-RPC, RMS support
IoT Platforms	ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core integration
Procesorius	Mediatek, 580 MHz, MIPS 24KEc
RAM	128 MB DDR2
FLASH saugykla	32 MB NOR Flash
Programinės įrangos atnaujinimas	Update via WebUI, FOTA, RMS; configuration backup and restore
Gamintojo nustatymų atstatymas	Restores all system settings, IP, PIN, and user data to default
Operacinė sistema	RutOS (OpenWrt-based Linux OS)
Kalbos	Busybox shell, Lua, C, C++
Kūrėjo įrankiai	SDK package with build environment
Serial	RS232 (no flow control), RS485 (half-duplex 2-wire)
SD CARD	Micro SD (internal), up to 2 TB, FAT32/NTFS/ext2/ext3/ext4
PoE In	1 x PoE In, Active PoE 802.3af Class 0 (12.94 W)
Maitinimo įvestis	9 - 57 VDC, reverse polarity & surge protection
Fizinės sąsajos	2 x RJ45 ports, 10/100 Mbps; 2 x SIM slots (Mini SIM – 2FF); 2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi
Dydis	83 x 25 x 83 mm
Svoris	132 g
Montavimas	DIN rail, wall, flat surface (kit required)
Darbinė temperatūra	-40 °C to 75 °C
Apsauga nuo įsiskverbimo	IP30
Sertifikatai	CE, UKCA, CB, RCM, EAC, UCRF
