LD Systems MEI 100 G2 B 5 - In-Ear Monitoring System wireless band 5 584 - 607 MHz, modelis - LDMEI100G2B5, žema kaina

Technical Specifications

Scope of delivery	1x Sender, 1x Receiver, 1x In-Ear-KopfhÃ¶rer
Material	ABS
Material	Steel sheet
Wireless frequencies	584 - 608Â MHz
Frequency response (Â±0.5 dB, rel. Avg)	80 - 15,000 Hz
Colour	Black
Weight	1.2 kg

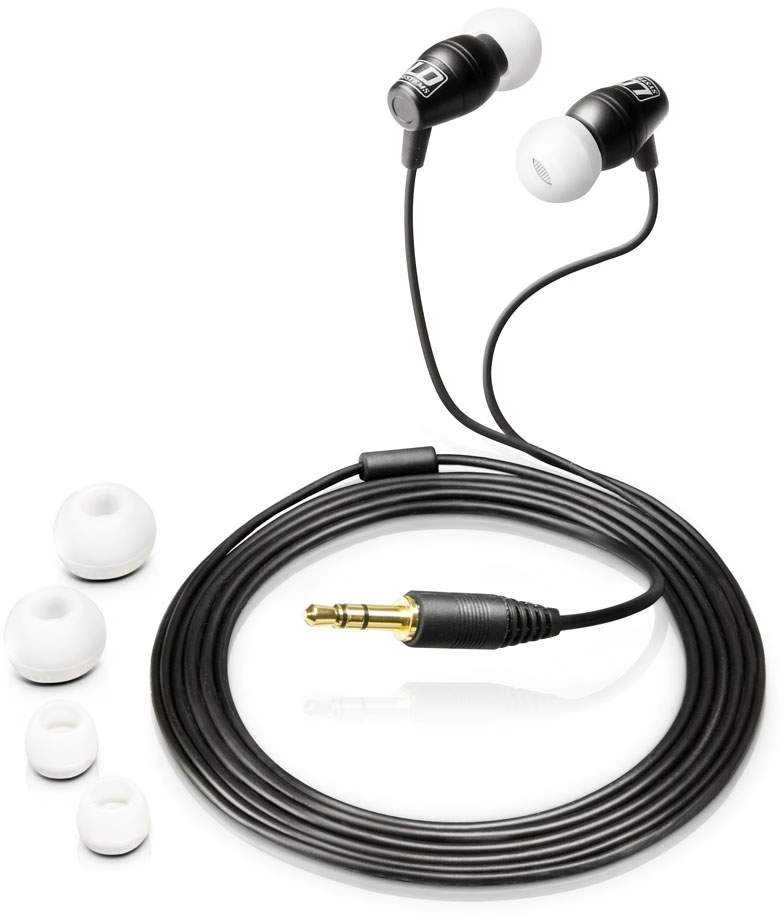

Nominal impedance	16 Î©
Input connector type	3.5 mm Jack TRS
Cable length	1.5 m
Frequency response (-6Â dB, rel. Avg)	30 - 20,000 Hz
Colour	Black

Dimensions & weight

Weight	88 g
Material	ABS
Wireless frequencies	584 - 608Â MHz
Frequency response (Â±0.5 dB, rel. Avg)	80 - 15,000 Hz
Frequency response (Â±1Â dB, rel. Avg)	80 - 15,000 Hz
Frequency response (-3 dB, rel. Avg)	80 - 15,000 Hz
Frequency response (-6Â dB, rel. Avg)	80 - 15,000 Hz
Colour	Black

Radio transmission

Channel groups number	8
Channels	96 (8Â groups with 12 channels per each)
Antennas	1 (fixed)

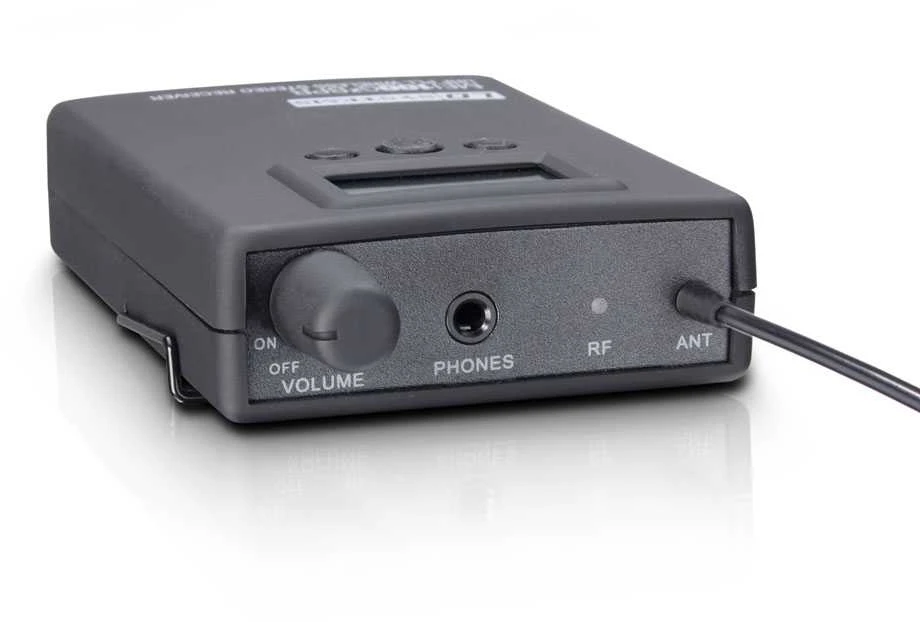

Outputs

Headphone out connector type	3.5 mm Jack TRS female
Max. headphone out power	100 mW

Signal processing

Max. THD+N (1 kHz, +4 dBu, unity, unweighted)

0.25 %

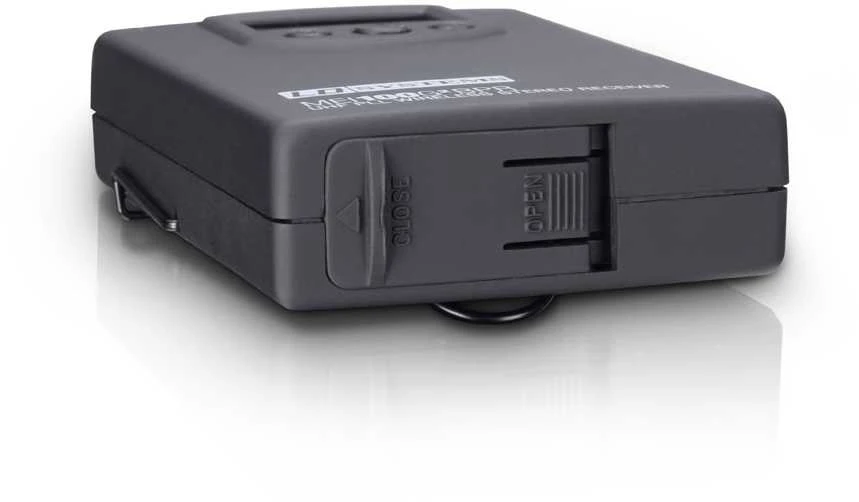

Battery operation

Batteries

2 x 1.5 V AA/LR6 @ max.10 h

Dimensions & weight

Width	65 mm
Height	95 mm
Depth	25 mm
Weight	100 g
Material	Steel sheet
Wireless frequencies	584 - 608Â MHz
Frequency response (Â±0.5 dB, rel. Avg)	80 - 15,000 Hz
Colour	Black

Radio transmission

Channel groups number	8
Channels	96 (8Â groups with 12 channels per each)
Transmitting power	10 mW
Antenna connector	BNC female
Antennas	BNC female

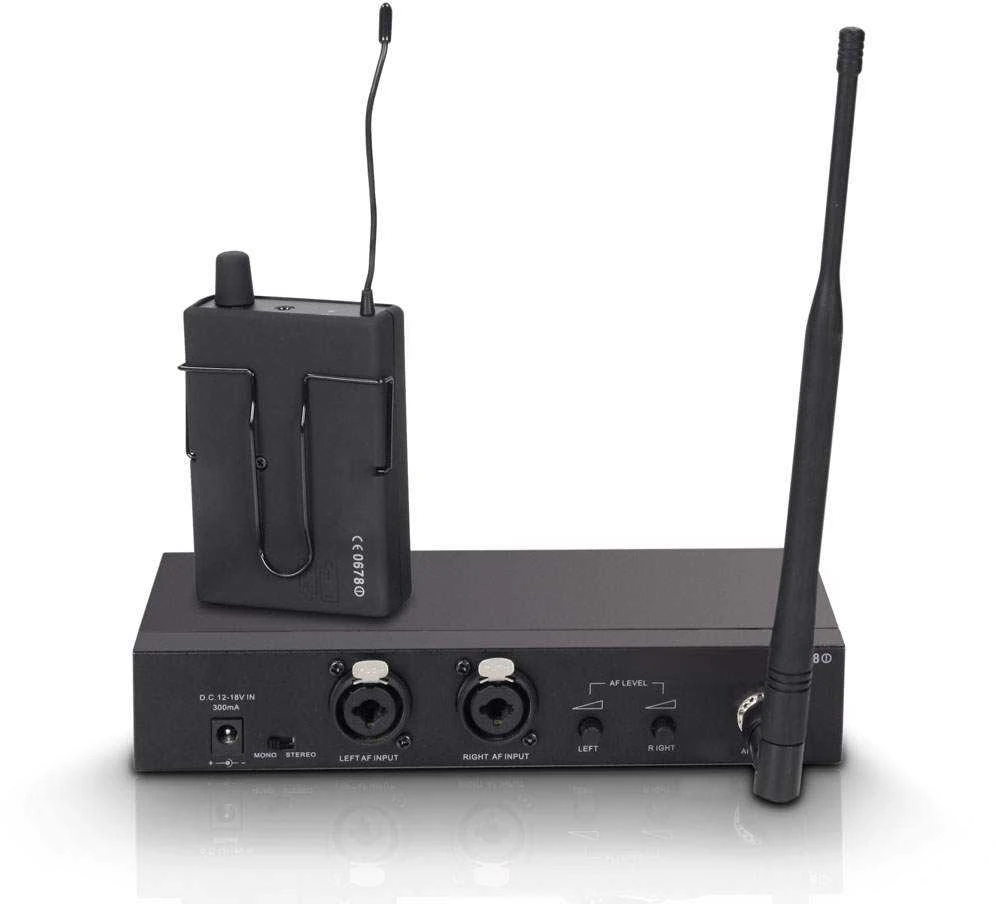

Inputs

Number of line inputs	2
Line-In connector type	XLR combo socket
Input impedance	8.5 kÎ©

Mains operation

Operation voltage

12 V DC - 18 V DC (external power supply)

Dimensions & weight

Width	212 mm
Height	38 mm
Depth	90 mm
Weight	1.015 kg

Other properties

Included accessories

BNC antenna

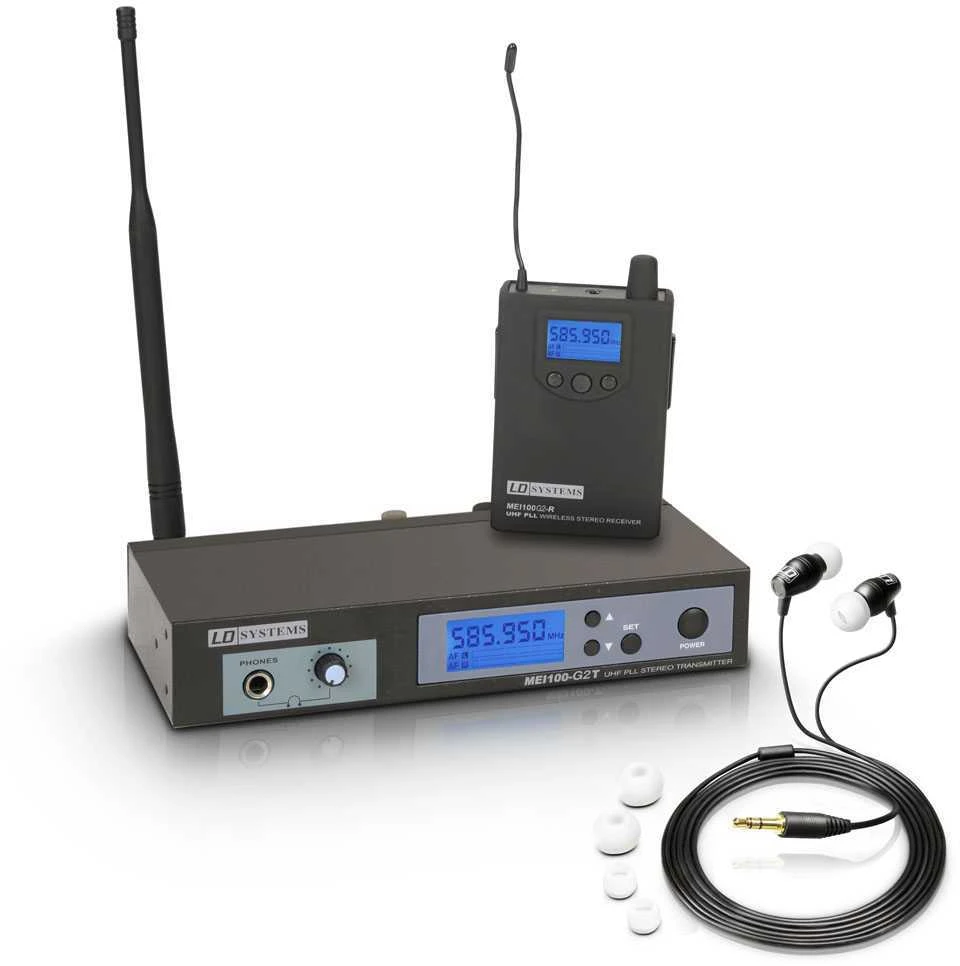

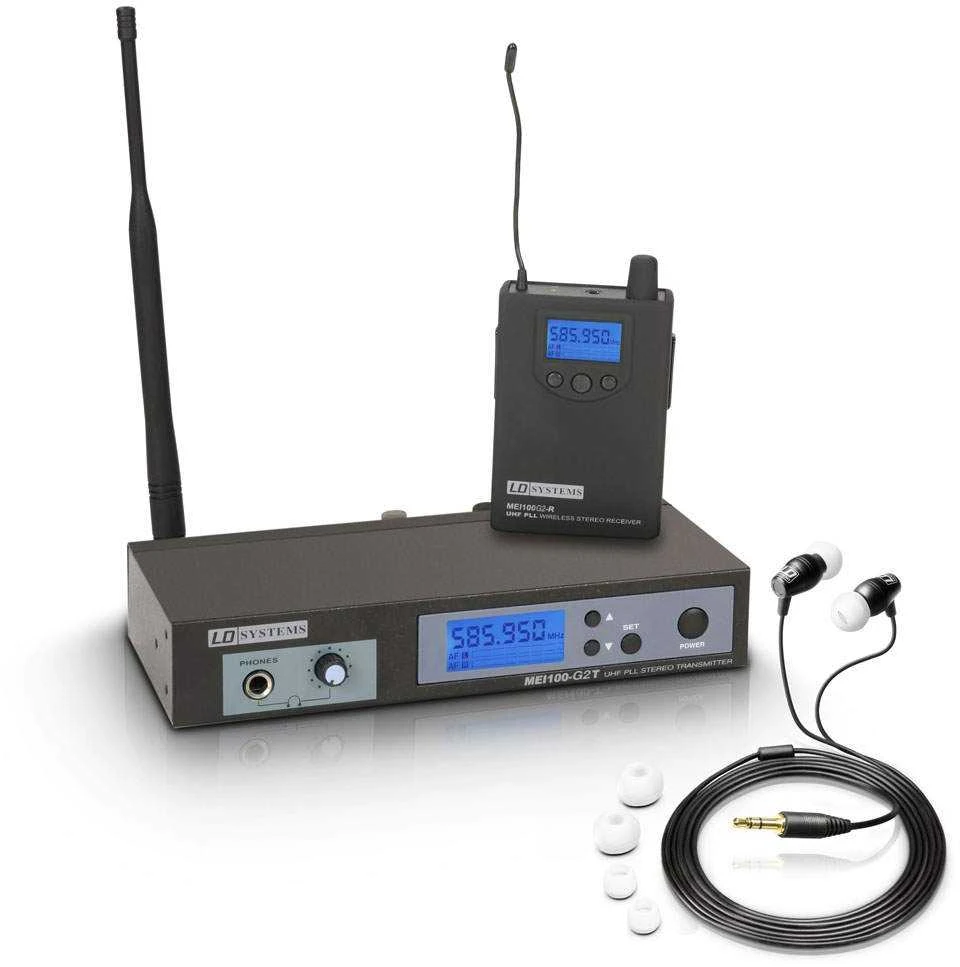

The new LD Systems MEI 100 G2 B 5 In-Ear Monitoring-System with 96 UHF channels offers outstanding sound quality and a large dynamic range in the 584 â€“ 607 MHz band.

The system toggles between mono and stereo mode for perfect monitoring for live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 80Hz - 15 kHz and stands out because of its high signal-to-noise ratio and low total harmonic distortion. The LD MEI 100 G2 permits simultaneous operation of up to 5 systems.

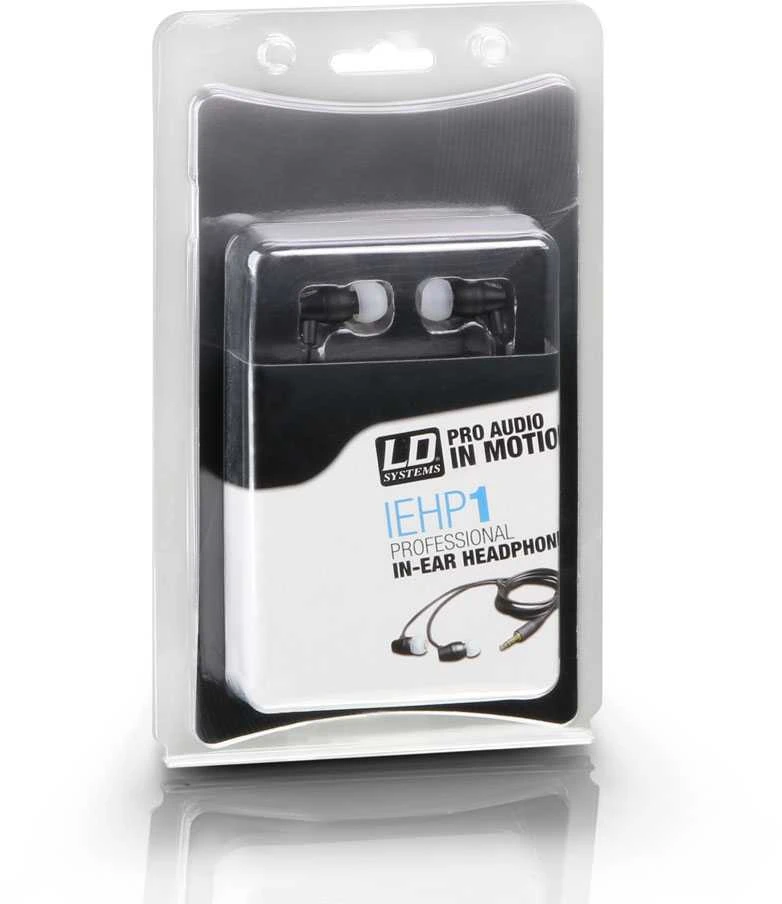

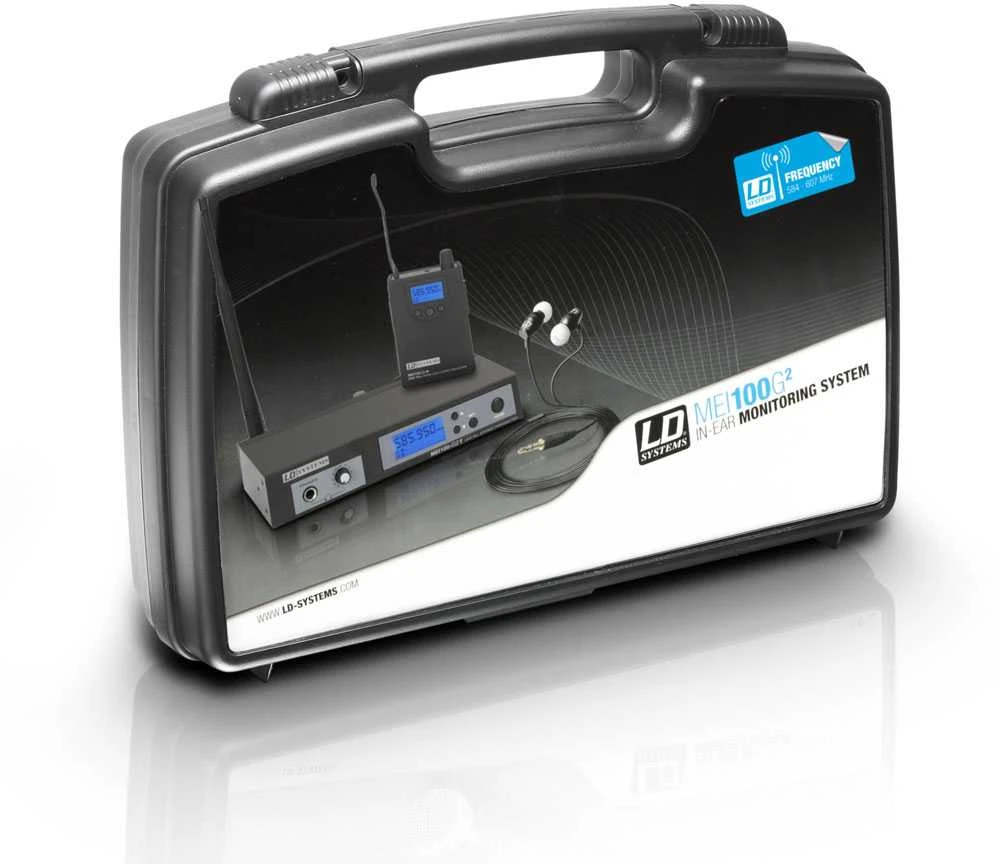

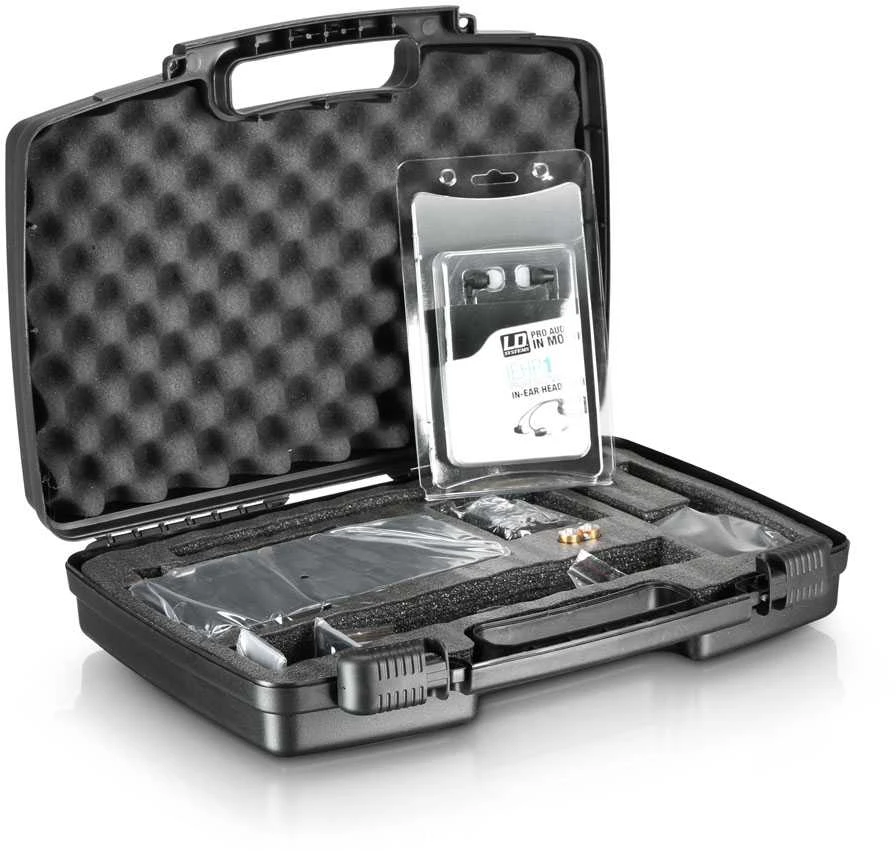

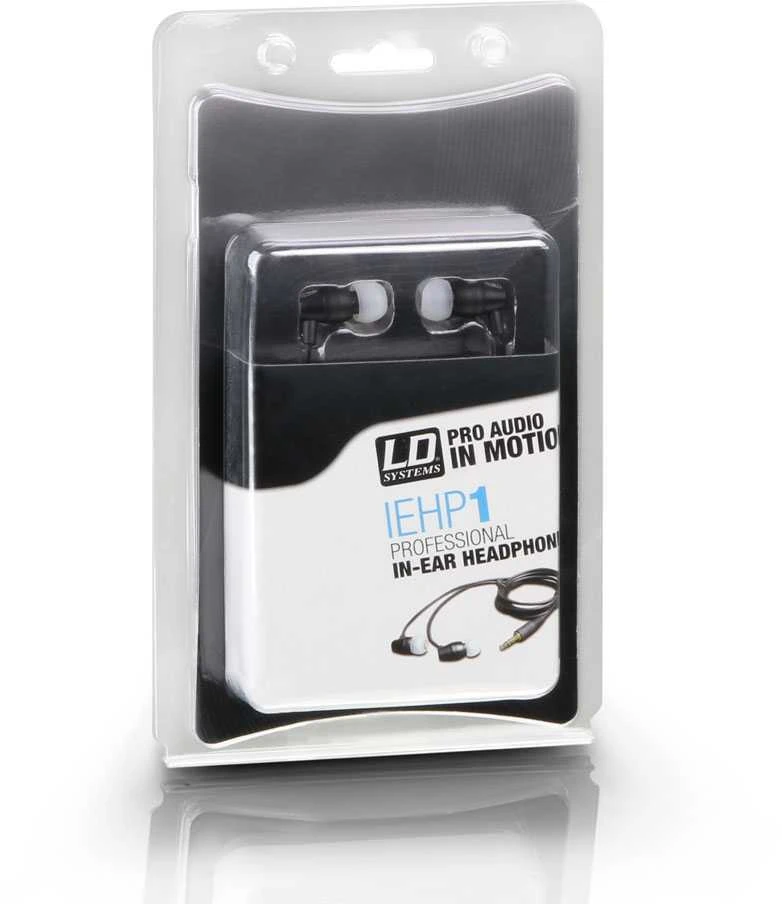

Both transmitter and receiver feature multifunctional displays that show all important system information. With high quality batteries, it is possible to attain running times of 10 hours and more. The MEI 100 G2 package includes high-quality earphones, a 19' rackmount kit, and a rugged transport box made of ABS plastic.
