FOUR 4-600424 STAGE 2 MINI ANL FUSE HOLDER 4x50/8x20mm2

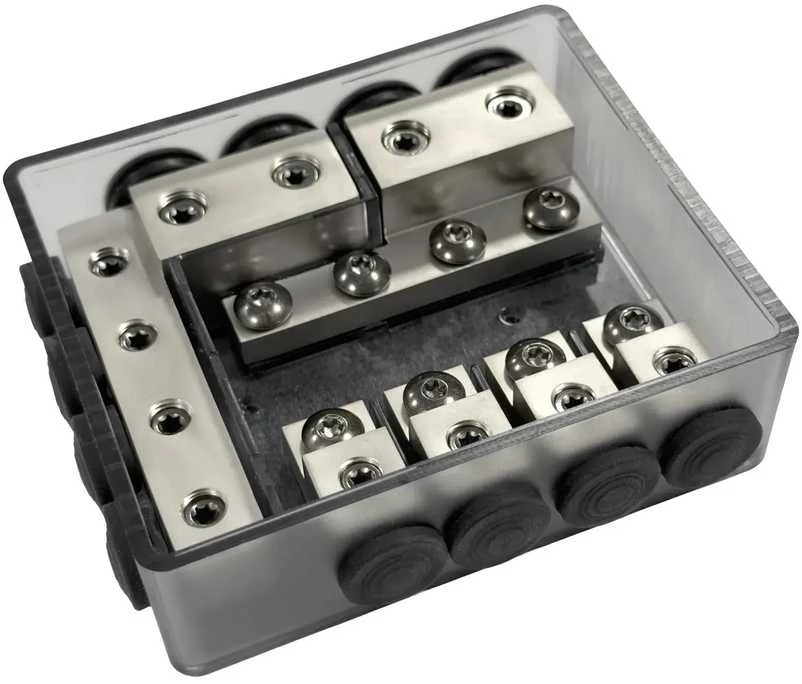

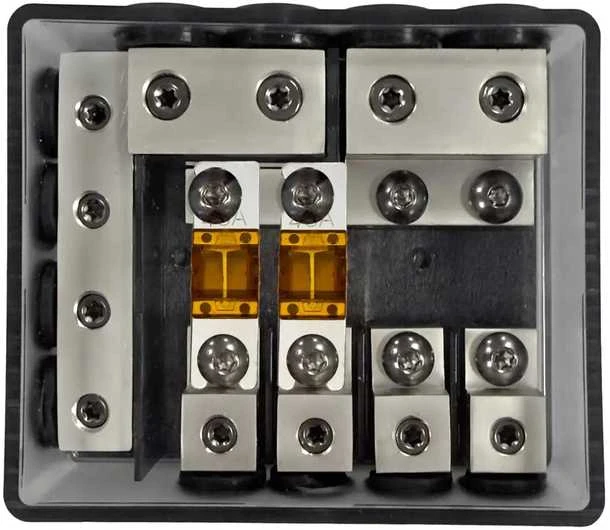

High-quality splash-proof mini-ANL fuse holder. Inside, there are 4 slots for mini ANL fuses. This product combines both a power distribution block and a ground distribution block in one.

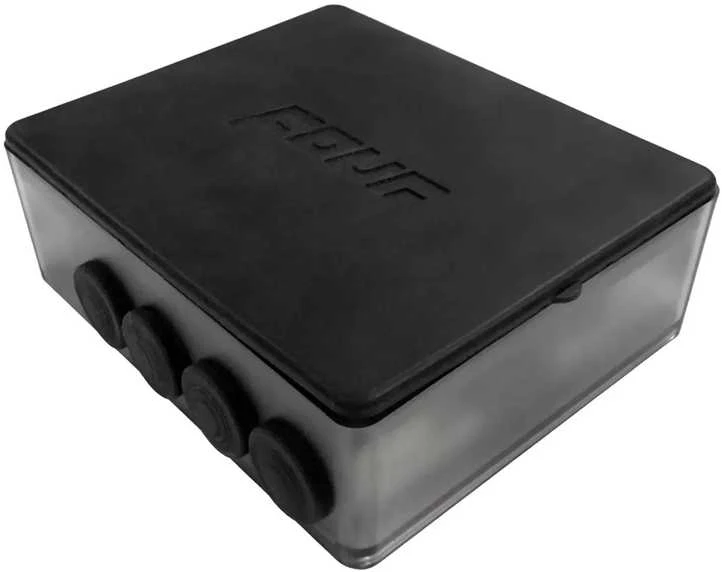

This fuse box has an opening cover made of flexible rubber, making fuse changes effortless and quick. The frame is made of weather-resistant plastic, and you can attach it by screwing it into place using the holes in the base.

Two 50 mm² inputs to the fuse box pass thru fuses and are distributed, if necessary, into four 20 mm² outputs (these connectors are intended for + currents).

The other two 50 mm² inputs are designed for grounding (the ground block does not have fuse locations). The terminal block has 4 pieces with 20 mm2 outputs.

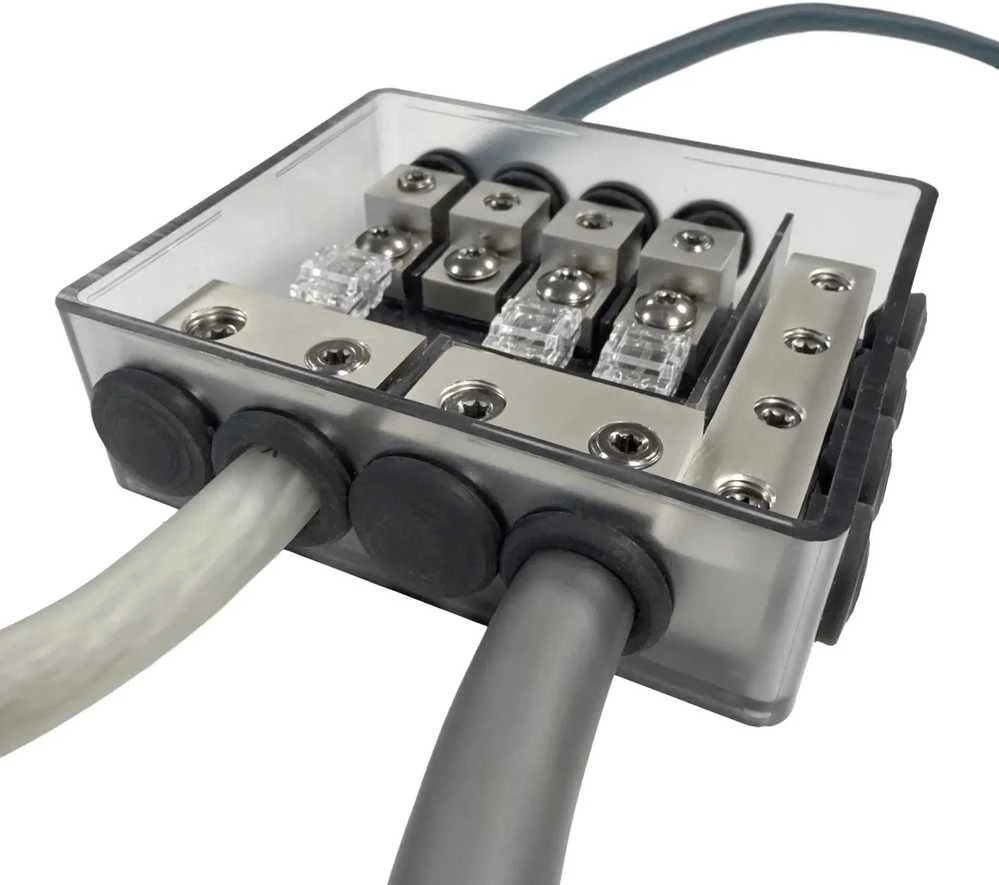

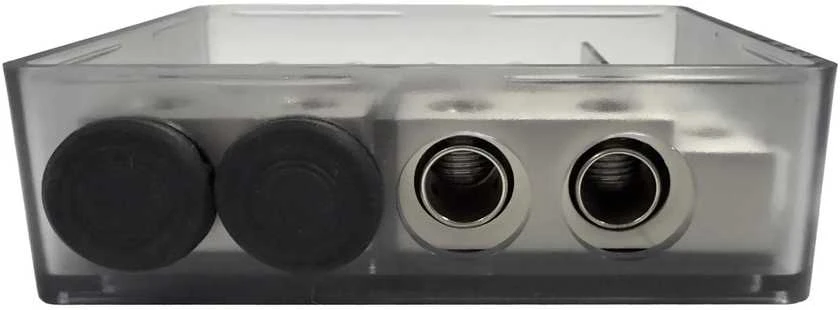

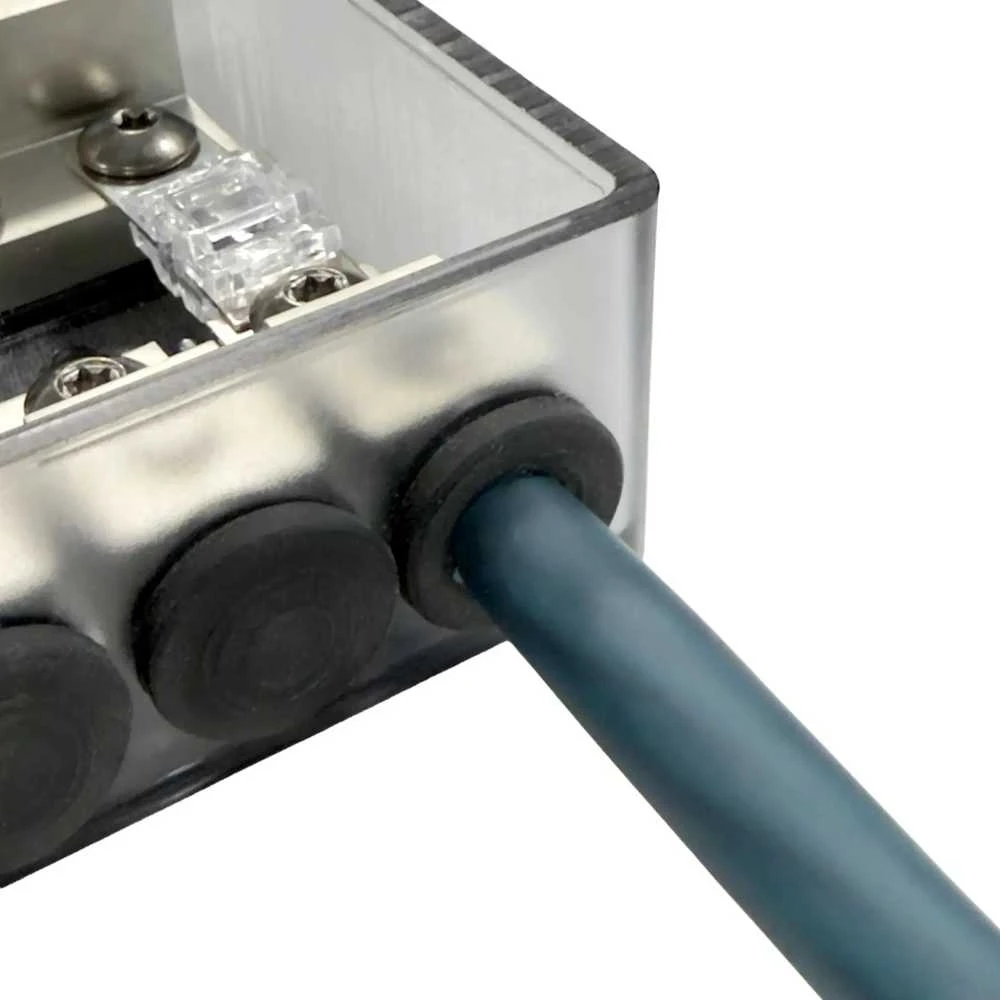

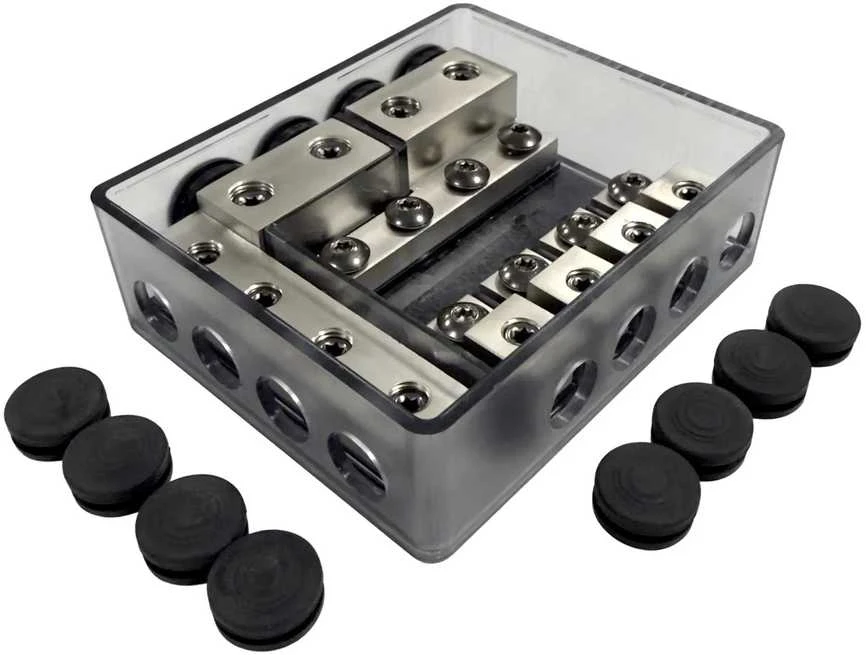

The cable input / outputs have rubber O-rings that can be modified to fit the cable thickness. Inside the blocks have a wire end sleeves that allow you to secure the cables very firmly in place.

Cable sizes suitable for terminals:

4 x 50 mm² / 35 mm²
8 x 20 mm²

Does not include fuses (compatibility, all mini ANL fuses).
