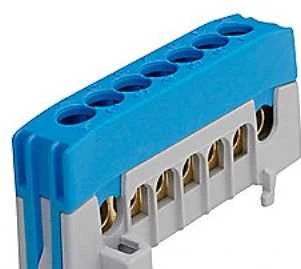

Elfetex Mto Electric As Nulklemme N12-F2, 12 x 16mm², blå

Bridge N 12-F2 (terminal block 12x16mm2), IP20 protected, blue, 63A, DIN, size 90x12x27mm. Splitter clamps - bridges to the carrier rail are widely used in low voltage switchboards or other applications where we need to connect multiple conductors to one potential. It is used e.g. as a neutral bridge "N" or as a bridge for a protective conductor "PE". The bridges are produced as uncovered (IP00) or covered (IP20), in the colour variants grey, black, blue and green-yellow. The number of connection points ranges from 7 to 15 with a maximum cross section of 16 mm2. The terminals are designed for mounting on a 35 mm DIN rail. The wires are attached to the terminals after stripping by means of a screw connection. The screw fits directly onto the conductor, therefore it is necessary to provide the finely salted conductors with a cavity. However, the cavity increases the cross-section of the conductor and it is therefore necessary to connect salted conductors an order of magnitude smaller than the specified cross-sections. This is not necessary for solid conductors. Brand POLLMANN Main line clamps Rated current 63 A Mounting method DIN rail mounted Width 90 mm Height 27 mm Depth 12 mm Connection type Screw-in Number of poles 1 Safe to touch Yes Number of inputs 12 Suitable for wires with fine wires No Suitable for solid cores Yes Suitable for multi-core conductors Yes Suitable for fine wire conductors without terminations No Suitable for finely wired wires No Suitable for finely wired conductors without terminations No Conductor cross-section access 1.5 - 16 mm2 AWG wire gauge access 6 - 16 mm2
