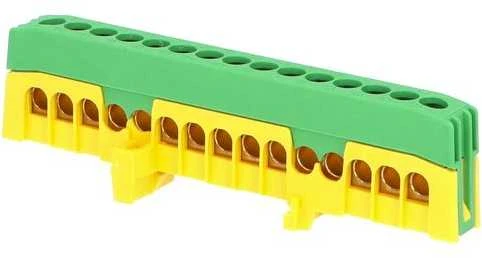

Elfetex Mto Electric As Jordklemme PE15-F2, 15 x 16 mm², grøn/gul

Bridge PE 15-F2 (terminal block 15x16mm2), covered IP20, green-yellow, 63A, DIN, size 110x12x27mm. Junction terminals - bridges on the carrier rail are widely used in low voltage switchboards or in other applications where we need to connect multiple conductors to one potential. It is used e.g. as a neutral bridge "N" or as a bridge for a protective conductor "PE". The bridges are produced as uncovered (IP00) or covered (IP20), in the colour variants grey, black, blue and green-yellow. The number of connection points ranges from 7 to 15 with a maximum cross section of 16 mm2. The terminals are designed for mounting on a 35 mm DIN rail. The wires are attached to the terminals after stripping by means of a screw connection. The screw fits directly onto the conductor, therefore it is necessary to provide the finely salted conductors with a cavity. However, the cavity increases the cross-section of the conductor and it is therefore necessary to connect salted conductors an order of magnitude smaller than the specified cross-sections. This is not necessary for solid conductors.
Brand
POLLMANN
Main line clamps
Number of poles
1

Rated current
63 A

Connection type
Screw-in

Mounting method
DIN rail mounted

Safe to touch
Yes

Height
27 mm

Width
110 mm

Depth
12 mm

Number of inputs
15

Suitable for wires with fine wires
No

Suitable for solid cores
Yes

Suitable for multi-core conductors
Yes

Suitable for fine wire conductors without terminations
No

Suitable for finely wired wires
No

Suitable for finely wired conductors without terminations
No

Conductor cross-section access
1.5 - 16 mm2

AWG wire gauge access
6 - 16 mm2
