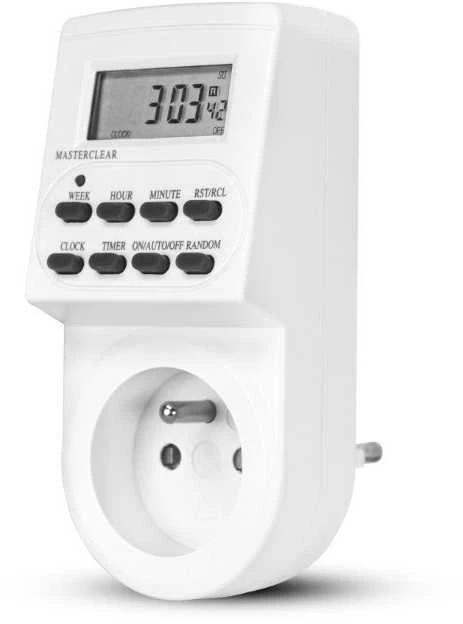

ELEKTROBOCK skaitmeninis perjungimo lizdas ZSD16

Features of the ZSD-16 digital clock:
Allows a total of 10 adjustable time programs that can be used to turn on and off your connected appliances.

Advantage of ZSD-16: switched phase driver!
ZSD-16 switching clock functions:
10 adjustable time programs
16 combinations of days or blocks of days. With this function, time programs can be started on specified days, e.g. Sat-Sun, Mon-Wed-Fri, etc.
Possibility of manual or automatic control.
Possibility of 12/24 hour cycle.
Another function is the summer time setting. Switching to this function automatically adds 1 hour to the set time.
The unit includes a rechargeable battery that will keep it running for over 100 hours after power is disconnected.

When purchasing a new device or when the battery is low, the recharge cycle takes approximately 12 hours.

Examples of ZSD-16 use:
Irrigation, circulation pump, aquarium lighting

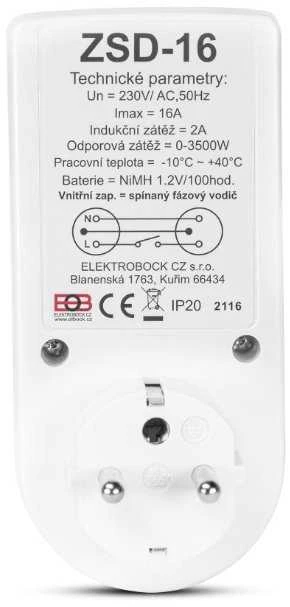

Technical parameters
Power supply 230, 0 V / 50 Hz
Power consumption < 1 W
Switched phase conductor
Switching power 3500 W
Inductive load 0 VA to 2 VA
Switching element relay
Min. adjustable time 1 min
Accuracy +/- 1 min/month
Battery backup Yes (NiMh 1.2V/ >100 hrs)
Degree of protection IP20
Operating temperature 0 °C to 50 °C
