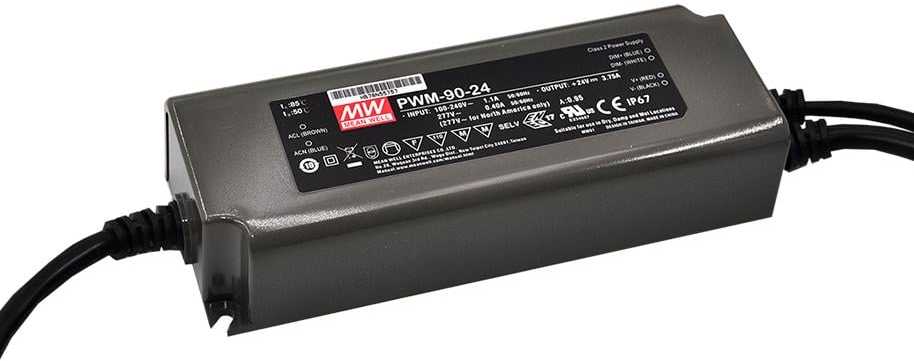

Name: Impulsinis maitinimo šaltinis 24V 3.75A 90W IP67, dimeriuojamas
SKU: 50462721
Price: 62.47 EUR
Availability: InStock

Tipas: Impulsinis maitinimo šaltinis
Modelis: PWM-90-24
Įėjimo įtampos diapazonas: IN 90-305VAC / 127-431VDC
Įtampa: 24V
Galia: 90W
Srovė: 3.75A
Darbinė temperatūra: -40°C ÷ +70°C
Dimeriavimas: 3in1 (0-10V; PWM, Rezistorius)
Apsaugos klasė: OVC II
Matmenys: 171 x 63 x 37.5 mm
IP reitingas: IP67
Prekės ženklas: MEAN WELL

Bendrieji duomenys
Modelis	PWM-90-24
Išvesties įtampa	24V DC
Nominali srovė	3.75A
Nominali galia	90W
Output Type	Constant Voltage PWM style
PWM Frequency	1.47kHz (Blank/DA type), 2.5kHz (DA2 type)
Dimming Function	3-in-1 dimming (0–10VDC, 10V PWM, Resistance)
Dimming Range	0 – 100%
Minimum Dimming Duty Cycle	0.15% (0% possible under specific conditions)
Įvesties įtampos diapazonas	90 – 305VAC / 127 – 431VDC
Dažnių diapazonas	47 – 63 Hz
Galios faktorius	≥0.98 @ 115VAC, ≥0.96 @ 230VAC, ≥0.92 @ 277VAC (full load)
Naudingumo koeficientas (tip.)	90.5%
AC Current	0.95A @ 115VAC, 0.5A @ 230VAC, 0.4A @ 277VAC
Įjungimo srovė	60A @ 230VAC (cold start)
Nutekėjimo srovė	<0.25mA @ 277VAC
Perkrovos apsauga	108–130% of rated power, hiccup mode, auto recovery
Viršįtampio apsauga	28 – 34V, shutdown, re-power to recover
Over Temperature Protection	Shutdown, auto recovery
Hold-up Time	16ms @ 115/230VAC
Setup Time	500ms, Rise Time 80ms @ 115/230VAC
Operating Temperature (Tcase)	–40°C to +85°C
Max. Case Temperature	+85°C
Darbo drėgmė	20 – 95% RH (non-condensing)
Storage Temperature/Humidity	–40 to +80°C / 10 – 95% RH
Isolation Voltage	I/P–O/P: 3.75kVAC
Izoliacijos varža	≥100MΩ @ 500VDC / 25°C / 70% RH
EMC standartai	EN55015, EN61000-3-2 (Class C), EN61000-3-3, EN61547, EAC TP TC 020
EMC imunitetas	EN61000-4-2~6,8,11; surge immunity 2kV (Line-Line)
Safety Approvals	UL8750, CSA C22.2 No.250.13-12, EN61347-1/-2-13, EN62384, BIS, GB19510.1/.14, IP67, EAC TP TC 004
DALI/DALI-2 Support	DA/DA2 versions available with IEC62386 compliance
Korpusas	IP67 rated plastic housing, fully encapsulated, Class II
Aušinimas	Method Fanless (natural convection)
MTBF	>2.39M hours (Telcordia); >224k hours (MIL-HDBK-217F @ 25°C)
Matmenys	171 × 63 × 37.5 mm (L × W × H)
Svoris	0.77 kg; Packing: 18 pcs / 14.9 kg / 0.97 CUFT
Wiring AC Input	Brown (L), Blue (N)
Wiring DC Output	Red (+V), Black (–V)
Wiring Dimming	Purple (DIM+), Pink (DIM–)
Naudojimas	LED strip lighting, indoor LED, decorative, architectural, and industrial lighting
Garantija	5 years
