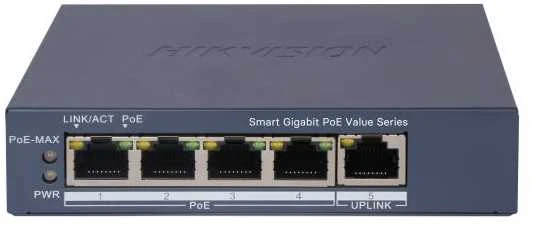

Hikvision 5 prievadų komutatorius DS-3E1505P-EI / M, žema kaina

Pagrindinis
Rėmas Metal material
Svoris be įpakavimo 0.26 kg (0.573 lb)
Svoris su įpakavimo 0.75 kg (1.65 lb)
Dydis 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
Darbo sąlygos (temperatūra) 0 °C to 40 °C (32 °F to 104 °F)
Sandėliavimo sąlygos temperatūra -40 °C to 85 °C (-40 °F to 185 °F)
Darbo sąlygos (drėgmė) 5% to 95% (no condensation)
Santykinė drėgmė 5% to 95% (no condensation)
Maitinimas 54VDC, 0.92A
Installation Mode Desk-Mounted,Wall-Mounted
Maks. energijos sunaudojimas 50 W
Energijos sunaudojimas miego režime 1 W
Surge Protection 6 KV

Tinklo parametrai
Prievadai 4 × Gigabit PoE port,1 × Gigabit RJ45 port
MAC adresų lentelė 2 K
Perjungimo talpa 10 Gbps
Paketų persiuntimo greitis 7.44 Mpps
Vidinė cache atmintis 1 Mbits

PoE
PoE standartas IEEE 802.3af,IEEE 802.3at
PoE galios jungtis End-span: 1/2(-), 3/6(+)
PoE prievadas PoE: Ports 1 to 4
Maks. PoE prievadų galia 30 W
PoE disponuojama galia 45 W

Programinės įrangos funkcijos
Ilgo diapazono režimas
Ports 1 to 4: up to 300 m.

Long range performance may vary depend on camera model or cable condition.
Prievado izoliacija
Ports 1 to 4: port isolation mode to improve network security

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog Ports 1 to 4: auto detect and restart the cameras that do not respond.
Nuorodų agregavimas
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

Support static link aggregation.

Support 1 aggregation groups.
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

Suppport 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 32 VLAN.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Display the port rate.

2. Display the port bandwidth utilization rate.

3. Display the PoE power usage.

4. Display topology information.

5. Display the alarm status.

6. Restart ports and devices.

7. Enable port long-rage mode.

8. Remotely upgrade the device.
System Maintenance
Support device management via web.

Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

Support management via Hik-Central Pro.

Support remote management via Hik-Partner Pro.

Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

Supports 802.1ab LLDP for peer device discovery.

Support port mirroring for fault locating.

Patvirtinimai
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Saugumas CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Cheminis tyrimas CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
