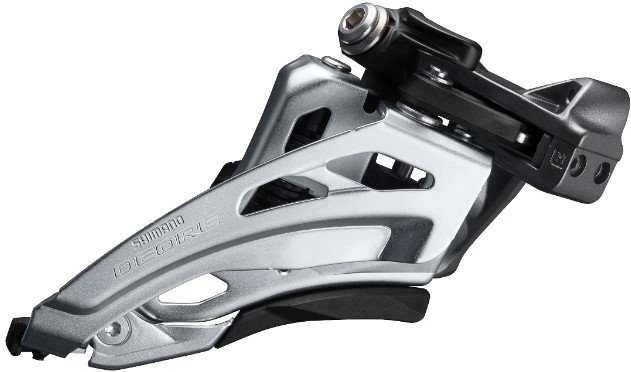

SHIMANO DEORE FD-M6020-L derailleur - 2x10 speeds - 34,9/31,8 28,6mm side swing

SHIMANO DEORE - derailleur - SIDE SWING - low clamp - 2x10 degrees

SHIMANO DEORE M6000 series derailleurs feature a SIDE SWING design that improves cable routing while providing easy operation and smooth shifting in 2x10-speed systems.

Model FD-M6020-L
DEORE M6000 Series
SIDE SWING
Chainline (mm) 48.8
Chainline angle (degrees) 66-69
Suitable HG-X 10speed chain
Pin bushings 4
Coupling_Sleeve (mm)_28.6 X (w/ S size adapter)
Joint_Sleeve (mm)_31.8 X (w/ M size adapter)
Coupling_Sleeve (mm)_34.9 ?
Teeth of the largest converter 34-38T
