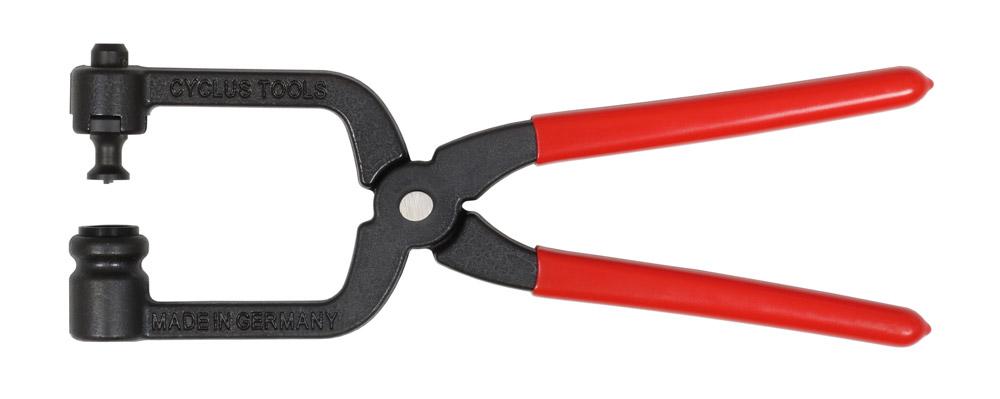

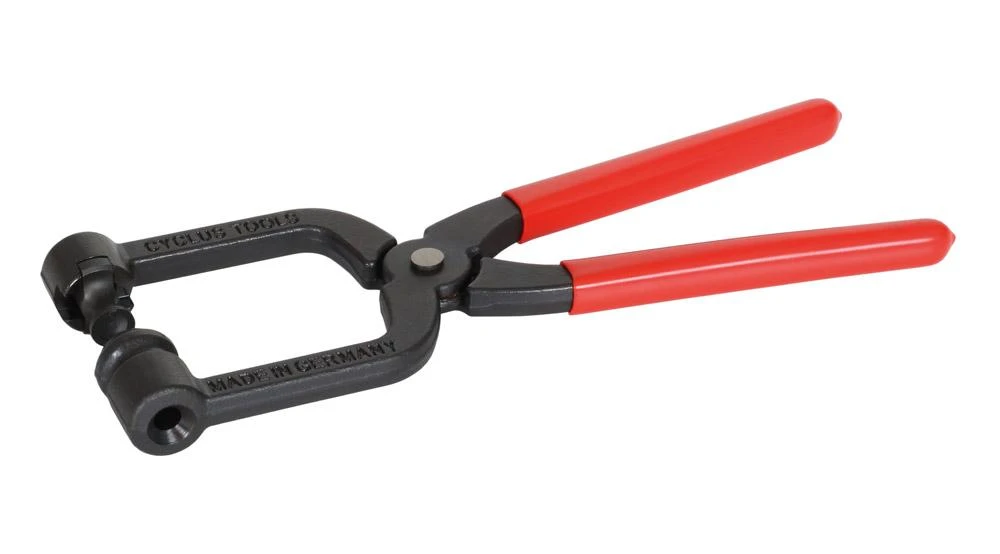

Įrankis žnyplės Cyclus Tools Chainring“r for chainring bolts with bit D (720327)

Product technical specifications

Note: This tool is delivered with bit "D" for all Shimano chain rings, which has 2 notches of 1.5 mm thickness.

Other "Bits" (A to E) are available to facilitate changing other pattern of chain ring bolt:

Bit "A" (720322) constant 1.0 mm notch, separate part for chain ring bolt assembly pliers (code: 720327).

For Campagnolo carbon cranks (Chorus / Record / Super Record).

Bit "B" (720323) notch, 2.0 mm, separate part for chain ring bolt assembly pliers (code: 720327).

For Miche cranks (Team / Pista / Evo / Young).

Bit "C" (720324) hexagon 5 mm, separate part for chain ring bolt assembly pliers (code: 720327).

For SRAM/Truvativ cranks (XX / X0/ X9 / X7 / X5 / S1400 / S1000) and FSA (K-Force Light / SL-K / Gossamer / Afterburner).

Bit "D" (720325) 2-notch 1.5mm, separate part for chain ring bolt assembly pliers (code: 720327).

For Shimano cranks (Dura Ace / Ultegra / 105 / XTR / XT / LX / Deore).

Bit "E" (720326) 2-notch 1mm, separate part for chain ring bolt assembly pliers (code: 720327).

For Campagnolo square taper, Campagnolo Pista, SRAM X-Four, Shimano Dura Ace Pista cranks.

Article number: 729996 includes the Chainring 'r bolt assembly pliers, plus the 5 Bits A to E as detailed above
