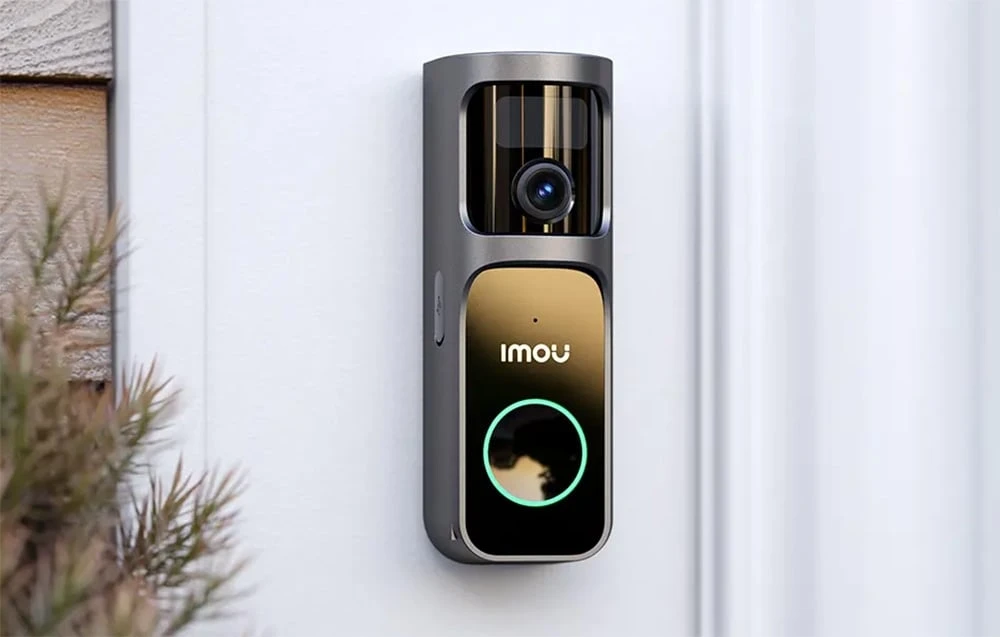

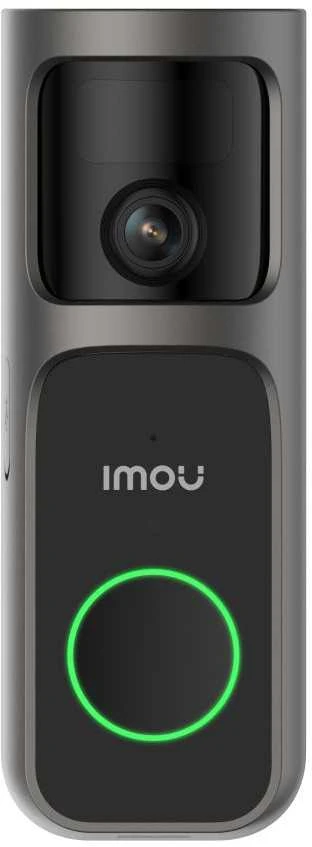

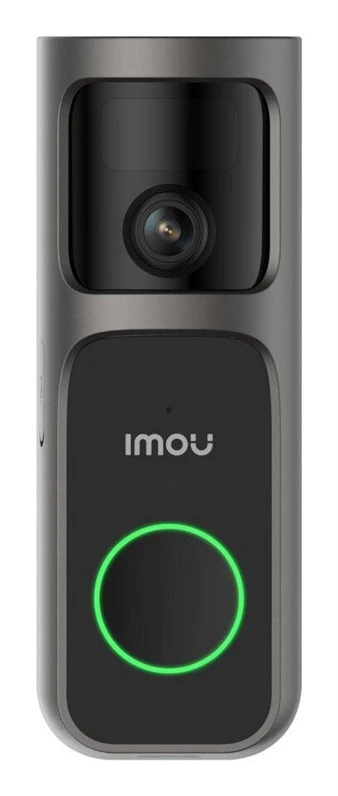

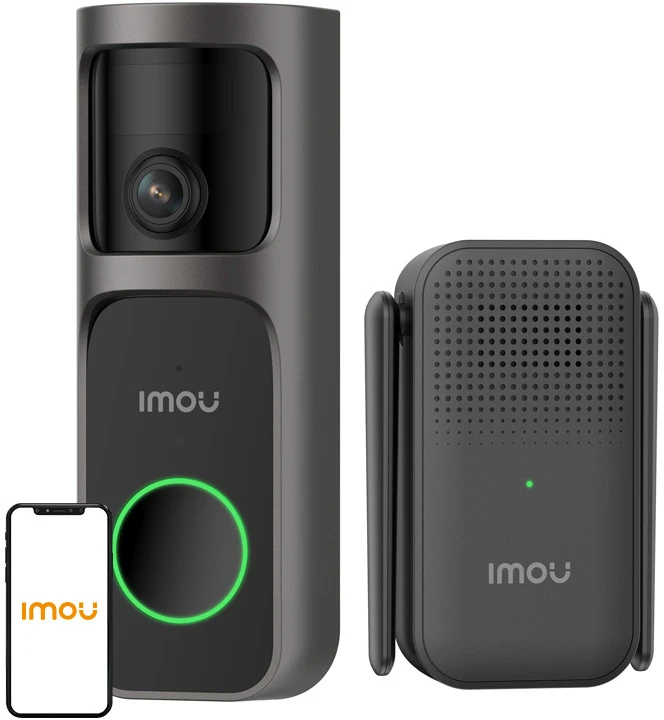

IMOU 3 KIT Wireless Video Doorbell
The IMOU Doorbell 3 Kit is a wireless video doorbell that offers 4 MP (1920 × 1920) image quality and a 360° panoramic view, allowing you to capture the entire area in front of the entrance—from head to toe. A wide 180° viewing angle (vertical and horizontal) eliminates blind spots, and a 5000 mAh battery ensures convenient use without the need for wiring. Built-in AI features, PIR detection, and 2.4 GHz Wi-Fi support give you constant access to the video feed and instant notifications of events.
Panoramic View Without Compromise

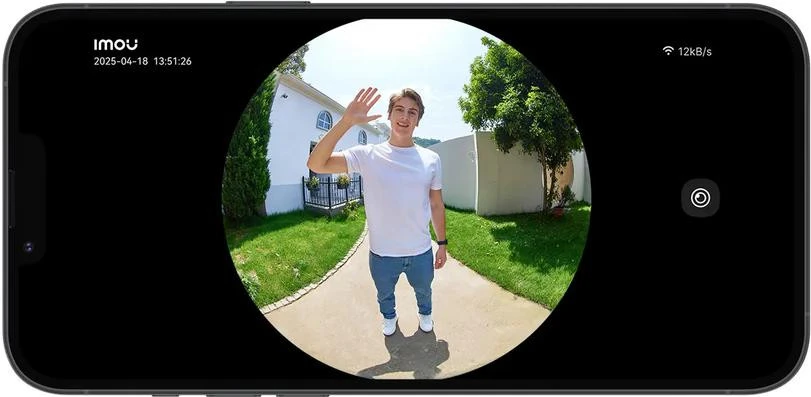

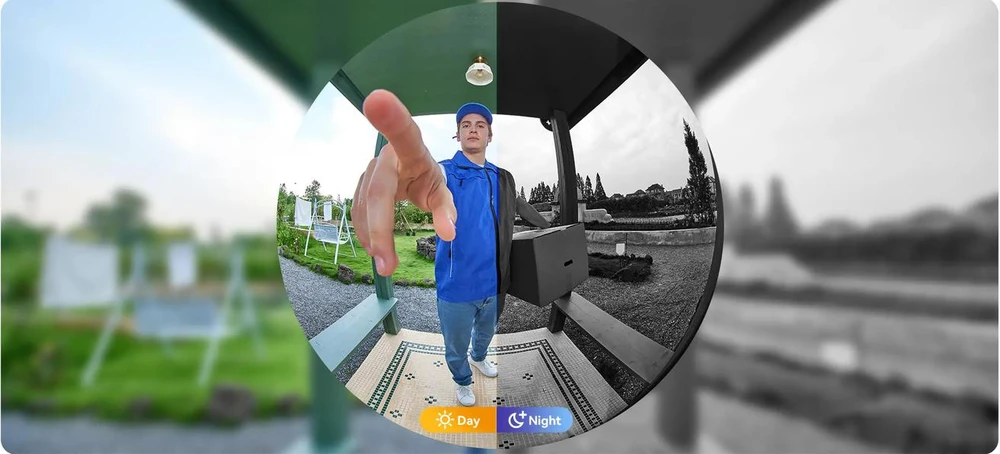

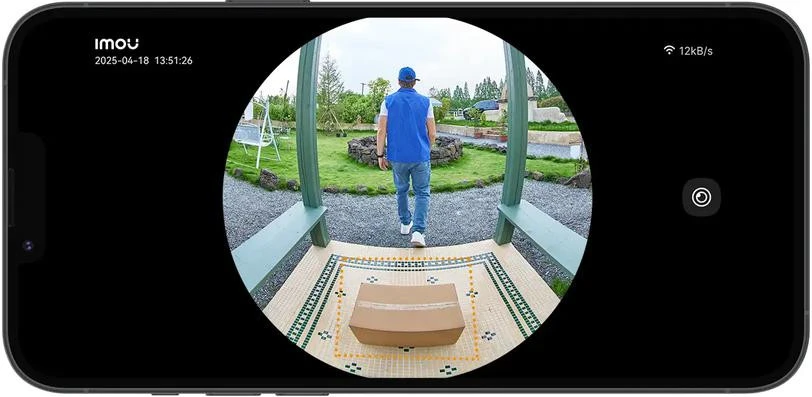

The use of a 0.98 mm fisheye lens and a 1/3" CMOS sensor allows for full 360° image capture. This means you can see not only a person standing at the door, but also packages left on the ground. The 4 MP resolution ensures high detail, and the night vision mode with a range of up to 5 meters keeps the image clear even after dark.
Smart Event Detection
The doorbell uses PIR detection and AI algorithms to recognize people and detect their presence in the zone. The package detection feature notifies you when packages are delivered or picked up, giving you greater control over your shipments. The system sends real-time notifications, minimizing false alarms.
Two-way communication and privacy

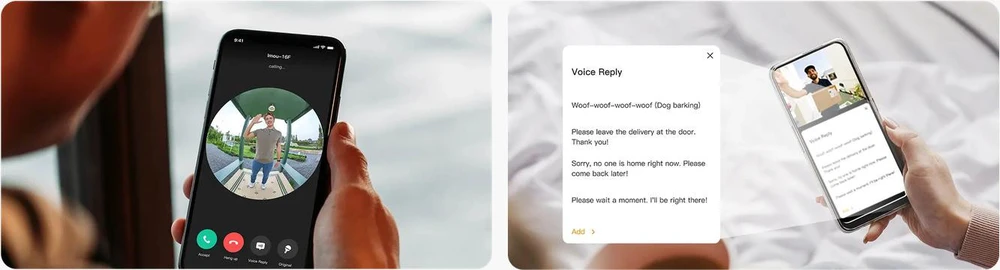

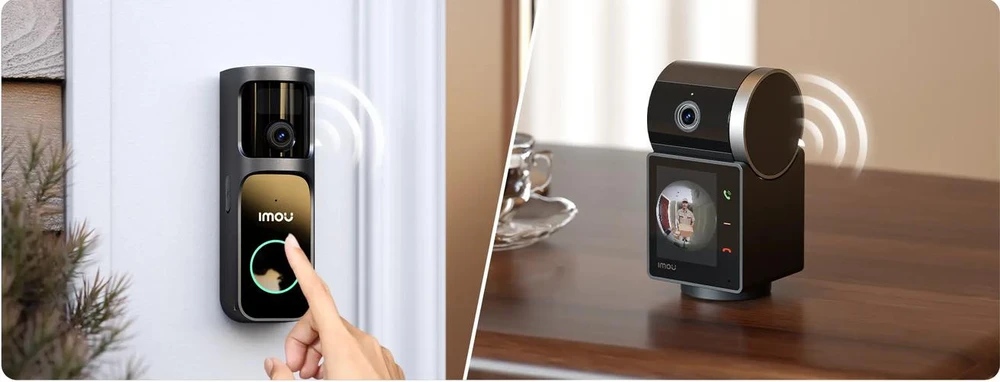

The built-in microphone and speaker allow you to talk to visitors at the door without having to open it. The voice-changing feature and quick replies help ensure privacy and comfort in various situations.
Stable connection and flexible storage

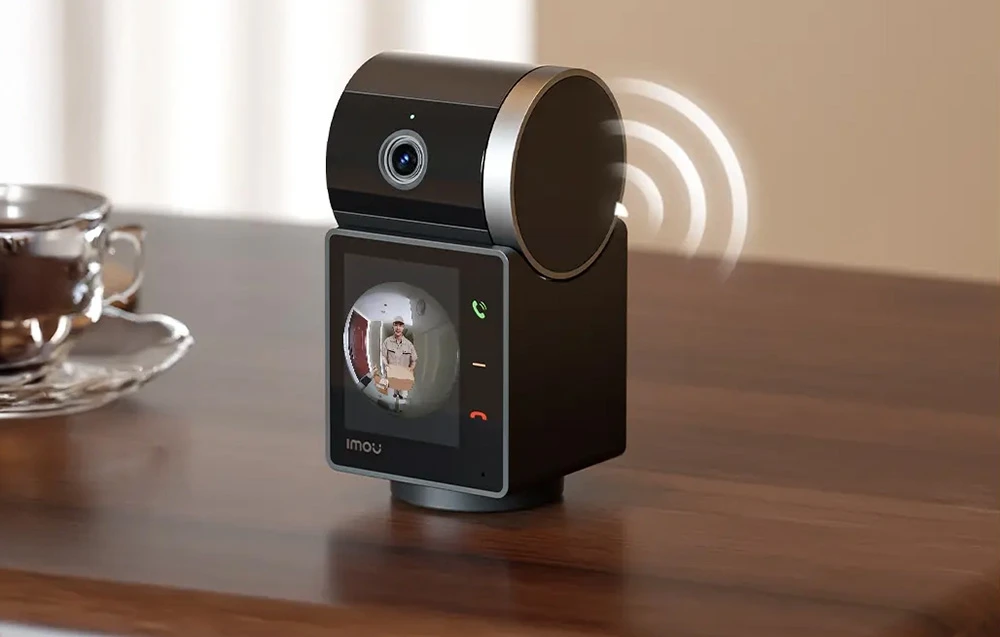

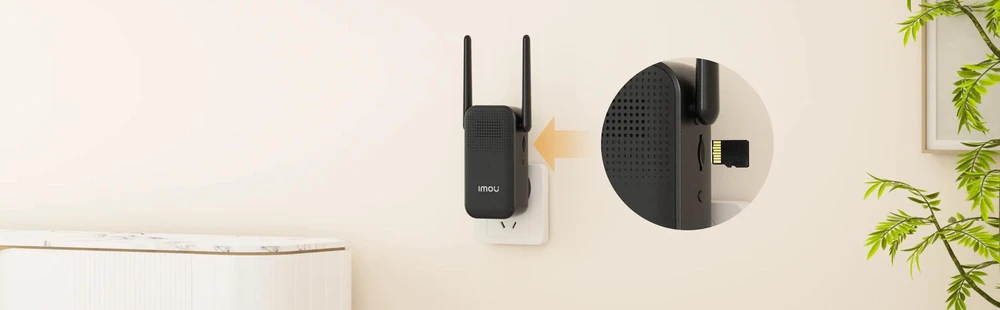

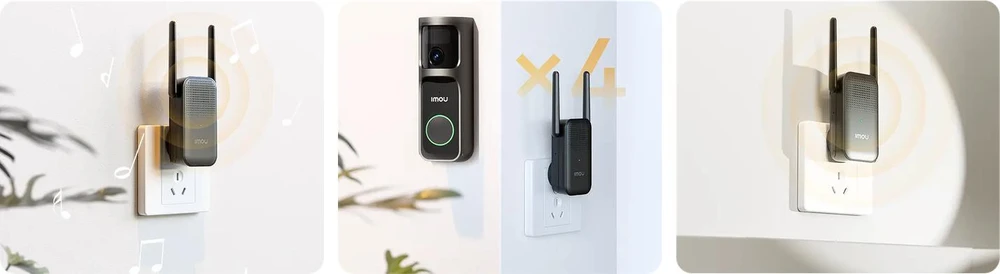

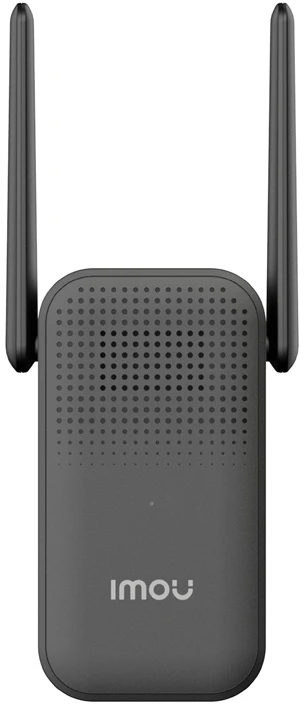

The included receiver acts as a Wi-Fi signal booster, improving the stability of the connection with the doorbell. The device supports both cloud storage and local storage on a microSD card (up to 512 GB in the doorbell), giving you greater freedom in managing your recordings.

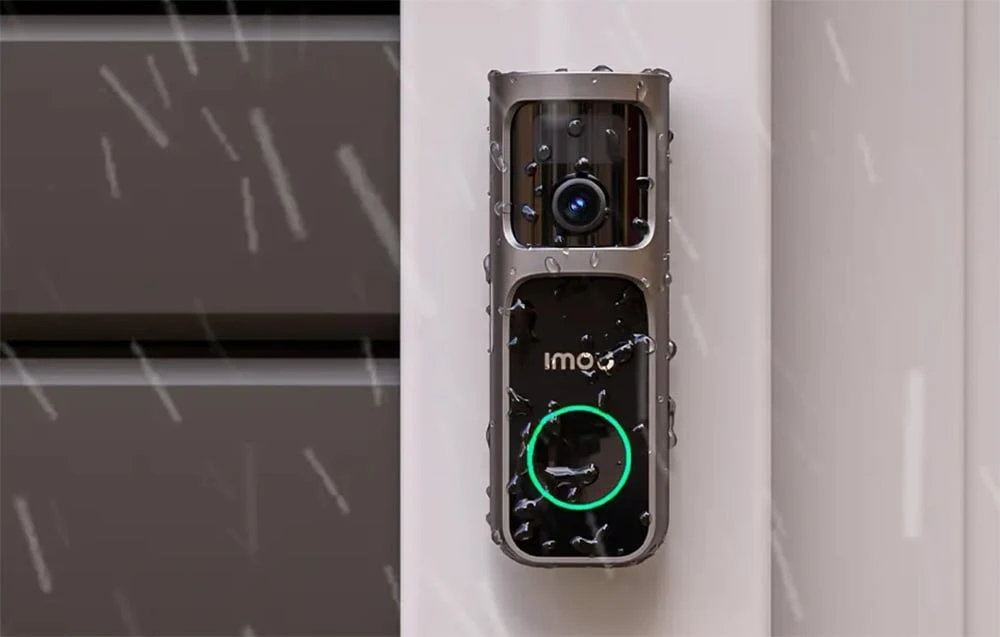

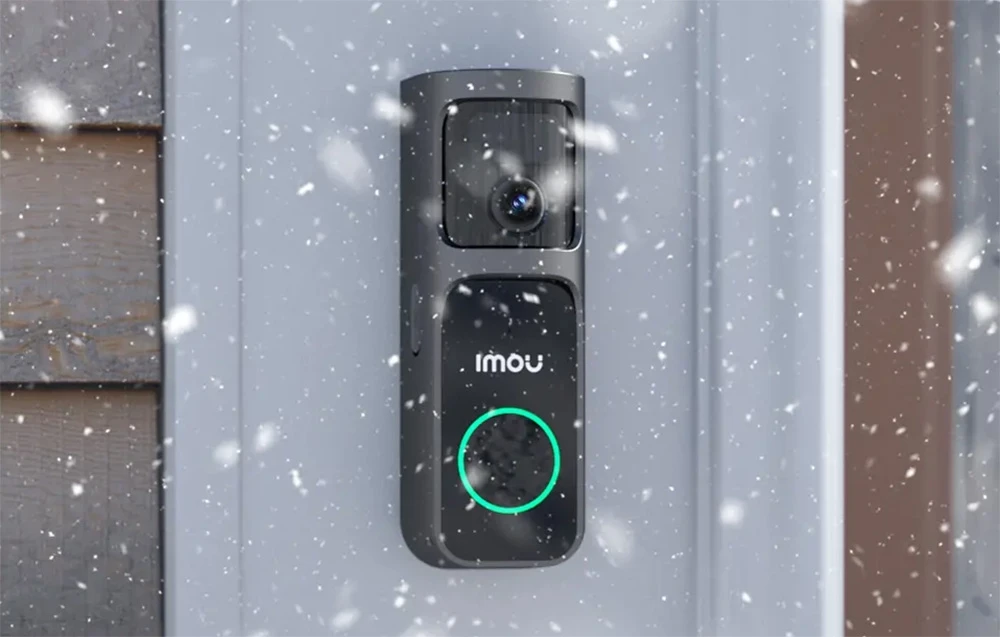

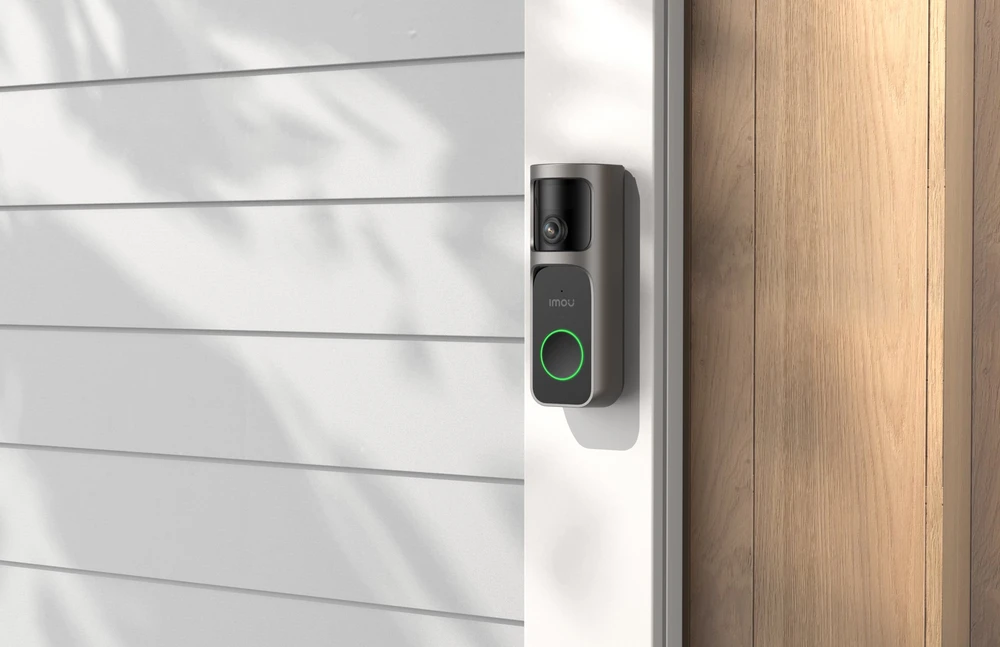

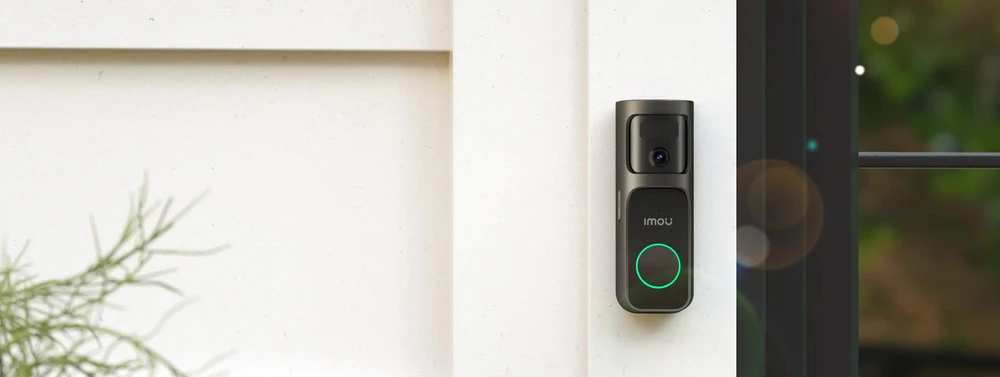

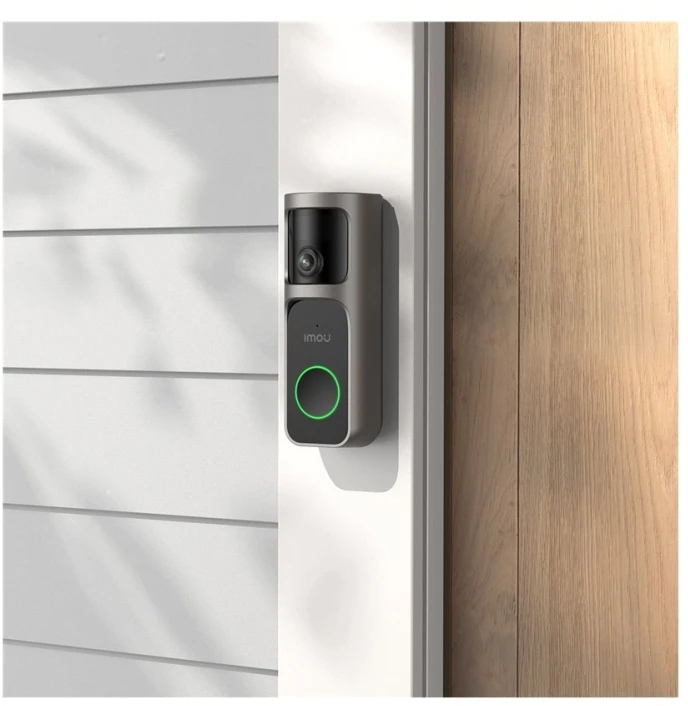

Convenient power supply and installation

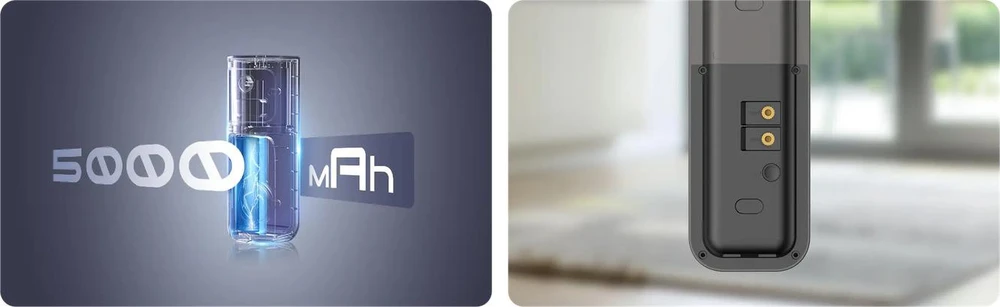

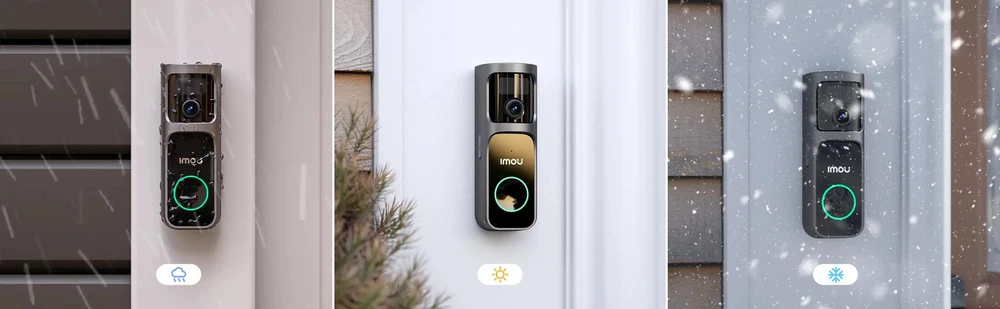

Doorbell 3 operates fully wirelessly thanks to a 5000 mAh battery, but also supports a wired 8–24 VAC power connection. Charging is done via a USB-C port (5 V / 1 A). Its compact dimensions (150 × 55 × 50.3 mm) and weather resistance allow for outdoor installation without worrying about performance in changing conditions.

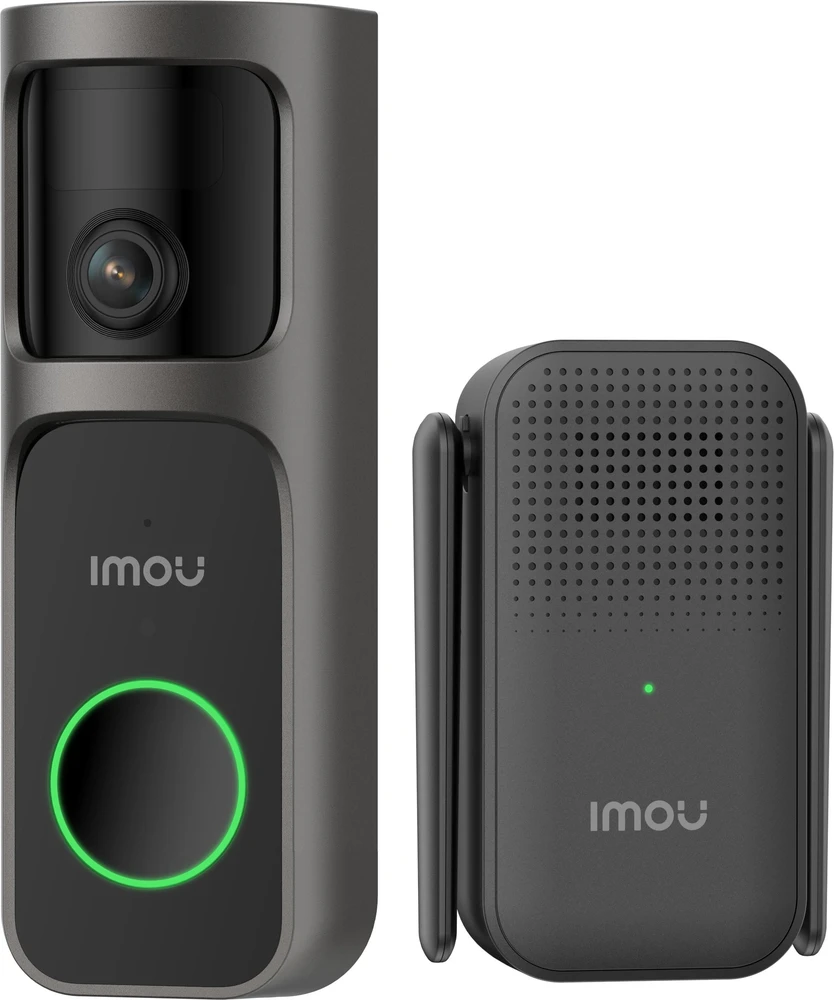

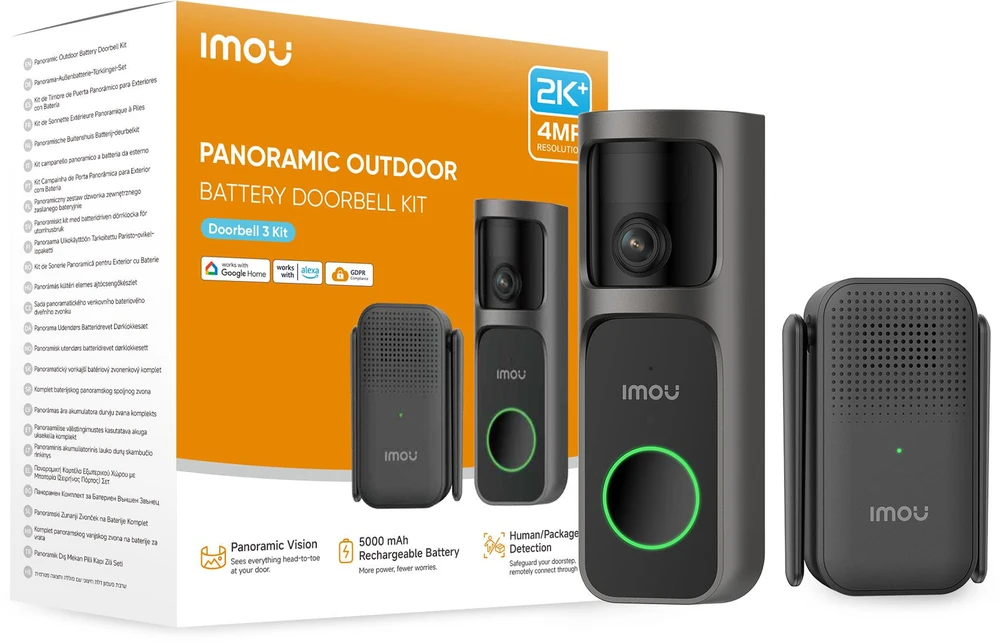

Included:
-
Video doorbell
-
Indoor receiver
-
Mounting bracket
-
USB charging cable
-
Cable connectors x3
-
3M adhesive tape x2
-
Receiver plug
-
Screw pack
-
Pin
-
Mounting template
-
Extension cable x2
-
Jumper
-
Quick start guide
General
|
Manufacturer
|
IMOU
|
|
Model
|
DB-3EP-4M0W/DS3
|
|
Charging power supply (video doorbell)
|
DC 5 V 1 A, USB-C port
|
|

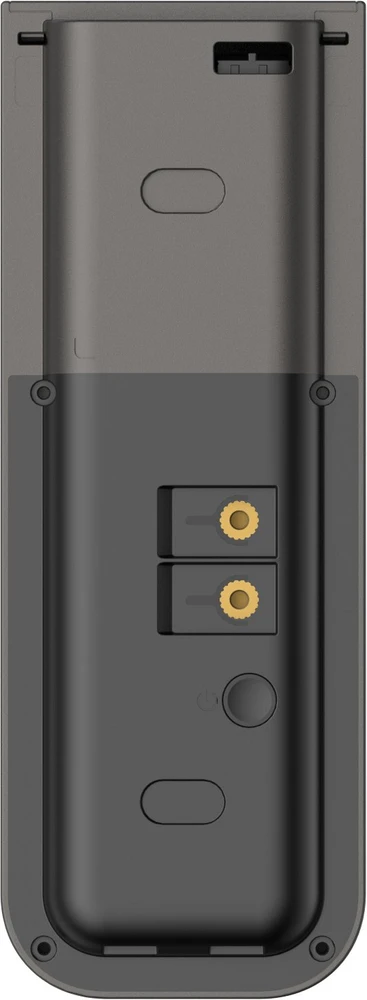

Optional wired power supply (video doorbell)
|
8~24 VAC, ≥5 VA
|
|
Power consumption (video doorbell)
|
Up to 2.27 W
|
|
Operating environment (video doorbell)
|
-20°C to +50°C, humidity <95% RH
|
|
Charging temperature (video doorbell)
|
0°C to +45°C
|
|
Dimensions (video doorbell)
|
150 × 55 × 50.3 mm
|
|
Weight (video doorbell)
|
220 g
|
|
Certifications (video doorbell)
|
CE, weather resistance
|
|
Power supply (indoor receiver)
|
100–240 VAC
|
|
Power consumption (indoor receiver)
|
Up to 3 W
|
|
Operating environment (indoor receiver)
|
-10°C to +45°C, humidity <95% RH
|
|
Dimensions (indoor receiver)
|
95.5 × 65.1 × 30.2 mm
|
|
Weight (indoor receiver)
|
79 g
|
|
Certifications (indoor receiver)
|
CE
|
Video doorbell
|
Sensor
|
1/3" Progressive CMOS
|
|
Resolution
|
4MP (1920 × 1920)
|
|
Night vision
|
Up to 5 m (16.5 ft)
|
|
Lens
|
0.98 mm fisheye, 360° panoramic view
|
|
Viewing angle
|
180° (H), 180° (V)
|
|
Battery
|
5000 mAh
|
Video and audio
|
Video compression
|
H.265
|
|
Frame rate
|
Up to 15 fps
|
|
Audio
|
Two-way communication
|
|
Zoom
|
8× digital
|
Notification management
|
Notifications
|
Doorbell notification
PIR motion detection / AI human detection
Detection of prolonged presence in a zone
Package detection
Power-saving mode
|
Network
|
Wi-Fi
|
IEEE 802.11 b/g/n, 2.4 GHz
|
|

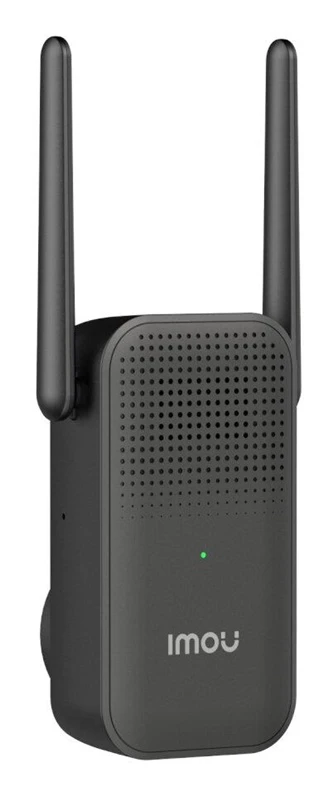

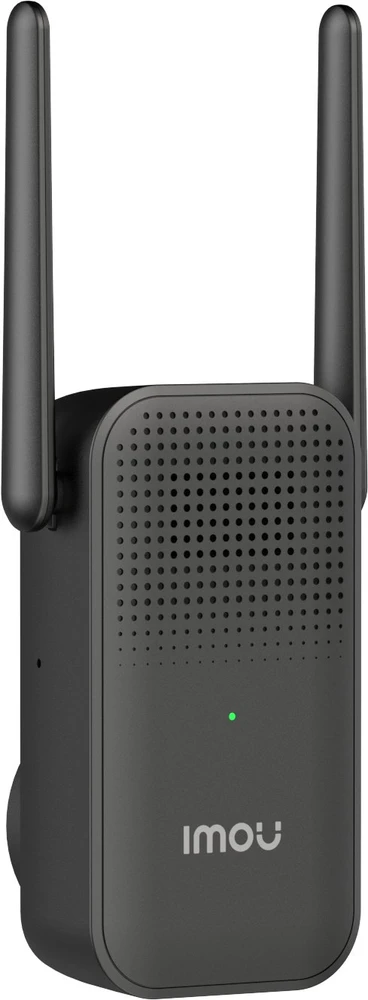

Indoor receiver function
|
Acts as a Wi-Fi booster for the doorbell
|
|
Mobile app
|
iOS, Android
|
Additional interfaces
|
Video doorbell
|
Built-in microphone and speaker
Power button
|
|
Internal receiver
|
Micro SD card slot (up to 512 GB)
Built-in speaker
Reset button
|
