EVOLVEO DoorPhone AP1-2

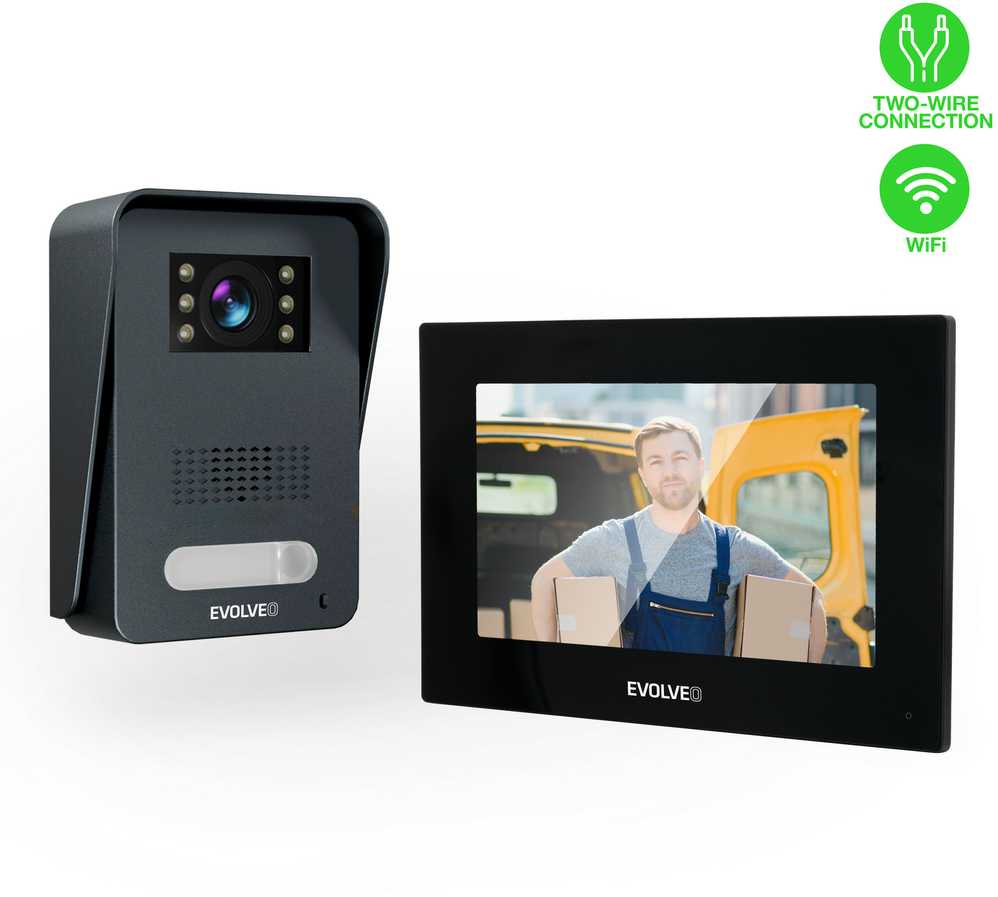

EVOLVEO DoorPhone AP1-2, wired videophone with app, black

- Home videophone set
- Connection with only 2 wires
- 32GB of internal memory
- 7" Monitor with Wifi
- Smart Life app (Tuya)
- Remote opening of Doors, Gates, Gates
- Expandable by 1 more monitor (2 monitors in total)
- Durable outdoor unit design
________________________________________________________________________________________________________________

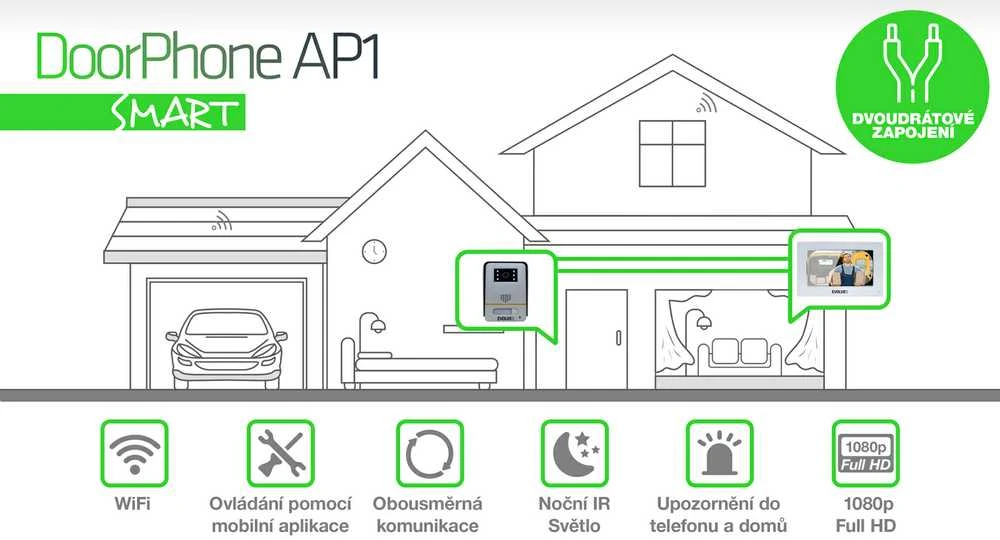

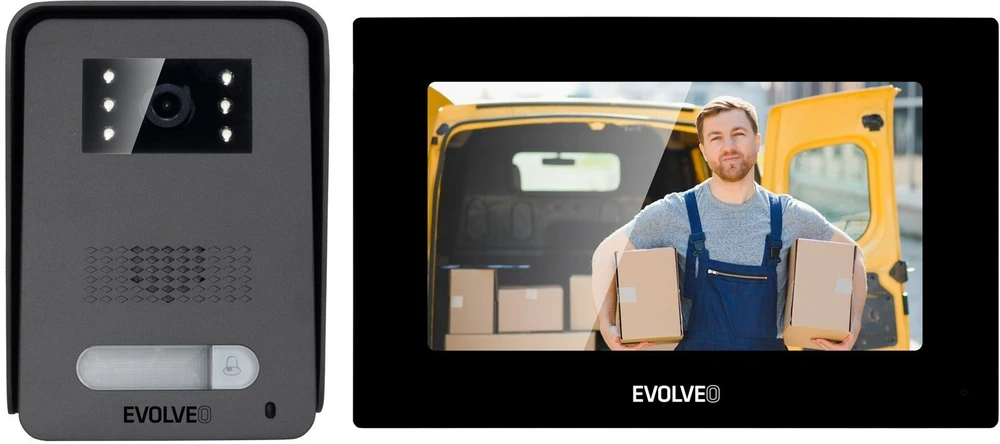

Video phone EVOLVEO AP1-2
It is a modern videophone with SMART LIFE Application for remote management, Full HD video, a pair of relays for controlling the opening of the entrance gate and the entrance gate. Thanks to its simple wiring with only two wires, its installation can be handled by anyone. In addition, the monitor is equipped with an internal 32GB memory for recording events in front of the camera, so you won't miss any more mail with your package.

Only two wires are enough
Installation has never been easier, only two wires are needed to connect the door unit and monitor. The video phone, thus, can also be plugged in place of the original doorbell on a two line cable. Moreover, there is no need to keep an eye on the polarity of the wires, just use the ready-made lever clamps and connect everything quickly. The power adapter plugs into the side of the monitor. Both the door unit and the monitor are adapted for mounting on a standard KU68 installation box.

High quality durable design

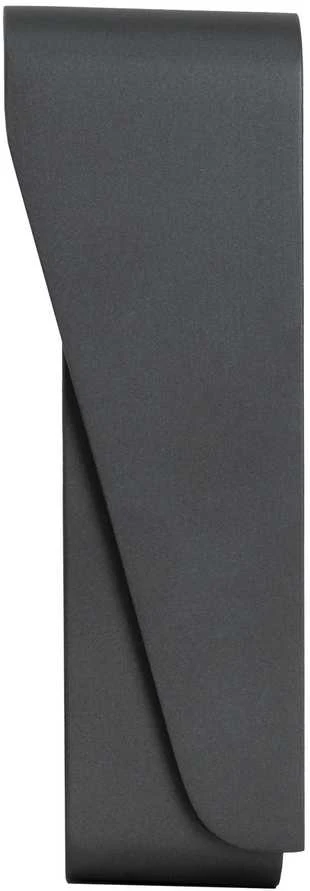

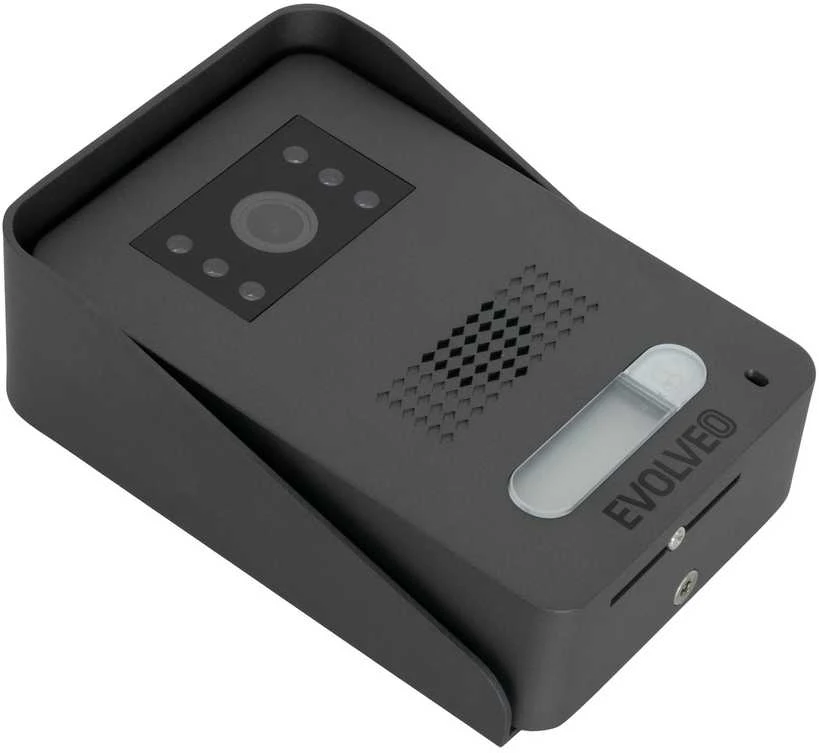

The door - outdoor unit with push button and camera is made of durable aluminum alloy. When properly mounted using the supplied gasket, the unit achieves IP65 weather protection. The camera is equipped with a nighttime invisible illumination, so you can see who has come to visit you even at night.

Simple operation

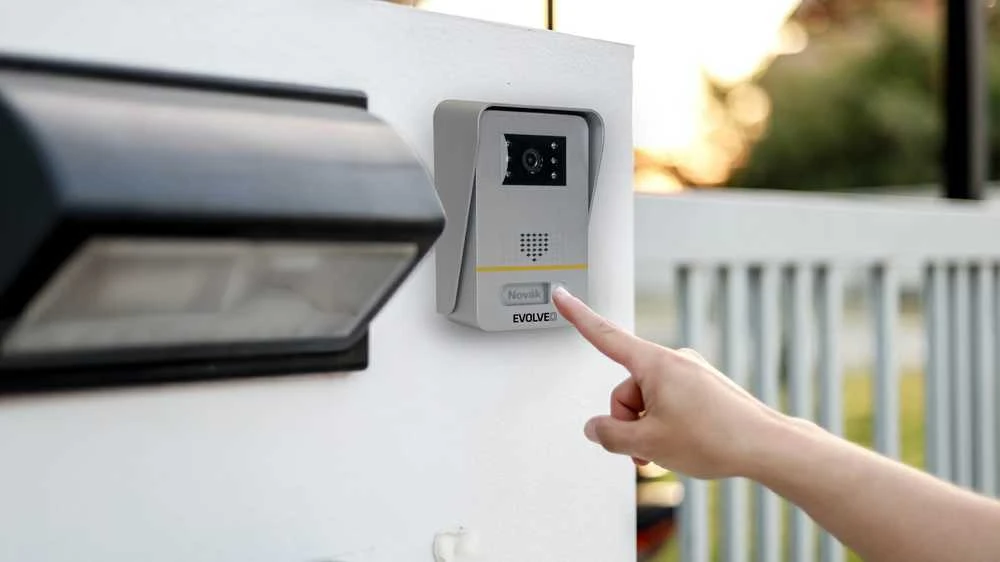

The weatherproof outdoor panel is equipped with a button and a camera that your guests can use to call you. When a guest presses the call button on the outdoor station, the monitor rings, at the same time the image of the visitor appears on the screen, you decide whether to open the door or not. This amazing feature provides you with a complete access control system.
The package includes everything you need for easy installation: indoor monitor, outdoor unit with camera, set of screws and dowels, cable clamps with lever.

Main functions of the entry panel:
- Camera: CMOS 1/3 sensor, 1.22mm
- Image resolution: 1080P
- Microphone: Yes - two-way voice communication
- Optional ringtones: yes 6 melodies
- Internet connectivity: WiFi 2.4Ghz monitor
- Monitor Color: White

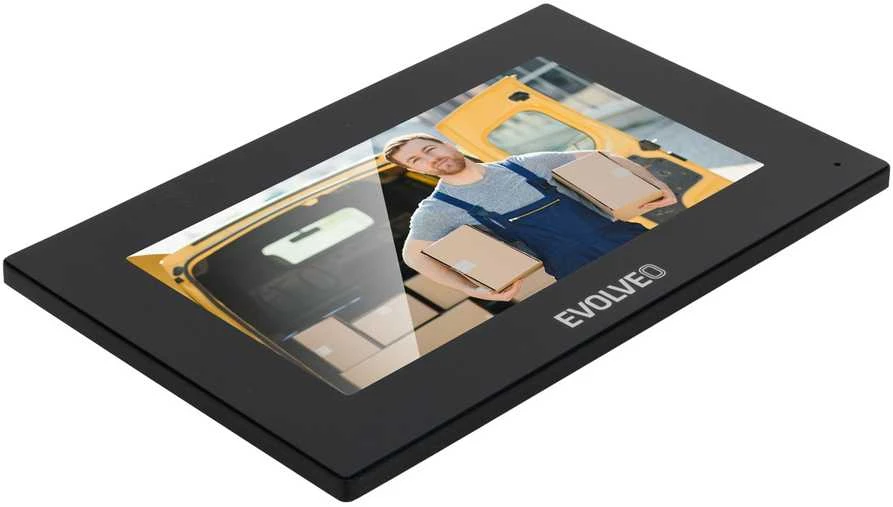

- Monitor size: 7"
- Door panel color: aluminum
- Intercom function: yes (communication between monitors)
- Remote management: yes Smart Life (Tuya platform)
- Non-polar, two-wire system for simplified installation
- 1-button model

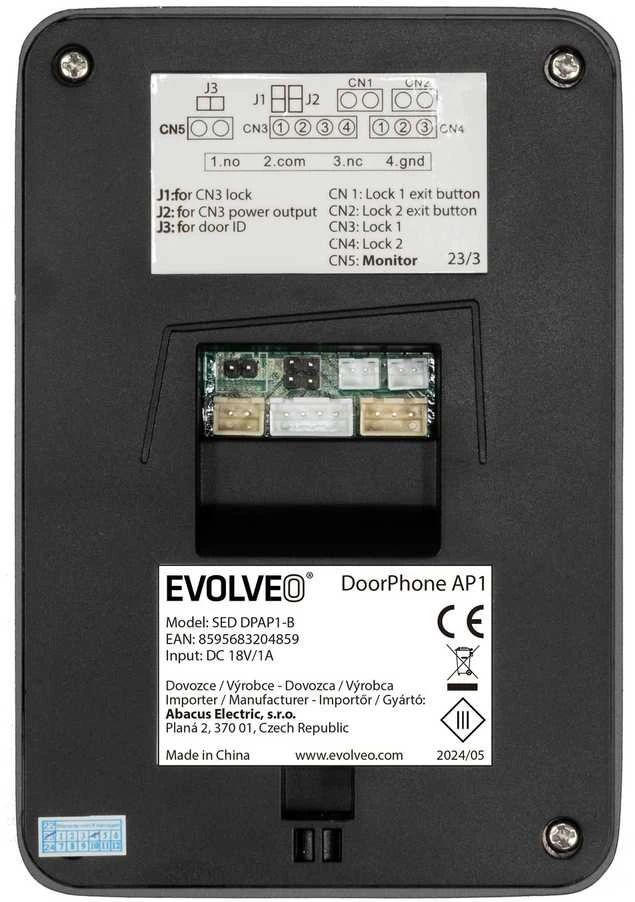

- Equipped with clamps to add a button to open the gate
- Night IR illumination - night black and white photo
- Surface mount with gasket
- Weatherproof - IP65 protection
- Large backlit nameplate
- 2x 5A relays for gate and gate opening
- Monitor power supply: 18V DC
- Adapter cable length: 120cm
- Menu in CZ,SK,EN,HU and RO

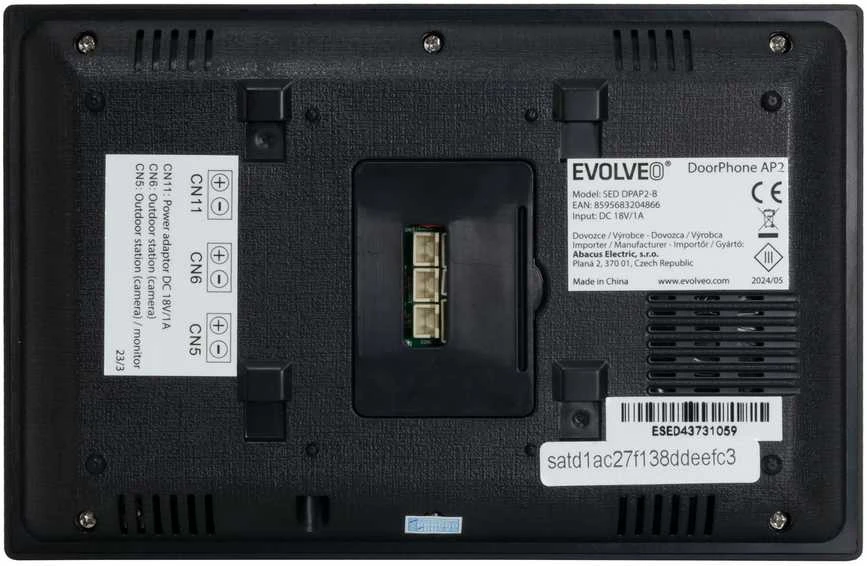

Monitor dimensions: 130x200x40, HxWxD(mm)
Mounting of the monitor: using a bracket with spacing on the KU68 wiring box
Door unit dimensions: 100x138x40 HxWxD(mm)
Panel mounting: using a bracket with 4 screws spacing 45x100mm

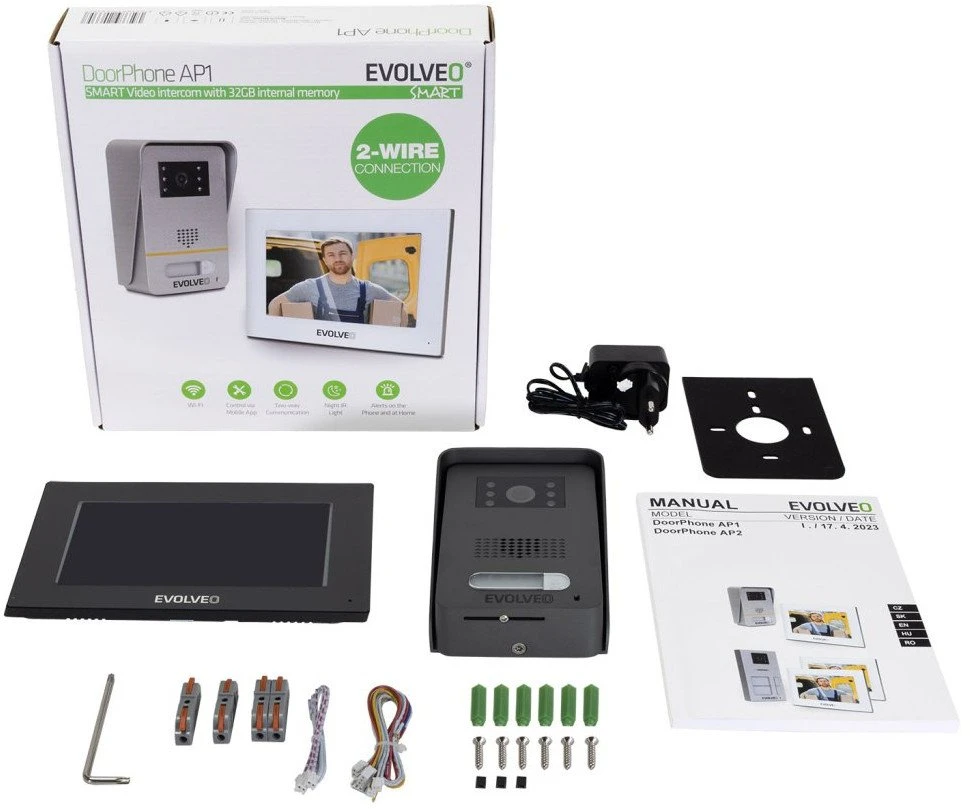

PACKAGING CONTENTS:
- 1 x 7" monitor
- 1 x input panel, door unit
- 1 x power supply
- 1x set of screws and dowels

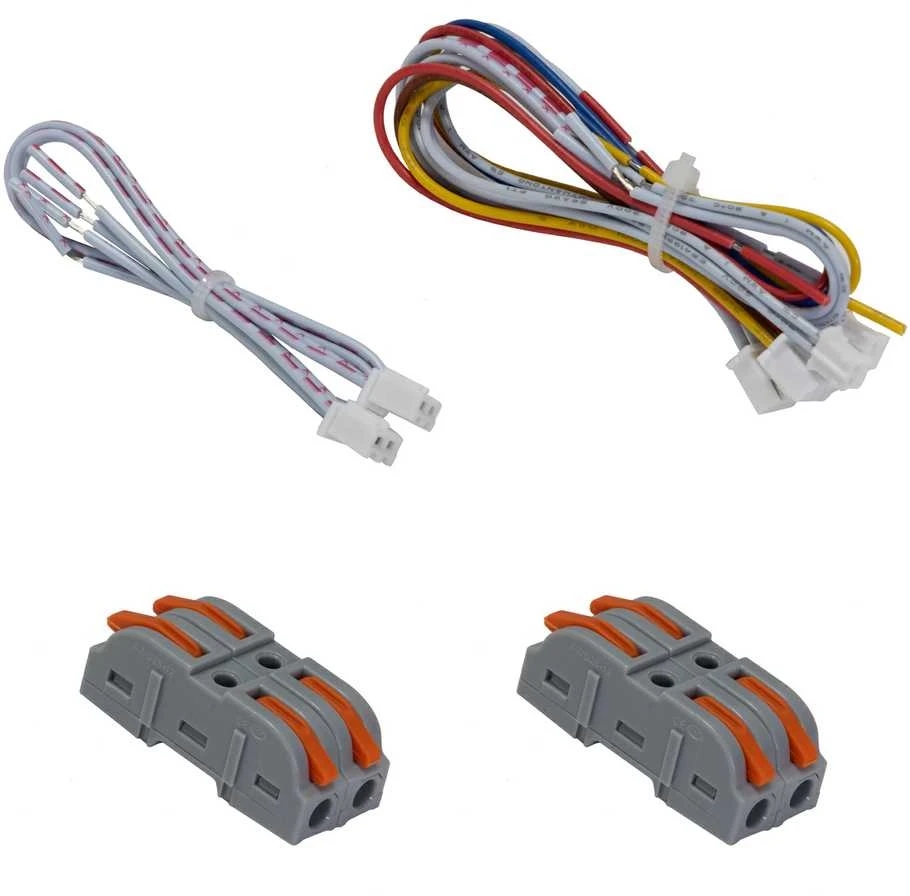

- 1x set of cables for connecting the units
- 1x User manual


ADDITIONAL ACCESSORIES:
- EVOLVEO DoorPhone AP1 AP2- extension monitor for two-wire videophone systems, black(PartNo: DPAP2-MONITOR-B)
- EVOLVEO DoorPhone AP1 AP2- extension monitor for two-wire videophone systems, white (PartNo: DPAP2-MONITOR-W)
- EVOLVEO DoorPhone AP2-Adaptor 18V, 1A (PartNo: DPAP2-ADAP)

COLOR
- EVOLVEO DoorPhone AP1-2 wired videophone with app white (PartNo: DPAP1-W)
- EVOLVEO DoorPhone AP1-2 wired videophone with app black (PartNo: DPAP1-B)
