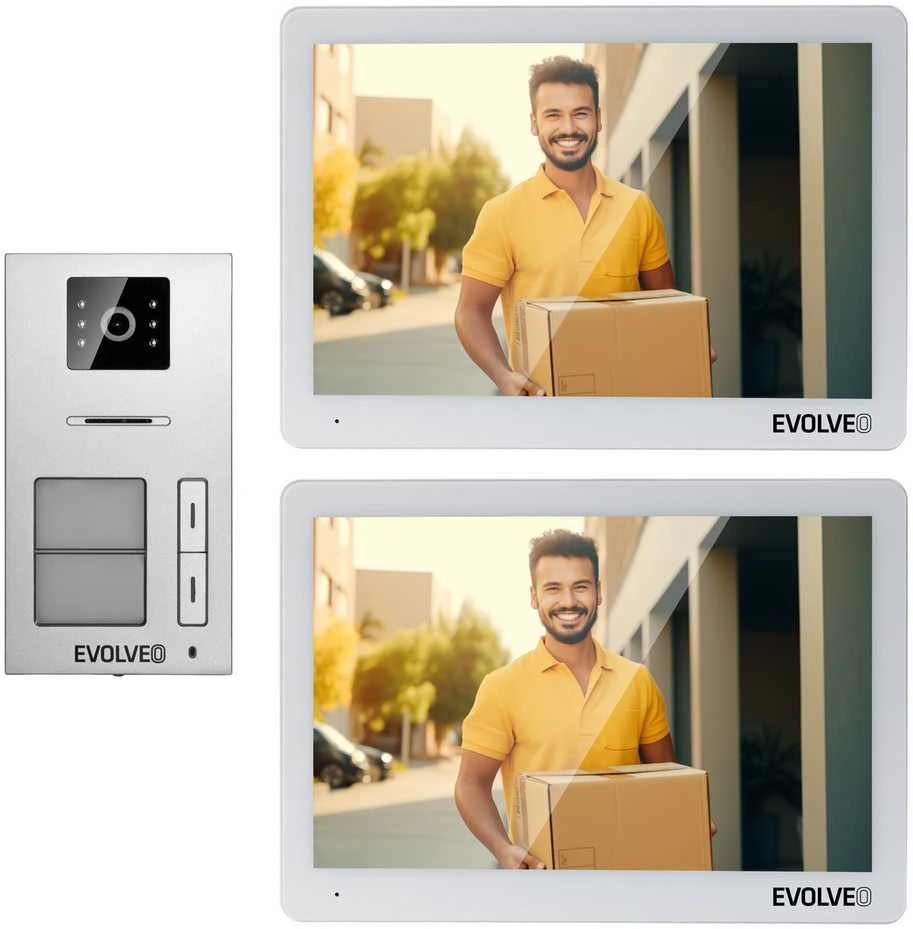

EVOLVEO domofonas 20-2W

- Two 10.1" touch monitors
- Intercom between monitors
- Up to 500 chip access system
- Support for two door locks
- Smart Life app (Tuya)
- Simple two-wire installation

EVOLVEO DoorPhone 20-2W video doorbell
Do you live in a house with two households? Whether you share a two-generation home with your family or live in a smaller apartment building, with the EVOLVEO DoorPhone 20-2W smart video doorbell, all residents can have a perfect view of everything that's going on behind closed doors - whether they're relaxing on the couch or hundreds of miles away. Designed for two households, this video doorbell simply brings modern technology into your home for security and convenience.
Featuring a /b>outdoor dual-button doorbell and two internal touch monitors, this system can independently serve two dwelling units. And there's one more twist! The monitors also have an intercom function, so they can communicate not only with the doorbell outside, but also with each other. So you can easily call your neighbours or the family next door at any time to arrange a visit, or perhaps ask for ingredients you're missing when preparing lunch.

A camera that can see in the darkThe basis of every good video doorbell is a camera. And the EVOLVEO DoorPhone 20-2W certainly won't let you down. Its Full HD resolution (1080p) ensures such a sharp image that you can always count the buttons on your guests' coats. And when darkness falls? Infrared illumination will make sure the camera is just as effective in the deepest night. So whoever comes to your door - the postman, a visitor or an uninvited guest - you'll be in full control of the situation.
In addition, the IP65 waterproof design and wide operating temperature range (-10 to +60 °C) ensures that the outdoor unit can handle even inclement weather without blinking an eye.

2 homes, 2 touch screens

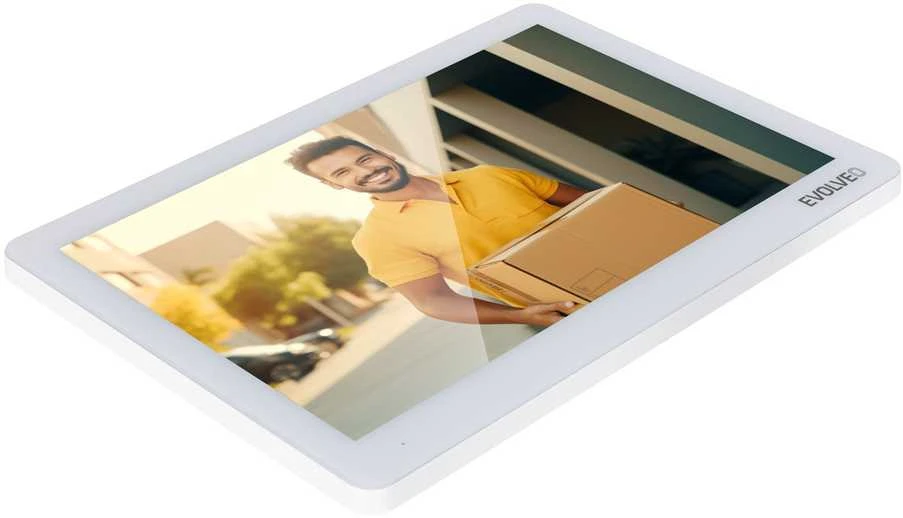

You can install your own 10.1" touchscreen LCD monitor with 1280 x 800 px resolution in each home. These screens are not only practical, they're also stylish - they'll become the centerpiece of any interior. In addition to viewing the camera image, they also allow you to control up to two door locks and offer an intercom function (for communication with a second monitor). Need to say something quickly to the neighbours or the family next door? Just one touch and you're connected - no more calling through the door or running up the stairs.

Smart technology at your fingertips
The EVOLVEO DoorPhone 20-2W video doorbell is ready for the modern era full of smart technology and the Internet of Things. Each of the monitors can be connected to Wi-Fi and controlled via the Smart Life or Tuya mobile app. This allows you to receive notifications of visitors directly to your smartphone, communicate with visitors remotely, or even control the door lock from anywhere in the world. The system also supports multiple users, so every member of the family can have access to all the features. And if you want to keep track of everything that's rustled behind the door, you'll be pleased to know that you can store camera footage in the 32GB internal memory or on a memory card (up to 128GB).

When forgotten keys are not a problem

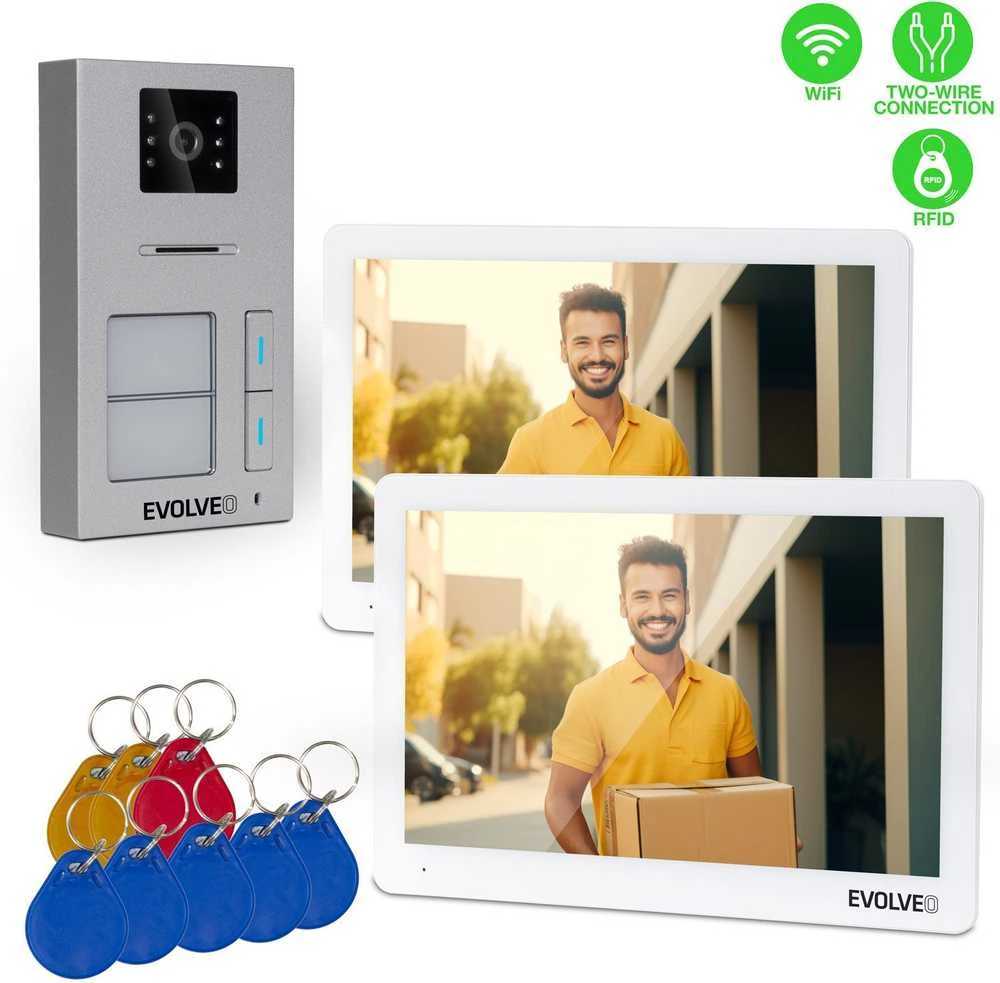

Forget searching for keys in your pockets or bag - with the EVOLVEO DoorPhone 20-2W video doorbell, you can open the door with a single movement. That's because the outdoor unit is equipped with an RFID reader that, in conjunction with an externally powered electromagnetic lock, turns entering your home into a modern experience. Simply insert a registered card (the reader can remember up to a staggering 500 cards) to open the door as if by magic. With this video door lock, you will not only have an overview of incoming visitors, but also full control over who is allowed to enter.
You don't have to limit yourself even if you have multiple entrances - the system allows you to connect up to two locks, so you can easily secure the gate or a second door along with the main entrance.

Installation? No big deal
Thanks to its two-wire design (2 wires without polarity), the EVOLVEO DoorPhone 20-2W video door lock can be connected with the left rear. In the package you will find everything you need - including mounting frames, screws and dowels. So you don't have to deal with complicated technical details or buy anything extra. Just a few simple steps and your new door guard is ready for action.

SPECIFICATIONS:

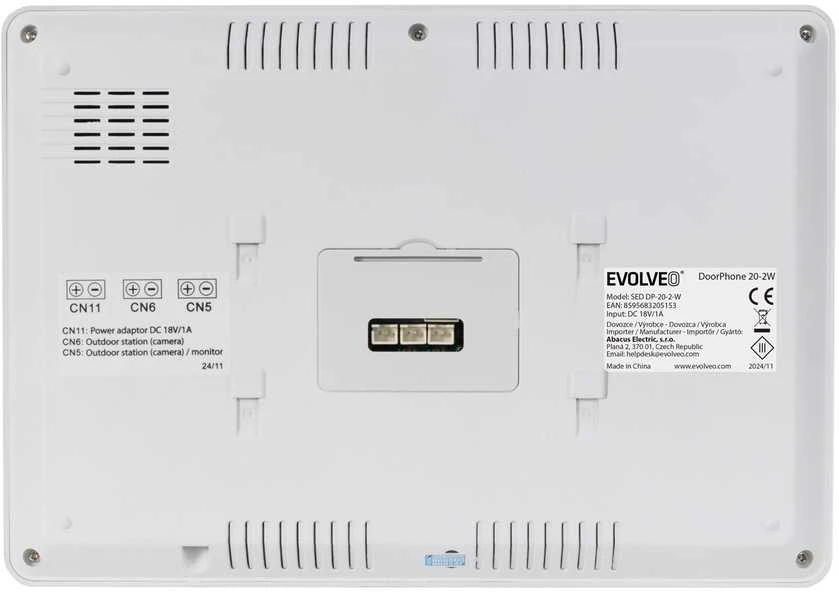

Indoor monitors:
- Display: 10.1" LCD touchscreen
- Resolution: 1280×800 px
- System: Linux
- Connection method: 2 wires without polarity, max. diameter 0.75 mm2
- Function: Video communication, monitoring, door lock control
- Communication method: Two-way voice communication
- Talk time: 60 seconds
- Memory: Memory card support, WiFi connection
- Maximum memory capacity: 128 GB
- Power supply: DC 18V/1A
- Dimension: 246 x 172 x 26 mm
- Power consumption:
- Standby: 1.5 W
- Working mode: 10 W
- Operating temperature: -10°C to +60°C

WiFi Connection Monitor:
- WiFi Frequency: 2.4GHz (5GHz not supported)
- Standards: IEEE 802.11 b/g/n
- Security: WPA/WPA2 encryption support

Functionality over WiFi:
- Each monitor connects separately to wifi and the app
- Connection to Smart Life or Tuya app for mobile phone control
- Notifications and calls directly to smartphone
- Option to remotely control the lock via mobile app
- Multiple users can be connected to one system
- WiFi connection management:
- Option to turn WiFi on/off in monitor settings
- WiFi password input with SSID support

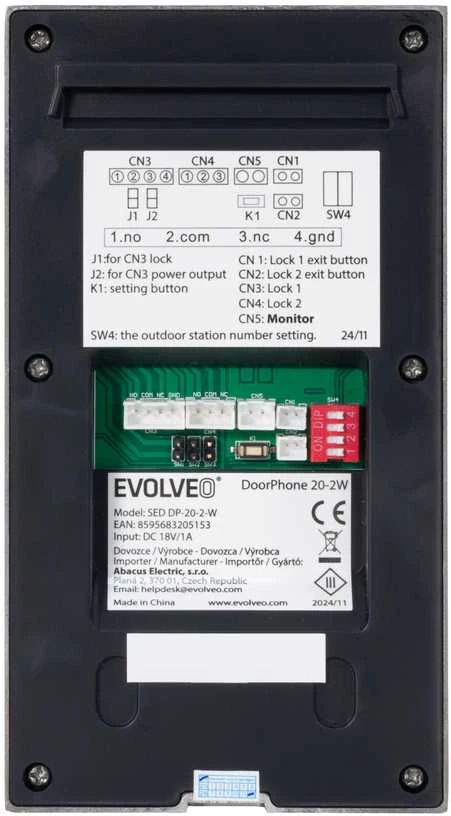

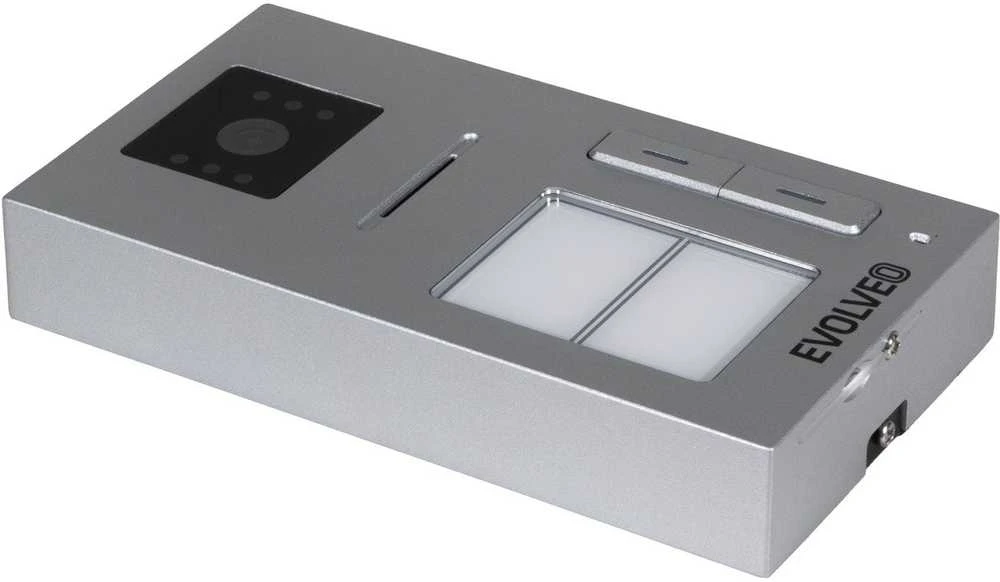

Outdoor unit:
- Camera resolution: 2MPx 1080P/ 120° FOV
- Video stream: H.264
- Communication: Two-way
- Function: Calling and communication
- Call Time: 60 seconds
- Waterproof: IP65 (when properly installed with gasket)
- Night Vision: Yes
- Standby: 1W
- Working power: 2W
- Power supply: 18-24V DC
- Operating Temperature: -10°C to +60°C
- Connection: 2 wires without polarity
- Lock support: Up to 2 locks can be connected, external power supply required for electromagnetic lock
- Dimensions: 165 x 90 x 30 mm
- Weight: 1530 g ( 605 g monitor, 392 g doorbell)
- RFID reader: Yes (with card management capability) 500 cards
- RFID Frequency: 125 kHZ
- Buttons: 2 separate buttons for calling different monitors
- Other features: microphone, speaker, infrared backlight for night vision

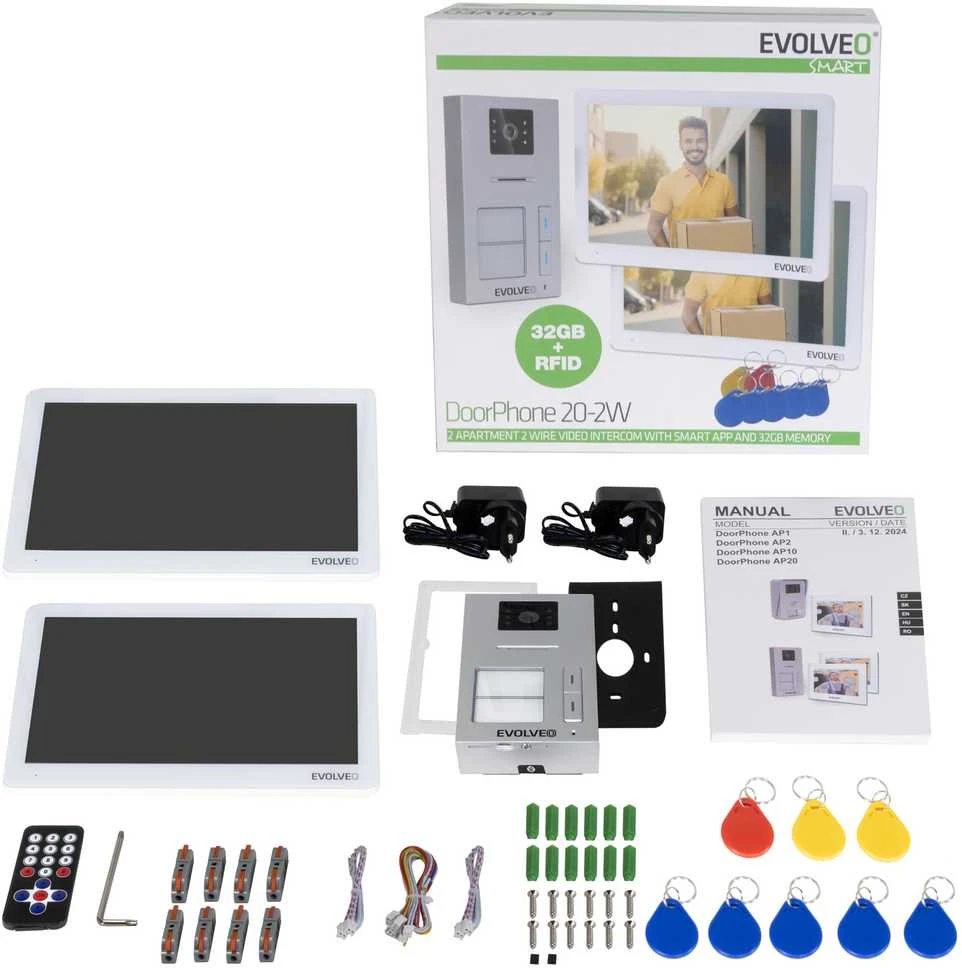

PACKAGE CONTENTS:
- Outdoor unit (with 1080P camera and RFID reader)
- 2× Indoor 10.1" WiFi monitor (LCD touch screen)
- 2× Mounting frame for monitors
- Mounting screws and dowels
- 2× 18V DC power adapter
- Connection cables with connectors
- Mounting frame for outdoor unit + gasket
- RFID cards (yellow for admin, red for delete, blue for user)
- Instructions for use
