dé 22kW Wallbox with 7.5m Cable (APP VERSION)

dé 22 kW Wallbox – 7.5 m App & RFID Version

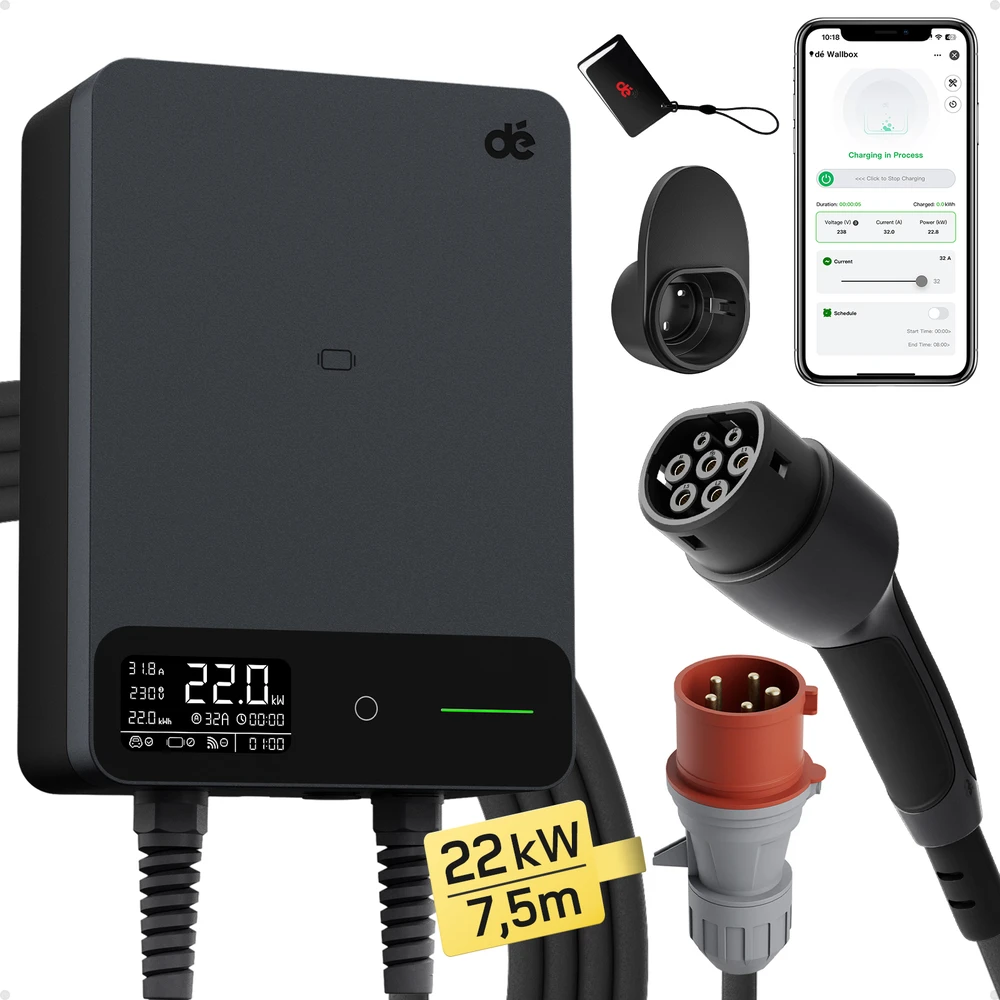

This charging station combines a 32 A three-phase CEE power connection with a Type 2 charging cable. It provides up to 22 kW of three-phase charging power, adjustable current settings, Tuya Smart app control, RFID access and a clear LCD status display.

Key Features

• Three-phase charging up to 22 kW
• 7.5 m Type 2 charging cable
• Red CEE 32 A three-phase power connection

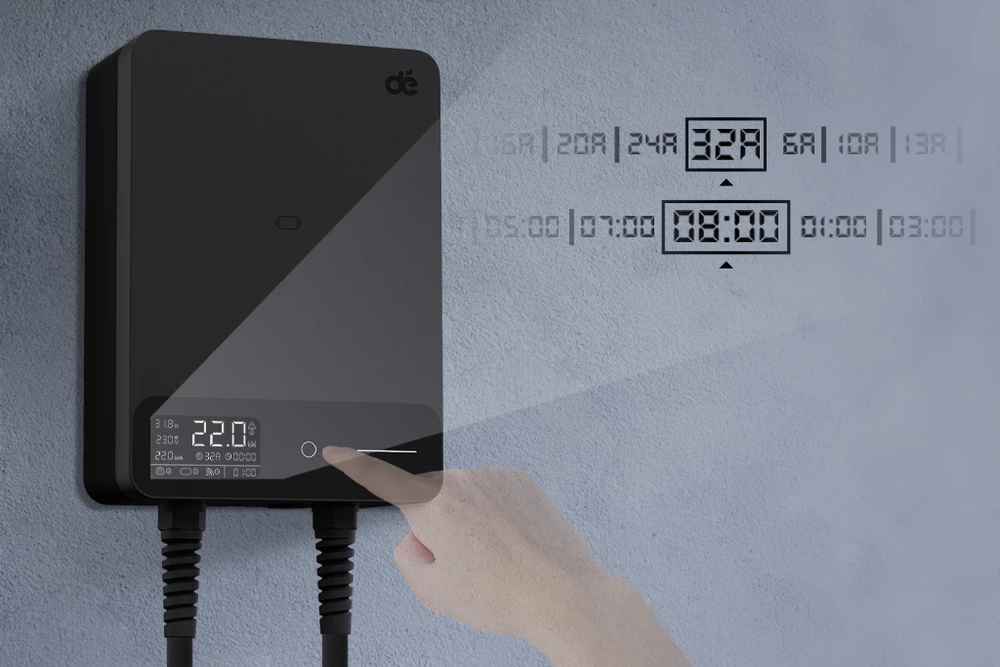

• Selectable charging current: 6 A, 10 A, 13 A, 16 A, 20 A, 24 A or 32 A
• Tuya Smart app and LCD display
• RFID access with three supplied RFID cards
• Programmable charging delay

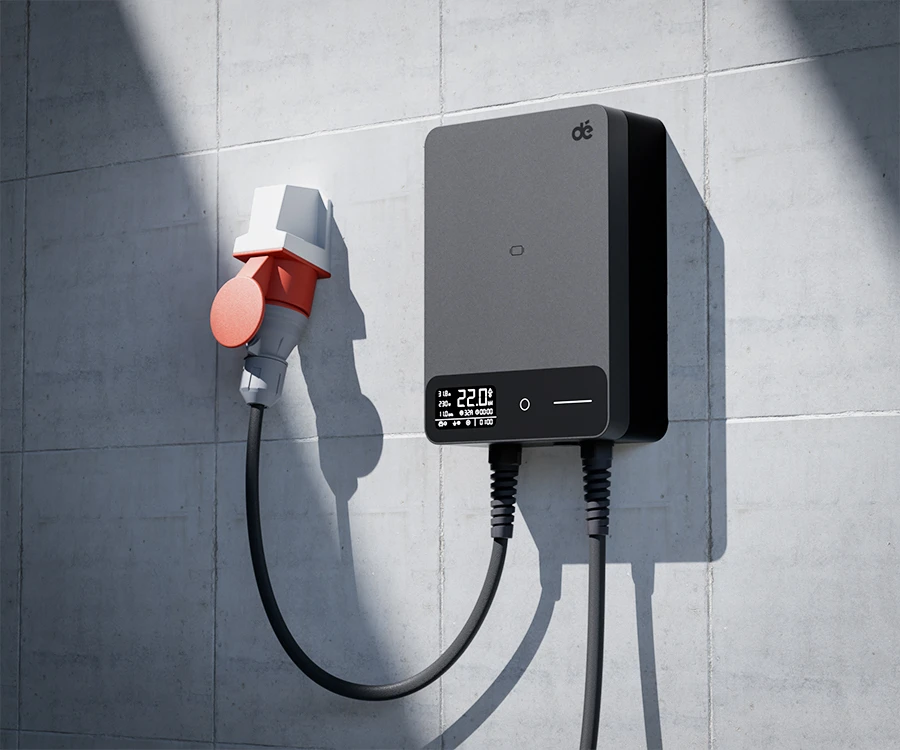

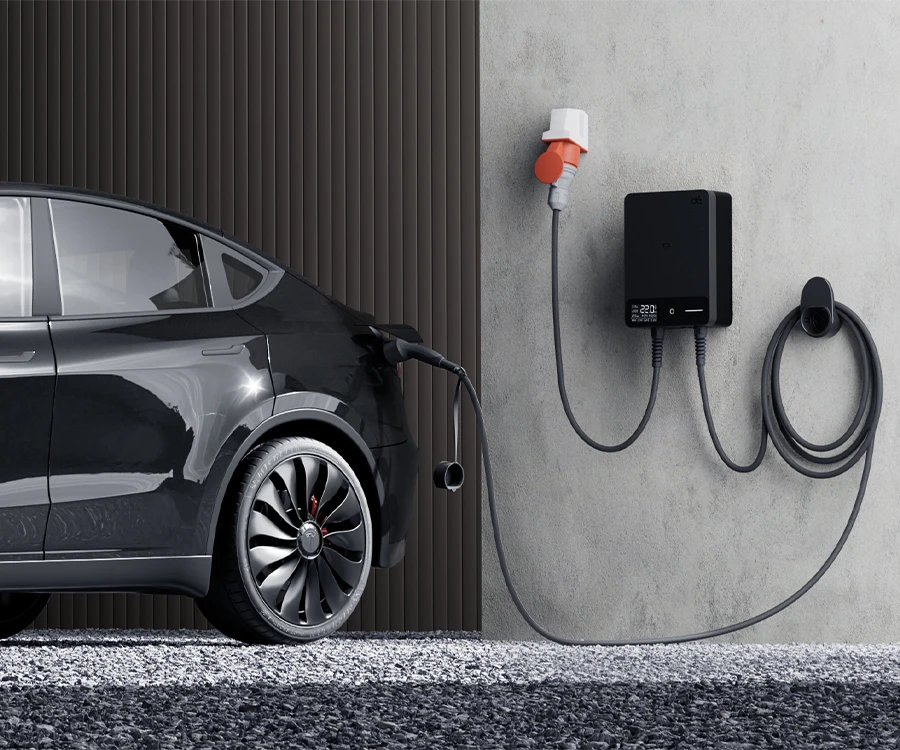

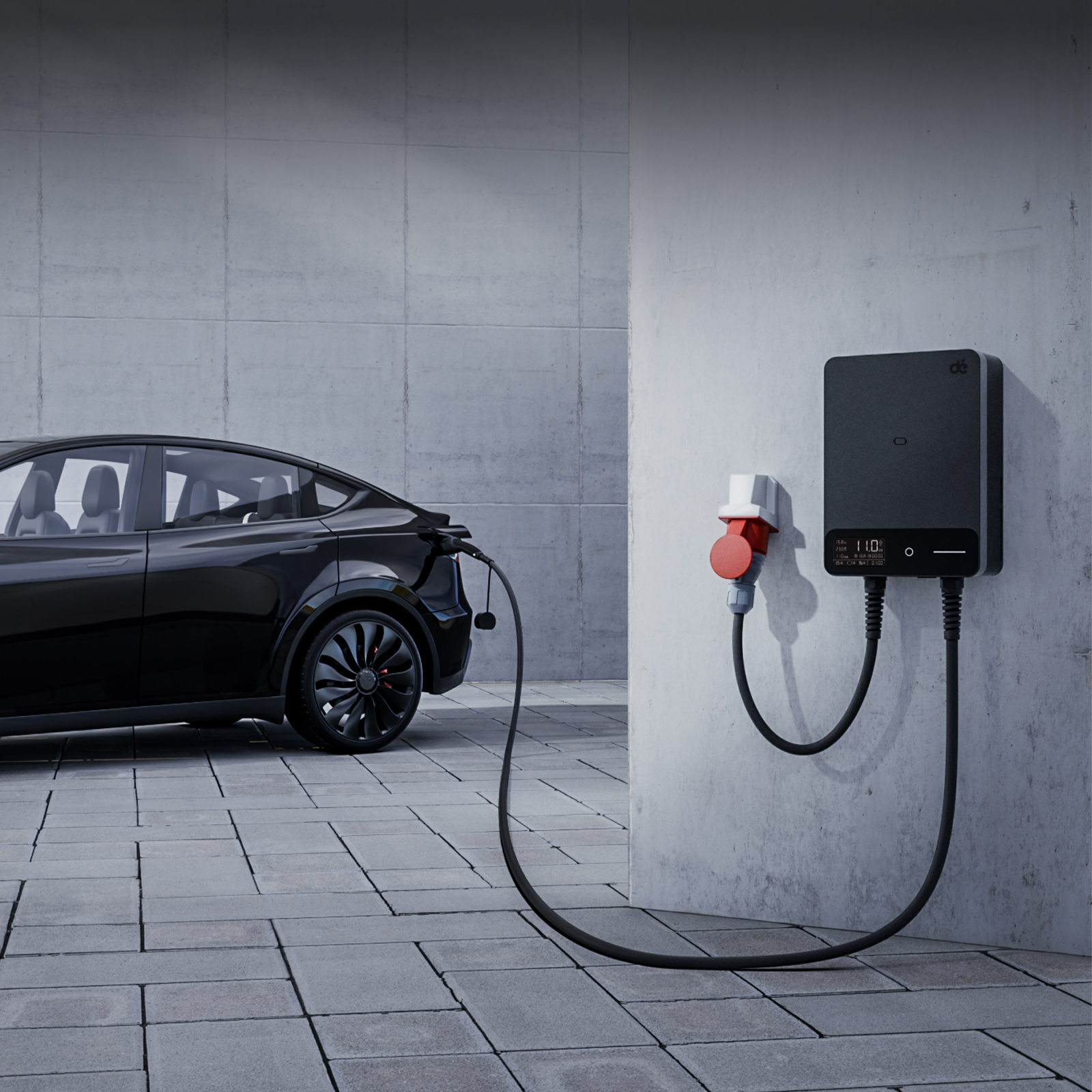

Plug-and-Play Connection to a CEE Socket

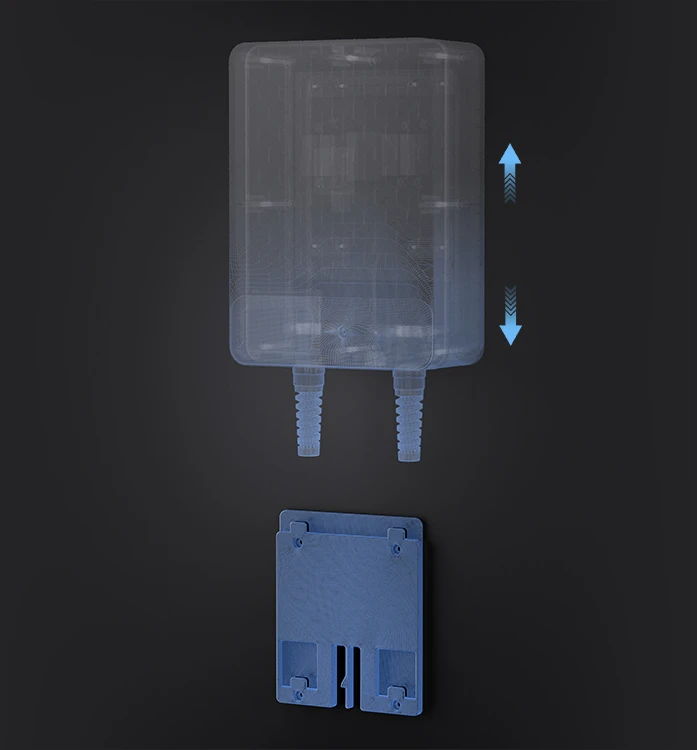

The wallbox connects directly to a suitable red 32 A three-phase CEE socket, so the charger itself does not require permanent hardwiring. The supplied mounting plate supports organised installation on a wall, while the plug holder keeps the Type 2 connector stored securely between charging sessions.

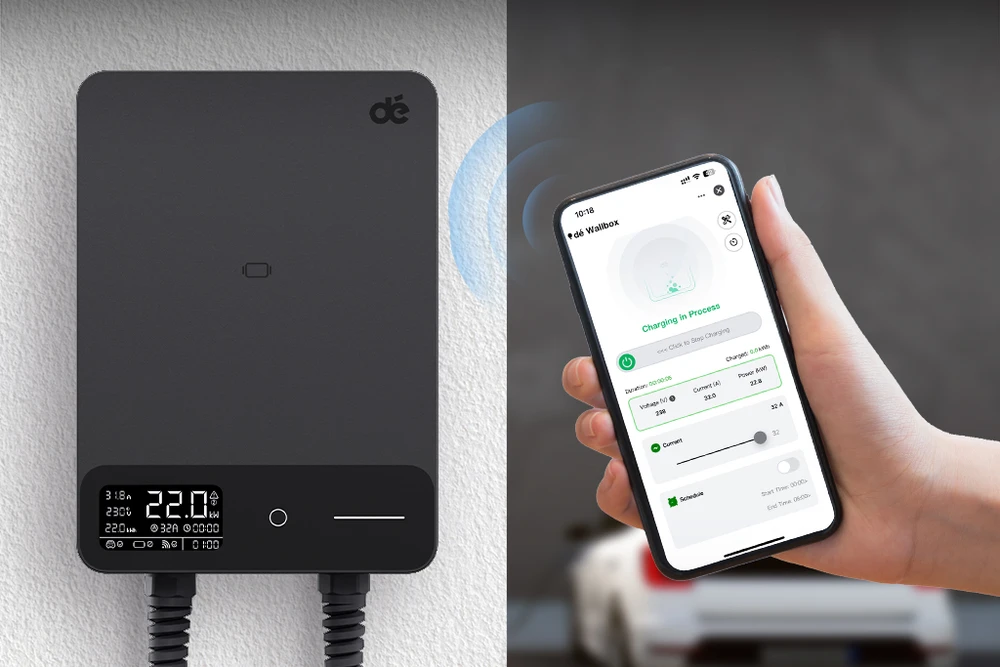

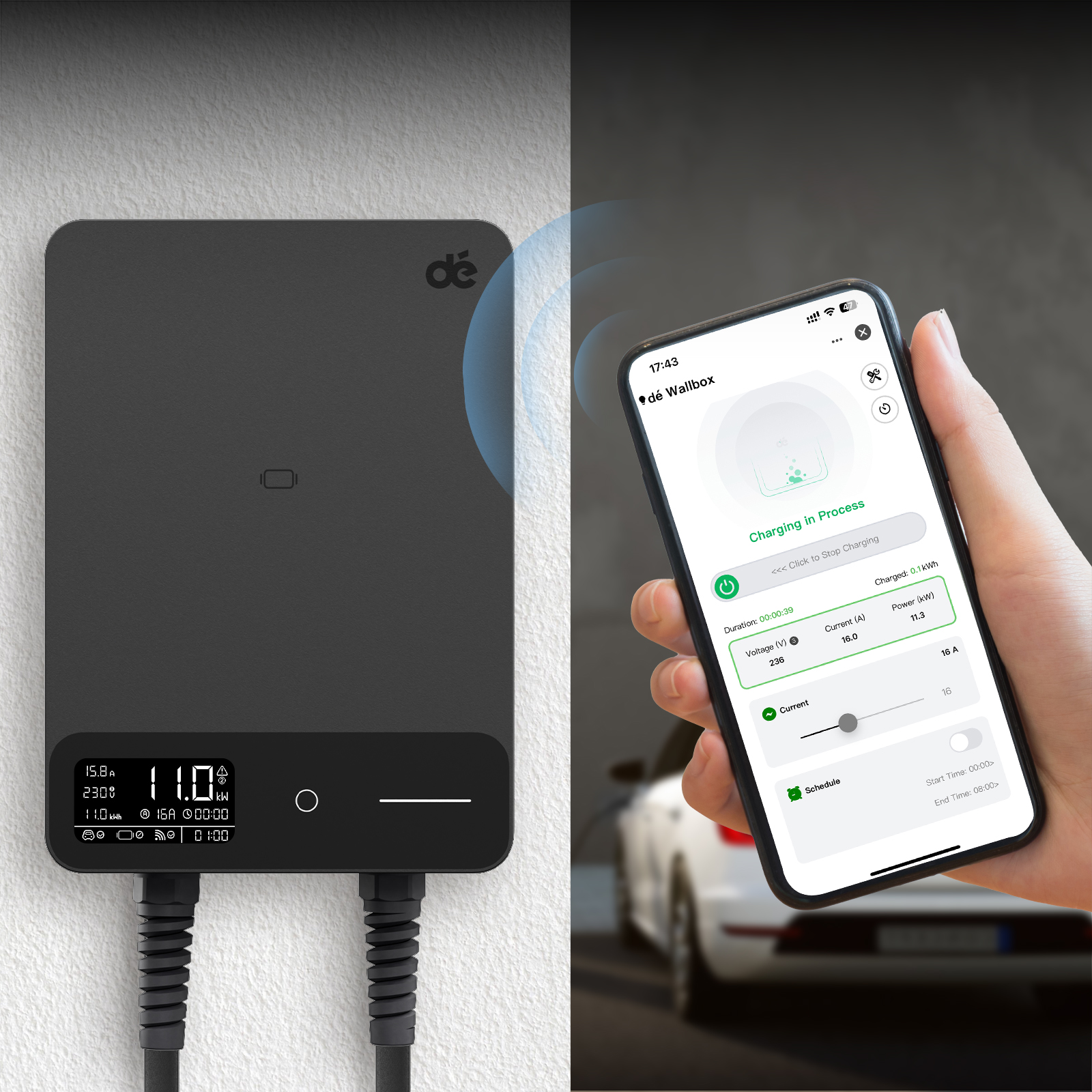

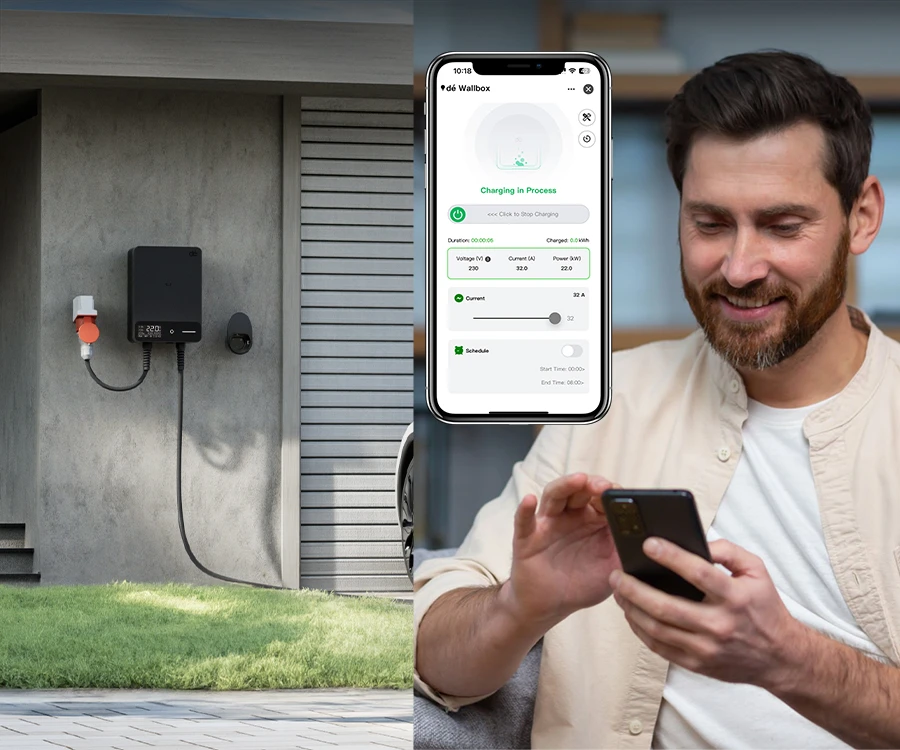

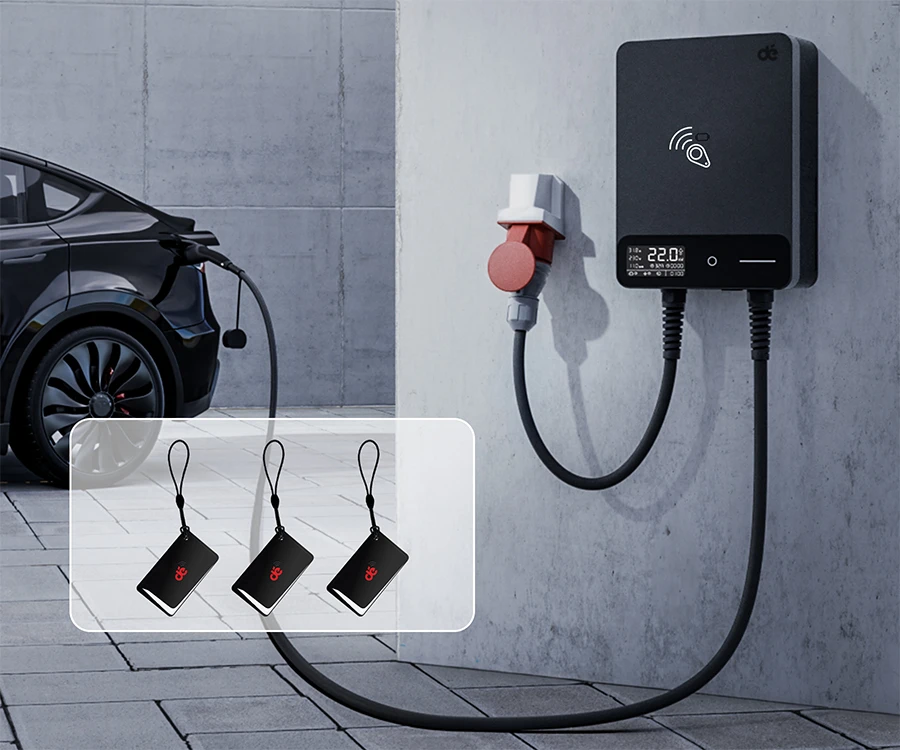

Smart App and RFID Control

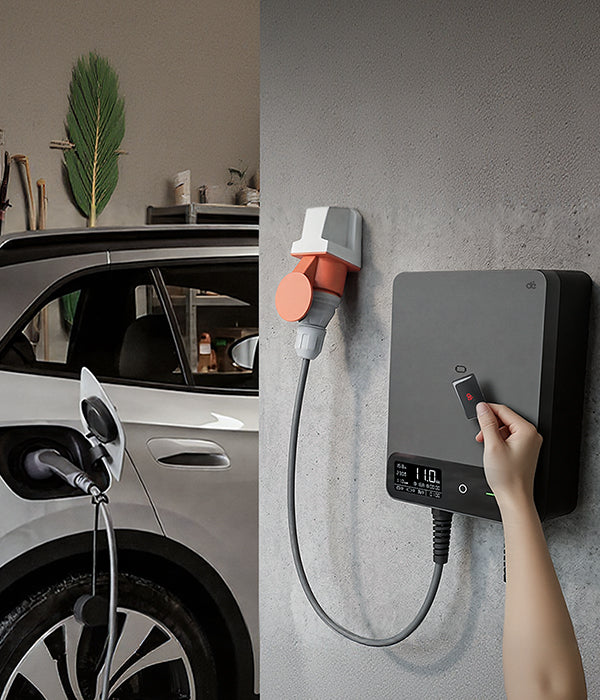

The Tuya Smart app supports charging schedules, current adjustment, remote start and stop, and access to charging records. RFID access provides an additional way to authorise charging, and three RFID cards are included for convenient use by multiple authorised users.

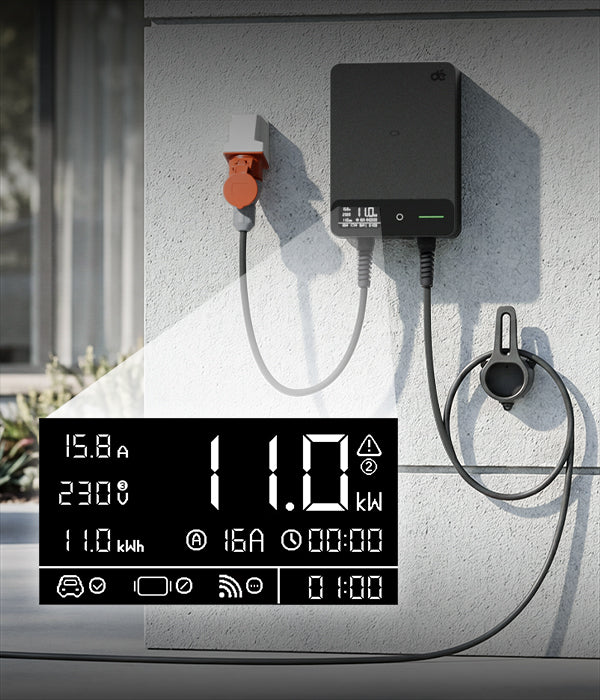

Clear Charging Information

The high-resolution LCD display provides real-time information about charging power, current, voltage and charged energy. It also shows the charging status, vehicle and Wi-Fi connection status, operating mode and fault information directly at the wallbox.

Weather-Resistant Everyday Construction

The wallbox is rated IP54 and the Type 2 connector is rated IP55. An operating temperature range from -25°C to +55°C supports indoor and outdoor charging in changing weather conditions.

Integrated Protection Systems

The charging station provides residual-current protection with 30 mA AC and 6 mA DC detection. Additional safeguards cover leakage, overcurrent, overvoltage, undervoltage, grounding faults, overheating and short circuits.

Technical Specifications

• Maximum charging power: 22 kW at 400 V, 32 A, three-phase
• Single-phase charging power: up to 7 kW
• Rated voltage: 230–400 V AC
• Selectable charging current: 6 A / 10 A / 13 A / 16 A / 20 A / 24 A / 32 A
• Power connection: red CEE 32 A, three-phase
• Vehicle connection: Type 2
• Type 2 cable length: 7.5 m
• Charging delay: 0.5–8 hours
• Control: wallbox controls, Tuya Smart app and RFID
• Display: LCD
• Protection rating: IP54 wallbox; IP55 Type 2 connector
• Operating temperature: -25°C to +55°C
• Residual-current protection: 30 mA AC and 6 mA DC detection
