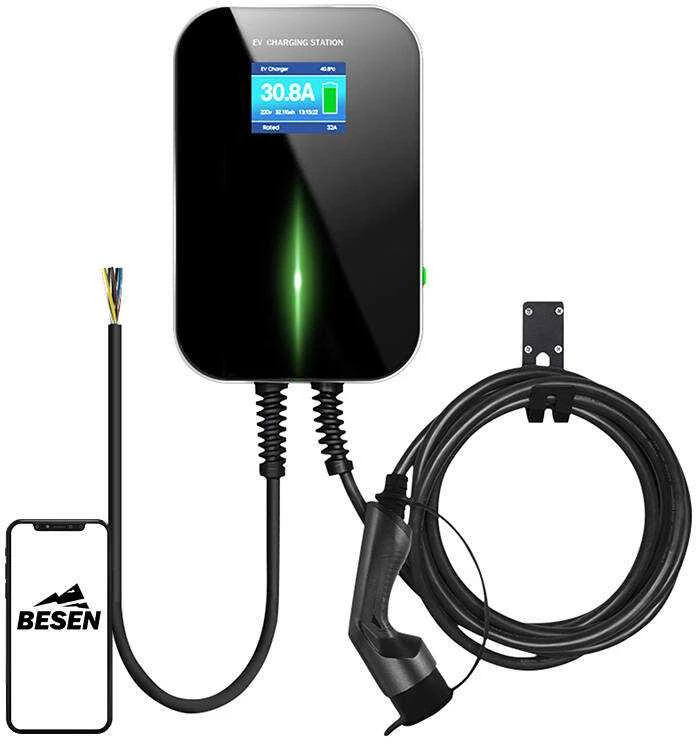

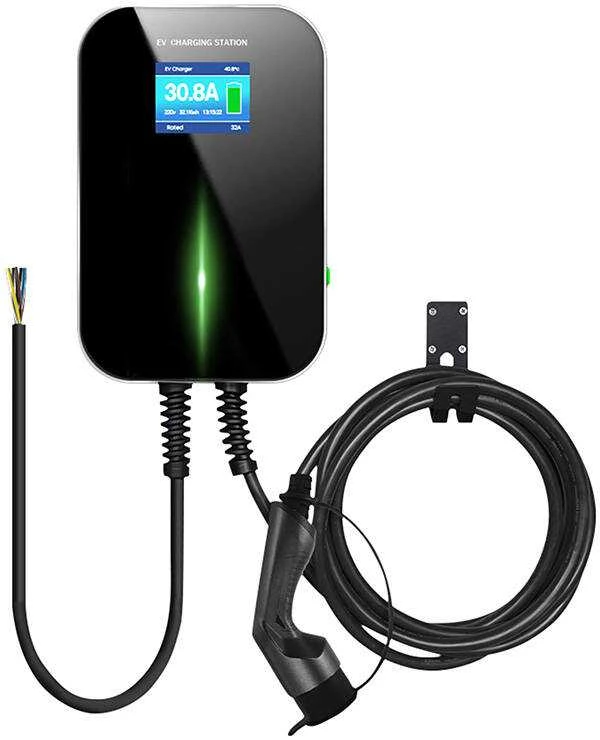

Besen BS20 11kW APP wall-mounted electric vehicle charger

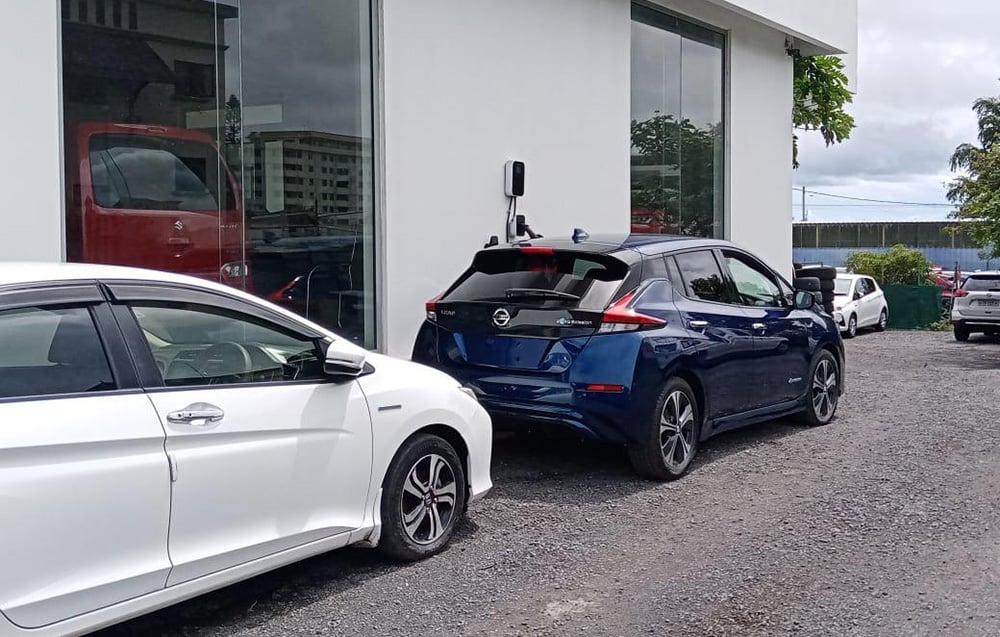

The Besen BS20 is an advanced electric vehicle charger designed for a wide range of applications—from private garages to large commercial parking lots. With an output of up to 11 kW, the charger provides fast and efficient charging for various vehicle types, including private cars, electric school buses, and ambulances. Thanks to various safety features and a carefully designed construction, you can use it comfortably and safely. Additionally, a dedicated app allows you to manage the BS20’s operation.
Easy installation and user-friendly interface

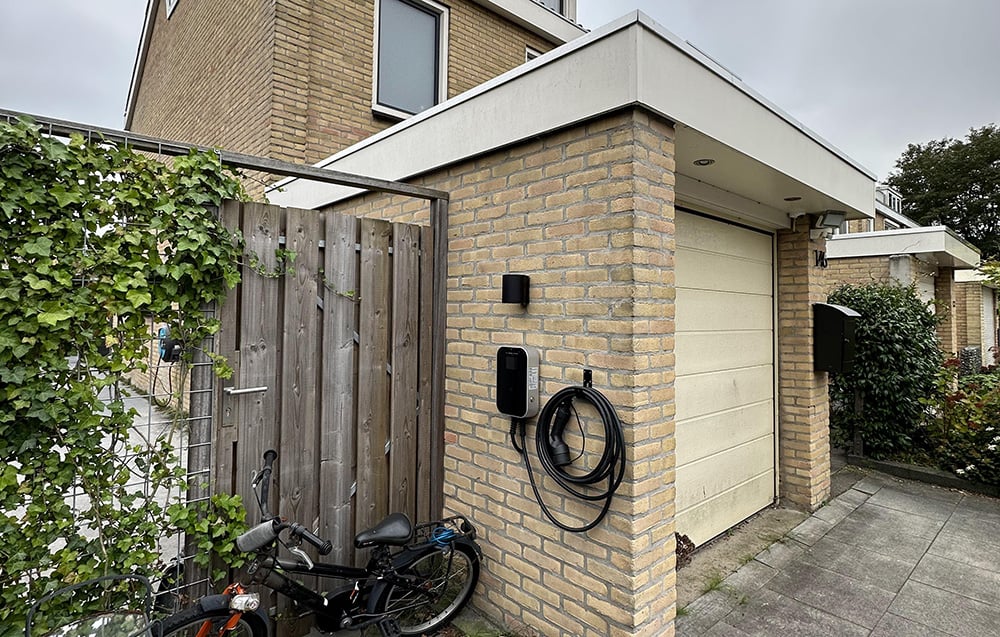

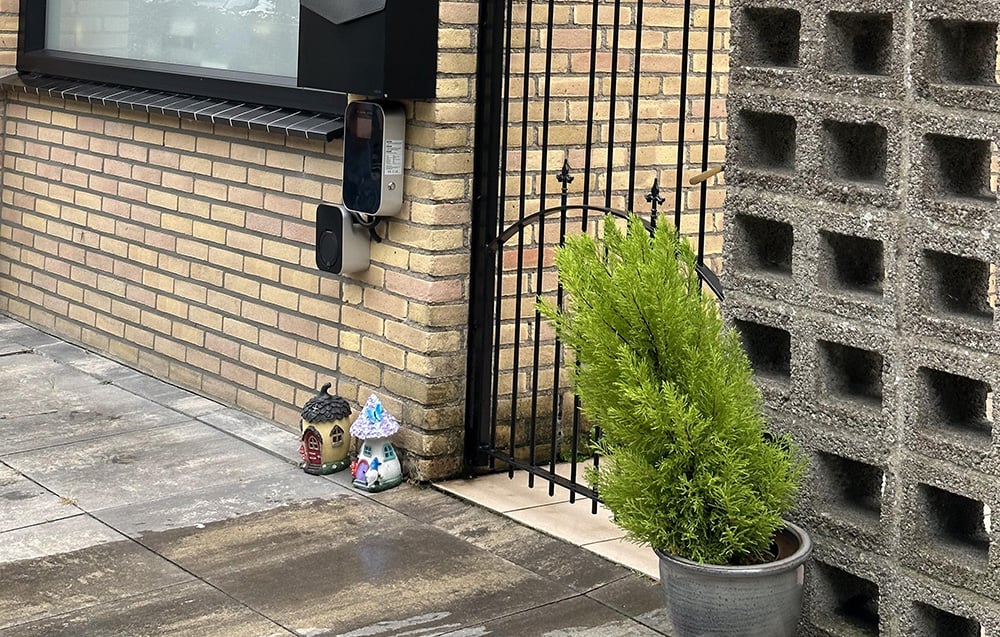

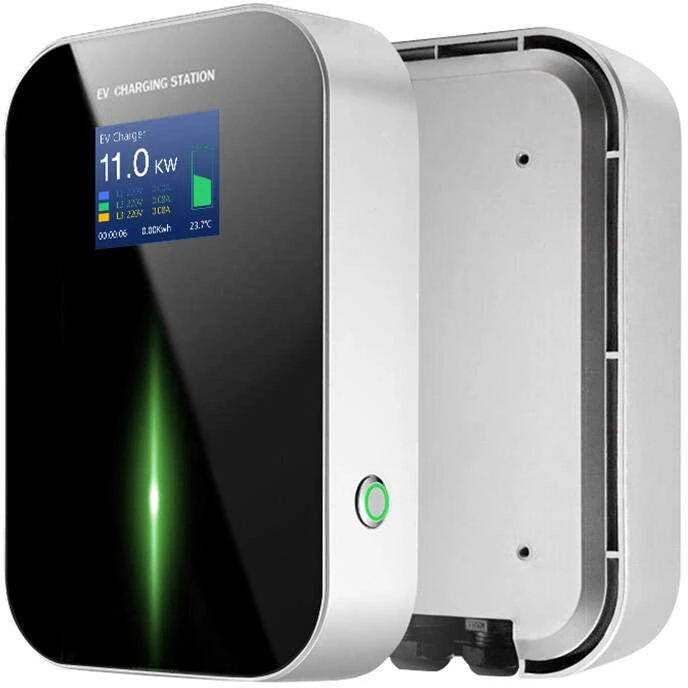

The Besen BS20 charger is designed for ease of use and simple installation. Wall or ground mounting is quick and requires no complicated tools, making the device ideal for both home and commercial use. The 3.5-inch color LCD display provides the user with detailed information about the charging status, and the smart chip allows for the identification of various electric vehicle models and the adjustment of charging settings to specific needs.
Control via the app
Download the EVSEMaster app, available on the App Store and Google Play, and take full advantage of the BS20’s capabilities. From the app, you can conveniently adjust your vehicle’s charging time, check your charging history, and update the software. You can also remotely start or stop the charging process—simply pair the device with your smartphone via Bluetooth. Enjoy the convenience offered by Besen.
Durable housing and weather resistance
The housing of the Besen BS20 charger is made of durable PC+ABS plastic, which combines high mechanical strength with low weight. The design meets the IK10 standard, meaning increased resistance to impacts and damage. Additionally, the IP66 rating protects the device from dust and water jets, allowing the charger to be safely used both in garages and at outdoor charging stations year-round.
Advanced safety features
The Besen BS20 is equipped with a range of advanced safety features, including protection against undervoltage, overcurrent, short circuits, overheating, and lightning strikes. Additionally, the Type A and Type A+6mA DC RCD system provides protection against electric shock, further enhancing safety.
Energy Efficiency and Optional Connectivity
The Besen BS20 features low standby power consumption of less than 8 W, contributing to energy savings and reduced operating costs. Additionally, the charger offers optional connectivity via Ethernet, Wi-Fi, 4G, or Bluetooth, enabling remote monitoring and management of the device. CE, FCC, CSA, RoHS, and ETL certifications confirm that the product meets high safety and quality standards.
Specifications
|
Manufacturer
|
Besen
|
|
Model
|
BS20
|
|
Product type
|
Wall-mounted electric vehicle charger
|
|
Input / output voltage
|
AC 230 V / 400 V
|
|
Input frequency range
|
47–63 Hz
|
|
Output power
|
11 kW
|
|
Maximum output current
|
32 A
|
|
Connector type
|
SAE J1772, IEC 62196-2, GB/T
|
|
Cable length
|
5 m
|
|
Protection rating
|
IP66
|
|
Impact protection
|
IK10
|
|
Housing material
|
PC+ABS engineering plastic
|
|
Protections
|
Undervoltage, overload, short-circuit, overheating, lightning protection
|
|
RCD
|
Type A, Type A + 6mA DC
|
|
Ambient temperature range
|
-25...55°C
|
|
Ambient humidity range
|
0–95% (non-condensing)
|
|
Maximum operating altitude
|
<2000 m
|
|
Standby power consumption
|
<8 W
|
|
Mobile application
|
EVSEMaster
|
|
Real-time control
|
Yes
|
|
Connectivity options
|
Ethernet, Wi-Fi, 4G, Bluetooth (optional)
|
|
LED indicator
|
Yes
|
|
Display type
|
3.5-inch color LCD display
|
|
Mounting method
|

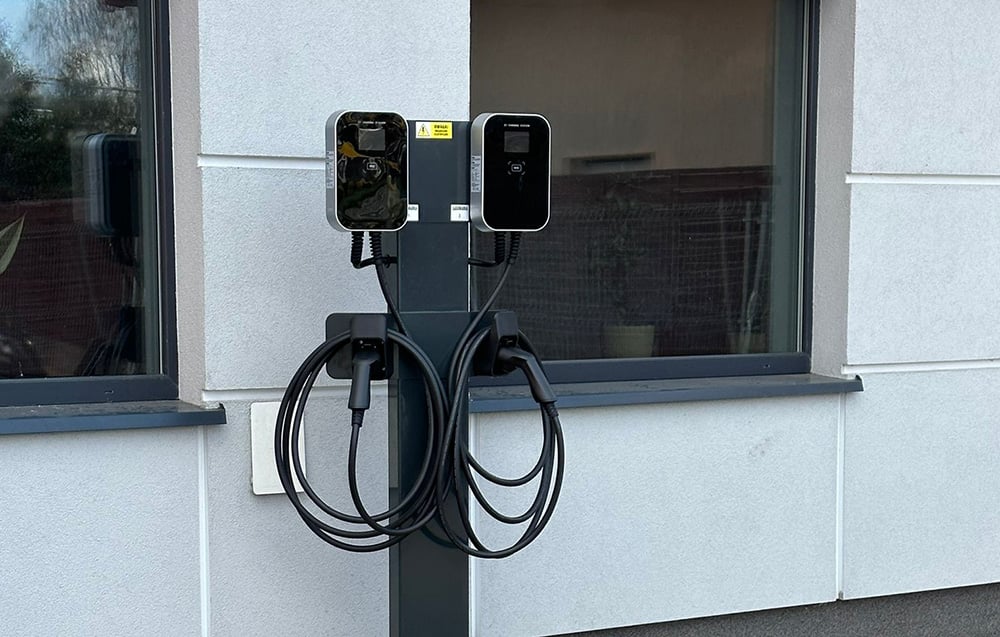

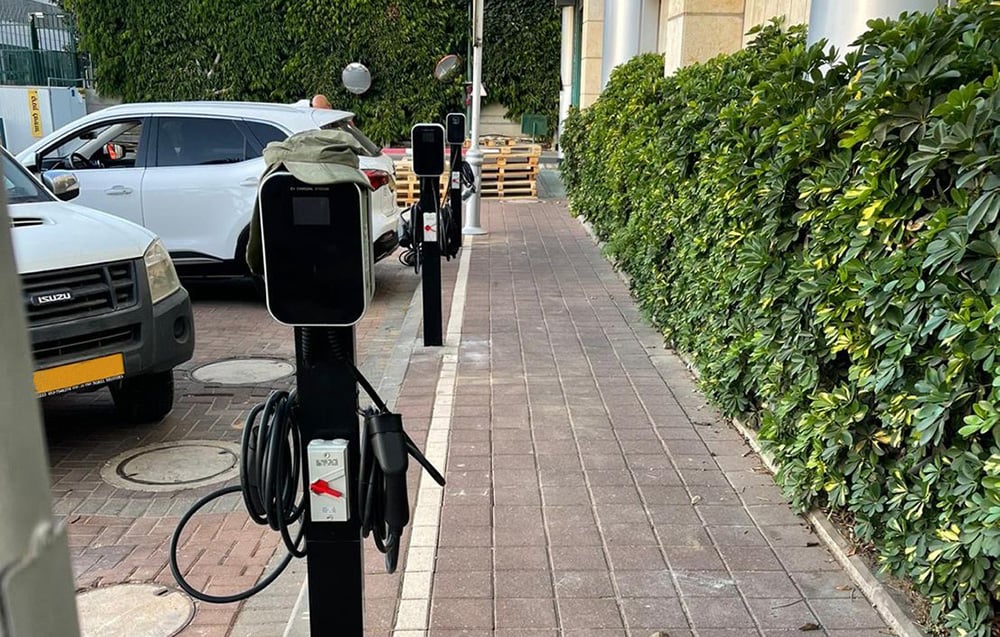

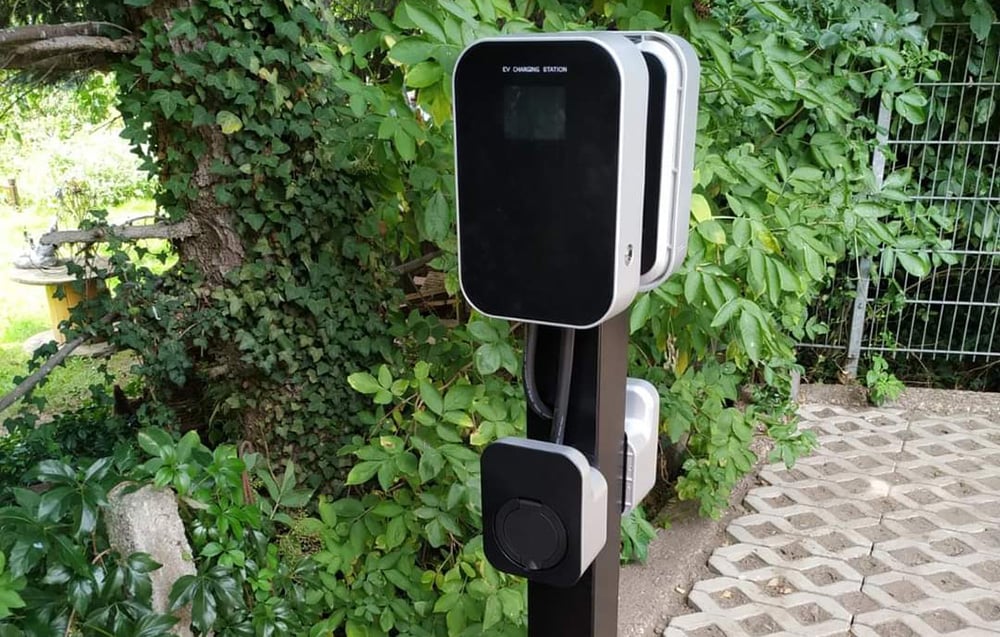

Wall-mounted, floor-mounted
|
|
Dimensions
|
295 × 195 × 65 mm
|
|
Weight
|
6–8 kg
|
|
Certifications
|
CE, FCC, CSA, RoHS, ETL
|
