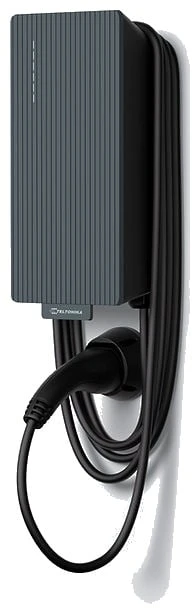

Automobilių krovimo stotelė Teltonika TeltoCharge EVC2002130S0 (7,5 m kabelis, 22 kW, 32 A, 3 fazės, GSM, Wi-Fi, OCPP 1.6, IP56), žema kaina

Tipas: Elektromobilių krovimo stotelė (be fasado plokštės)
Prekės ženklas: Teltonika
Modelis: EVC2 EVC2002130S0
Serija: TeltoCharge
Montavimas: Sieninis
Kabelis: 7,5 m
Krovimo galia: 22 kW
Srovė: 32 A
Fazės: 3 fazės
Ryšys: GSM (SIM / eSIM), Wi-Fi 2.4 GHz, LAN, Bluetooth
Autentifikacija: NFC
Valdymas: Programėlė
Protokolas: OCPP 1.6
Valdymo sistema: RMS palaikymas
Indikacija: LED
Apsaugos klasė: IP56
Atsparumas smūgiams: IK10
Degumo klasė: UL-94 V-0
Darbinė temperatūra: −30 °C iki 50 °C

Bendra
Matmenys	Width 190 mm, Height 401 mm, Depth 125 mm
Output options	Type 2 cable 5 m, Type 2 cable 7.5 m, Type 2 socket, Type 2 socket with protective shutter (T2S)
Front plate options	Antracite Grey, Burgundy Red, Granite Brown, Winter White, Kebony® Wood
Control types	Android app – Bluetooth and Local WiFi, iOS app – Bluetooth, OCPP 1.6 – Ethernet, WiFi, 4G
Power options	7.4 kW single phase, 11 kW three phase, 22 kW three phase
Sertifikatai	CE, RCM & UKCA compliant; Codes and standards: 2014/35/EU, 2014/53/EU, IEC 61851-1, IEC 61851-21-2, IEC 62955; Environment: 2011/65/EU, REACH, RoHS, EUR1
Charger connectivity	WiFi 2.4 GHz b/g/n, Bluetooth Low Energy 5.0, NFC card reader ISO 14443A, Ethernet (RJ45), 4G/LTE (CAT 1)
Input cabling	Cable entry diameter up to 25 mm, Wiring cable cross section up to 10 mm², Cable entry from bottom or back
Apsauga	Input and output voltage and current monitoring, Overvoltage category OVC III, Protection against electric shock, Residual current detection 6 mA DC (IEC 62955), Ground fault detection, IP56 dust and water protection, IK10 impact resistance, Fire class UL94
Nominalus dažnis	50/60 Hz
Network/grounding types	TN and TT
Įtampa	Single phase 230 V (±10%), Three phase 400 V (±10%)
Operating specifications	Humidity up to 95% RH non-condensing, Operating temperature -30 °C to +50 °C, Storage temperature -40 °C to +60 °C
Temperature sensors	In all main components
LED indicator lights	Showing charging sequence and warnings/errors
Built-in energy metering	Accuracy deviation <1%
Krovio balansavimas	Static load balancing, Dynamic load balancing, Automatic phase balancing, Multi-device load balancing, Multi-level load balancing, Solar energy modes, Zero potential contact, Multi-sensor support
