Emos Outdoor antena EM-29U5G, PROFI, 0-200 km, DVB-T2, LTE/4G/5G filter

Professional passive outdoor antenna with 17 dBi gain ready to receive DVB-T2 TV broadcasts. Due to its narrow directivity (38° horizontally/80° vertically), it is suitable for locations far from the nearest transmitter or heavily interfered with mobile signal (it is equipped with a 5G filter).
It is characterized by a very simple installation without any tools. On the antenna mount it allows horizontal and vertical polarization.
Product advantages
passive outdoor antenna with 17 dBi gain
perfect reception of DVB-T and DVB-T2 digital TV broadcasts
horizontal and vertical polarization
suitable for locations with strong LTE and 5G signal interference
quick and easy installation - without tools

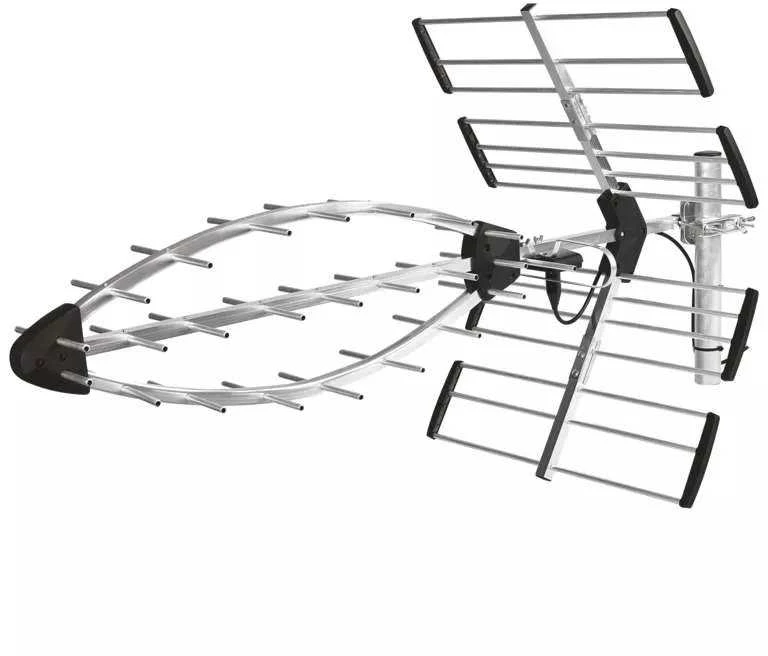

Outdoor antenna EMOS EM-29U5G
Looking for the ideal outdoor antenna for receiving DVB-T and DVB-T2 signals in the UHF band? The answer is the EMOS EM-29U5G narrowband passive antenna, which is suitable for long-distance reception.


Strong interference? No problem!
The EM-29U5G antenna is the ideal solution for long-distance reception. Its pointing requires precision due to its narrow reception angle (38° horizontally and 80° vertically). The royal reward for you, however, will be uninterrupted reception of your favorite movies and series.

Thanks to the LTE and 5G filter, the antenna suppresses reception above channel 48 (interfering with mobile internet signals in the 5G and LTE bands). The antenna is therefore also suitable for places where reception of these signals is strongly interfered with.

The antenna cable can be connected via the classically used F connector. Once connected, you can tune stations in the 470-698 MHz frequency range and in the UHF band.


No tools needed

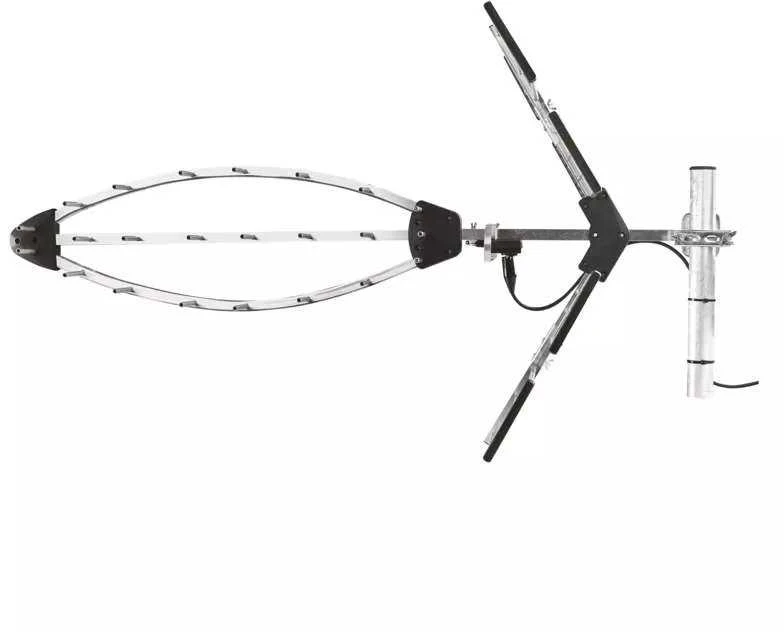

The EM-29U5G includes everything you need to mount it on an antenna mast or bracket. Installation is very simple with no tools required.

The antenna supports both horizontal and vertical polarization, so you can mount it on the wall in the position that suits you best.

Highlights
outdoor use
antenna type passive without amplifier
recommended installation distance from the transmitter 0-200 km (long distance reception)
no amplifier
Other parameters
DVB-T/T2 signal reception
suitable for reception of Full HD broadcasts yes
suitable for reception from multiple transmitters yes
reception angle 38°/80°
polarization horizontal and vertical
suitable for remote reception yes
LTE filter yes
frequency bands UHF
length of coaxial cable not included
type of connection connector F connector
amplifier in all-metal body, interference-resistant not specified
power supply passive
frequency range 470-698 MHz
gain control not specified
suitable for caravans, motorhomes no
number of connectors in the package not applicable
possibility of power supply from STB not applicable
RF output impedance 75 Ohm
number of elements 29
installation not specified
bias ratio 25 dB
maximum output signal strength not specified
5G filter yes
Dimension 1 150 × 520 × 640 mm
sales packaging 1 pc, box
