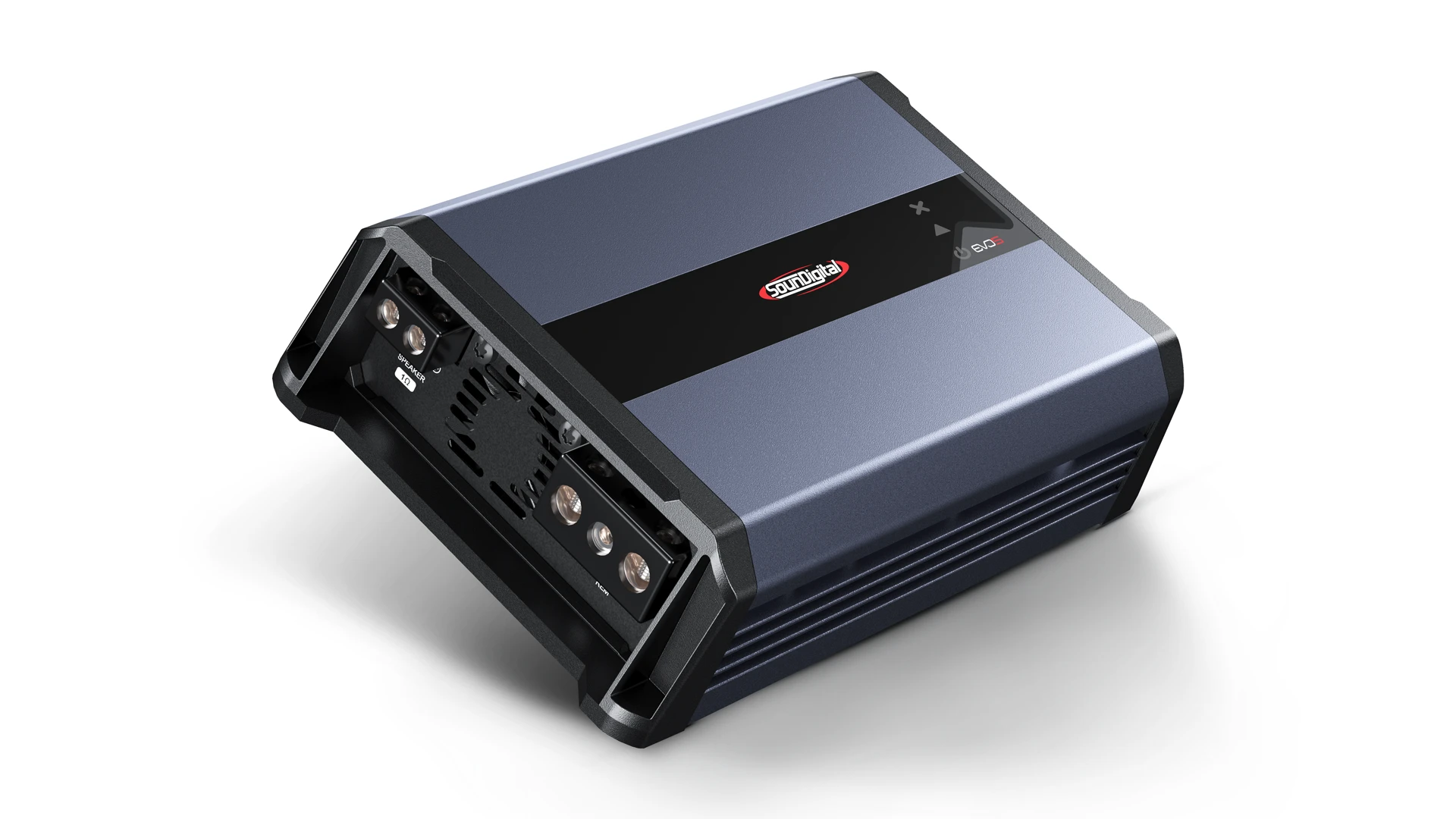

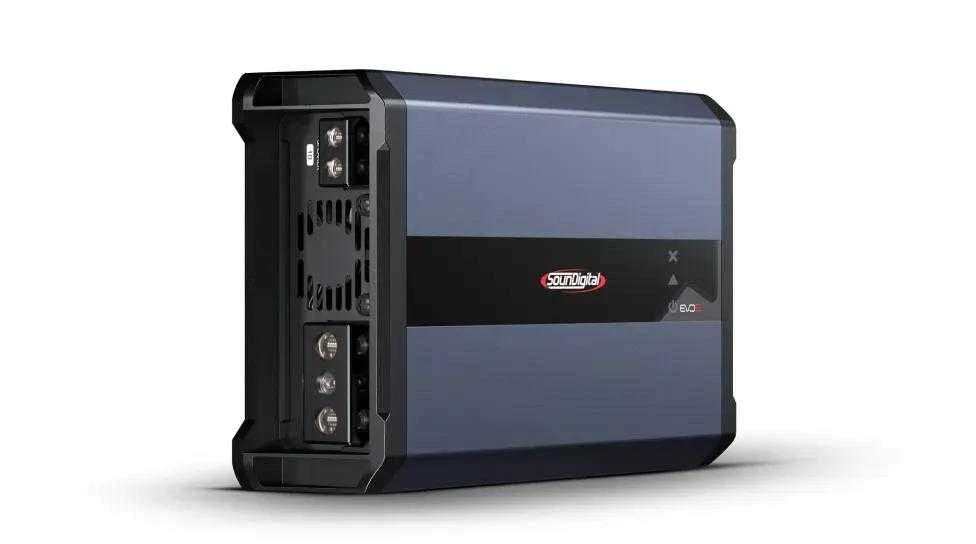

The 3000.1EVO 5 is a compact, modern amplifier that delivers 3000W RMS of power distributed over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Pastebėjote klaidą prekės aprašyme ar nuotraukų galerijoje? Praneškite mums.

Skaityti daugiau

Skaityti mažiau

Gamintojas SounDigital
Modelis

SD3000.1-2 EVO5
Svoris 1.75
Techniniai duomenys
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 3000W RMS
Power @ 4Ω: 1 X 1980W RMS

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz ~ 30Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

8V – 16V

SNR:

92dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

2Ω: 139A
4Ω: 140A

Current Draw With Resistive Load:

2Ω: 277A
4Ω: 280A

Total Efficiency:

2Ω: 86%
4Ω: 85%

Damping Factor:

2000

Power Cable:

35mm² (2AWG)

Audio Output Cable:

2Ω: 2 x 2.5 mm² (13 AWG)
4Ω: 2 x 1.5 mm² (15 AWG)

Recommended Fuse (Music):

150A

Recommended Battery:

150Ah

Width:

5.3 in / 13.6 cm

Length:

8.9 in / 22.8 cm

Height:

2.1 in / 5.48 cm

Weight:

1.75 Kg
Trumpas aprašymas • 1-channel amplifier • 3000W • 2 Ohm model • Small size
Modelio specifikacija EVO5
Modelio pavadinimas

SD3000.1-2 EVO5
