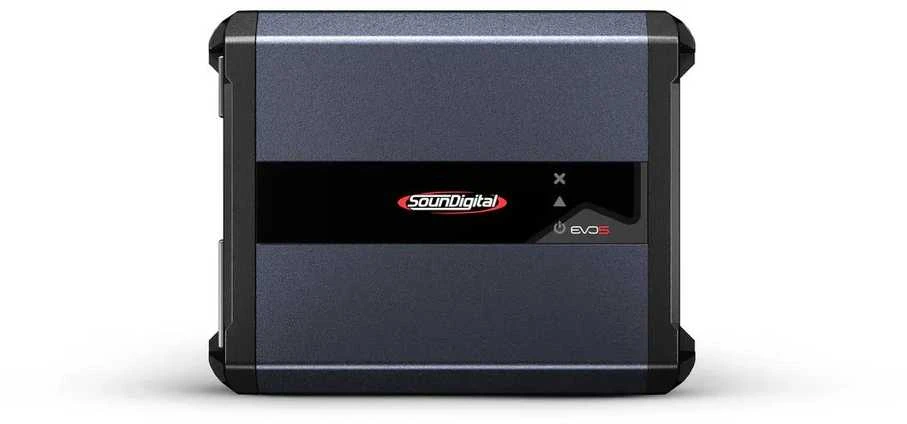

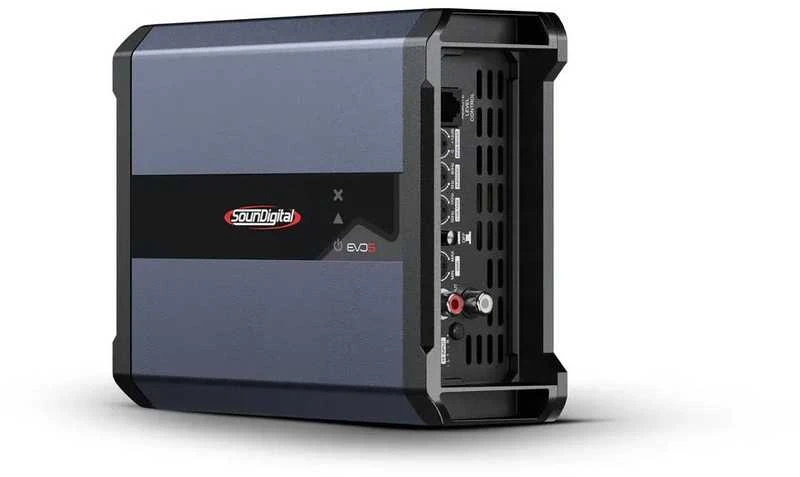

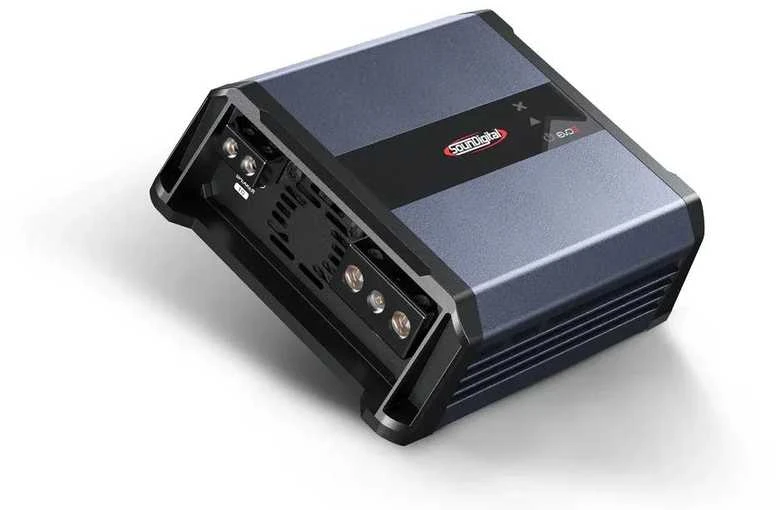

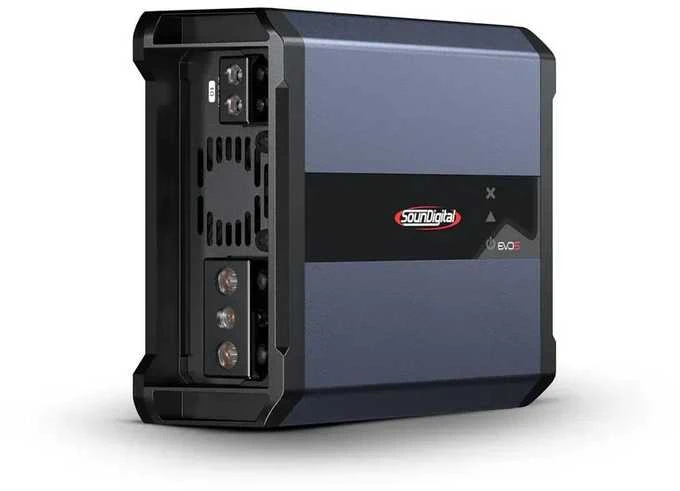

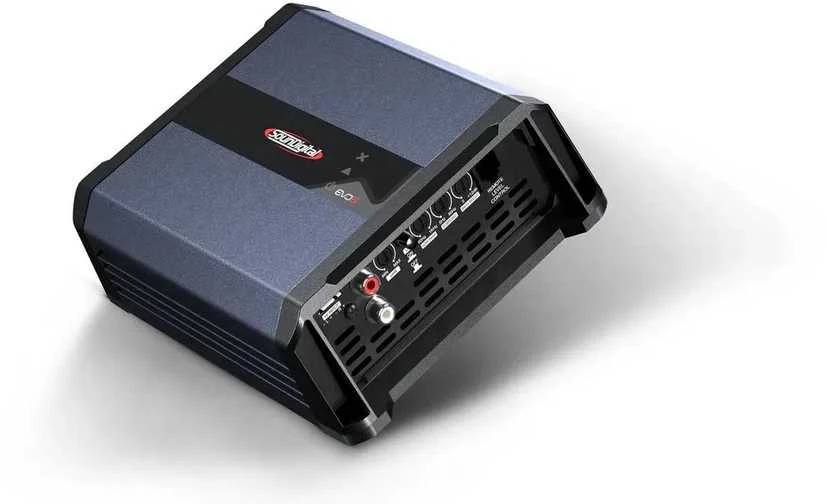

The 1200.1 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects

Pastebėjote klaidą prekės aprašyme ar nuotraukų galerijoje? Praneškite mums.

Skaityti daugiau

Skaityti mažiau

Gamintojas SounDigital
Modelis

SD1200.1-1 EVO5
Svoris 1.25
Techniniai duomenys
Power @ 4Ω: 1 X 522 WRMS
Power @ 2Ω: 1 X 792 WRMS
Power @ 1Ω: 1 X 1200 WRMS

Frequency Response (-3dB):

5Hz ~ 25kHz

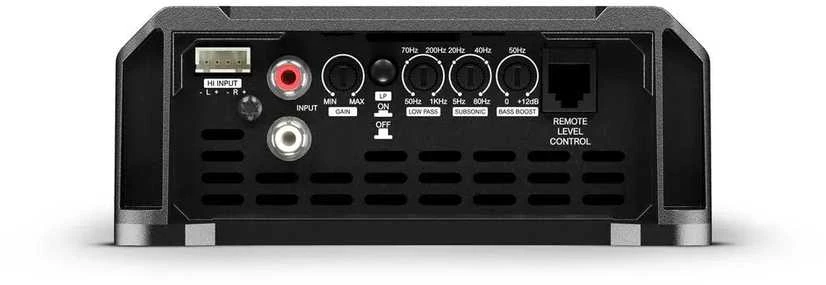

Subsonic Filter:

5Hz ~ 80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V

Signal-Noise Ratio:

95dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 54A
2Ω: 52A

Current Draw (Max):

1Ω: 108A
2Ω: 105A

Total Efficiency:

1Ω: 88%
2Ω: 91%

Damping Factor:

2000

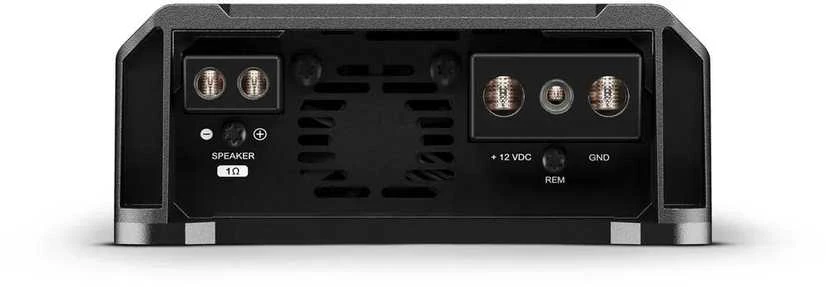

Power Cable:

16mm² (5 AWG)

Audio Output Cable:

1Ω: 2 x 4 mm² (6 AWG)
2Ω: 2 x 2,5 mm² (13 AWG)

Recommended Fuse (Music):

70A

Recommended Battery:

70Ah

Width:

13.6 cm / 5.4 in

Length:

18 cm / 7.1 in

Height:

5.48 cm / 2.1 in

Weight:

1.12 Kg.
Trumpas aprašymas Soundigital 1 Channel amplifier
Modelio specifikacija EVO5
Modelio pavadinimas

SD1200.1-1 EVO5
