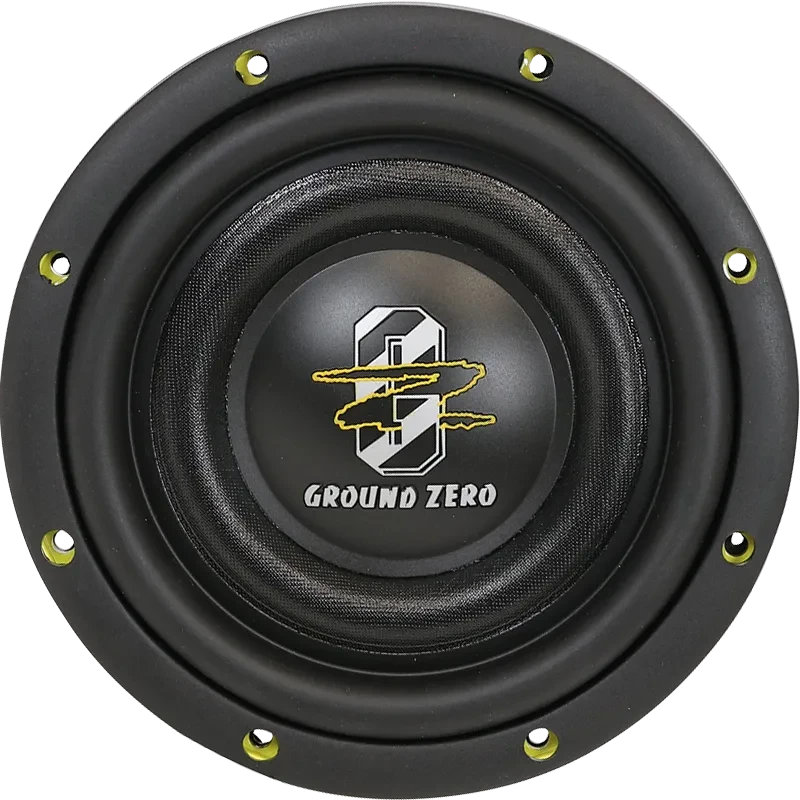

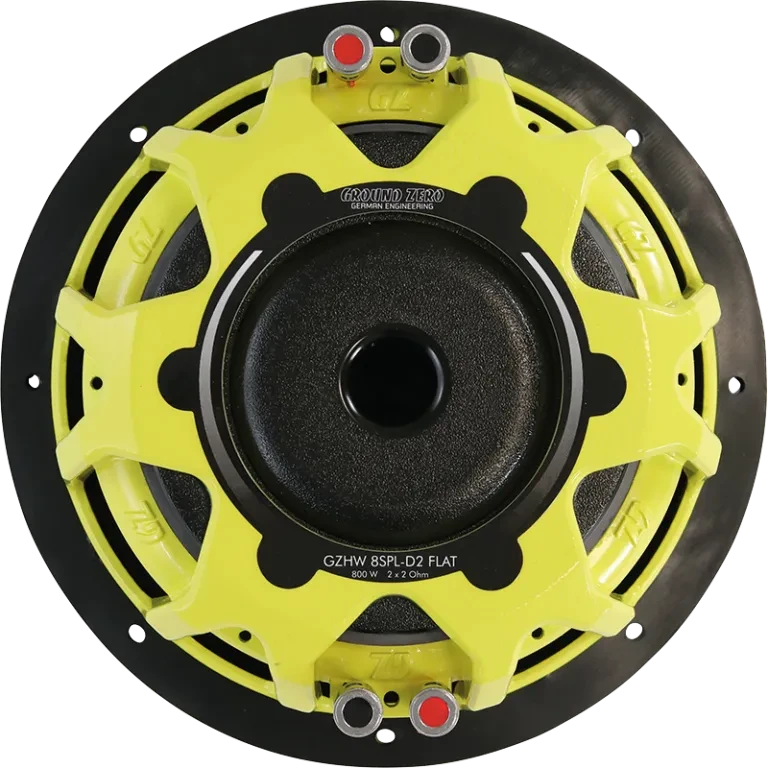

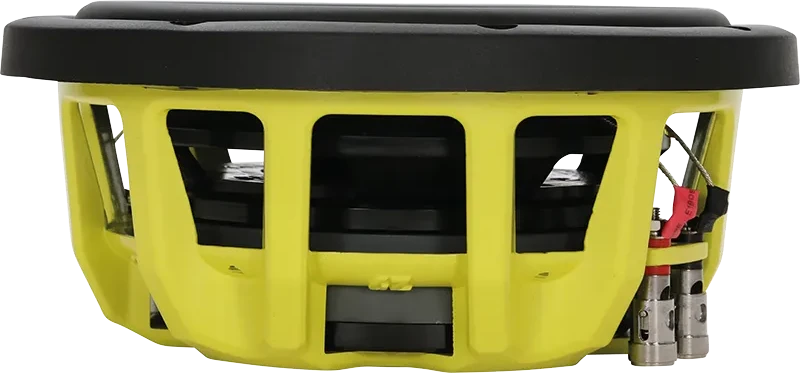

Ground Zero GZHW 8SPL-D2 FLAT,...

Turite Varlės paskyrą?

Prisijunkite, kad pamatytumėte krepšelio turinį

Prisijungti

Atsiimkite parduotuvėje 0 €

Pristatymas į namus nuo 3.⁹⁹ €

The brand-new HYDROGEN series GZHW 8SPL-D2 FLAT subwoofer solves the problem of cramped installation space requiring a shallow enclosure for the
subwoofer.

Equipped with a powerful motor and a huge voice coil known from the existing subwoofers of the Hydrogen SPL series, this moden handles power input of up to 800 Watts SPL

8″ high quality flat SPL subwoofer
Klippel® optimized
Sandwich paper cone
Durable U-shape rubber surround
Solid aluminum cast basket
50 mm / 2″ copper voice coil
4-layer copper voice coil
Push terminal

Enclosure recommendation:

Vented: 16 Liter netto
Port 1 x 70 mm / 1 x 2.76”
port length* 300 mm / 11.81”
frequency 37 Hz

Vented (small enclosure)
12 Liter netto / 0.424 cu.ft. net
Port 1 x 70 mm / 1 x 2.76” 300 mm / 11.81”
frequency 42 Hz

Pastebėjote klaidą prekės aprašyme ar nuotraukų galerijoje? Praneškite mums.

Skaityti daugiau

Skaityti mažiau

Gamintojas Ground Zero
Modelis

GZHW 8SPL-D2 FLAT
Svoris 4.48
Techniniai duomenys
Model: High-Quality Flat SPL Subwoofer

Diameter: 20 cm / 8″

Power handling (RMS/SPL): 500 / 800 Watts

Impedance: 2x 2 Ohms

Efficiency: 83 dB

Power recommendation: 350 – 800 Watts

Voice coil: 63 mm / 2.5″ Copper

Cone: Sandwich paper

Max. Excursion (Xmax): 24 mm / 0.94″

Mounting Ø: 187 mm / 7.36″

Mounting depth: 80 mm / 3.15″

Resonance frequency (Fs): 31.5 Hz

Overall quality (Qts): 0.41

Equiv. air volume (Vas): 14.2 L / 0.50 ft³
Trumpas aprašymas • 8″ • Flat SPL subwoofer • 800W • 2,5″ voice coil
Modelio specifikacija HYDROGEN
Modelio pavadinimas

GZHW 8SPL-D2 FLAT
