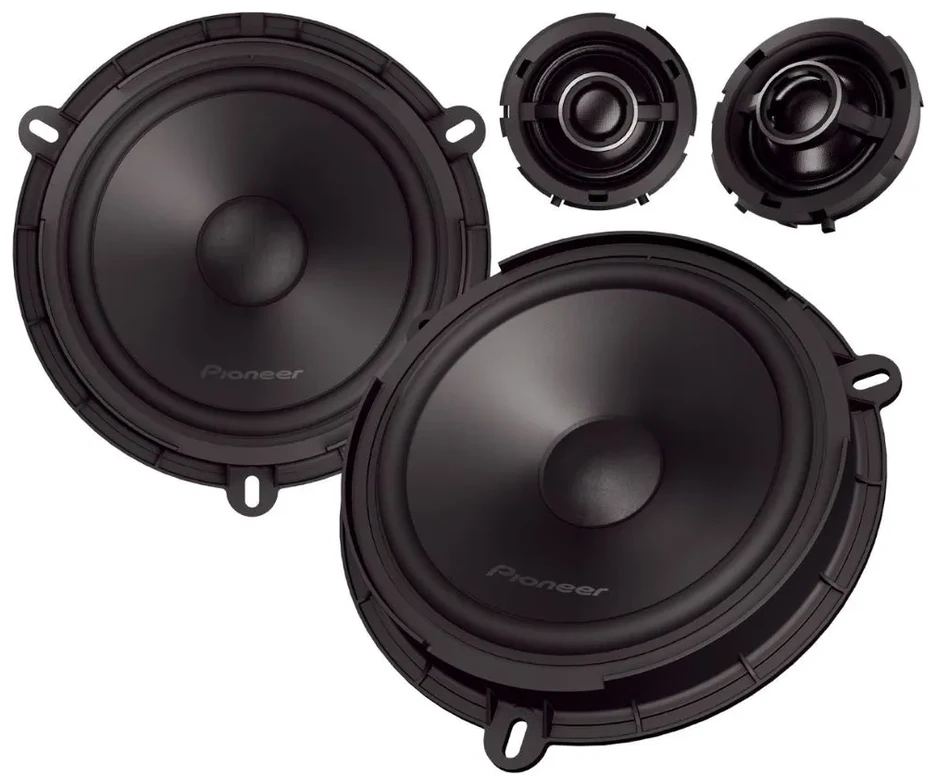

Pioneer TS-Q160C-FD Ford / Mazda

Compatible cars:

FIAT 124 Spider (2016-2019) - Front
Ford B-Max (2012-2017) - Front
Ford Bronco Sport (2021-present) - Front
Ford C-Max (2010-2019) - Front
Ford EcoSport (2014-2023) - Front
Ford Edge I (2011-2014) - Front
Ford Edge II (2014-2024) - Front
Ford Endura (2014-2024) - Front
Ford Endeavour II (2015-2022) - Front
Ford Escape III (2013-2019) - Front
Ford Escape IV (2020-2026) - Front
Ford Everest II (2016-2021) - Front
Ford Everest III (2022-present) - Rear
Ford Expedition IV (2018-2024) - Rear
Ford Expedition Max (2018-2024) - Rear
Ford Explorer V (2011-2019) - Rear
Ford Explorer VI (2019-present) - Rear
Ford F-150 (2015-2020) - Rear
Ford F-150 Raptor II (2017-2020) - Rear
Ford F-150 (2021-present) - Rear
Ford F-250 (2017-2022) - Rear
Ford F-350 (2017-2022) - Rear
Ford F-450 (2017-2022) - Rear
Ford Fiesta VII (2017-present) - Front
Ford Focus III (2011-2018) - Front & rear
Ford Focus IV (2018-2022) - Front & rear
Ford Focus IV Active (2018-2022) - Front & rear
Ford Fusion (2013-2020) - Front
Ford Galaxy II (Mk III) (2006-2015) - Front
Ford Galaxy III (Mk IV) (2015-2023) - Front
Ford Kuga II (2012-2019) - Front
Ford Kuga III (2019-2023) - Front & rear
Ford Lobo (2015-2020) - Rear
Ford Lobo (2021-present) - Rear
Ford Mondeo III (2007-2014) - Front
Ford Mondeo IV (2014-2022) - Front
Ford Mustang Mach-E (2021-present) - Front
Ford Puma (2019-present) - Front
Ford Ranger T6 (2011-2022) - Front
Ford Ranger T6 SuperCab (2019-2022) - Front
Ford Ranger T6 SuperCrew (2019-2022) - Front
Ford Ranger T6 Single Cab (2019-2022) - Front
Ford Ranger T6 Raptor (2018-2022) - Front
Ford Ranger T6 II (2022-present) - Rear
Ford Ranger T6 II Raptor (2022-present) - Rear
Ford S-Max II (2015-2023) - Front
Ford Territory (2018-2022) - Front
Ford Tourneo Connect II (2012-2022) - Front
Ford Tourneo Courier I (2014-2023) - Front
Ford Tourneo Custom I (2012-2023) - Front
Ford Transit Connect II (2012-2022) - Front
Ford Transit Courier I (2014-2023) - Front
Ford Transit Custom I (2012-2023) - Front
Ford Transit Custom Nugget (2019-2023) - Front
Ford Transit Van (2012-2022) - Front
Lincoln Continental (2017-2020) - Rear
Lincoln Navigator (2018-2021) - Rear
Lincoln Nautilus (2018-2021) - Rear
Mazda CX-5 II (2017-2025) - Front
Mazda MX-5 Miata (2015-present) - Front
Mazda BT-50 II (2011-2020) - Front

Key Features Speakers

Series: Q-Series
Diameter Size: 16.5 cm
Maximum input power: 350 W
Nominal input power: 50 W
Frequency response: 27 Hz - 37,000 Hz
Sensitivity: 92 dB
Impedance: 4 Ω
Tweeter Diameter Size: 30 mm
Dimensions: 165 mm x 42 mm
Open & Smooth™: IMPP™ Composite Cone:
Magnets: Woofer: Ferrite. Tweeter: Neodymium
Tweeter material: Polyester (Tetoron) Soft Dome Tweeter
Woofer material: Injection Molded PolyPropylene (IMPP™) Cone

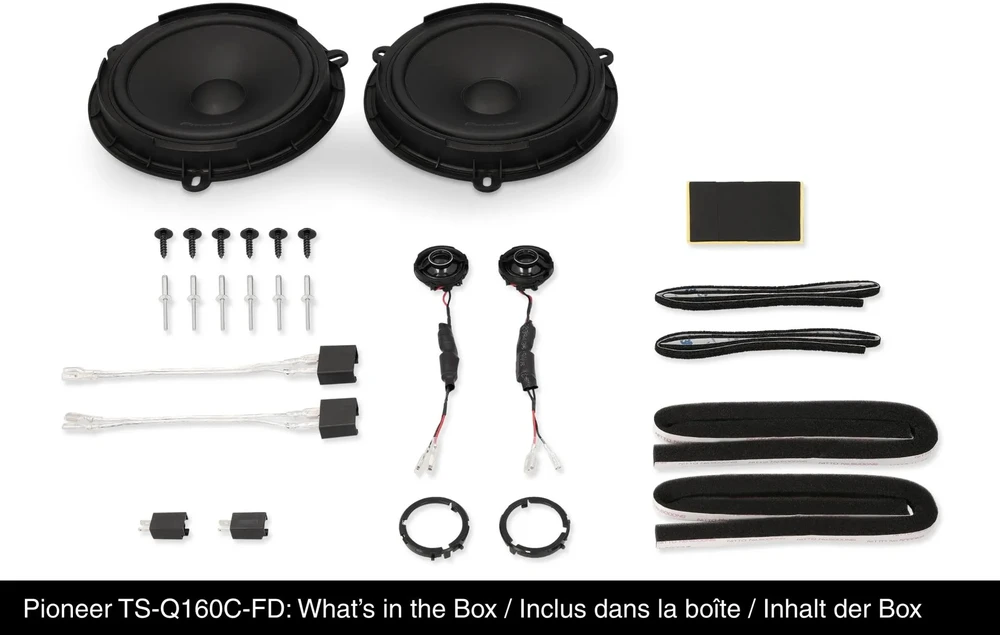

Accessories:
Screw x6, Rivet x6, Woofer Connector Cable x2, Woofer Cushion x2, Woofer Front Cushion x2, Tweeter Connector x2, Tweeter Bracket x2, Cable Cushion x1

Included connector for: Ford, Fiat, Mazda

Mounting Depth: Woofer: 42 mm
Speaker Grill: Not Included
Weight:
1.55 kg
