Noctua Noctua Varomo ventiliatoriaus stebulės komplektas NV-SPH1 (juodas)

Key Features


8 channel hub for fans
External 12 V power adapter
Daisy-chain connection

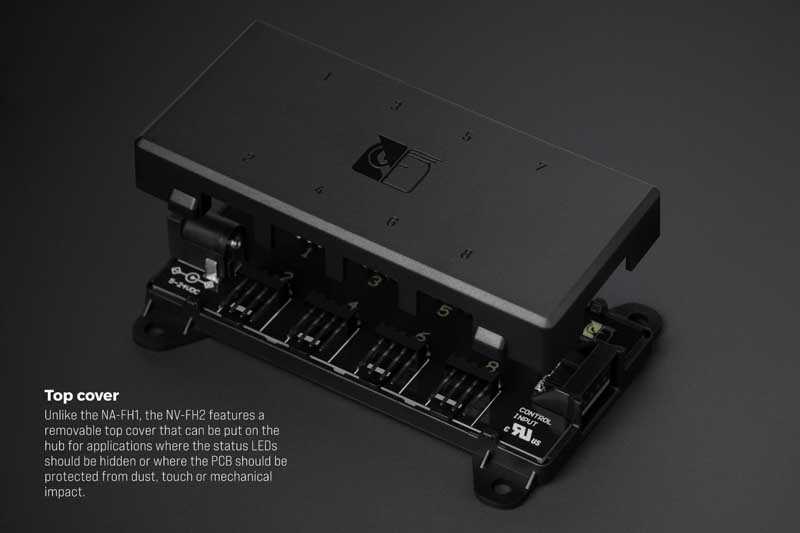

Magnetic base and removable cover
CE, UKCA, UL certification
6 year warranty

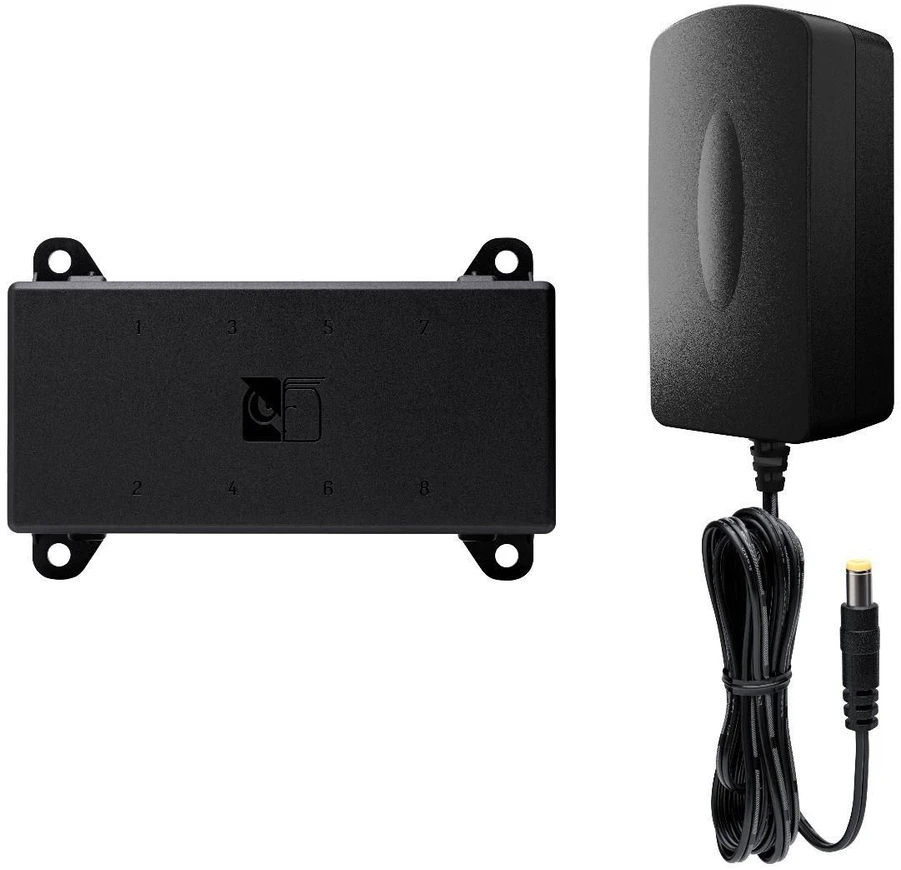

Maximize your PC cooling with the Noctua NV-SPH1, a high-end 8-channel fan hub with external power supply. Thanks to the universal power adapter to the socket (115/230V), you can easily power up to eight 12V fans simultaneously without putting any strain on the motherboard. The magnetic base, removable cover and practical daisy-chain system ensure flexible installation even in challenging setups. Safety is a given thanks to CE, UKCA and UL certification.

This hub is ideal for demanding users who want maximum control over cooling, and works perfectly with the optional NA-FC1 controller. Rely on Noctua's legendary quality with a 6-year warranty and enjoy quiet, efficient and safe operation of your PC.

Technical Specifications

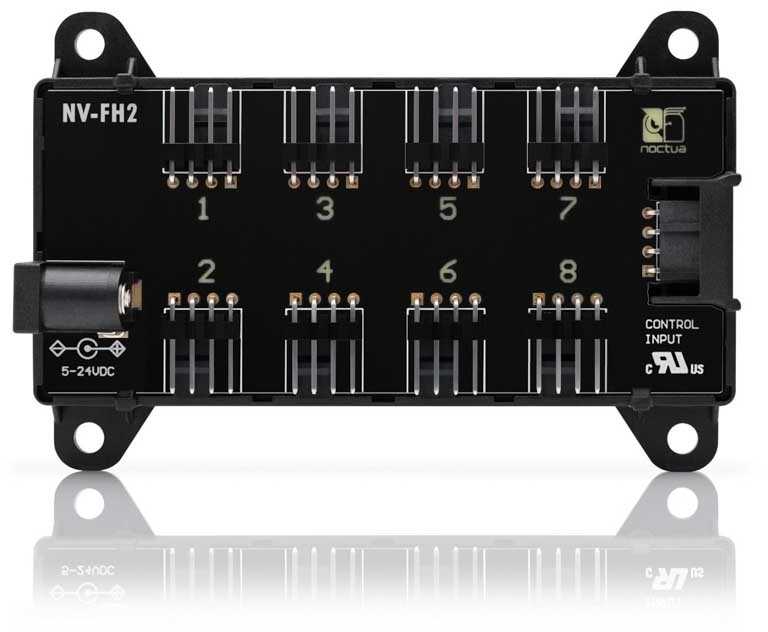

NV-FH2 (Fan Hub)


Color: Black
Dimensions: 93x62x12,5 mm (without cover); 93x62x19 mm (with cover)
Weight: 47 g
Input: 1x 5.5mm/2.1mm power connector, 1x 4pin PWM
Output: 8x 4pin PWM
Max. input (external power supply): 66 W
Max. input (4pin PWM): 22 W
Operating voltage: 5-24 V
Operating temperature: -40-60 °C
Flammability: UL-94 V-0
Safety standards: EN 62368-1, EN 55035, EN 55032, UL-62368
Certification: CE, UKCA, UL
Compatible fans: all Noctua 24V, 12V and 5V fans

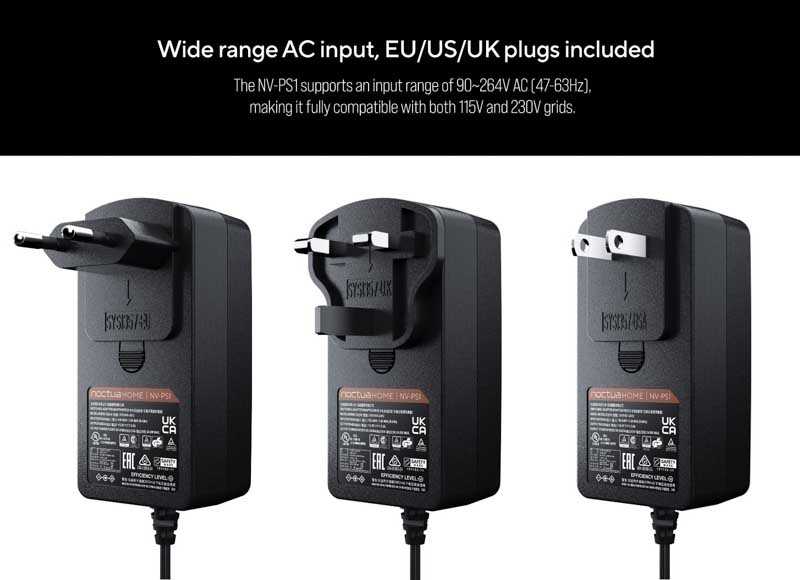

NV-PS1 (Power Adapter)


Input voltage: 90-264 VAC
Input frequency: 47-63 Hz
Protection: overvoltage protection, overcurrent protection, short circuit protection
Protection Class: III
Operating temperature: 0-40 °C
Operating Humidity: 8-90%
Safety standards: EN 60950-1:2006+A11+A1+A12+A2, EN 62368-1, IEC 62368-1:2014, UL 60950-1 (2nd Edtion), CAN/CSA C22.2 No. 60950-1-07 (2nd Edition)
EMC standards: EN 55032 Class B, FCC Part 15 Subpart B Class B
Input connectors: Type C (CEE 7/16, for Europe, Russia, Brazil, South Africa, etc.), Type A (NEMA 1-15, for USA, Canada, Mexico, Japan, etc.) and Type G (BS 1363, for UK, Ireland, Singapore, etc.)
Output connector: 5.5mm (outer diameter) / 2.1mm (inner diameter) connector with NA-AC10 4-pin PWM adapter
Cable length: 1.5m

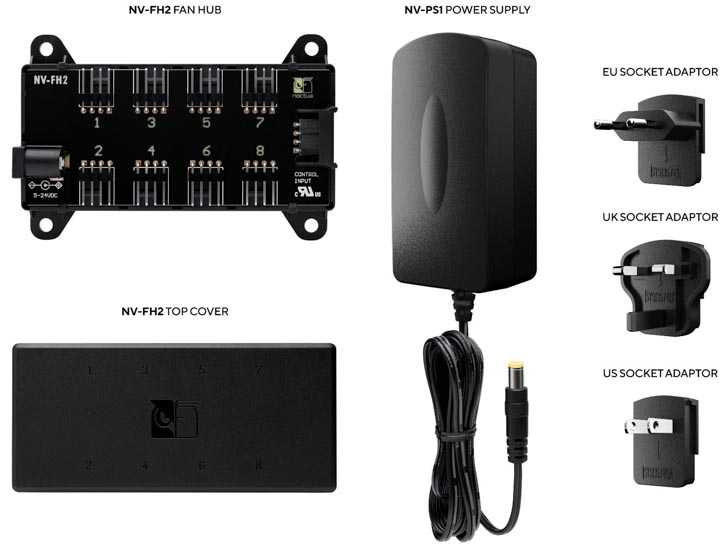

Package contents


NV-FH2 hub for fans
NV-PS1 power adapter
US socket adapter (Type A)
EU socket adapter (Type C)
UK socket adapter (Type G)

EAN: 9010018900170
