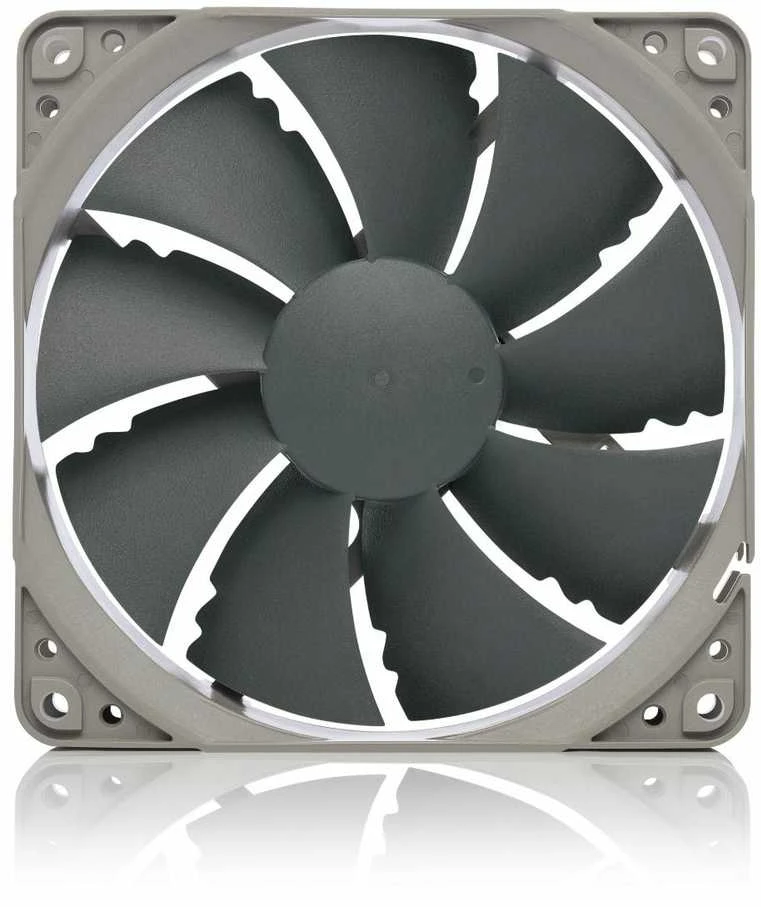

Noctua NF-P12 redux-1700 PWM Fan 120mm

The  Noctua NF-P12 redux-1700 PWM  combines the best of both worlds. Firstly the fan offers the  Noctua -level quality we've come to expect, but it forgoes a few small features so as to offer an exceptionally competitive price instead. The  redux  product line offers an attractive colour scheme consisting of light and dark grey. Equipped with a  4-Pin PWM connector  the fan's speed can be regulated by the motherboard and runs from 450 up to 1.700 RPM. This results in the fan producing a maximum of 25,1 dB(A) which is incredibly quiet, although it still manages to produce an impressive airflow of up to 120,2 m³/h.

The Features of the Noctua NF-P12 redux-1700 PWM Fan at a Glance:

• SSO-bearings for high performance, quiet operation and increased durability
• Pressure-optimised rotor blades with impressive static pressure and airflow
• Vortex Control notches for reducing noise from airflow
• 1.700 RPM with 120,2 m³/h & 25,1 dB(A)
• PWM control between 450 and 1.700 RPM
• Superb quality backed by a 6 year manufacturer guarantee

The Noctua NF-P12 redux-1700 PWM in Detail

The Noctua Nine-Blade Design with its Vortex Control Notch Technology enables the  NF-P12 redux-1700 PWM  to produce an increased volume of airflow and is especially well-suited for use on CPU coolers or as a case fan. The 120 mm fan spins at  450- up to 1.700 RPM  and produces an impressive airflow of  up to 120,2 m³/h . Due to the Vortex Control Notches, this fan is capable of producing an unusually  low noise output of just 25,1 dB(A) . This is ideal for people who really appreciate quiet fans as well as those interested in overclocking! Thanks to the Smooth Commutation Drive 2, the  NF-P12 redux-1700 PWM  is kitted out with the newest drive system produced at  Noctua . Unwanted movements produced due to centripetal force are drastically reduced and this aids in making the fan surprisingly quiet during operation. In order to optimise what was already a very good fan,  Noctua  has integrated the sought after SSO Bearing Technology, meaning that long-term stability during operation is assured. Technical Specifications:

• Dimensions: 120x120x25 mm
• Connection: 4-Pin PWM
• Bearing Type: SSO-Bearing
• Blade Geometry: Pressure-optimised Nine Blade Design with Vortex-Control Notches
• RPM: 450 - 1.700 RPM
• Max. Airflow: 120,2 m³/h
• Max. Volume: 25,1 dB(A)
• Max. Static Pressure: 2,83 mmH2O
• Max. Power Consumption: 1,08 W
• Max. Current: 0,09 A
• Operating Voltage: 12V
• MTBF: Over 150.000 Hours
• Guarantee: 6 Years
• Bundle: 1 fan, 4 fan screws
