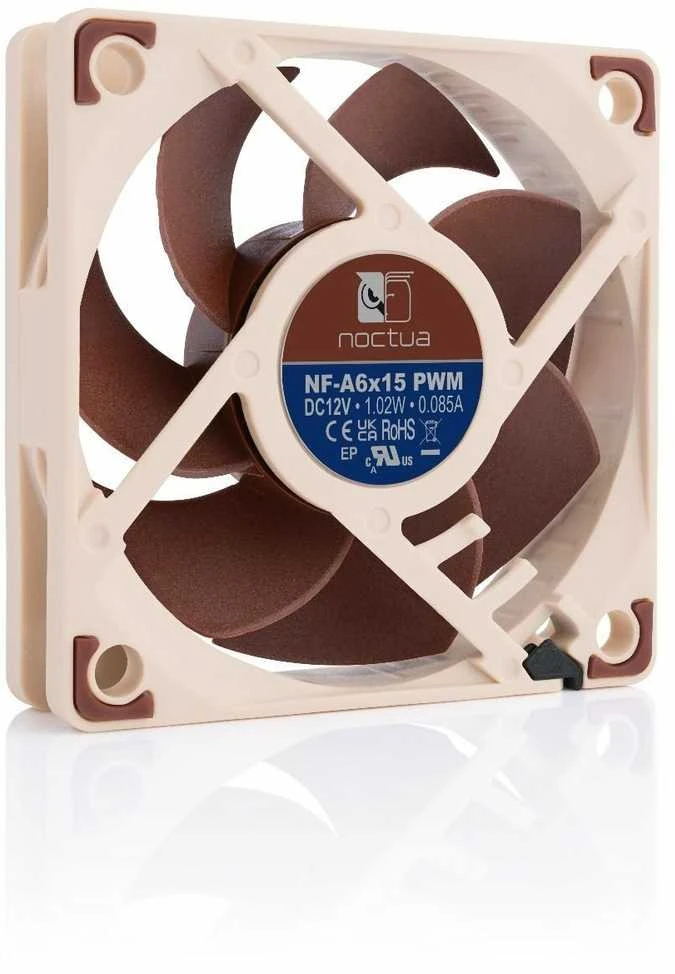

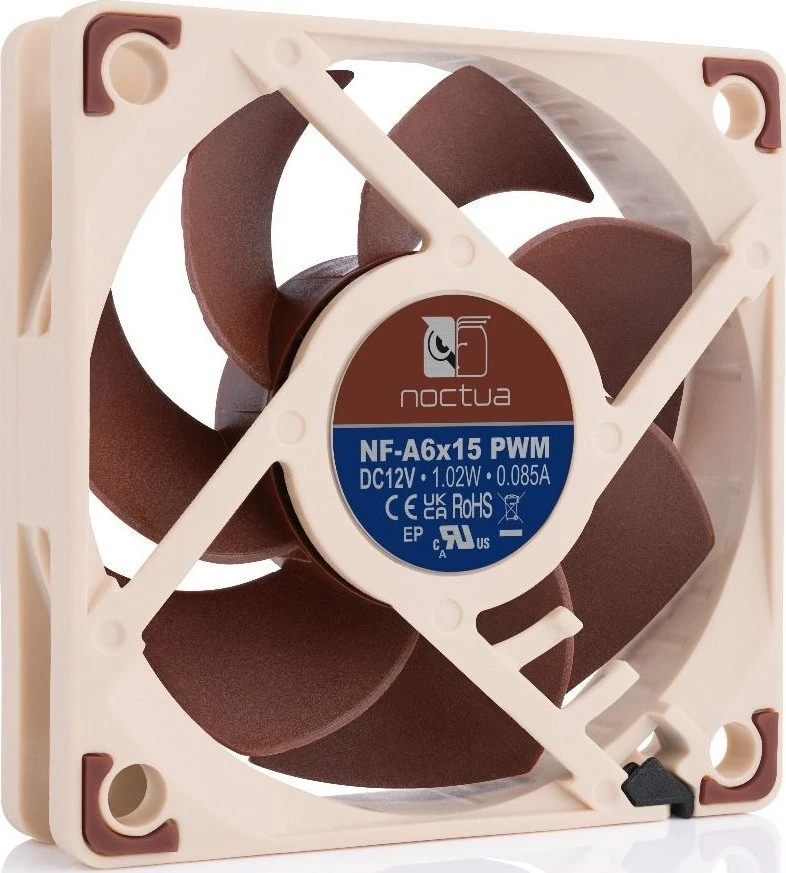

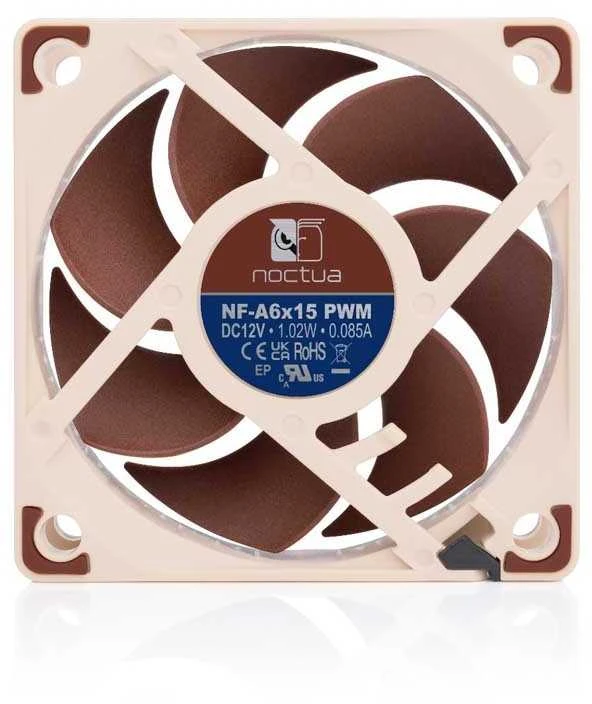

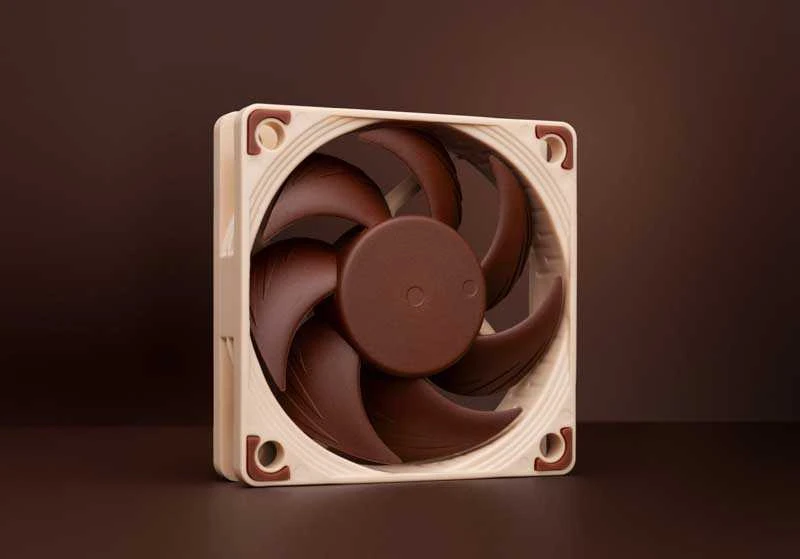

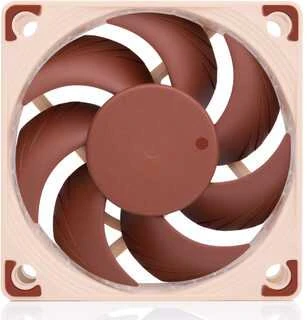

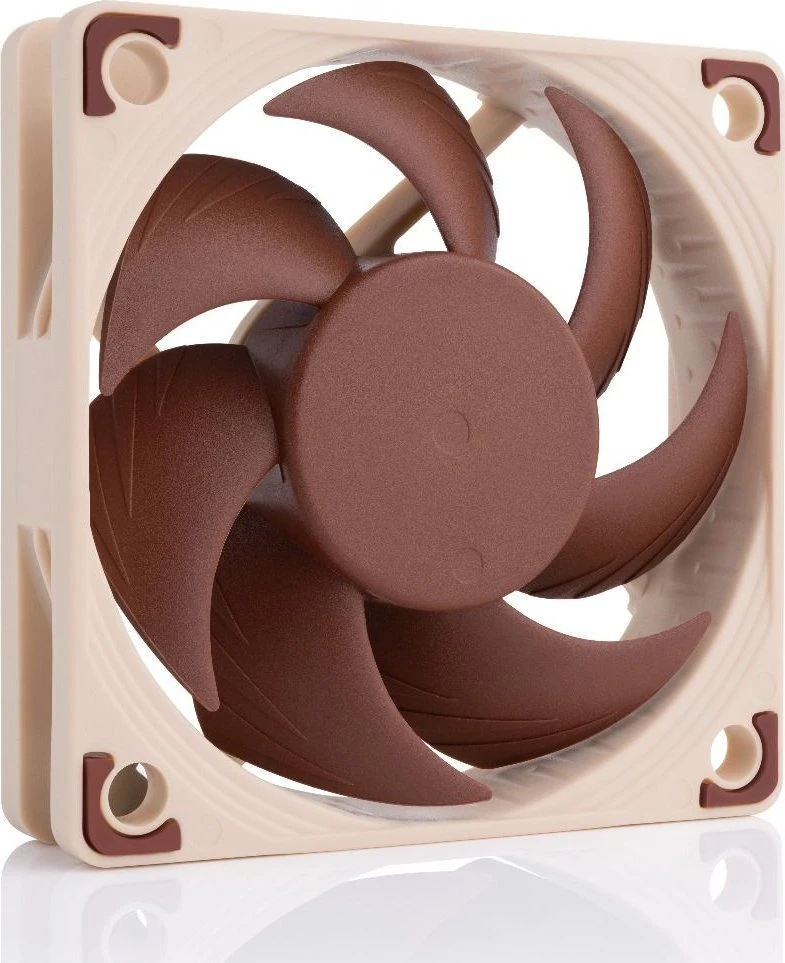

Noctua NF-A6x15 PWM ventiliatorius

Key features


Size: 60x15 mm
Speed: 3500 RPM (3050 RPM with L.N.A.)
Automatic PWM speed control
SSO2 bearing for long life
AAO frame and anti-vibration pads
6-year warranty


The Noctua NF-A6x15 PWM is a highly optimized 60x15mm fan that combines quiet operation and premium quality. Thanks to the built-in NE-FD1 IC chip, it allows automatic speed control via PWM (4-pin connector), with a maximum speed of 3500 RPM. For even quieter operation, a Low-Noise adapter can be used to reduce the maximum speed to 3050 RPM. The fan is equipped with SSO2 bearing, which provides excellent stability and long life.

With advanced technologies such as Flow Acceleration Channels, AAO frame with anti-vibration pads and Smooth Commutation Drive to eliminate switching noises, the NF-A6x15 PWM achieves high performance at low noise levels. In addition, the compact cable design allows for easy installation and reduction of cable clutter. With a 6-year warranty, this model is the ideal choice for demanding users requiring a reliable and flexible fan.

Technical Specifications


Dimensions: 60x60x15 mm
Mounting span: 50x50 mm
Connector: 4-pin PWM
Cable length: 20 cm + 30 cm NA-EC1 extension cable
Bearing: SSO2
Speed: 3500 RPM; 3050 (with L.N.A.)
Airflow: 23.4; 20.1 (with L.N.A.)
Static Pressure: 2.43; 1.79 (with L.N.A.)
Operating voltage: 12 V
MTTF: 150 000 MTBF

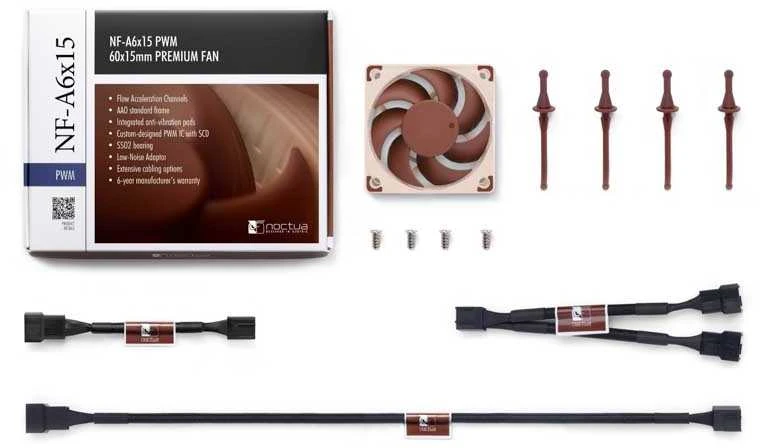

Package contents


4x NA-AV2 anti-vibration pins
NA-EC1 30cm extension cable
NA-YC1 4-pin PWM splitter cable
NA-RC14 Low-Noise Adapter (L.N.A.)
Screws
