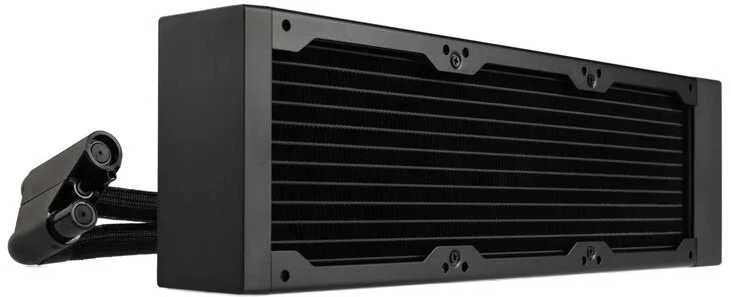

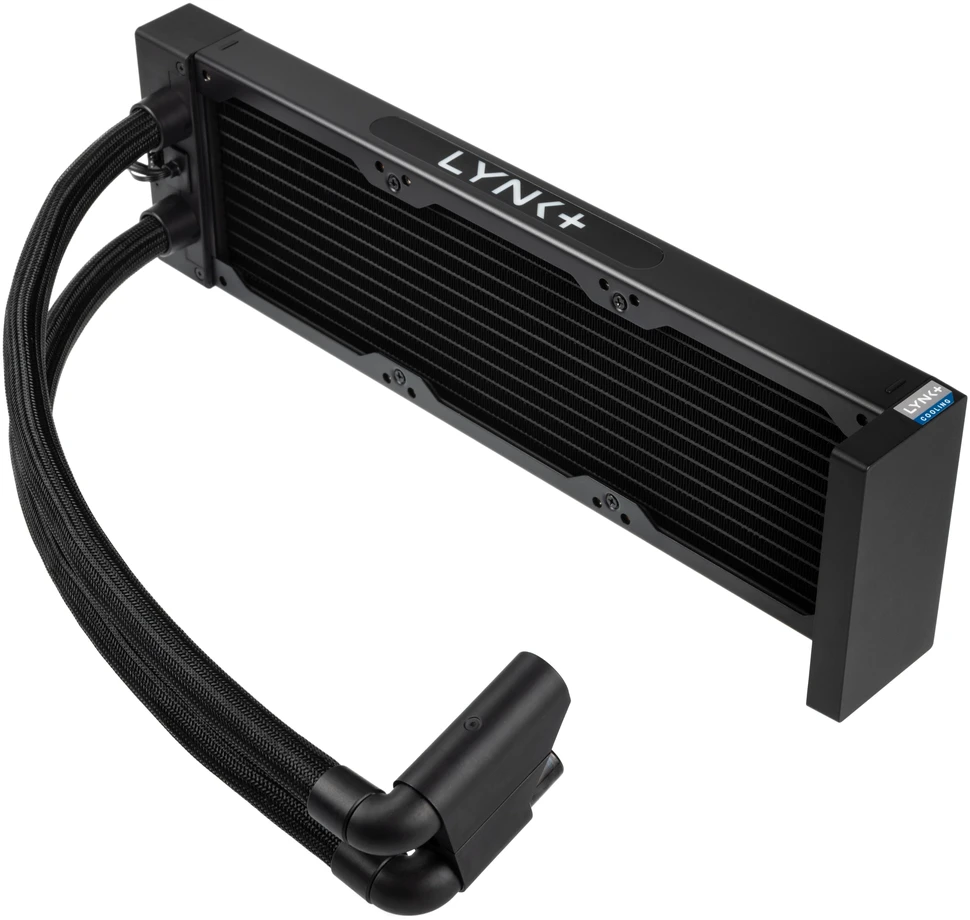

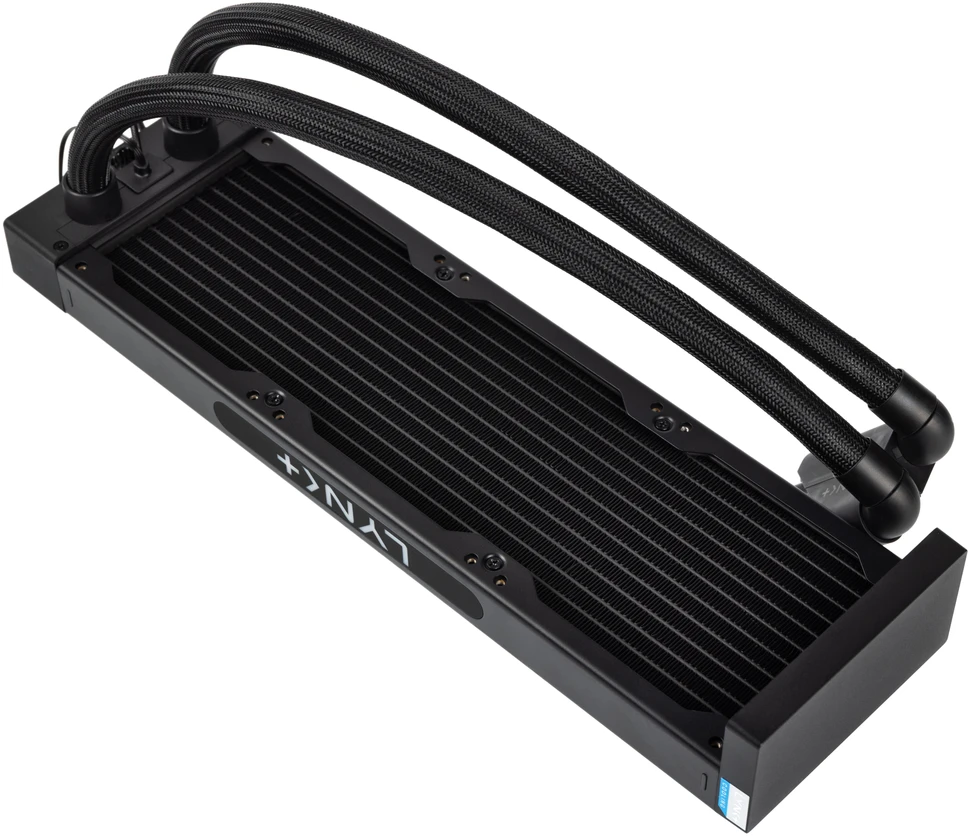

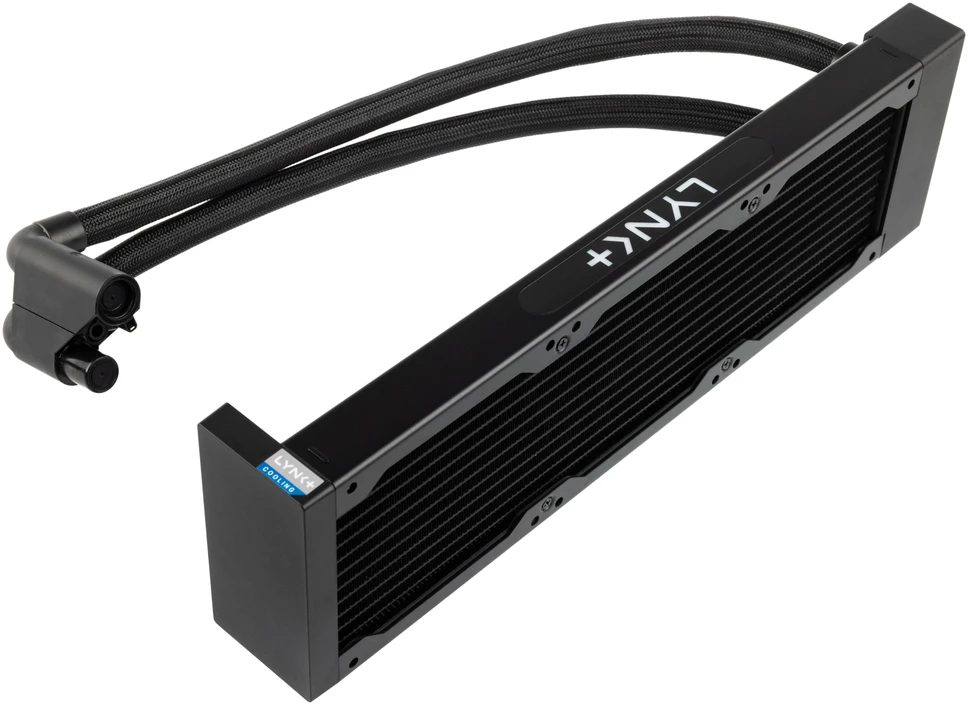

LYNK+ 360 Slim LED Radiator Module –...

Pre-filled 360 mm slim radiator with integrated pump, RGB logo, quick-connect, for the modular LYNK+ water cooling system, 410 mm wide

With the LYNK+ 360 Slim LED Radiator Module , you can build your own modular water cooling system – without the typical hurdles of classic custom loops. The radiator comes pre-filled, is ready to use immediately, and can be connected via quick-connect. You get powerful cooling, quiet operation, and a water circuit in your PC that you can expand at any time. To check if the radiator fits in your case, visit lynk.plus/compatibility.

No hassle: no filling, no bleeding, no risk
High cooling performance: 360 mm slim radiator for low temperatures despite compact height
Modular system: compatible with LYNK+ GPU or CPU cooler modules

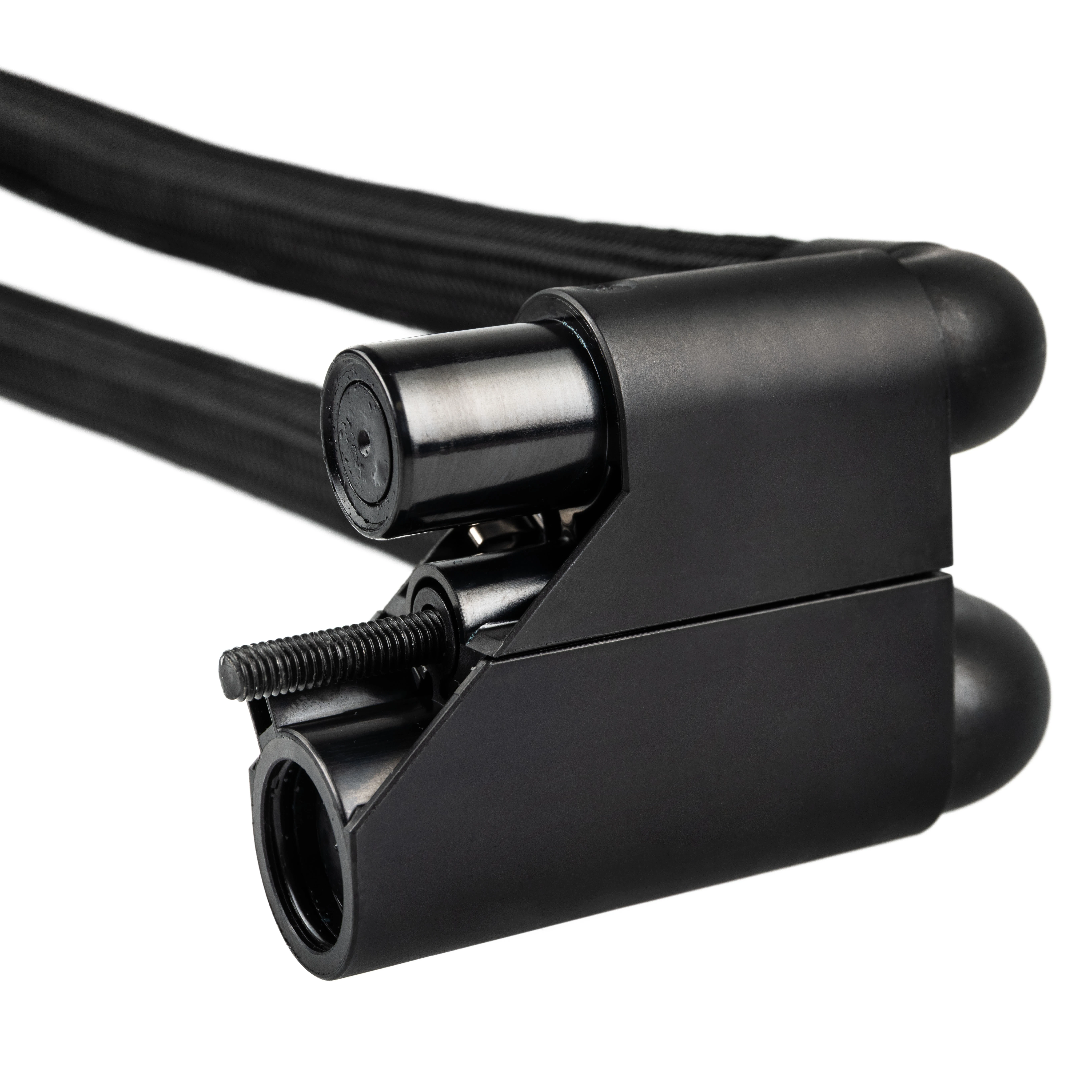

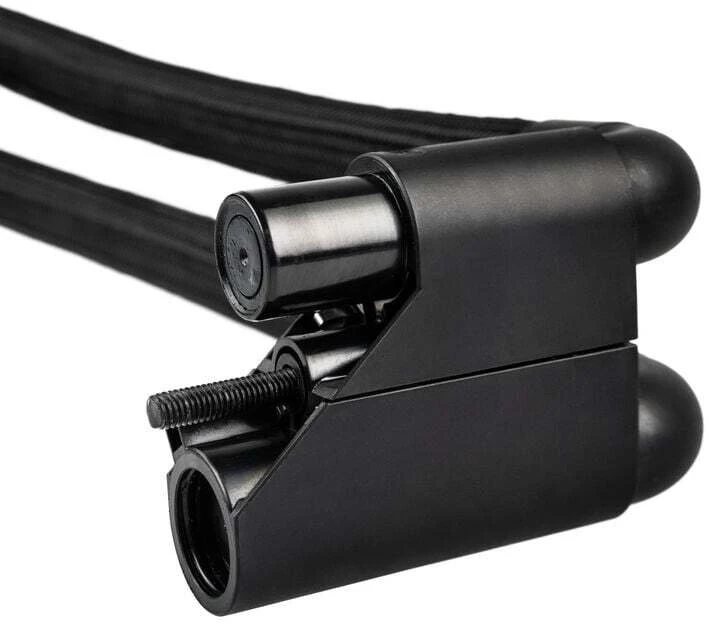

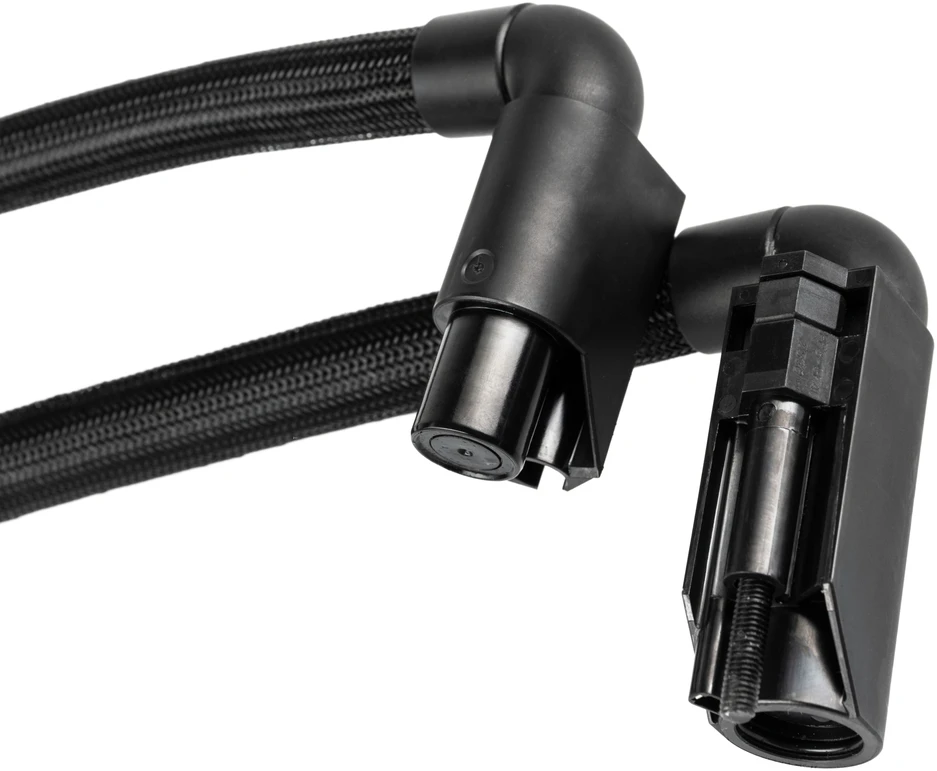

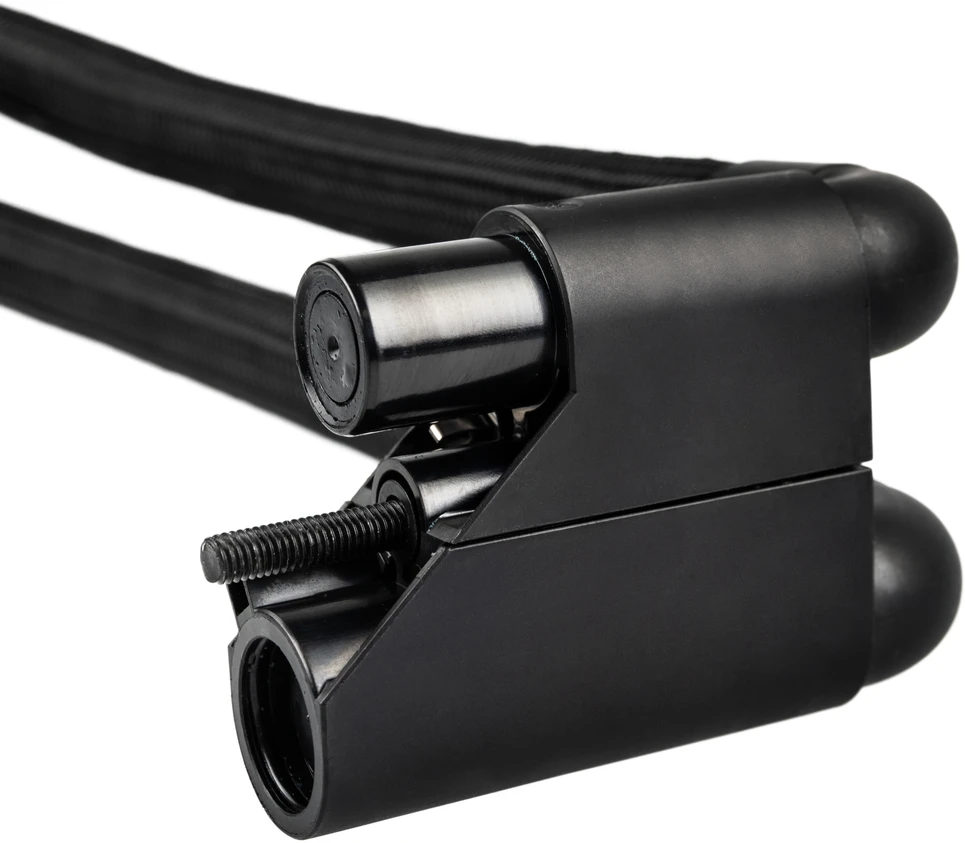

Drip-free quick connect: tool-free connection without leaking fluid
Integrated pump: quiet, efficient, and automatically controllable

Note: The LYNK+ GPU cooler module only works together with the LYNK+ radiator module. Both components form a single system.

What exactly is LYNK+?

LYNK+ is a modular water cooling system specially designed for graphics cards such as the GeForce RTX 5090. Instead of planning a complete custom loop, you use pre-filled modules with drip-free quick-connect fittings: radiator with integrated pump, full-cover GPU cooler, and matching plate kit. All parts are coordinated, arrive filled and ready to install, and can be connected without cutting, filling, or bleeding. This way, you get the performance of true water cooling – only much easier, cleaner, and more relaxed.

LYNK+ 360 Slim LED Radiator Module: Why this radiator is a real advantage

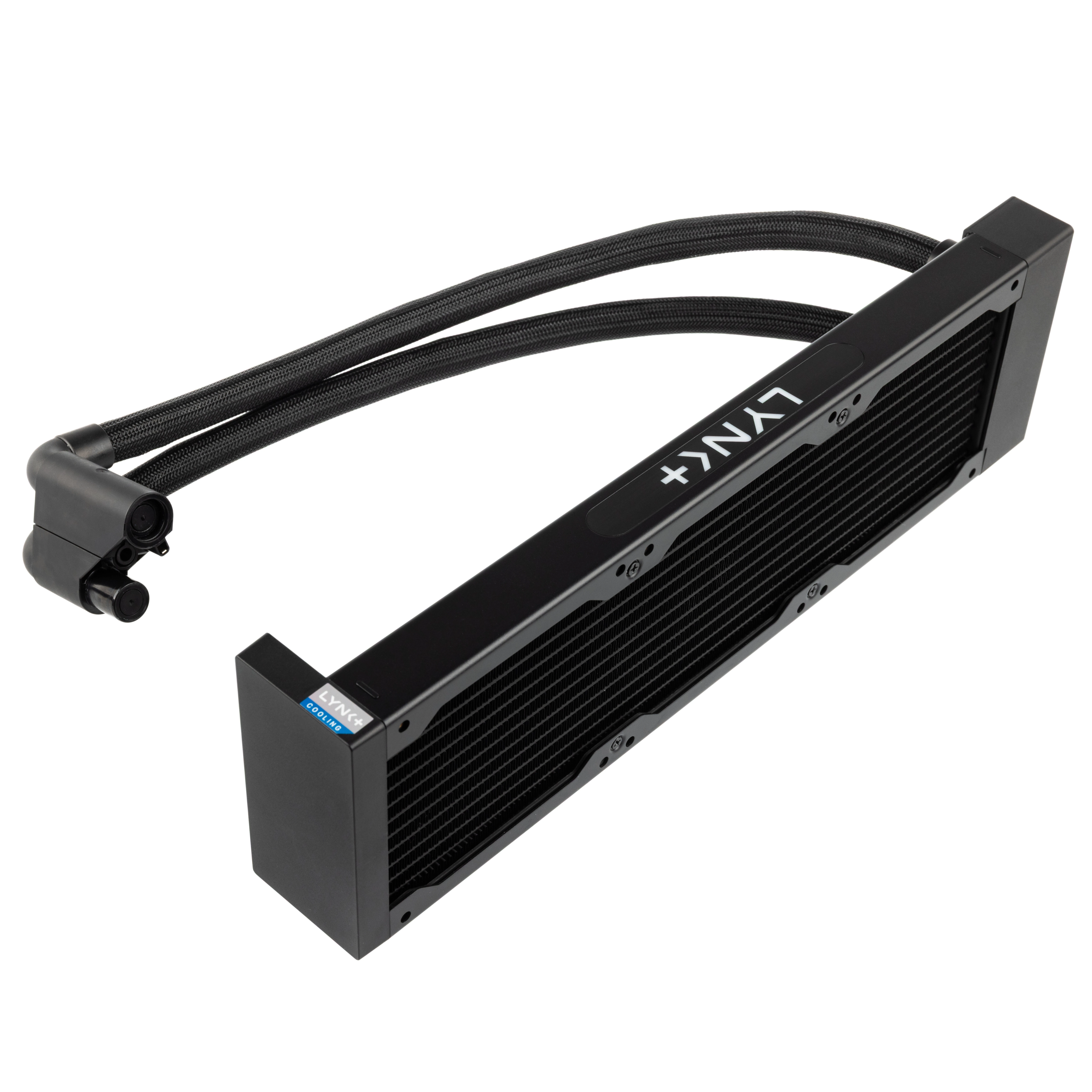

LYNK+ 360 Slim LED Radiator Module – juodas aprašymas - Prekės nuotrauka

Many users want the performance of water cooling but shy away from the effort. This is exactly where LYNK+ scores: the radiator is already filled with fluid. You don’t have to plan anything, cut anything, or seal hoses or fittings. Simply mount, connect – done. This achieves temperatures that otherwise only complex custom loops deliver.

A water cooling system that grows with your PC

With the quick-connect , you can easily add another GPU module or additional cooling units later. No rebuilding, no draining the fluid – you expand your system in just a few minutes. This makes LYNK+ especially attractive for users who want to upgrade their gaming PC over the years.

The robust hoses ensure that the cooling circuit remains permanently sealed. In everyday use, this means for you: No maintenance. No compromises.

Better temperatures, lower noise

Quiet operation thanks to integrated high-quality pump

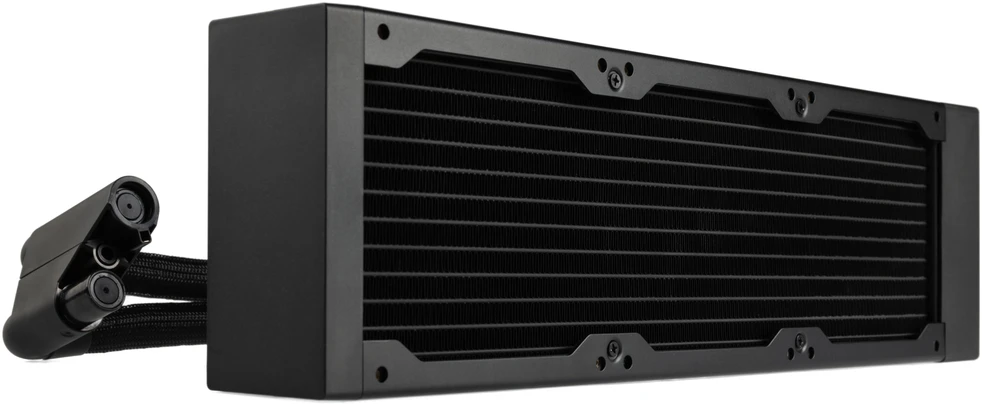

Large cooling surface with 30 mm thickness

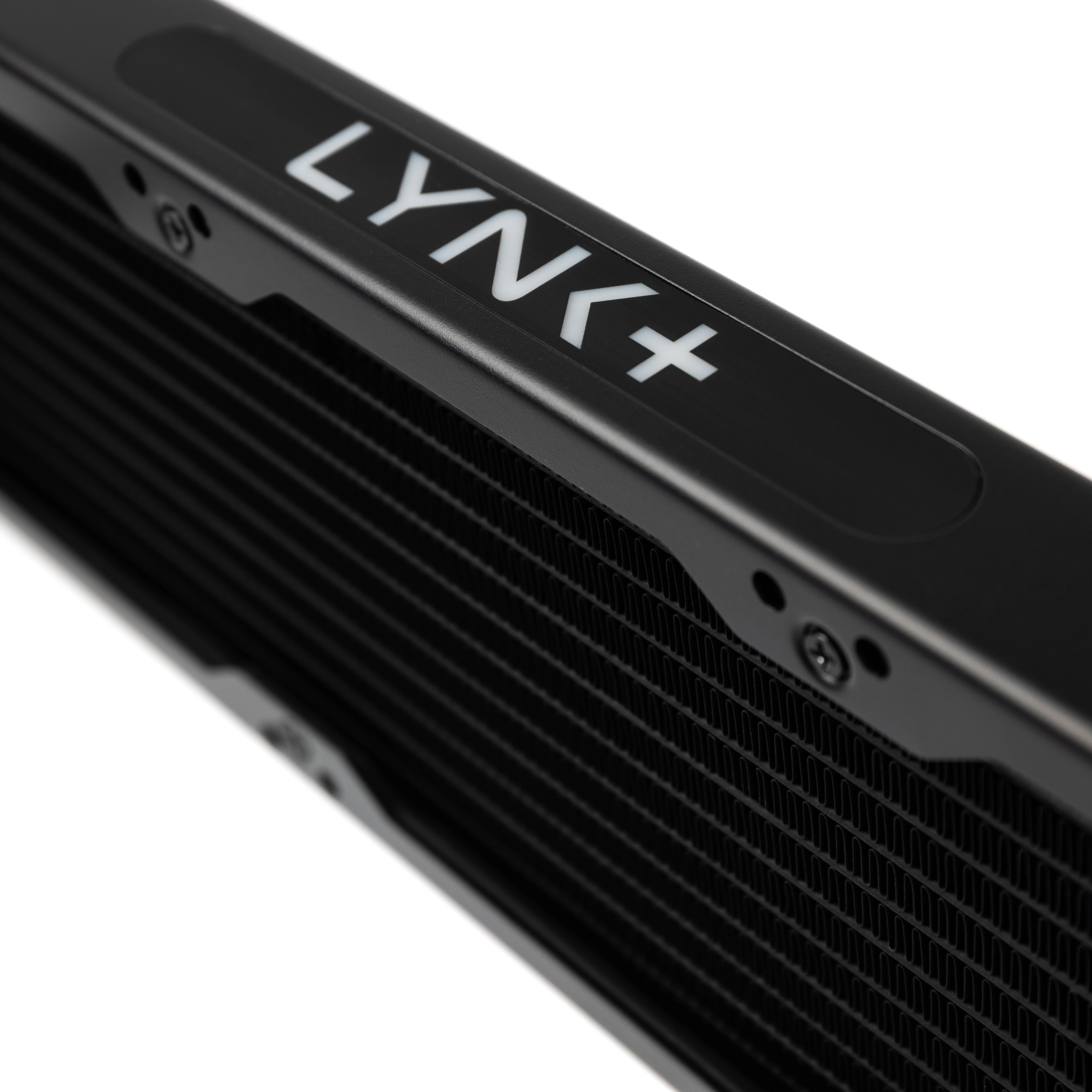

RGB logo for subtle lighting
Compatible with every LYNK+ component

Ideal for gamers who want maximum reliability – and for everyone who finally wants water cooling performance without the associated water cooling hassle.

Flexible, clean, prepared for the coming years

The radiator module forms the starting point of your cooling system. In combination with a GPU or CPU cooler module, you create your water cooling without ever having to dive into the world of complicated custom loops.

Easy positioning in the case

Thanks to the slim design, the radiator fits in many current cases. This way, you benefit from water cooling without having to completely rebuild your system.

Important compatibility notes

Fan compatibility: The system is compatible with all common wired 120 mm fans. Screws for 25 mm and 30 mm high fans are included.
Daisy-chain fans: Some daisy-chain models may be incompatible due to their external dimensions. Please check measurements or use fans recommended in the configurator.
Fan curve: The fan curve should always be adjusted to the maximum speed of the fans used.
Software: No additional software is needed for Asus motherboards. For other manufacturers, external software like “FanControl” may be required.
Case: Most cases that support 360 mm radiators are compatible. Please check the maximum installation height of the radiator in your case.

For more information, visit lynk.plus/compatibility. There you will also find a list of compatible cases. If you have installed LYNK+ in a case not listed, you can help the community by sending a photo of your LYNK+ setup – either directly by email or via Discord. If your case is not listed, please check whether it supports 360 mm radiators. Not all cases that have space for 3×120 mm fans also support radiators. Also note that radiators are not always the same length. The LYNK+ triple-fan radiators are 410 mm long – so please ensure your case has sufficient space.

Specification

Colour
Primary Colour	Black
Main radiator colour (cage)	Black
Main radiator colour (fins)	Black
Dimensions
Length / Depth	409 mm
Width	120 mm
Height	30 mm
Weight	1500 g
Radiator Size	360 mm
Radiator Height	30 mm
Tube length	450 mm
Pump Specifications
Max. Pump Speed RPM	4700 rpm
Min. Pump Speed RPM	3900 rpm
Pump Bearing	Ceramic Bearing
Type
CPU Cooler Type	AiO Liquid Cooler
Display
Display Included	No
Fan Specifications
Fan Size	120 mm
Water Cooling
Water cooling connectors	LYNK+ Quick Connect
Fan Support
Included fans	0
Fan Compatibility	3x 120 mm
Noise
Max. Pump Noise dB(A)	21.75 dB(A)
Internal Ports
Pump connectors	SATA (power)
RGB / LED connectors	1x Digital RGB (3-Pin 5VDG)
Materials
Materials	Aluminium
Heat Sink Material	Aluminium
Lighting
Lighting / RGB	Yes
Product Series
Product Series/Family	LYNK+ RTX 50 Series
